Seat Belt Component Views

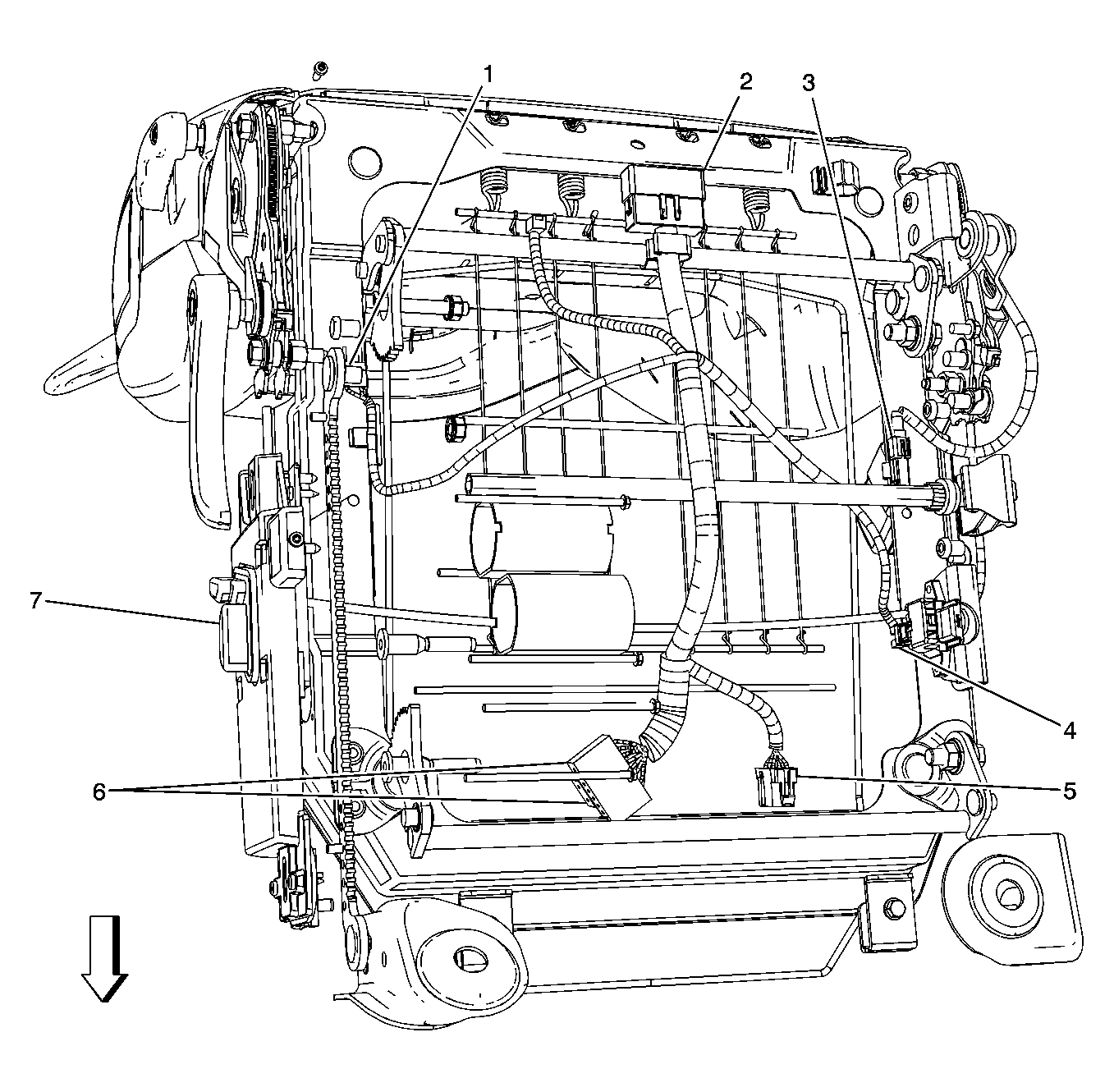

Fig 1: Driver Seat Base Level Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Motor - Driver Connector
2	C300
3	Seat Belt Switch - Driver Connector
4	Inflatable Restraint Seat Position Sensor (SPS) - Left Connector
5	C313
6	Seat Adjuster Switch - Driver Connector C1,C2
7	Seat Adjuster Switch - Driver
