Removal Procedure
CAUTION:
Refer to SIR CAUTION
.
- Disable the SIR system. Refer to ZONE 3 .
- Remove the body control module (BCM). Refer to BODY CONTROL MODULE REPLACEMENT .
- Put the shift lever clevis into the neutral position.
- Disconnect the electrical connector.

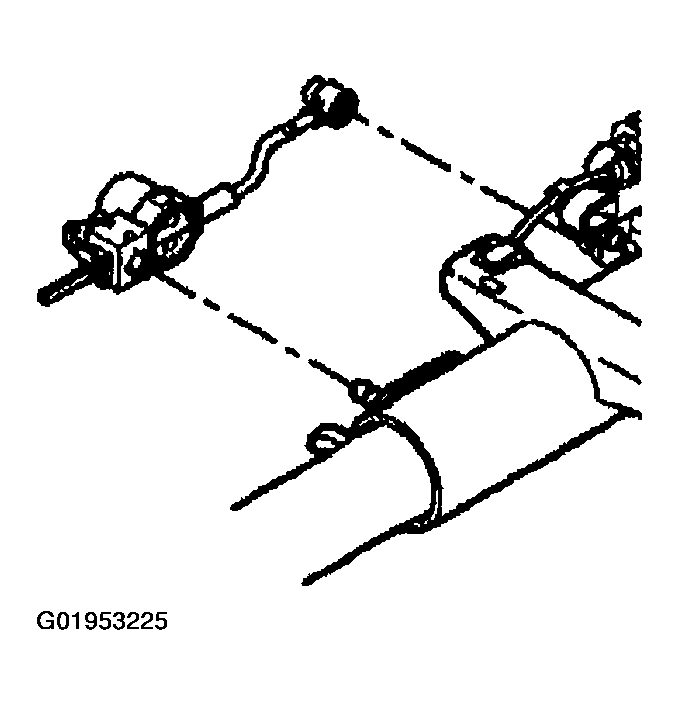

- Using a small screwdriver, pry the automatic transmission shift lock control actuator away from the steering column jacket and the cable shift cam.
- Remove the shift lock control actuator.
