Automatic Transmission Shift Lock Control Connector End Views

Fig 1: Shift Lock Diode

Courtesy of GENERAL MOTORS CORP.

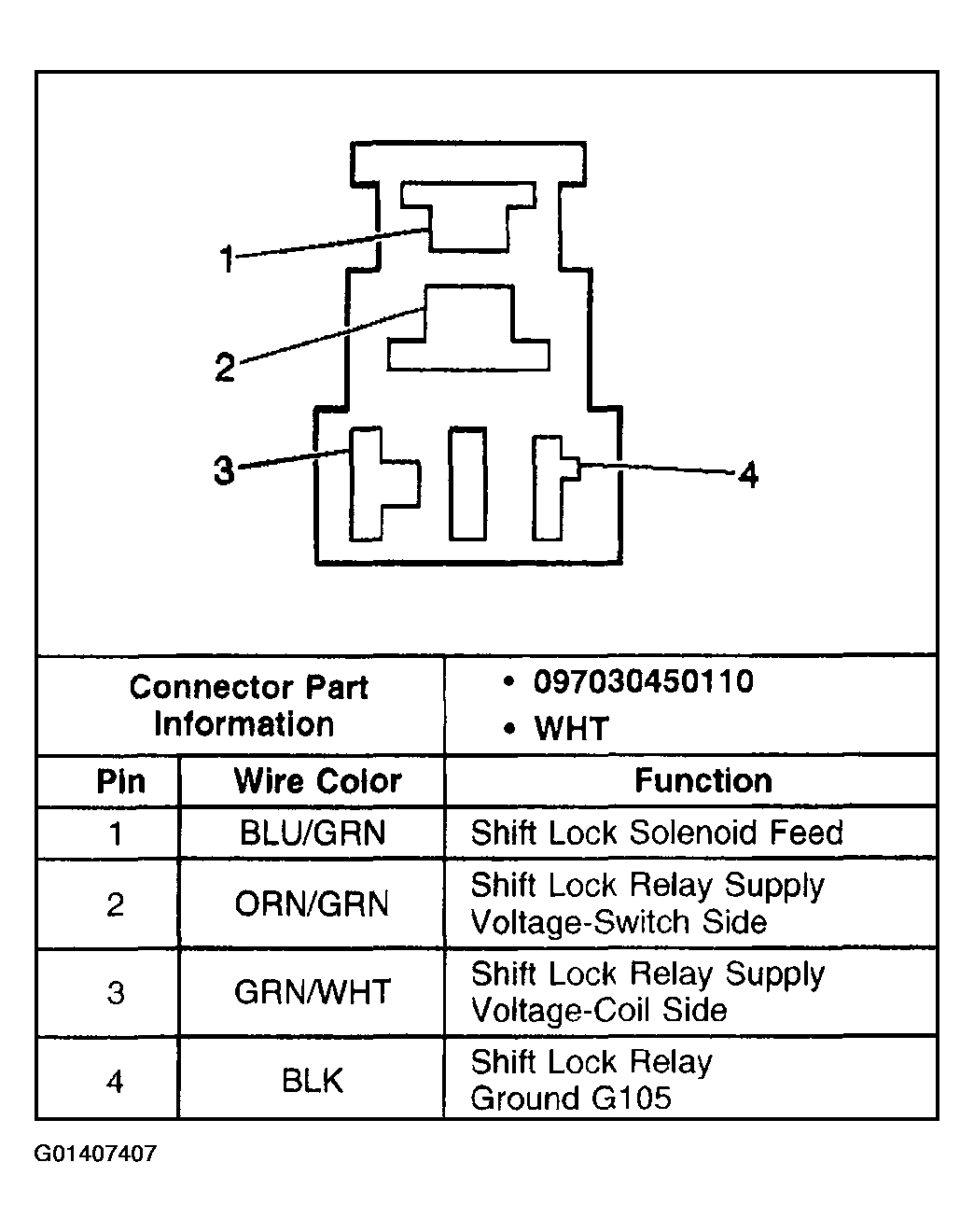

Fig 2: Shift Lock Relay

Courtesy of GENERAL MOTORS CORP.

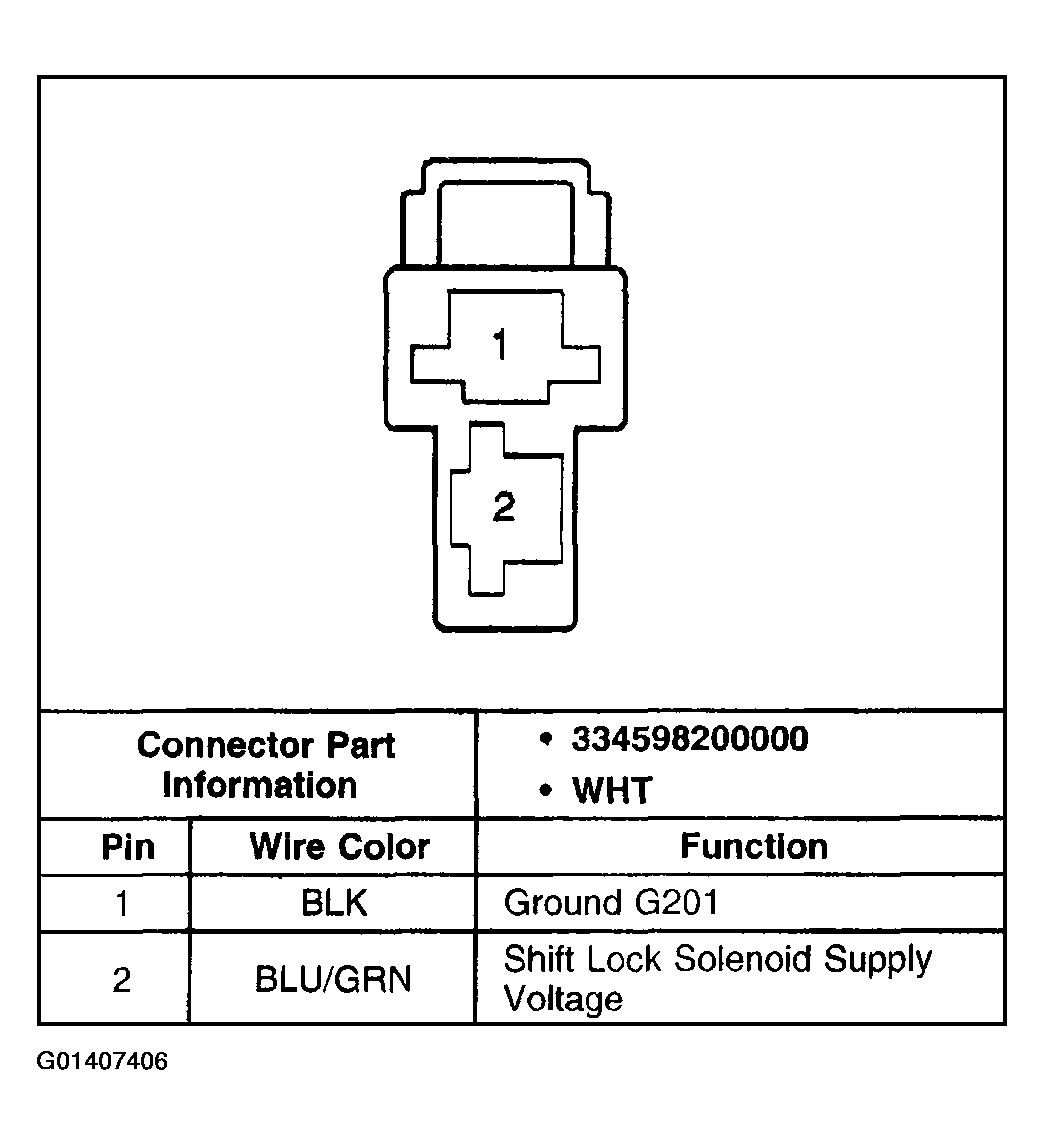

Fig 3: Shift Lock Solenoid

Courtesy of GENERAL MOTORS CORP.

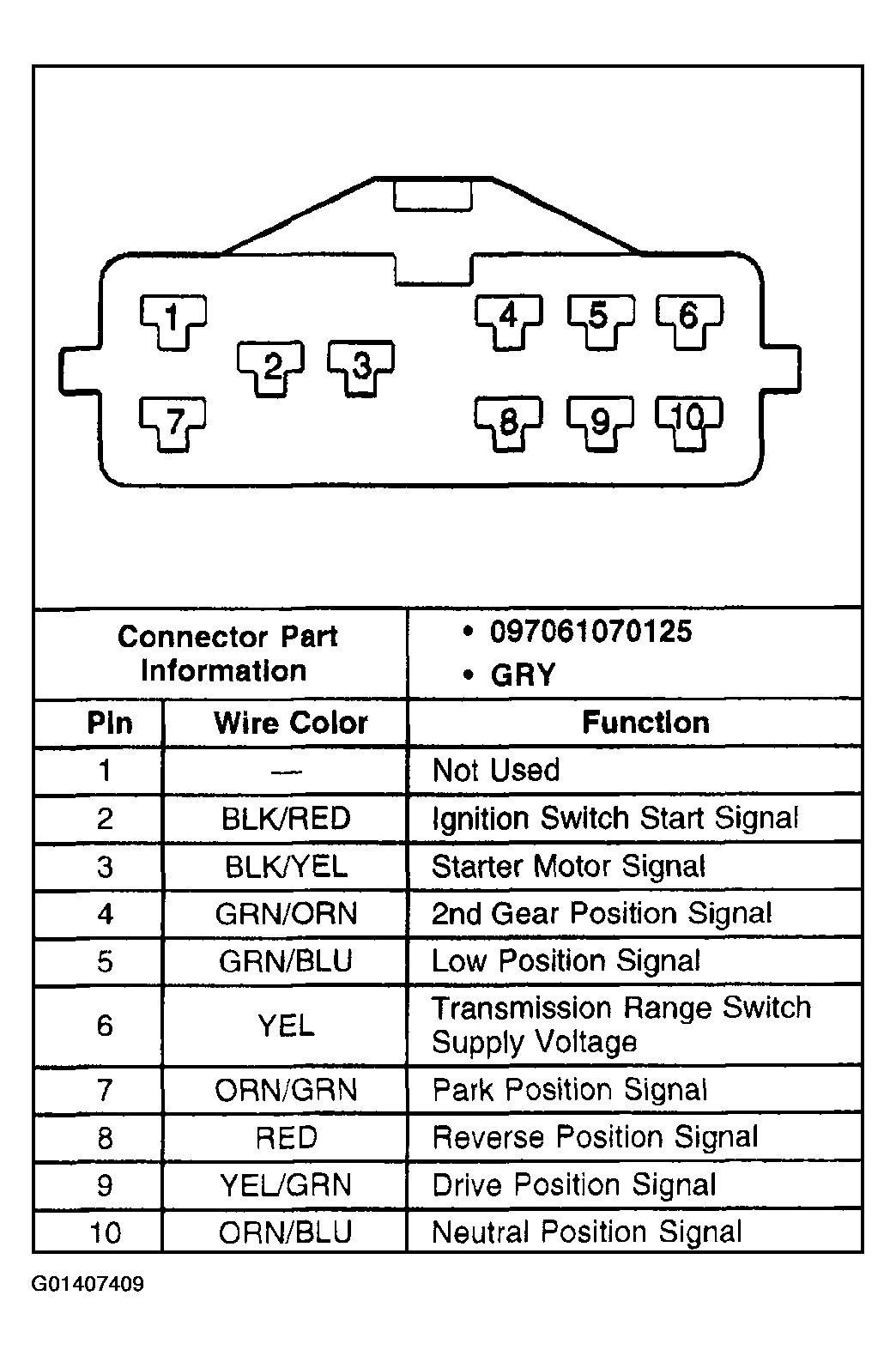

Fig 4: Transmission Range Switch

Courtesy of GENERAL MOTORS CORP.
