Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable (1).

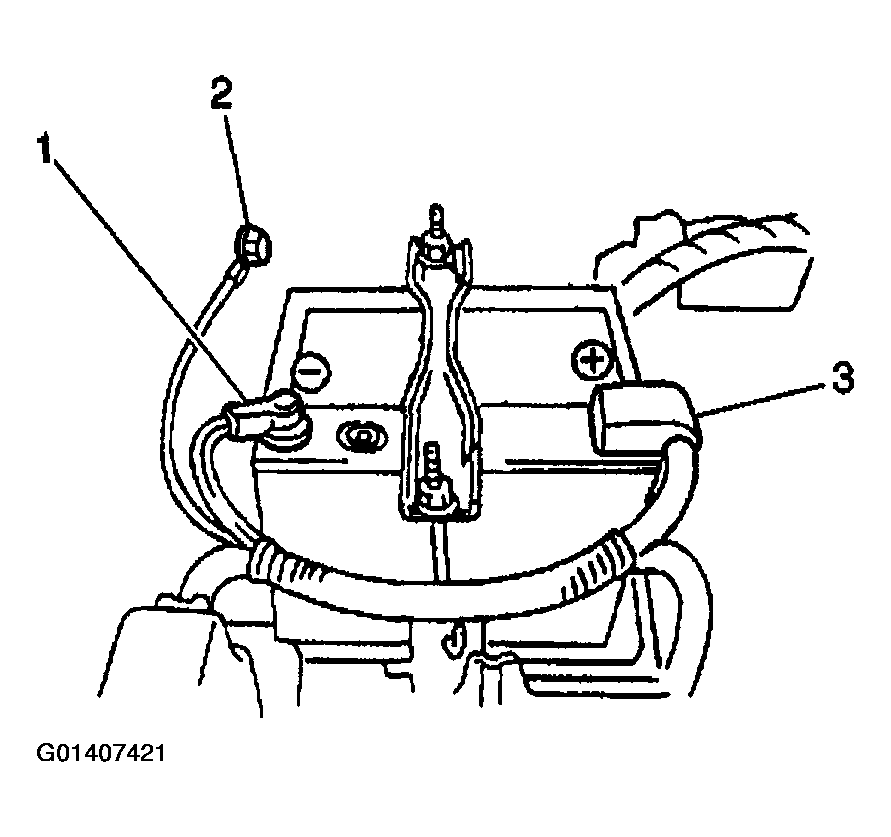

    Fig 1: Disconnecting Negative Battery Cable
    G01407421Courtesy of GENERAL MOTORS CORP.
  2. Remove the following items from the floor:
    • The 4 screws (1,6,3,4)
    • The 2 plastic retaining clips (2,5)
    • The console box

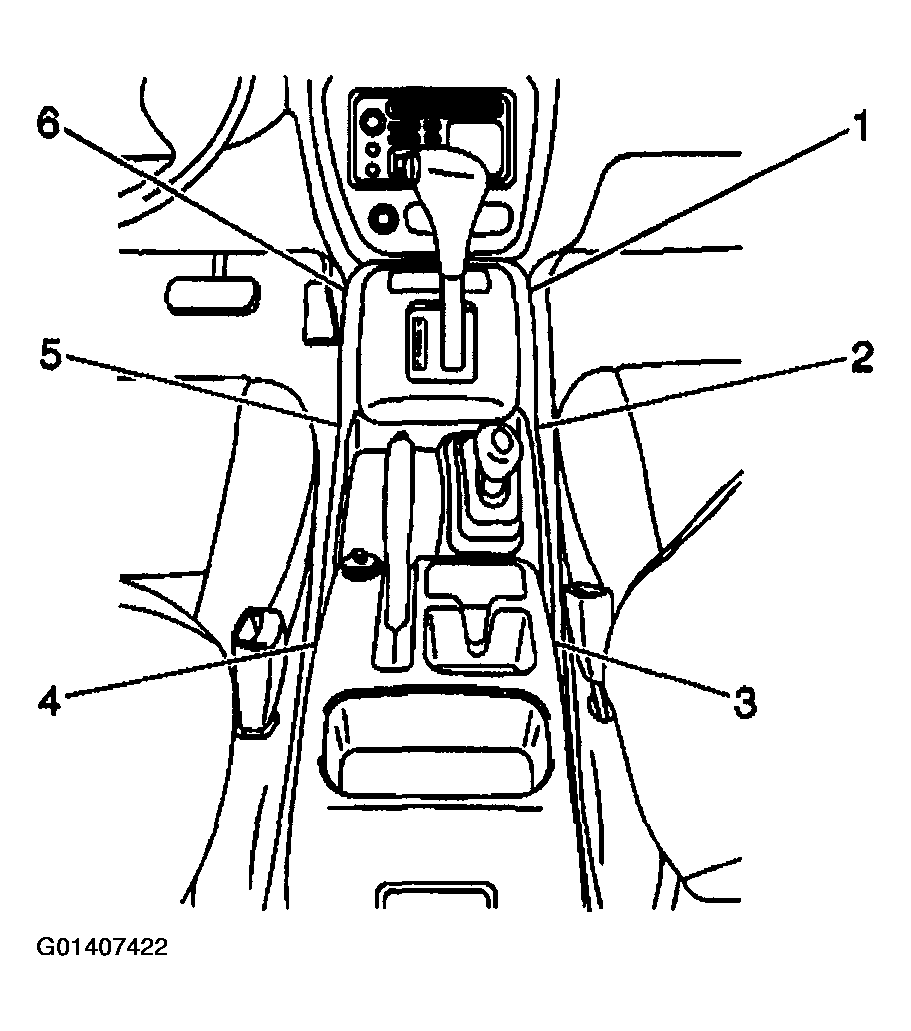

    Fig 2: Console Box Screws & Retaining Clips
    G01407422Courtesy of GENERAL MOTORS CORP.
  3. Remove the shift lock solenoid electrical connector (3) from under the carpet and disconnect.
  4. Remove the shift indicator lamp electrical connector.
  5. Remove the shift indicator lamp (1).
  6. Remove the shift lock solenoid cover (2).

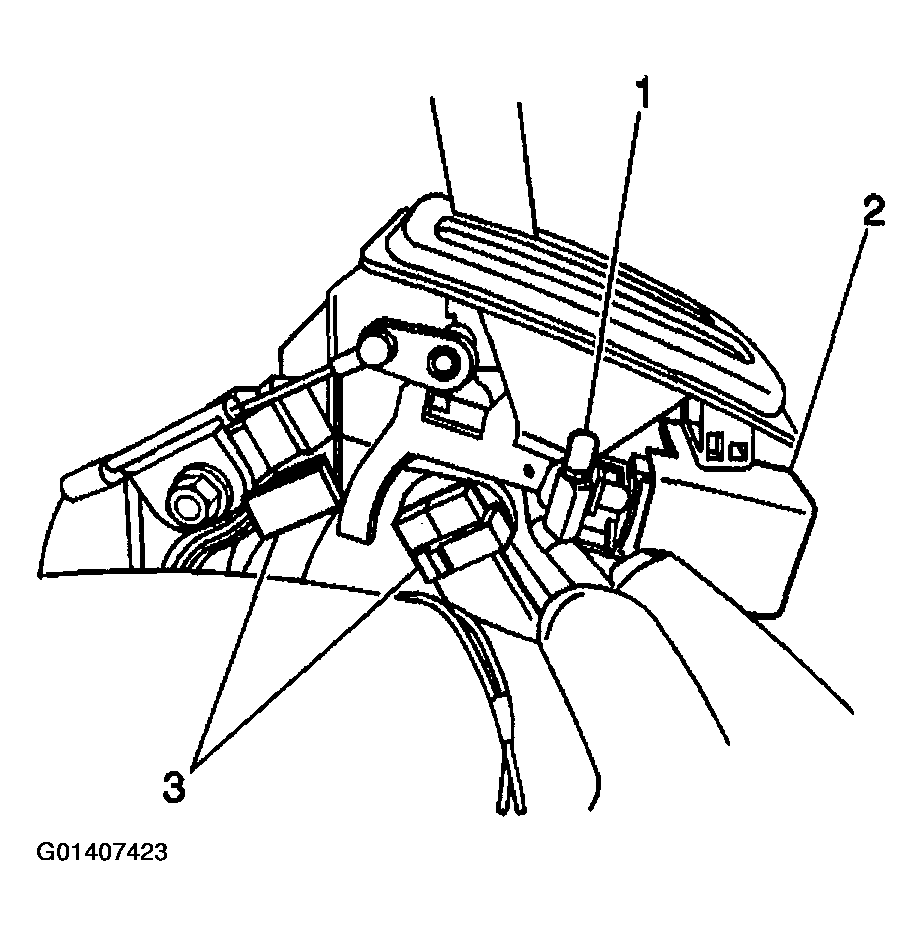

    Fig 3: Shift Lock Solenoid Electrical Connector
    G01407423Courtesy of GENERAL MOTORS CORP.
  7. Remove the shift lock solenoid (2) from the manual selector.

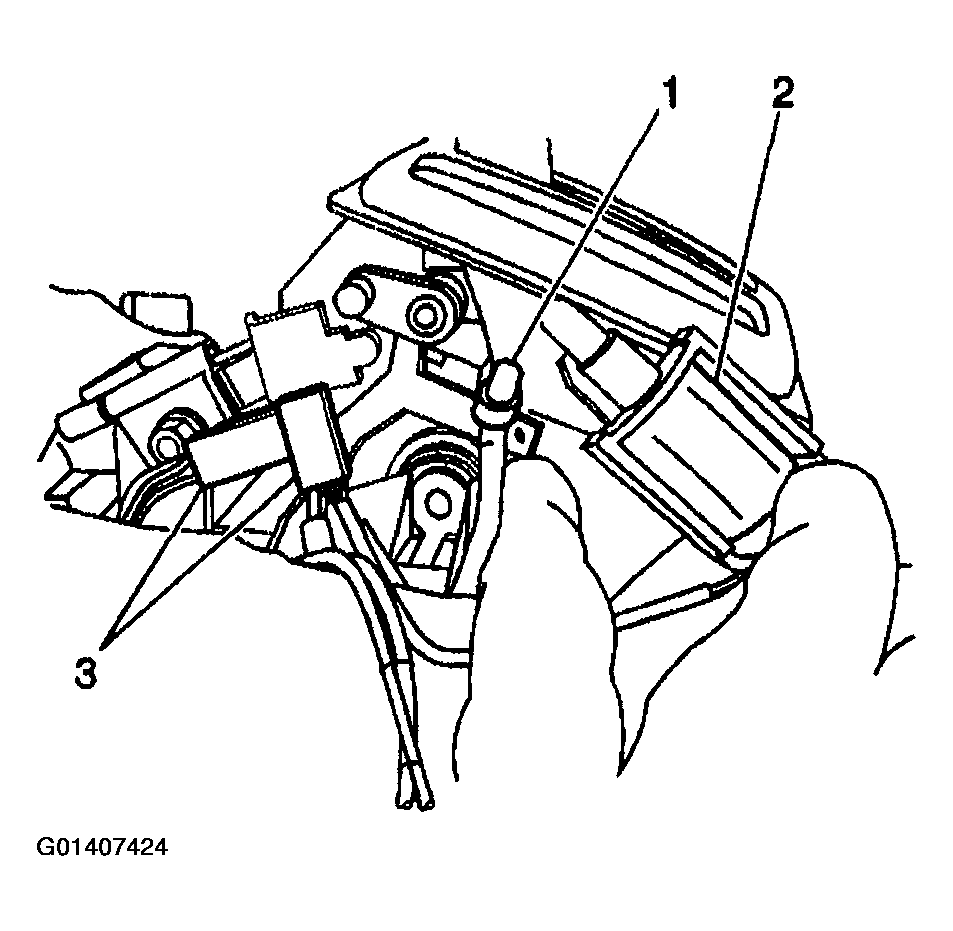

    Fig 4: Removing Shift Lock Solenoid From Manual Selector
    G01407424Courtesy of GENERAL MOTORS CORP.
