Connector Identification

Fig 1: Identifying AIR Pump Relay Connector Terminals
G00113323Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Camshaft Position Sensor Connector Terminals
G00113324Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Crankshaft Position Sensor "A" Connector Terminals
G00113325Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Crankshaft Position Sensor "B" Connector Terminals
G00113326Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Engine Coolant Temperature Sensor Connector Terminals
G00113327Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying EGR Valve Connector Terminals
G00113330Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying EVAP Canister Purge Solenoid Connector Terminals
G00113328Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying EVAP Canister Vent Solenoid Connector Terminals
G00113329Courtesy of GENERAL MOTORS CORP.

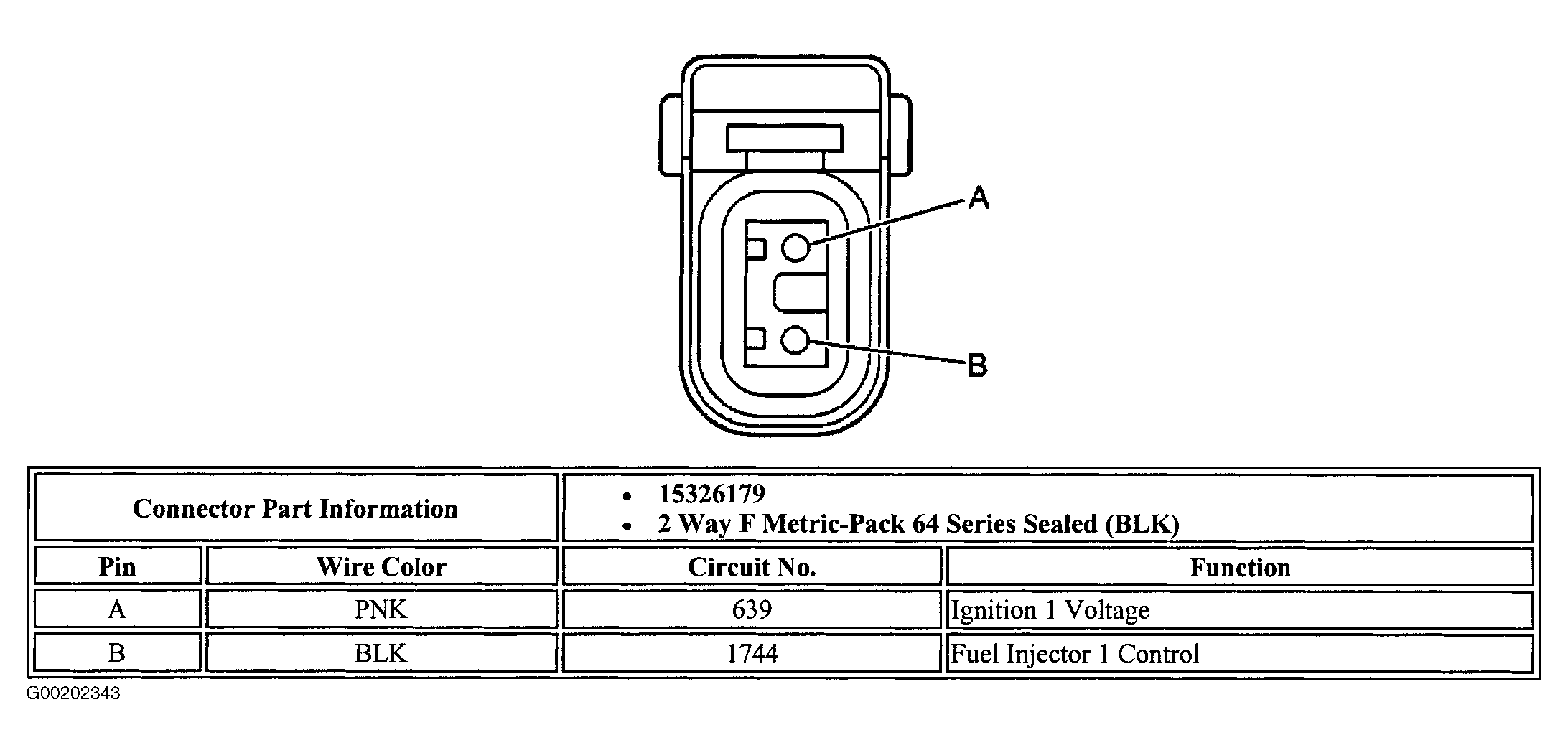

Fig 9: Identifying Fuel Injector No. 1 Connector Terminals
G00202343Courtesy of GENERAL MOTORS CORP.

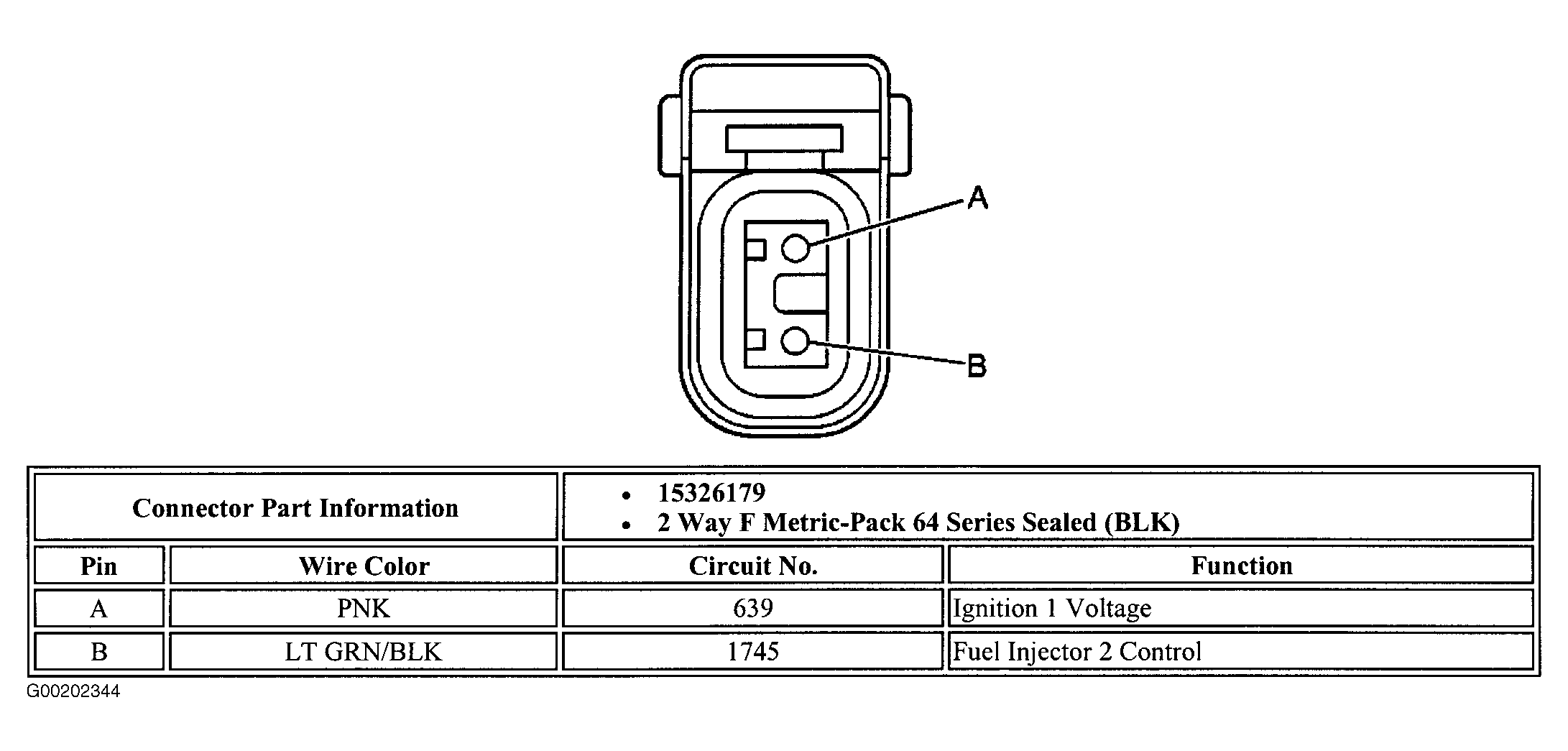

Fig 10: Identifying Fuel Injector No. 2 Connector Terminals
G00202344Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Fuel Injector No. 3 Connector Terminals
G00202345Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Fuel Injector No. 4 Connector Terminals
G00202346Courtesy of GENERAL MOTORS CORP.

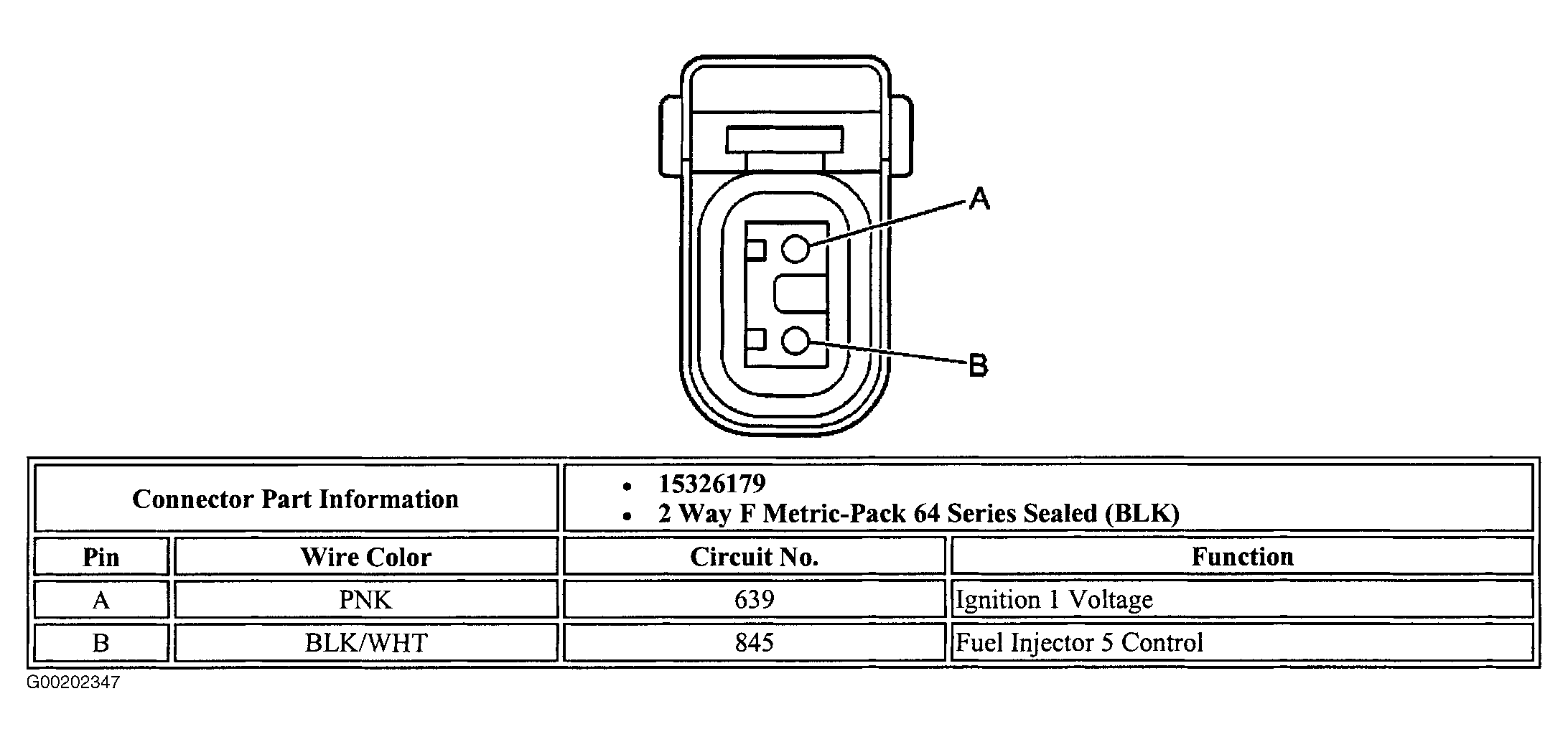

Fig 13: Identifying Fuel Injector No. 5 Connector Terminals
G00202347Courtesy of GENERAL MOTORS CORP.

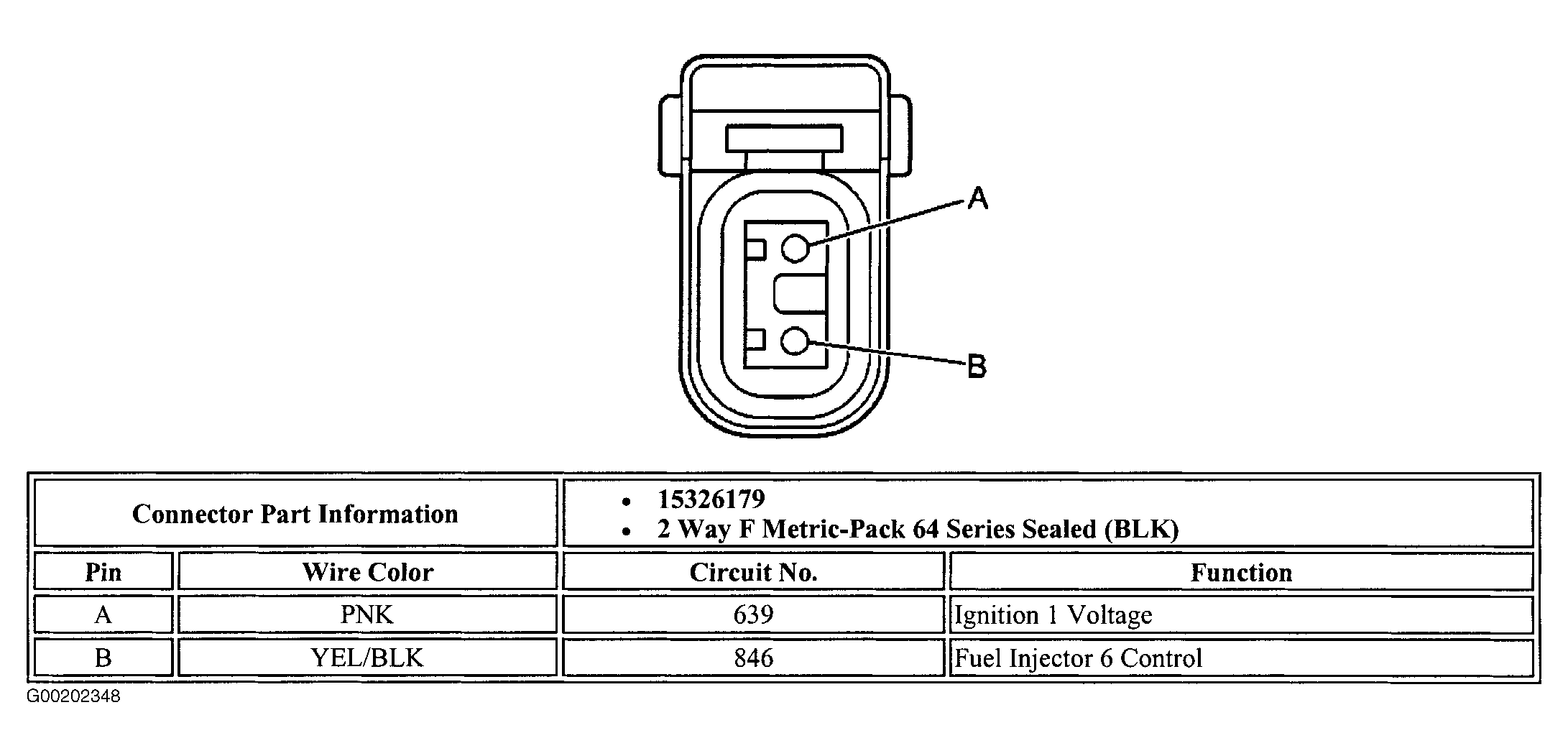

Fig 14: Identifying Fuel Injector No. 6 Connector Terminals
G00202348Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying Fuel Pump Sender Connector Terminals
G00113331Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00113332Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying HO2S 1 Connector Terminals
G00113333Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying HO2S 2 Connector Terminals
G00113334Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Idle Air Control Valve Connector Terminals
G00101510Courtesy of GENERAL MOTORS CORP.

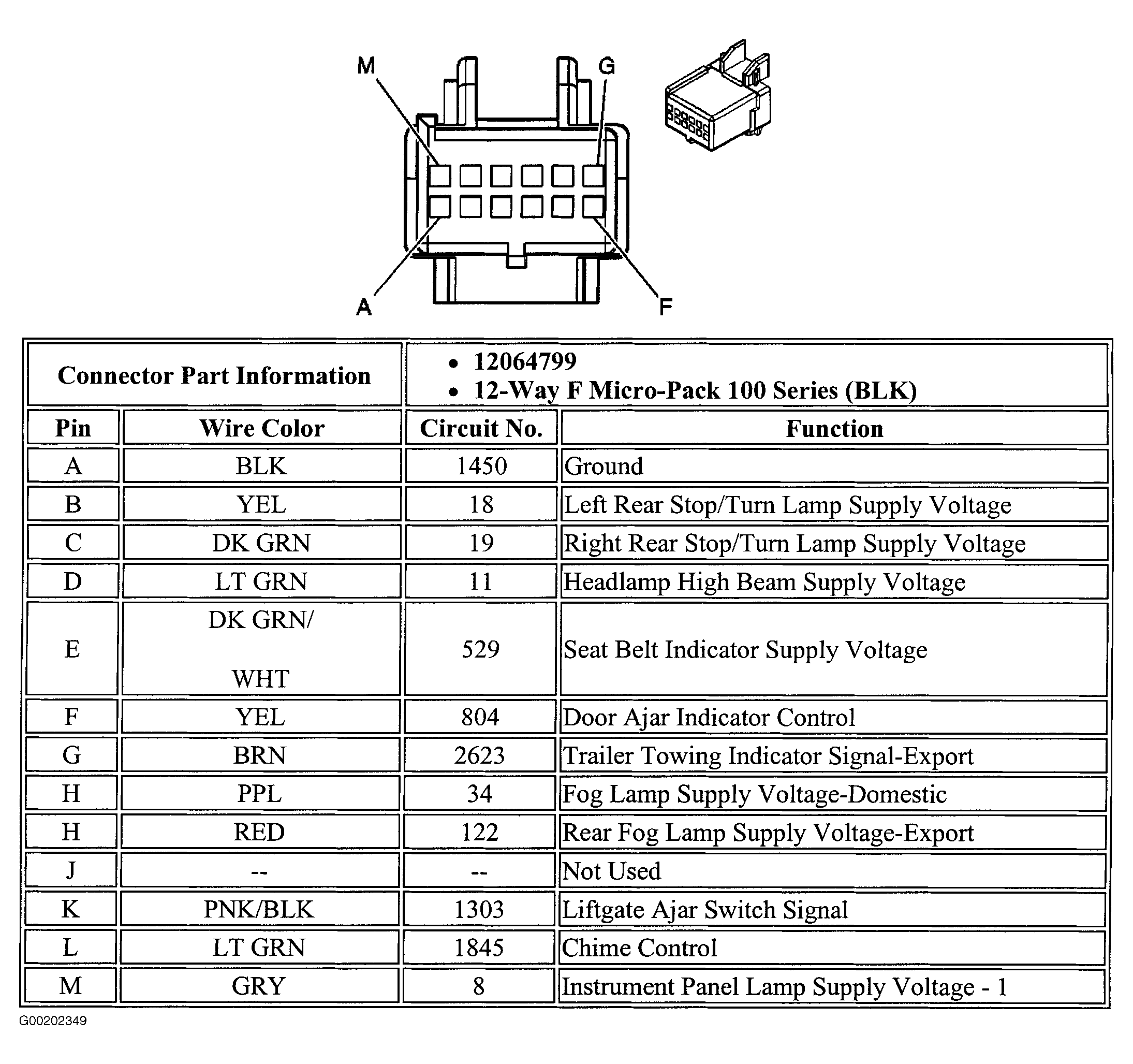

Fig 20: Identifying Instrument Panel Cluster C1 Connector Terminals
G00202349Courtesy of GENERAL MOTORS CORP.

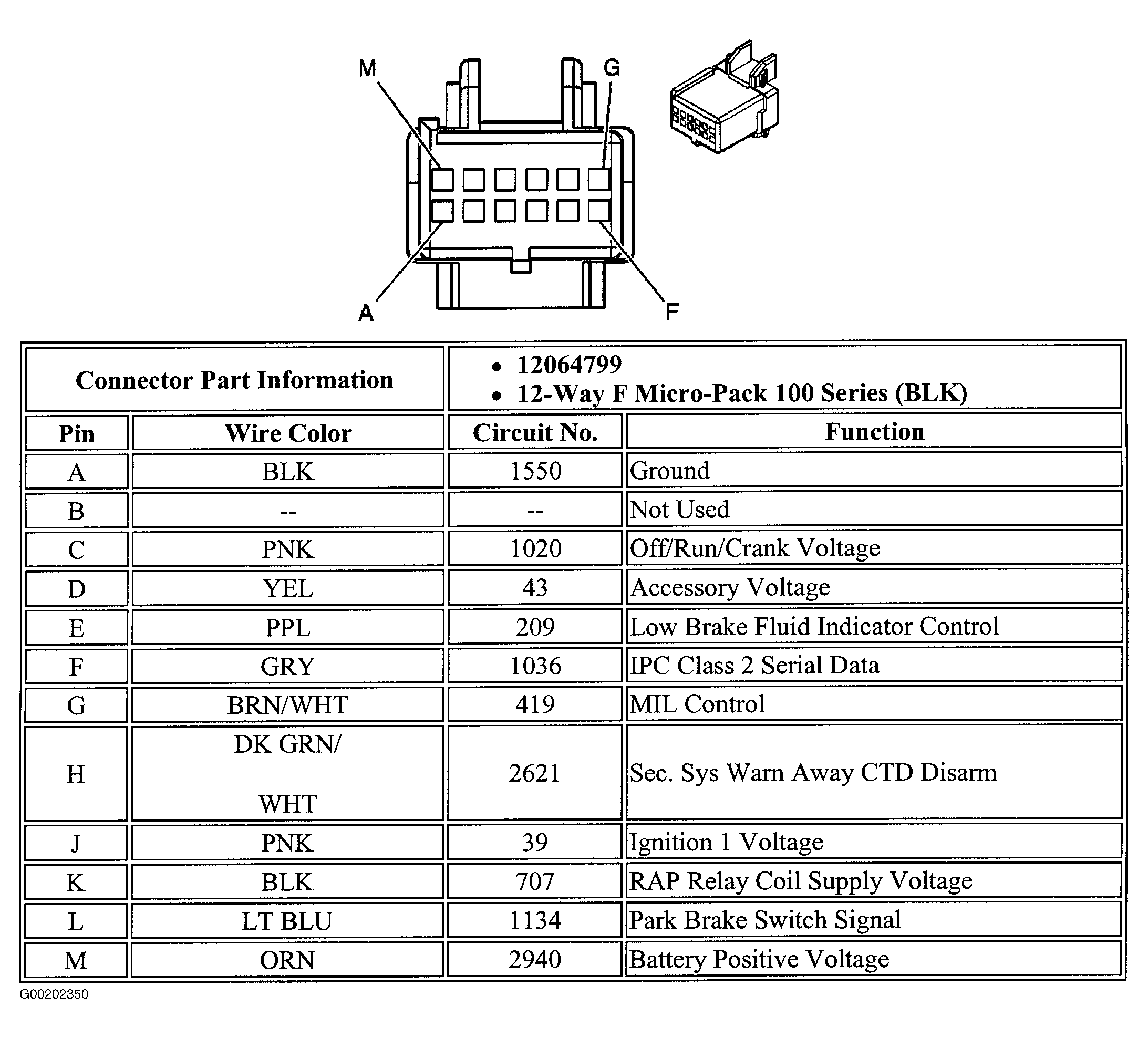

Fig 21: Identifying Instrument Panel Cluster C2 Connector Terminals
G00202350Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Intake Air Temperature Sensor Connector Terminals
G00113337Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Ignition Control Module Connector C1 Terminals
G00113335Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Ignition Control Module Connector C2 Terminals
G00113336Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Mass Airflow Sensor Connector Terminals
G00113339Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying MAP Sensor Connector Terminals
G00113338Courtesy of GENERAL MOTORS CORP.

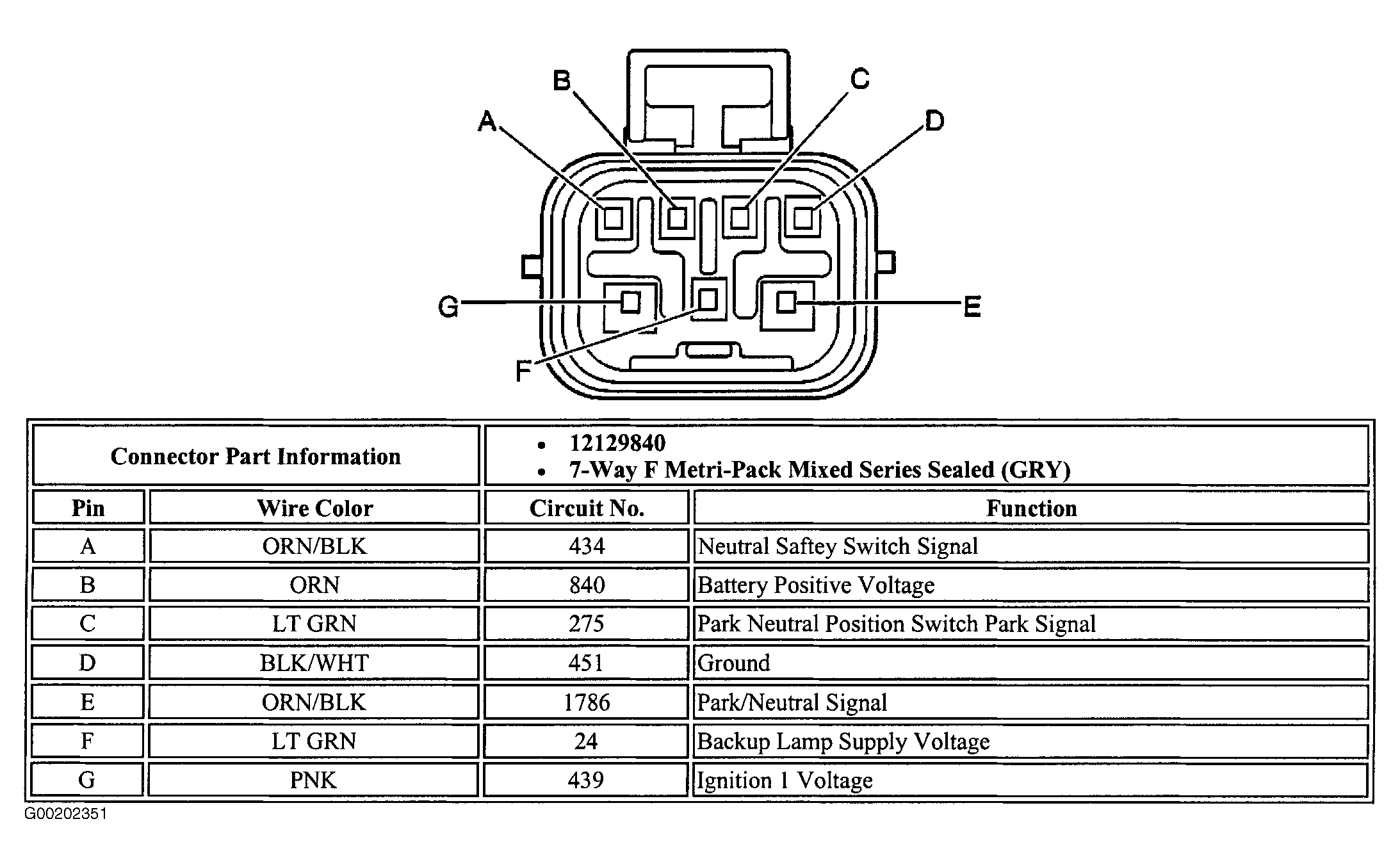

Fig 27: Identifying Park/Neutral Position Switch Connector Terminals
G00202351Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying PCM Connector C1 Terminals (1 Of 3)
G00101523Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying PCM Connector C1 Terminals (2 Of 3)
G00101527Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying PCM Connector C1 Terminals (3 Of 3)
G00101528Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying PCM Connector C2 Terminals (1 Of 3)
G00101529Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying PCM Connector C2 Terminals (2 Of 3)
G00101530Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying PCM Connector C2 Terminals (3 Of 3)
G00101531Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying TP Sensor Connector Terminals
G00113340Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying Vehicle Speed Sensor Connector Terminals
G00113341Courtesy of GENERAL MOTORS CORP.
