Installation Procedure

Install the accelerator cable to the bulkhead (1).
- Ensure all locking tabs (3) are expanded to secure cable assembly to dash panel (1).
- Ensure dash panel insulator does not come in contact with any portion of the cable.

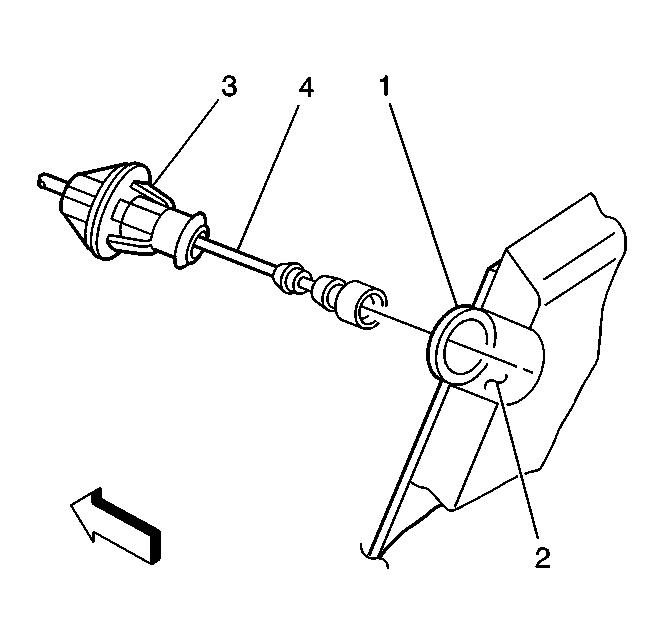

Fig 1: Expanded View Of Accelerator Cable Assembly At The Bulkhead
Courtesy of GENERAL MOTORS CORP.
Install the accelerator cable (1) to the accelerator pedal (3). Ensure the retainer (2) is securely seated to the accelerator pedal.

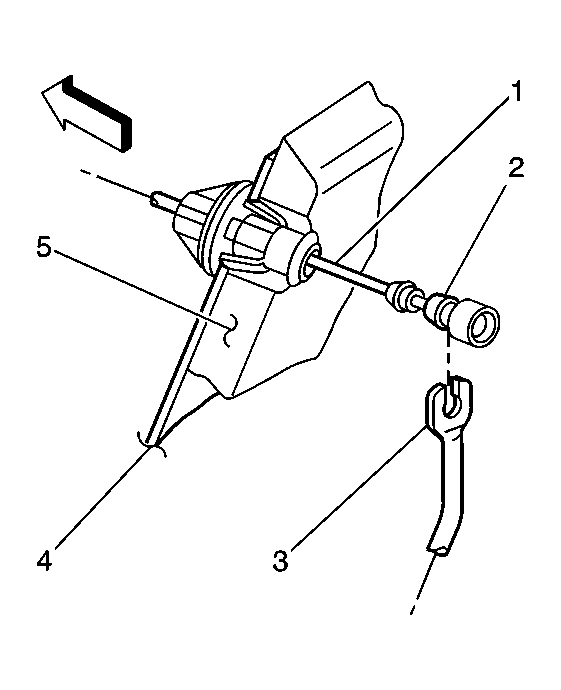

Fig 2: Identifying Accelerator Cable Assembly Components
Courtesy of GENERAL MOTORS CORP.
Install the accelerator cable to the engine cable bracket.

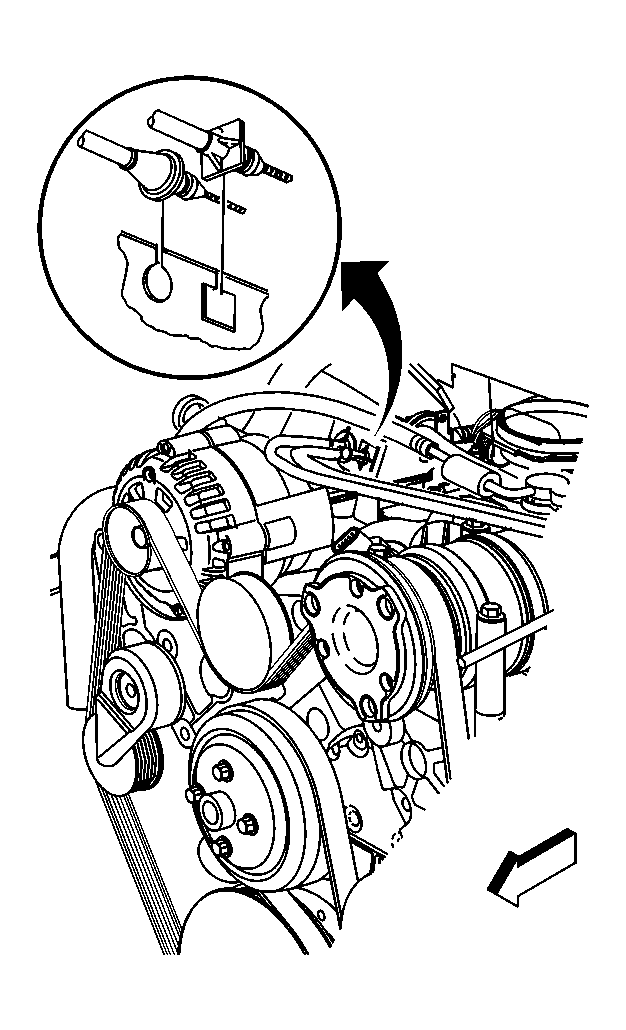

Fig 3: Expanded View Of Accelerator Cable From The Engine Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Install the accelerator cable to the throttle lever.

Fig 4: Identifying Accelerator Cable/Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
Install the engine cover. Refer to Engine Cover Replacement in Interior Trim.
