Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the air cleaner outlet duct to the MAF/IAT sensor.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

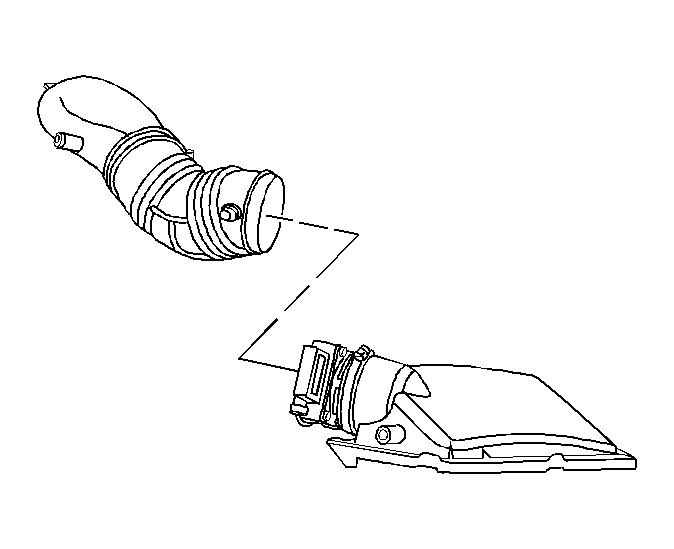

Fig 1: View Of Air Cleaner Outlet Duct
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner outlet duct (2) on the throttle body assembly.
Tighten the retaining nut (1).
Tighten: Tighten the nut 2 N.m (18 lb in).

Fig 2: Locating Air Cleaner Outlet Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Install the engine cover. Refer to Engine Cover Replacement in Interior Trim.
Connect the negative battery cable.
