Installation Procedure

IMPORTANT: Each injector is calibrated for a specific flow rate. Order the correct injector for the application being serviced when replacing the fuel injectors.
  1. Lubricate the O-ring seals with engine oil on the new fuel injector assembly (3).
  2. Install the fuel injector assembly (3) into the fuel meter body (1).

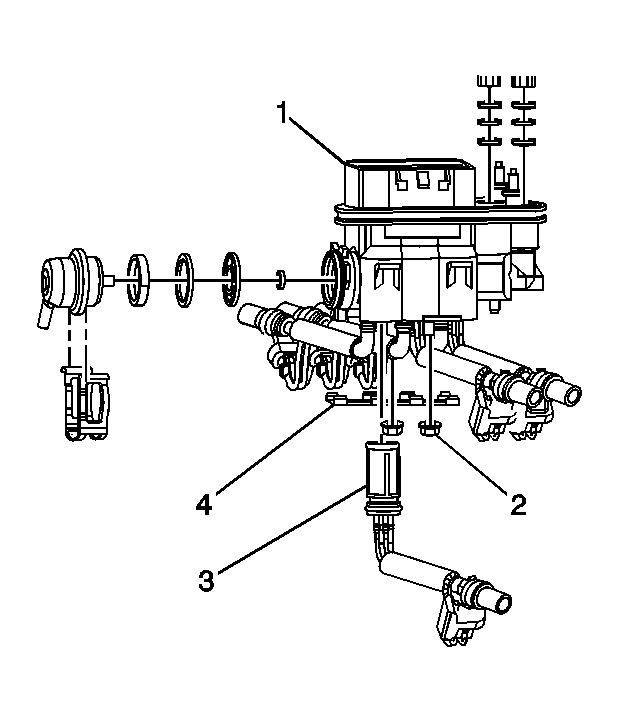

    Fig 1: Expanded View Of Fuel Meter Body Assembly
    GM830261Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the injector assembly retainer (4) and the injector retainer lock nuts (2).

    Tighten:  Tighten the injector retainer lock nuts to 3 N.m (27 lb in).

  4. Install the fuel meter body assembly. Refer to Fuel Meter Body Assembly Replacement .
