Installation Procedure

  1. Install the IAT sensor in the air cleaner outlet duct.

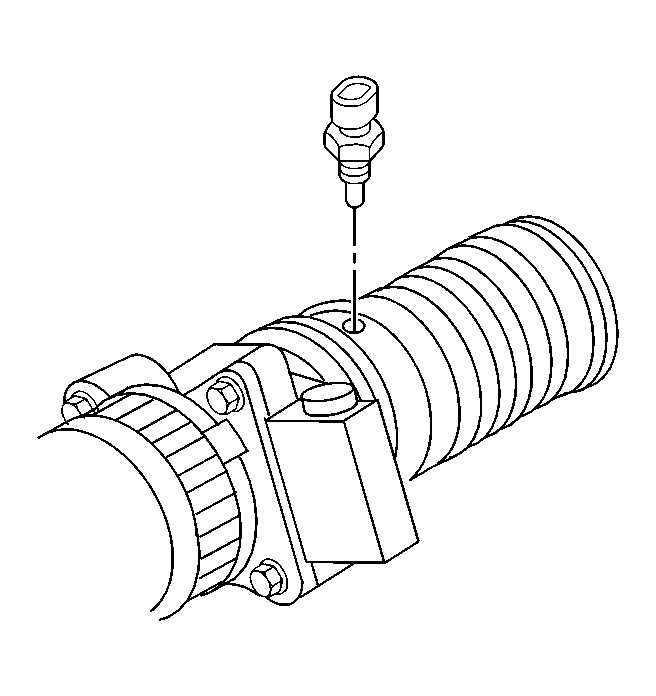

    Fig 1: Intake Air Temperature (IAT) Sensor
    GM317493Courtesy of GENERAL MOTORS CORP.
  2. Connect the IAT sensor harness connector.

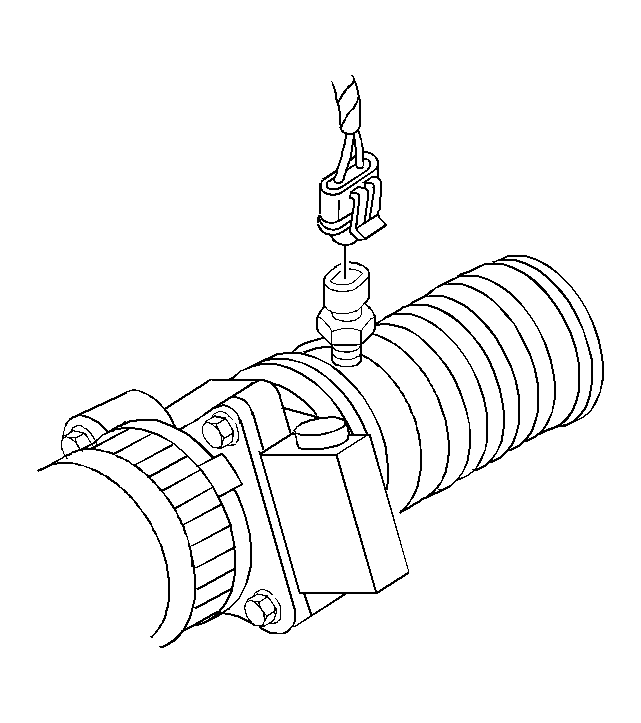

    Fig 2: Locating Intake Air Temperature (IAT) Sensor Harness Connector
    GM423117Courtesy of GENERAL MOTORS CORP.
  3. Connect the negative battery cable.
