Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

IMPORTANT: Point the flow arrows on the MAF sensor away from the air cleaner.

Attach the MAF sensor to the air cleaner cover by tightening the hose clamp.

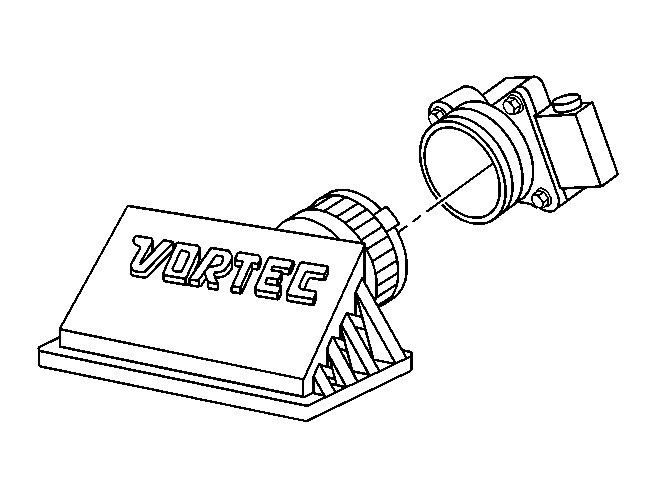

Fig 1: Air Cleaner Cover At MAF Sensor View
Courtesy of GENERAL MOTORS CORP.

Tighten: Tighten the clamp to 4 N.m (35 lb in).
Attach the air cleaner outlet duct to the MAF sensor by tightening the hose clamp.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

Fig 2: Identifying Air Cleaner Outlet Duct At MAF Sensor
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner cover by fastening the air cleaner cover retainer clips.

Fig 3: Identifying Air Cleaner Cover
Courtesy of GENERAL MOTORS CORP.
Connect the MAF sensor harness connector.

Fig 4: View Of MAF Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.
