Installation Procedure

  1. Install the PCM (1) to the PCM mounting tray (2).

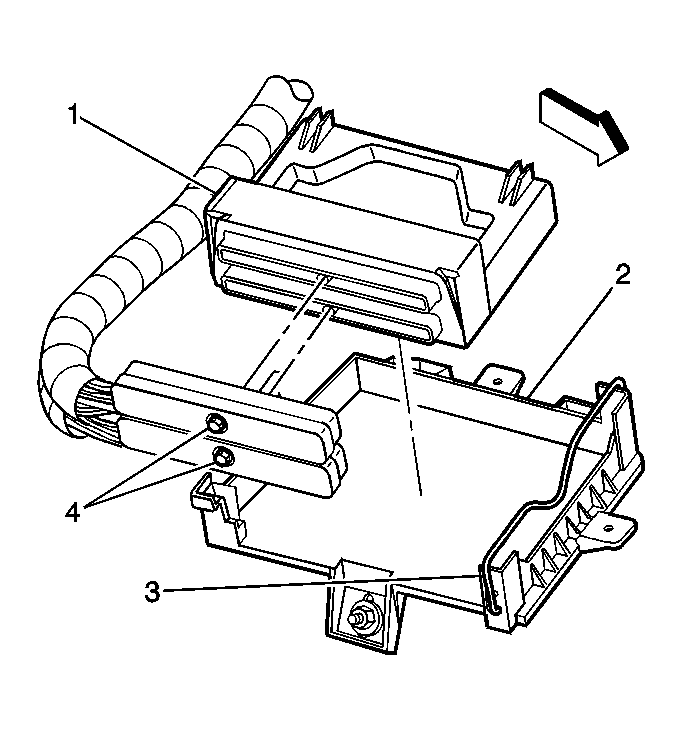

    Fig 1: View Of PCM Mounting Tray
    GM718097Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Secure the spring latch (3) to the PCM (1).
  3. Connect the PCM connectors (4) to the PCM (1).

    Tighten:  Tighten the PCM connector end fasteners to 8 N.m (71 lb in).

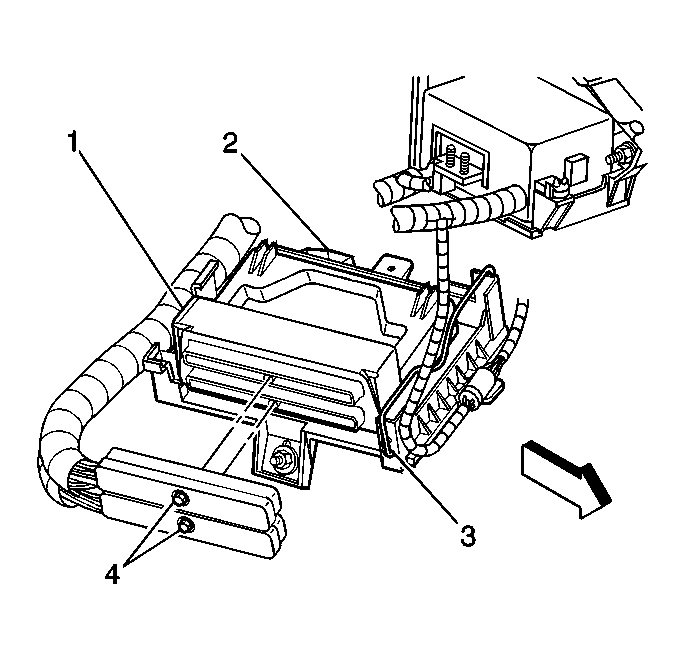

    Fig 2: Identifying PCM Components
    GM718096Courtesy of GENERAL MOTORS CORP.
  4. If a new PCM is being installed, program the PCM. Refer to Service Programming System (SPS) .
