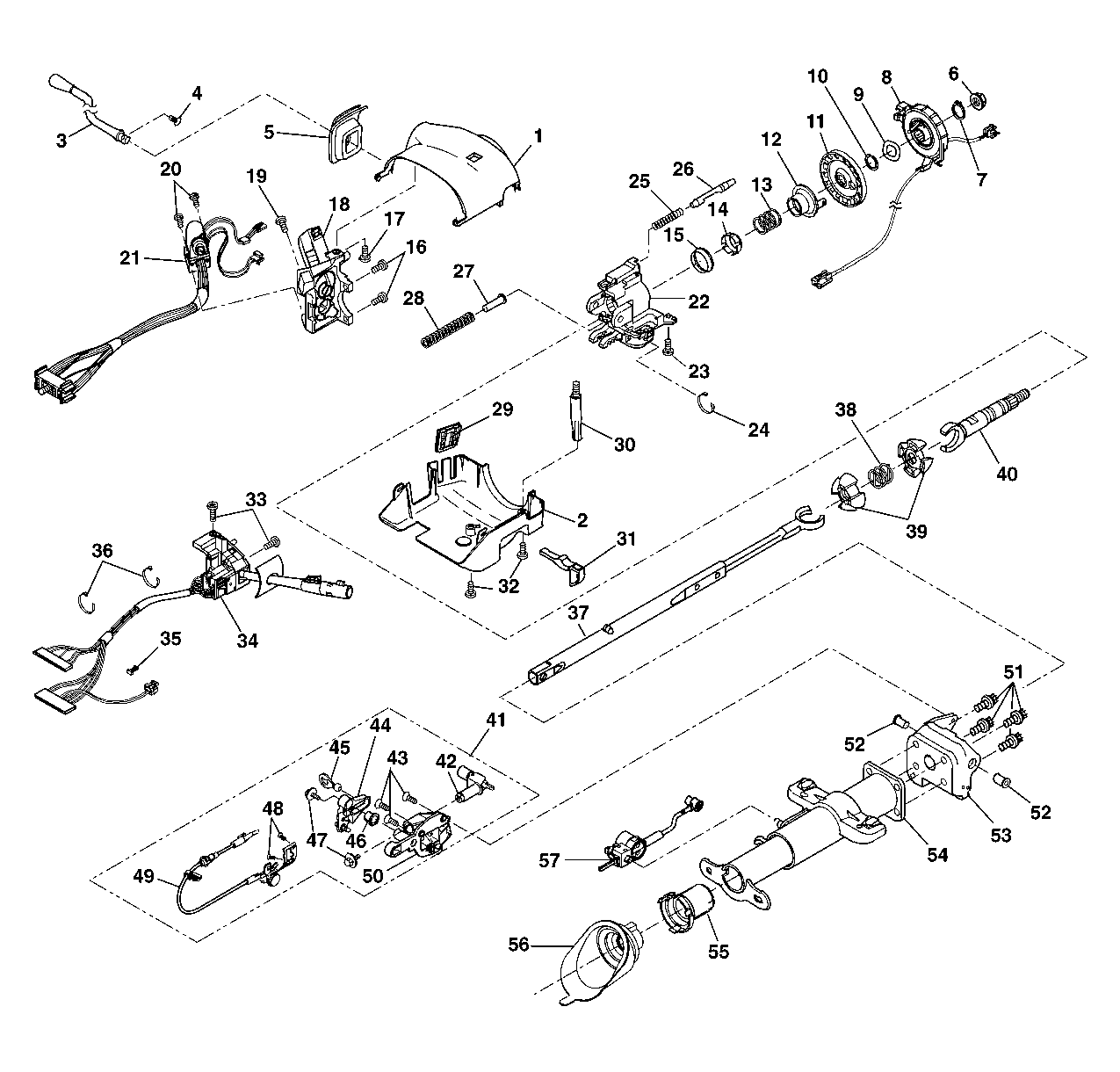

| 1 |
Upper Shroud |
| 2 |
Lower Shroud |
| 3 |
Auto Transmission Control Lever Assembly |
| 4 |
Shift Lever Screw |
| 5 |
Shift Lever Seal |
| 6 |
Flanged Prevailing Torque Nut |
| 7 |
Bearing Retainer |
| 8 |
Inflatable Restraint Steering Wheel Module Coil |
| 9 |
Wave Washer |
| 10 |
Ring Retainer |
| 11 |
Shaft Lock Shield Assembly |
| 12 |
Turn Signal Cancel CAM Assembly |
| 13 |
Upper Bearing Spring |
| 14 |
Upper Bearing Inner Race Seat |
| 15 |
Inner Race |
| 16 |
Pan Head Tapping Screws |
| 17 |
TORX® Head Screw |
| 18 |
Lock Module Assembly |
| 19 |
Pan Head Tapping Screw |
| 20 |
Tapping Screws |
| 21 |
Ignition & Key Alarm Switch |
| 22 |
Steering Column Tilt Head Assembly |
| 23 |
TORX® Head Screw |
| 24 |
Wire Harness Strap |
| 25 |
Bolt Lock Spring |
| 26 |
Lock Bolt Assembly |
| 27 |
Spring Guide |
| 28 |
Tilt Spring |
| 29 |
Shroud Protector |
| 30 |
Shroud Mounting Stud |
| 31 |
Tilt Lever Assembly |
| 32 |
Pan Head Tapping Screw |
| 33 |
Pan Head Tapping Screw |
| 34 |
Multifunction Turn Signal Lever |
| 35 |
Axial Position Assurance Connector |
| 36 |
Wire Harness Strap |
| 37 |
Lower Steering Shaft Assembly |
| 38 |
Joint Preload Spring |
| 39 |
Centering Sphere |
| 40 |
Race & Upper Shaft Assembly |
| 41 |
Linear Shift Assembly |
| 42 |
Shift Lever Clevis |
| 43 |
Flat Head 6-Lobed Socket Tapping Screw |
| 44 |
Cable Shift CAM Assembly |
| 45 |
Ball & Actuator Assembly |
| 46 |
CAM Bushing |
| 47 |
Hexagon Flange Head Bolt |
| 48 |
Oval Head 6-Lobed Socket Tapping Screw |
| 49 |
Park Lock Cable Assembly |
| 50 |
Gear Shift Lever Assembly Support Bracket |
| 51 |
TORX® Head Screws |
| 52 |
Pivot Pin |
| 53 |
Steering Column Support Assembly |
| 54 |
Steering Column Jacket Assembly |
| 55 |
Adapter & Bearing Assembly |
| 56 |
Steering Column Seal |
| 57 |
A/T Shift Lock Control Solenoid |
