Engine Controls Connectors

Accelerator Pedal Position (APP) Sensor

GM366097Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318071
  • 10-Way F Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A GRY 1273 Low Reference
B PPL 1272 5-Volt Reference
C LT BLU 1162 APP Sensor 2 Signal
D TAN 1274 Low Reference
E BRN 1271 Low Reference
F DK BLU 1161 APP Sensor 1 Signal
G WHT/BLK 1164 5-Volt Reference
H - - Not Used
J YEL/BLK 1275 5-Volt Reference
K DK GRN 1163 APP Sensor 3 Signal
Camshaft Position (CMP) Sensor

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A RED 631 12-Volt Reference
B PNK/BLK 632 Low Reference
C BRN/WHT 633 CMP Sensor Signal
Crankshaft Position (CKP) Sensor

GM366117Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324165
  • 3-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A LT GRN 1867 12-Volt Reference
B YEL/BLK 1868 Low Reference
C DK BLU/WHT 1869 CKP Sensor Signal

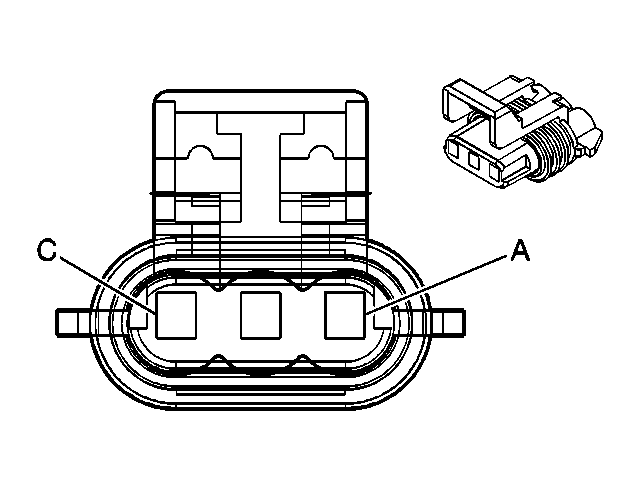

Engine Coolant Temperature (ECT) Sensor

GM655807Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324589
  • 3-Way F Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A BLK 407 Low Reference
B YEL 410 ECT Sensor Signal
C - - Not Used
Evaporative Emission (EVAP) Canister Purge Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RED)
Pin Wire Color Circuit No. Function
A PNK 439 Ignition 1 Voltage
B DK GRN/WHT 428 EVAP Canister Purge Solenoid Control
Evaporative Emission (EVAP) Canister Vent Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RED)
Pin Wire Color Circuit No. Function
A WHT 1310 EVAP Canister Vent Solenoid Control
B PNK 2640 Battery Positive Voltage
Exhaust Gas Recirculation (EGR) Valve

GM684863Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186056
  • 5-Way F Metri-Pack 150.2 P2S Sealed (BLK)
Pin Wire Color Circuit No. Function
A WHT 257 EGR Solenoid Control
B PPL 719 Low Reference
C BRN 1456 EGR Valve Position Signal
D GRY 596 5-Volt Reference
E RED 1676 EGR Valve Supply Voltage
Fuel Injector 1

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A WHT 1039 Ignition 1 Voltage
B BLK 1744 Fuel Injector 1 Control
Fuel Injector 2

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A PNK 1239 Ignition 1 Voltage
B LT GRN/BLK 1745 Fuel Injector 2 Control
Fuel Injector 3

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A WHT 1039 Ignition 1 Voltage
B PNK/BLK 1746 Fuel Injector 3 Control
Fuel Injector 4

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A PNK 1239 Ignition 1 Voltage
B LT BLU/BLK 844 Fuel Injector 4 Control
Fuel Injector 5

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A WHT 1039 Ignition 1 Voltage
B BLK/WHT 845 Fuel Injector 5 Control
Fuel Injector 6

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A PNK 1239 Ignition 1 Voltage
B YEL/BLK 846 Fuel Injector 6 Control
Fuel Injector 7

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A WHT 1039 Ignition 1 Voltage
B RED/BLK 877 Fuel Injector 7 Control
Fuel Injector 8

GM684833Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129140
  • 2-Way F Metri-Pack 280.1 P2S (BLK)
Pin Wire Color Circuit No. Function
A PNK 1239 Ignition 1 Voltage
B DK BLU/WHT 878 Fuel Injector 8 Control
Fuel Pump (FP) Relay - Secondary (w/Dual Tanks)

GM535912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129716
  • 4-Way F Metri-Pack 280 FLX LK (MD GRY)
Pin Wire Color Circuit No. Function
30 PNK 239 Ignition 1 Voltage
85 GRY 120 Fuel Pump Supply Voltage
86 TAN 1465 Fuel Pump Relay Control
87 LT GRN 1058 Fuel Balance Pump Supply Voltage
Fuel Pump and Sender Assembly - Primary

GM518981Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A PPL 1589 Fuel Level Sensor Signal
B GRY 120 Fuel Pump Supply Voltage
C BLK 2150 Ground
D BLK 470 Low Reference
Fuel Pump and Sender Assembly - Secondary (w/Dual Tanks)

GM518981Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 1936 Fuel Level Sensor Signal
B LT GRN 1058 Fuel Balance Pump Supply Voltage
C BLK 2150 Ground
D BLK 470 Low Reference
Fuel Tank Pressure (FTP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 470 Low Reference
B DK GRN 890 Fuel Tank Pressure Sensor Signal
C GRY 474 5-Volt Reference
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

GM831392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092839
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN/WHT 1669 HO2S Low Signal Bank 1 Sensor 1
B PPL/WHT 1665 HO2S High Signal Bank 1 Sensor 1
D PNK 539 Ignition 1 Voltage
E BLK/WHT 3113 HO2S Heater Low Control Bank 1 Sensor 1
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (w/NC1)

GM655691Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146047
  • 4-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 1669 HO2S Low Signal Bank 1 Sensor 2
B PPL/WHT 1668 HO2S High Signal Bank 1 Sensor 2
D PNK 1539 Ignition 1 Voltage
E BRN 2391 HO2S Heater Low Control Bank 1 Sensor 2
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

GM831392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092839
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 1667 HO2S Low Signal Bank 2 Sensor 1
B PPL 1666 HO2S High Signal Bank 2 Sensor 1
D PNK 539 Ignition 1 Voltage
E LT GRN 3212 HO2S Heater Low Control Bank 2 Sensor 1
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (w/NC1)

GM831392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092839
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 1671 HO2S Low Signal Bank 2 Sensor 2
B PPL 1670 HO2S High Signal Bank 2 Sensor 2
D PNK 1539 Ignition 1 Voltage
E RED/WHT 3223 HO2S Heater Low Control Bank 2 Sensor 2
Ignition Coil 1

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN 2129 Low Reference
C PPL 2121 IC 1 Control
D PNK 1039 Ignition 1 Voltage
Ignition Coil 2

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN/WHT 2130 Low Reference
C RED/WHT 2122 IC 2 Control
D PNK 1239 Ignition 1 Voltage
Ignition Coil 3

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN 2129 Low Reference
C LT BLU 2123 IC 3 Control
D PNK 1039 Ignition 1 Voltage
Ignition Coil 4

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN/WHT 2130 Low Reference
C DK GRN/WHT 2124 IC 4 Control
D PNK 1239 Ignition 1 Voltage
Ignition Coil 5

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN 2129 Low Reference
C DK GRN 2125 IC 5 Control
D PNK 1039 Ignition 1 Voltage
Ignition Coil 6

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN/WHT 2130 Low Reference
C LT BLU/WHT 2126 IC 6 Control
D PNK 1239 Ignition 1 Voltage
Ignition Coil 7

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN 2129 Low Reference
C RED 2127 IC 7 Control
D PNK 1039 Ignition 1 Voltage
Ignition Coil 8

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 550 Ground
B BRN/WHT 2130 Low Reference
C PPL/WHT 2128 IC 8 Control
D PNK 1239 Ignition 1 Voltage
Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor

GM366067Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305555
  • 5-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 552 Low Reference
B TAN 472 IAT Sensor Signal
C BLK/WHT 451 Ground
D PNK 439 Ignition 1 Voltage
E YEL 492 MAF Sensor Signal
Manifold Absolute Pressure (MAP) Sensor

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A ORN/BLK 469 Low Reference
B LT GRN 432 MAP Sensor Signal
C GRY 597 5-Volt Reference
Throttle Actuator Control (TAC) Module - C1 Connector End View

GM261930Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191065
  • 16-Way F Micro-Pack 100 Series (NAT)
Pin Wire Color Circuit No. Function
1 DK GRN 485 TP Sensor 1 Signal
2 GRY 416 5-Volt Reference
3 BLK 452 Low Reference
4 DK BLU 84 Cruise Control Set/Coast Switch Signal
5 GRY/BLK 87 Cruise Control Resume/Accel Switch Signal
6 LT BLU 1320 CHMSL Supply Voltage
7 PNK 1339 Ignition 1 Voltage
8 BRN 582 TAC Motor Control - 2
9 LT BLU/BLK 1688 5-Volt Reference
10 BLK/WHT 1704 Low Reference
11 PPL 486 TP Sensor 2 Signal
12 ORN/BLK 1061 UART Serial Data
13 DK BLU/WHT 774 UART Serial Data
14 GRY 397 Cruise Control On Switch Signal
15 BLK/WHT 550 Ground
16 YEL 581 TAC Motor Control - 1
Throttle Actuator Control (TAC) Module - C2 Connector End View

GM666638Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12177081
  • 10-Way F 150 Series Sealed (NAT)
Pin Wire Color Circuit No. Function
A GRY 1273 Low Reference
B PPL 1272 5-Volt Reference
C LT BLU 1162 APP Sensor 2 Signal
D TAN 1274 Low Reference
E YEL/BLK 1275 5-Volt Reference
F DK BLU 1161 APP Sensor 1 Signal
G WHT/BLK 1164 5 Volt Reference
H - - Not Used
J BRN 1271 Low Reference
K DK GRN 1163 APP Sensor 3 Signal
Throttle Body

GM831368Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326836
  • 8-Way F GT 150 Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 581 TAC Motor Control - 1
B BLK/WHT 1704 Low Reference
C BRN 582 TAC Motor Control - 2
D BLK 452 Low Reference
E LT BLU/BLK 1688 5-Volt Reference
F PPL 486 TP Sensor 2 Signal
G DK GRN 485 TP Sensor 1 Signal
H GRY 416 5-Volt Reference
scientia non olet · About LEMON Manuals
