Installation Procedure

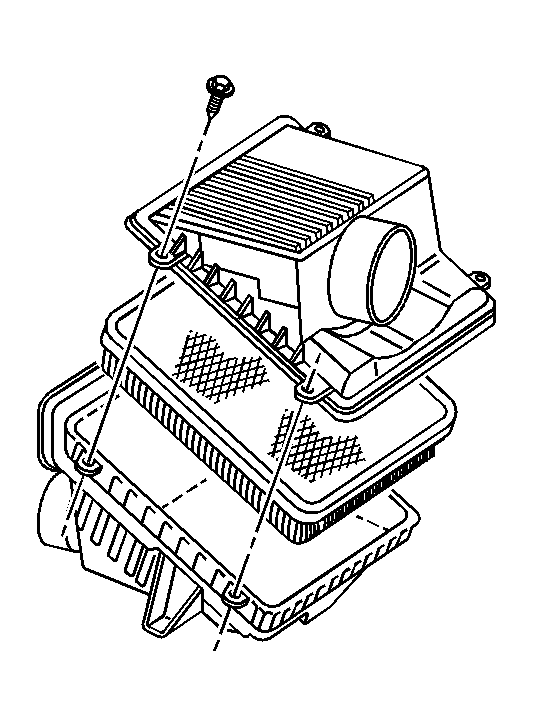

Fig 1: View Of Air Cleaner Housing Cover, Screws & Air Filter Element

GM858229

Courtesy of GENERAL MOTORS CORP.

Install the air filter element.
Install the air cleaner housing cover.
Tighten the air cleaner housing cover screws until snug.

Fig 2: View Of MAF/IAT Sensor Electrical Connectors

GM750582

Courtesy of GENERAL MOTORS CORP.

Connect the MAF/IAT sensor electrical connector (3).
Install the intake air resonator. Refer to Intake Air Resonator Replacement .
