Installation Procedure

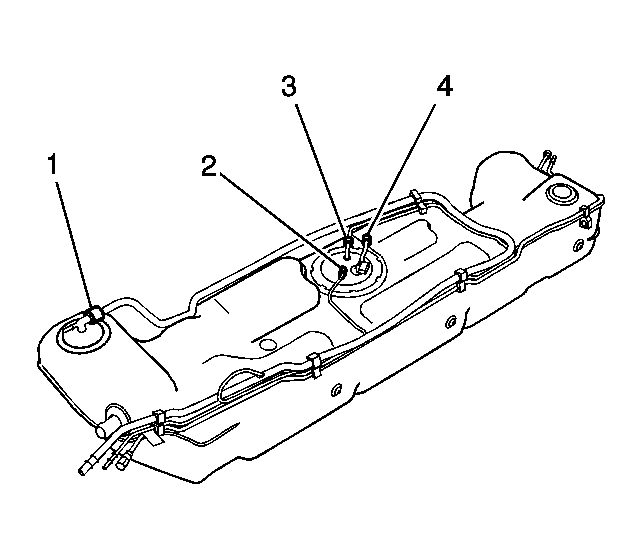

    Fig 1: View Of Fuel Feed Line & Rear Fuel Feed Line
    GM1312082Courtesy of GENERAL MOTORS CORP.
  1. Remove the caps from the fuel feed and EVAP lines.
  2. Install and connect the rear fuel feed line (2) to the module and retaining clips. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  3. Install and connect the fuel feed (4) line to the module and retaining clips. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  4. Install the fuel tank. Refer to Fuel Tank Replacement (Front Tank)  or Fuel Tank Replacement (Rear Tank) .
