Installation Procedure

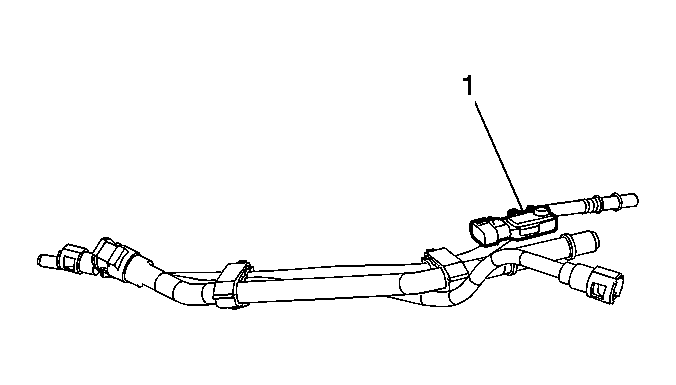

    Fig 1: View Of Fuel Pressure Sensor
    GM1312086Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the seal on the fuel pressure sensor.
  2. Press the fuel pressure sensor (1) into the line.
  3. Install the intermediate fuel/EVAP lines. Refer to Fuel Hose/Pipes Assembly Replacement (Front)  or Fuel Hose/Pipes Assembly Replacement (Intermediate) .
