Engine Controls Schematics

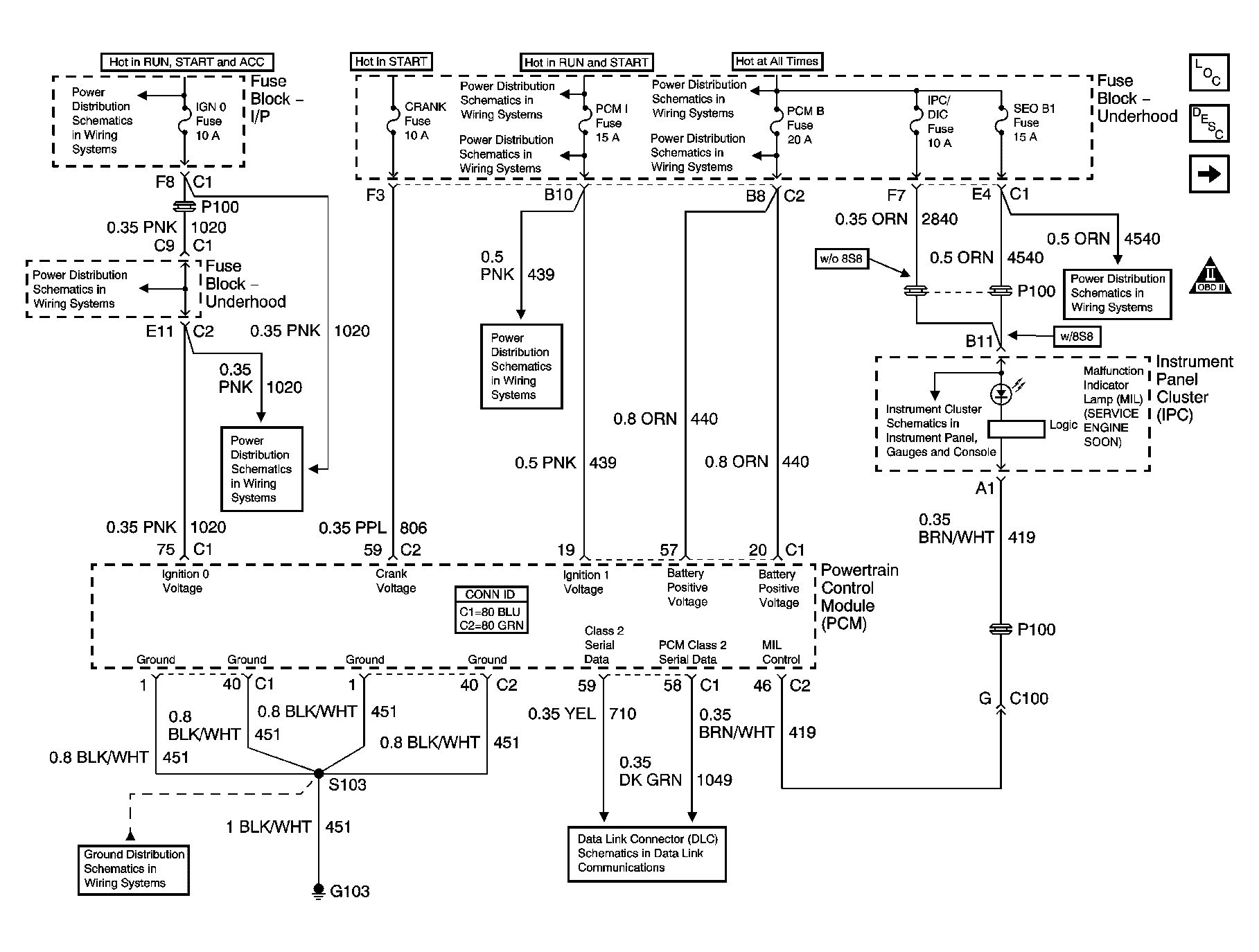

Fig 1: Module Power, Ground, Serial Data And MIL Schematic

Courtesy of GENERAL MOTORS CORP.

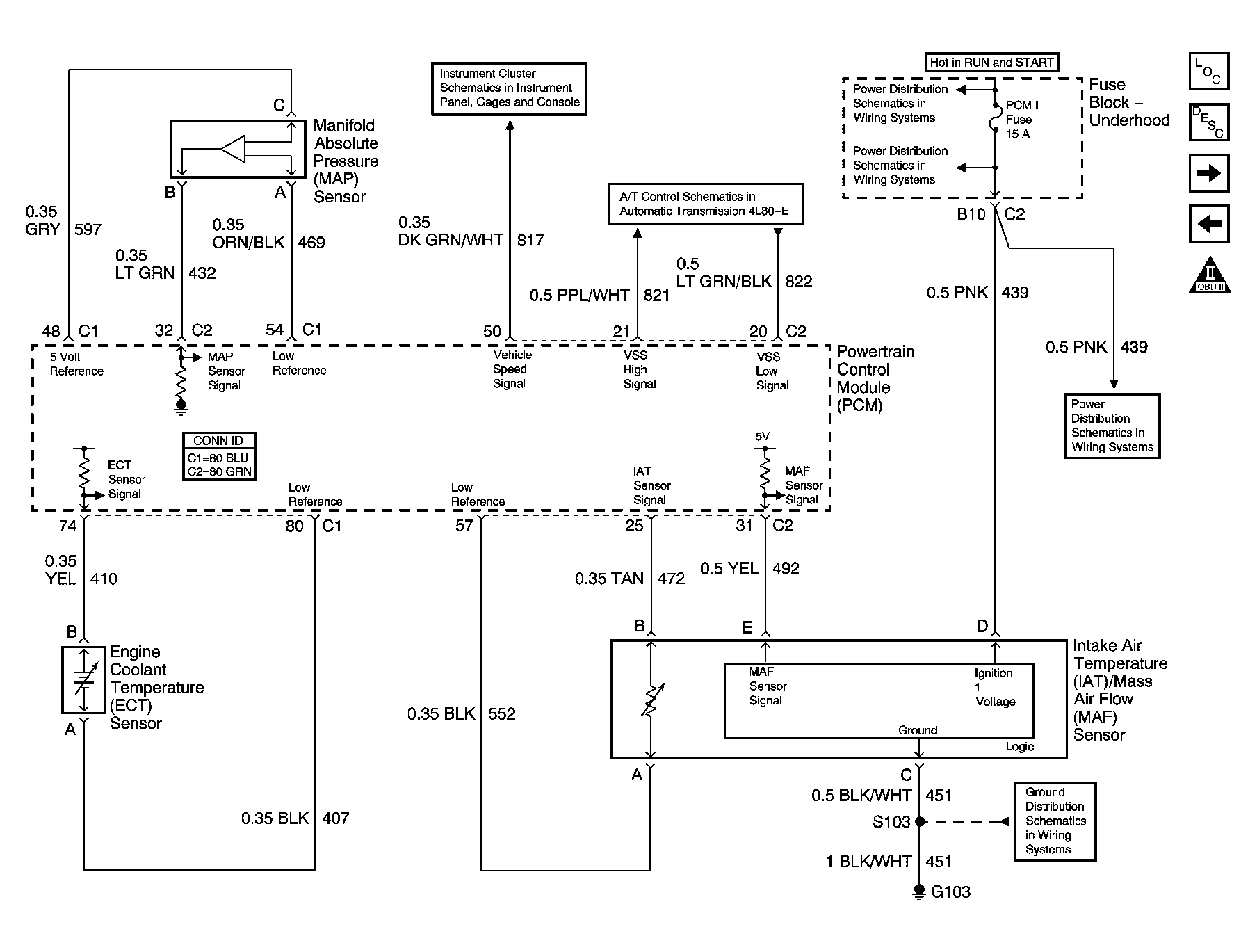

Fig 2: Engine Data Sensors - Pressure, Temperature And VSS Schematic

Courtesy of GENERAL MOTORS CORP.

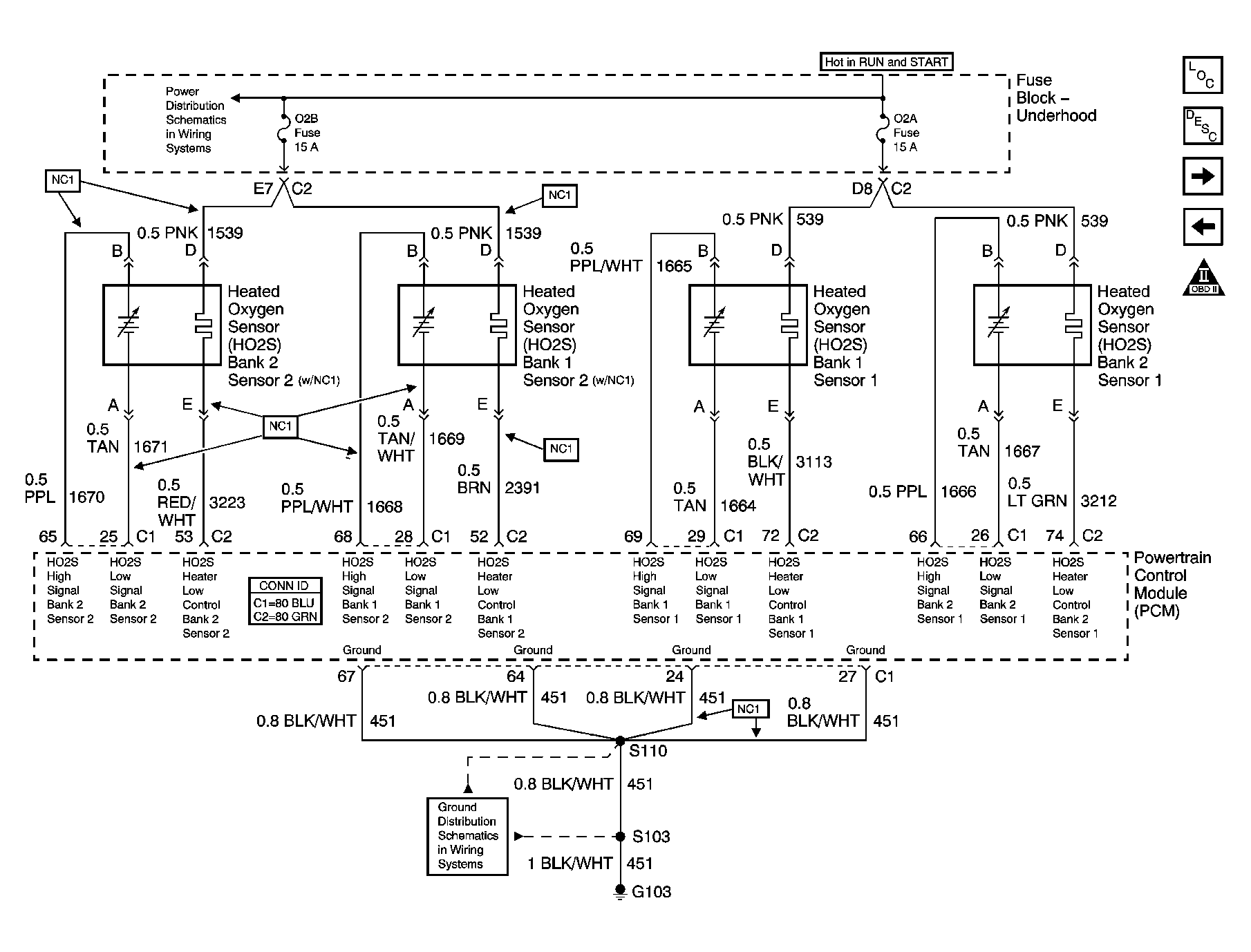

Fig 3: Engine Data Sensors - HO2S Schematic

Courtesy of GENERAL MOTORS CORP.

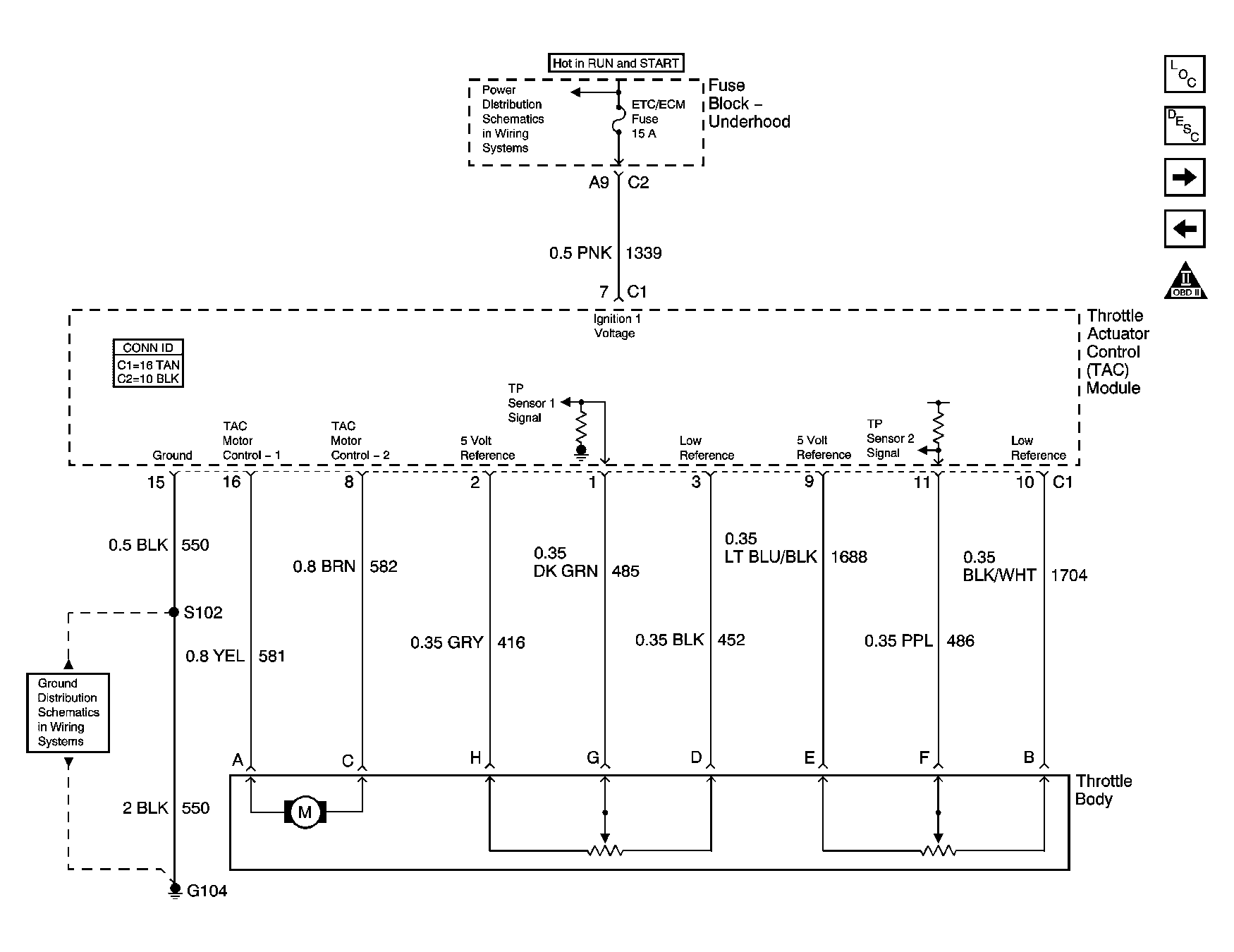

Fig 4: Engine Data Sensors - Electronic Throttle Controls Schematic - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

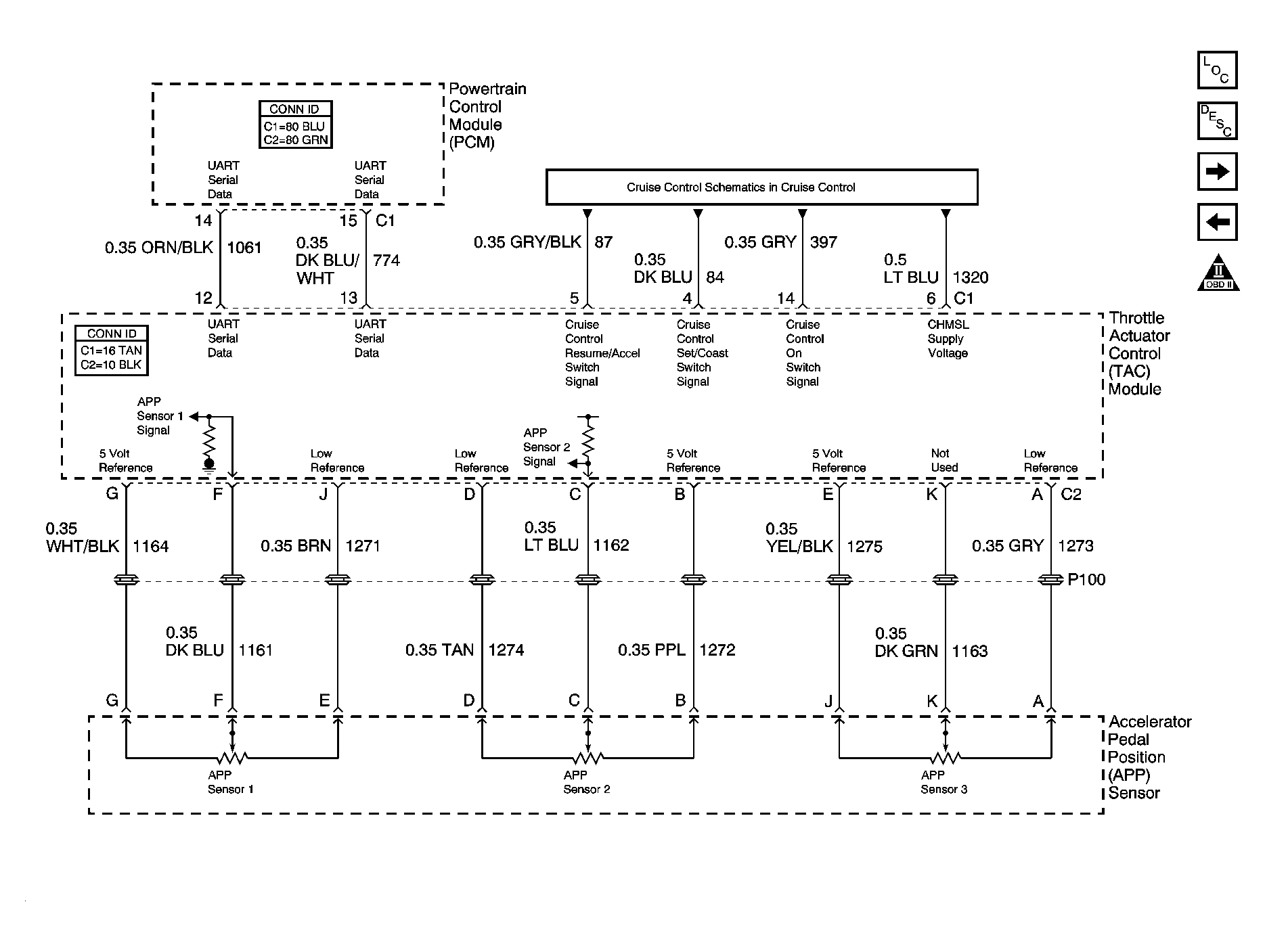

Fig 5: Engine Data Sensors - Electronic Throttle Controls Schematic - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Ignition System Coils 1, 3, 5 And 7 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition System Coils 2, 4, 6 And 8 Schematic

Courtesy of GENERAL MOTORS CORP.

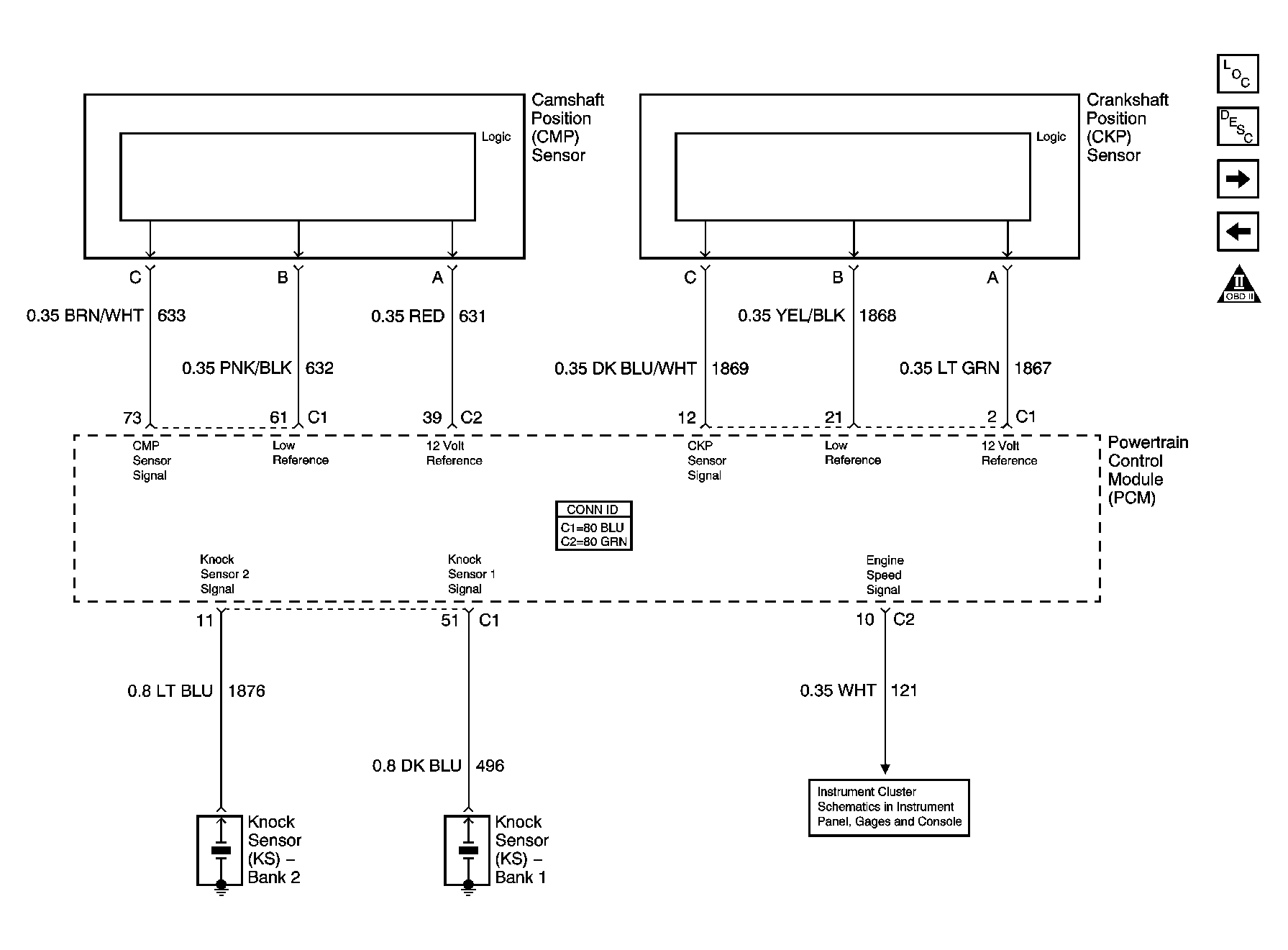

Fig 8: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

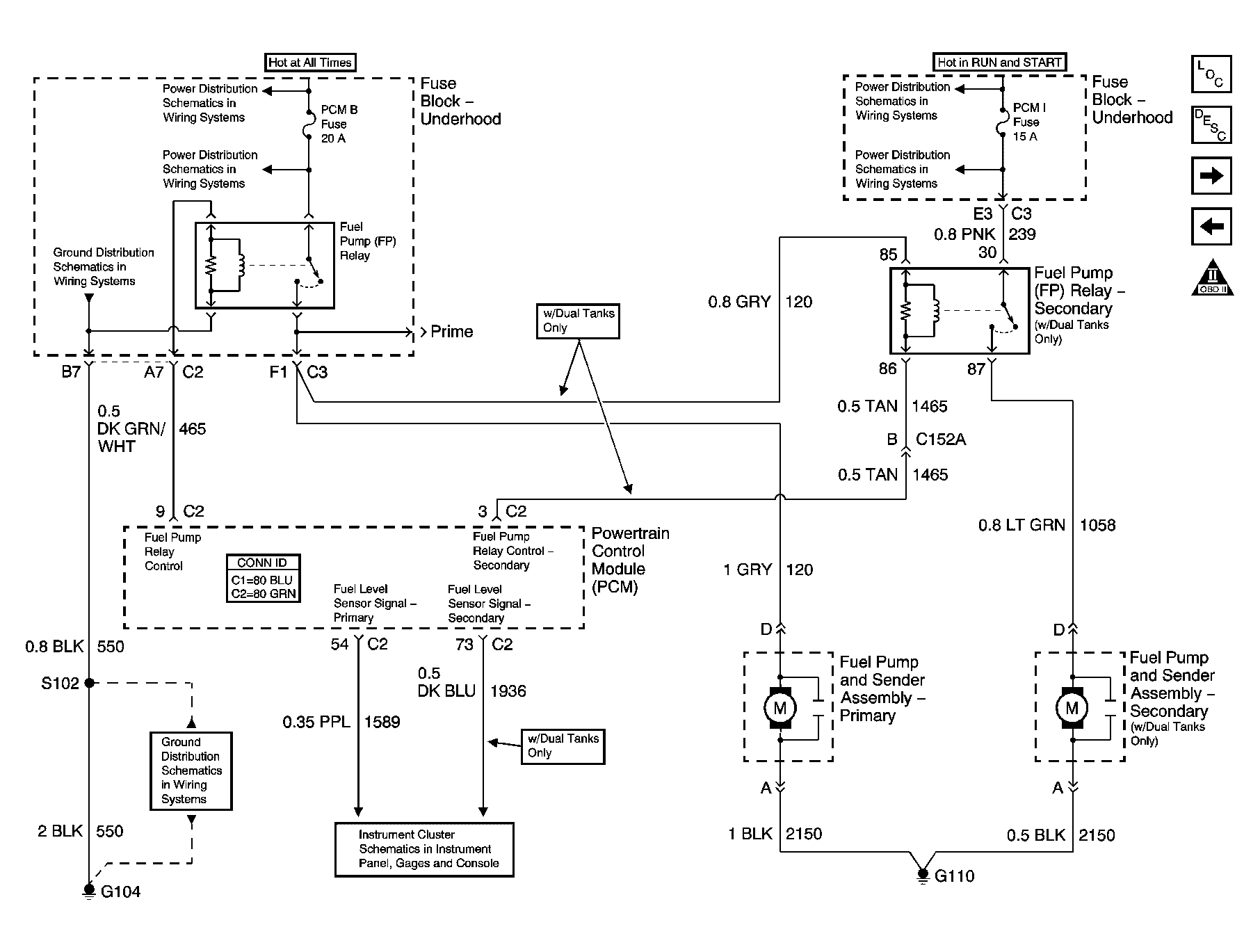

Fig 9: Fuel Controls - Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

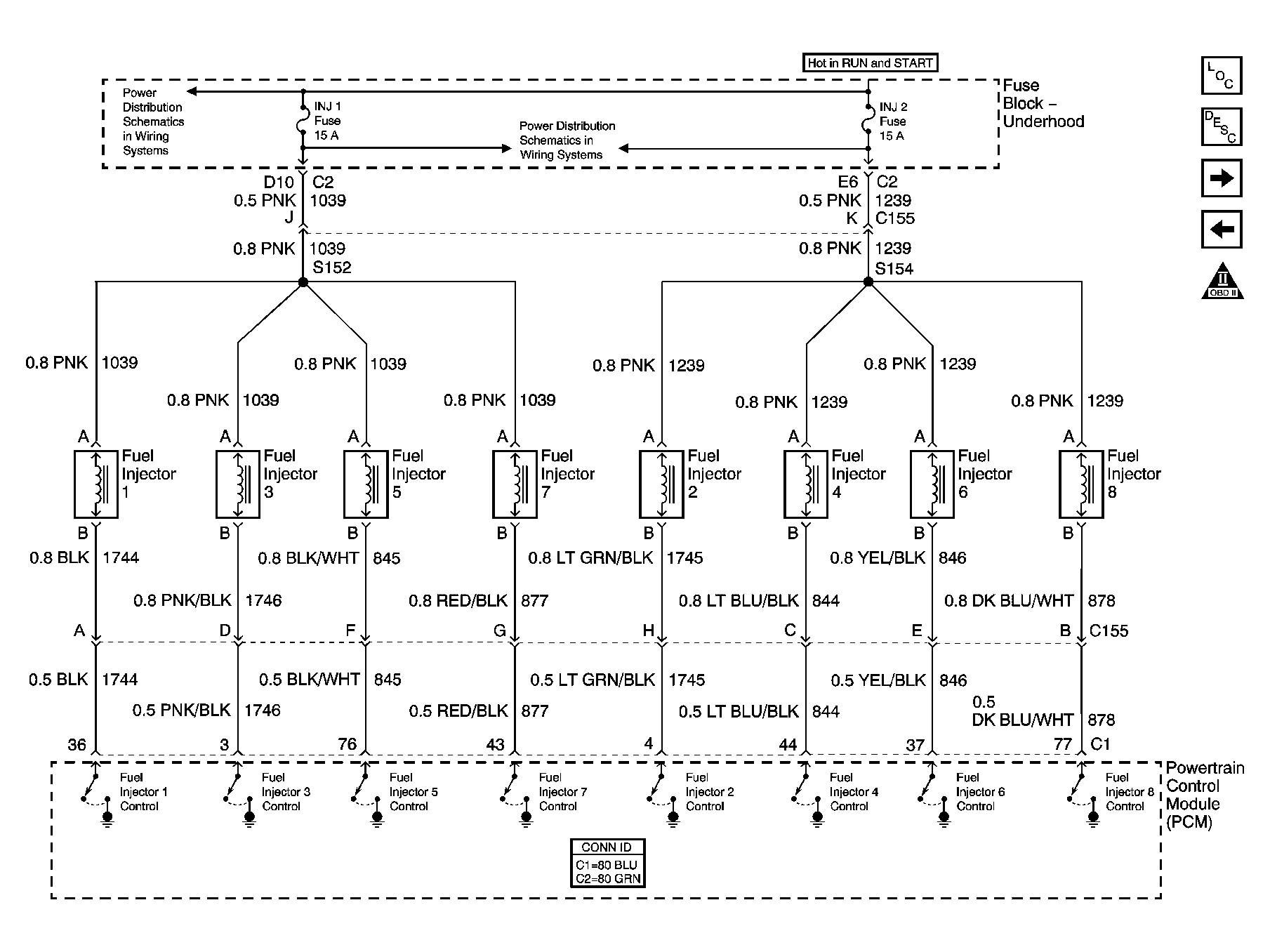

Fig 10: Fuel Controls - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

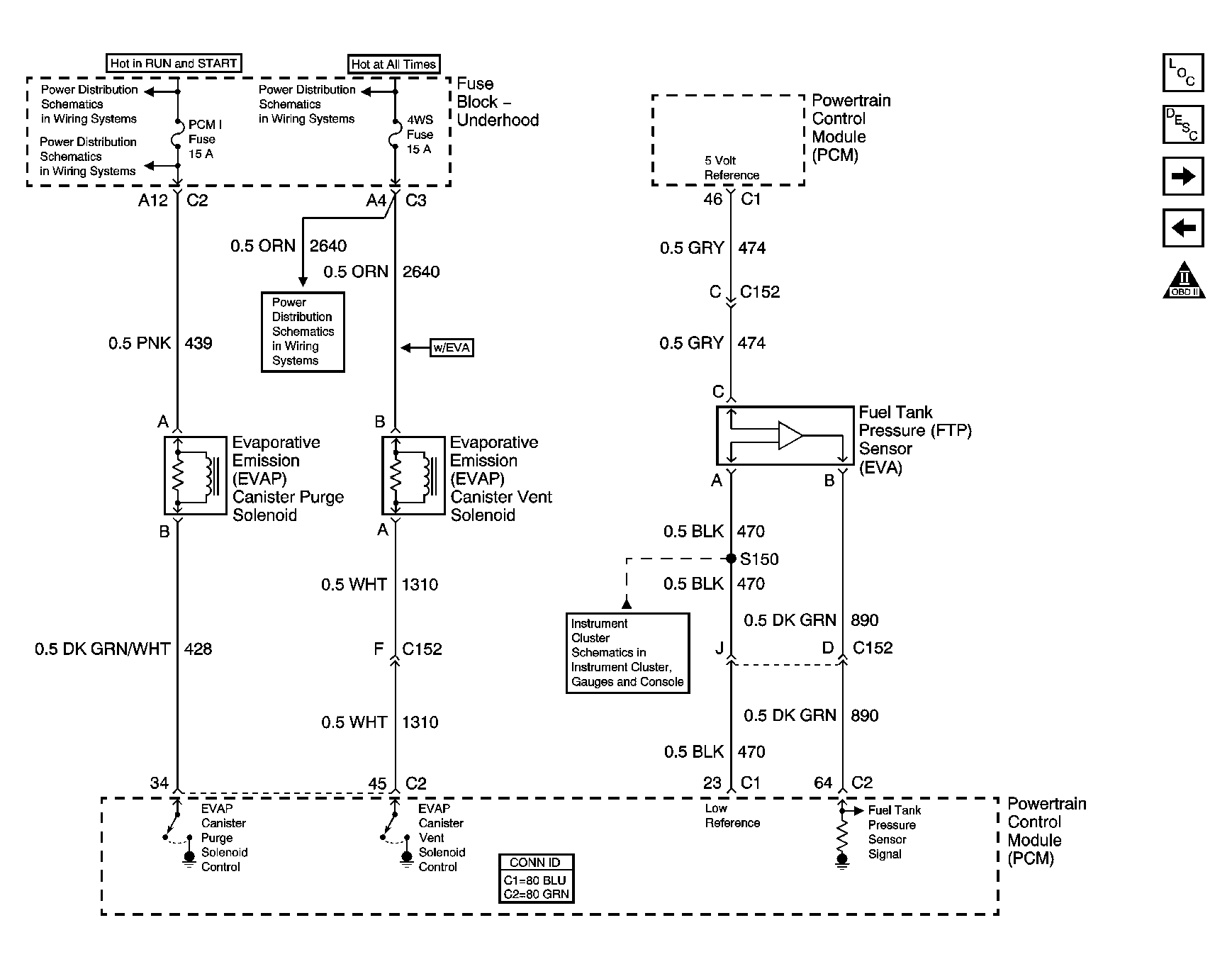

Fig 11: Fuel Controls - EVAP Controls And Fuel Tank Pressure Schematic

Courtesy of GENERAL MOTORS CORP.

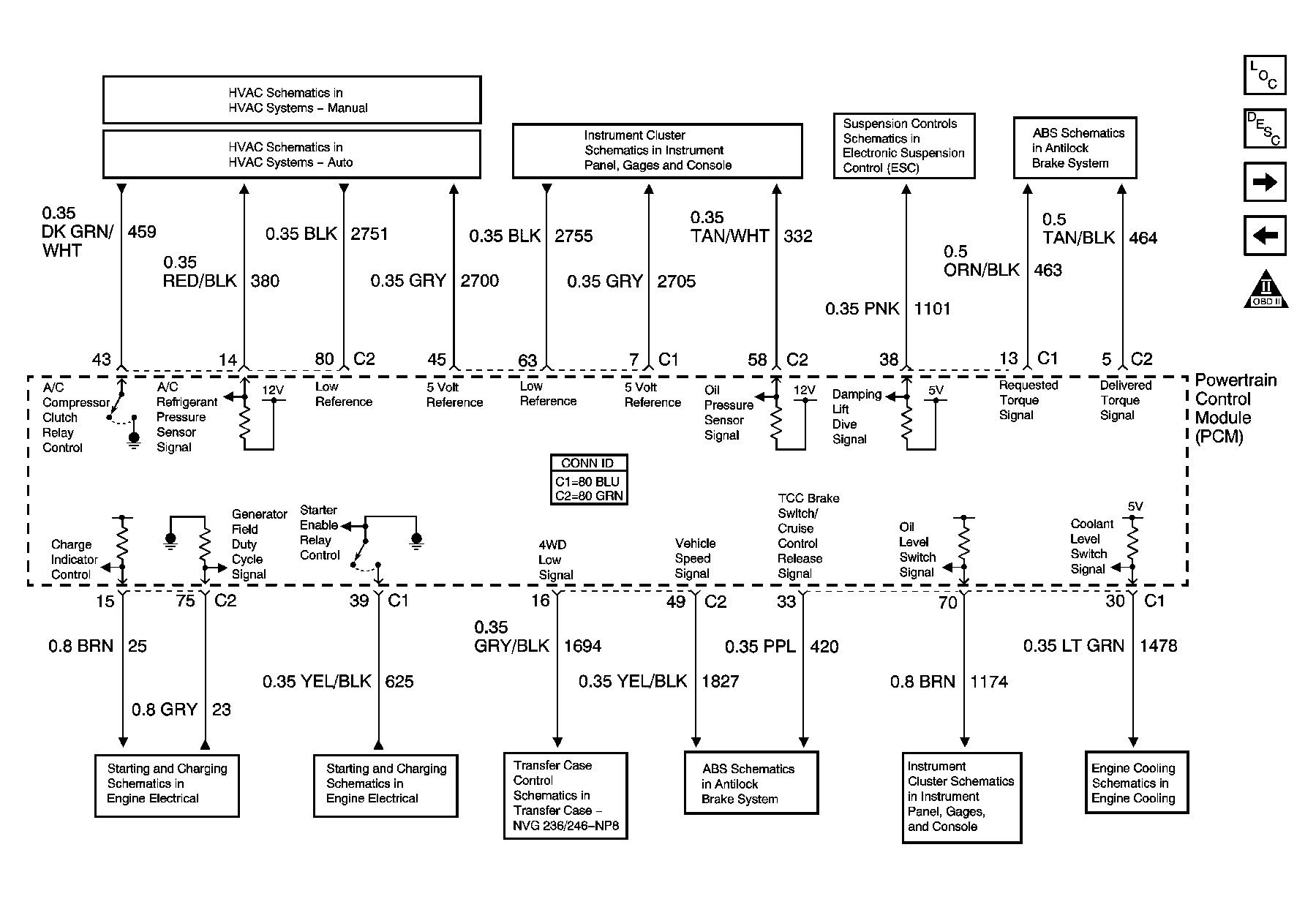

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

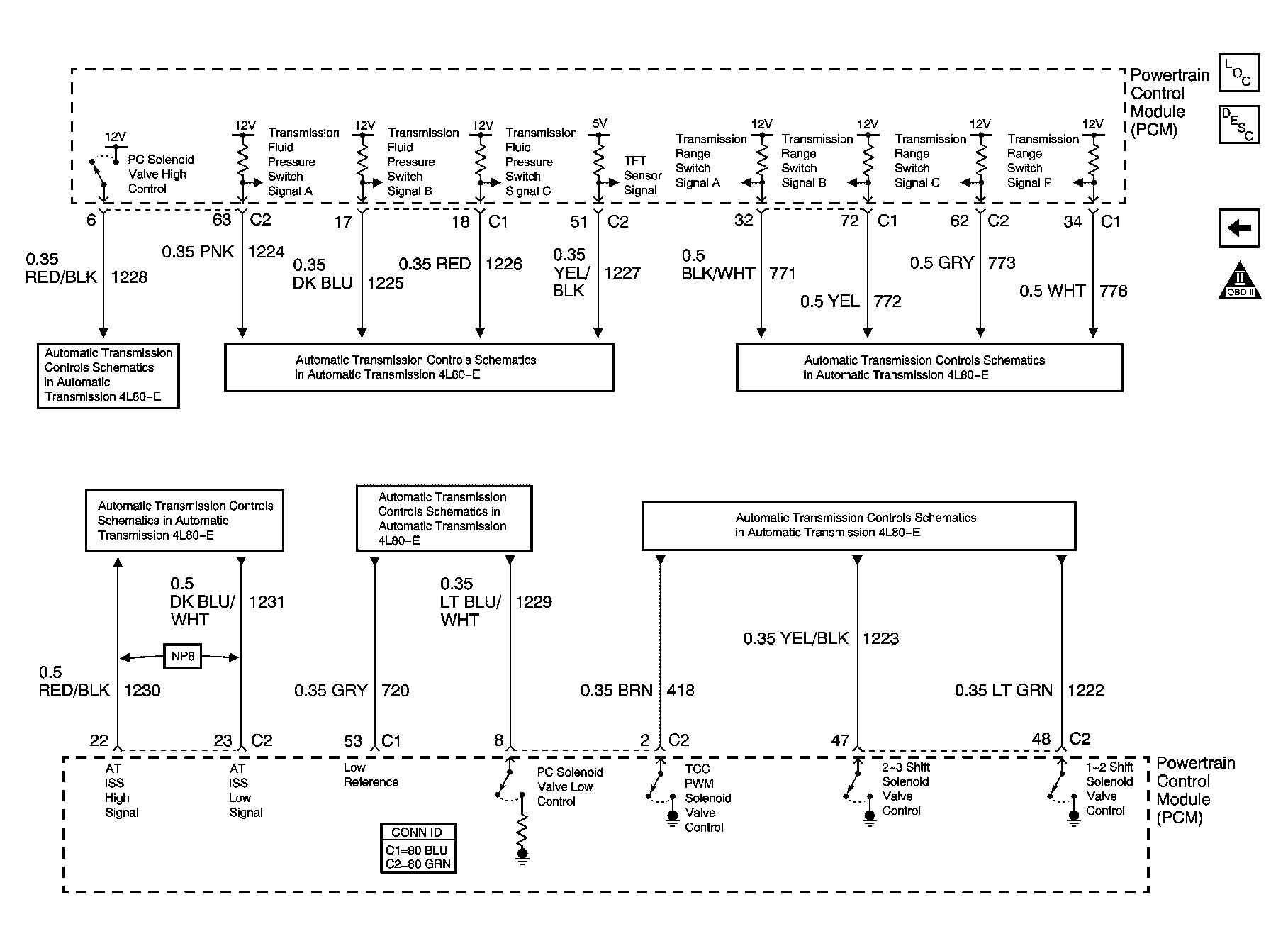

Fig 13: Transmission Controls - A/T Schematic

Courtesy of GENERAL MOTORS CORP.
