Keyless Entry Receiver: Service and Repair

REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the rear compartment lamp housing for access.

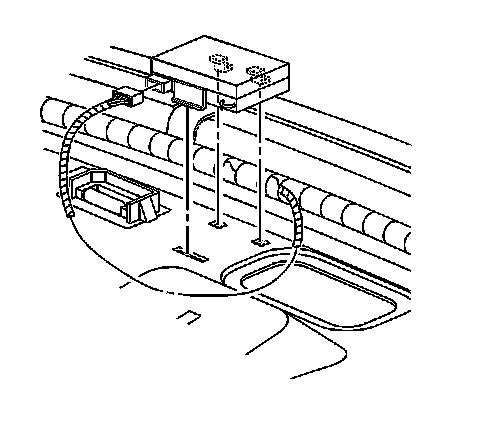

2. Look for the mounting tabs just to the right of the center access hole on the rear package shelf. Compress the tabs and slide the receiver down through the access hole.
3. Disconnect the electrical connector from the remote door lock receiver.
4. Remove the remote door lock receiver.

INSTALLATION PROCEDURE
1. Connect the electrical connector.




2. Install the receiver through the access hole. Snap the mounting tabs into place.
3. Install the rear compartment lamp housing.
4. Reprogram the new receiver to transmitters. Refer to Transmitter Programming. Programming and Relearning
