Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems >> A/T Related Connector End Views
April 5, 2026: LEMON Manuals is launched! Read the announcement.

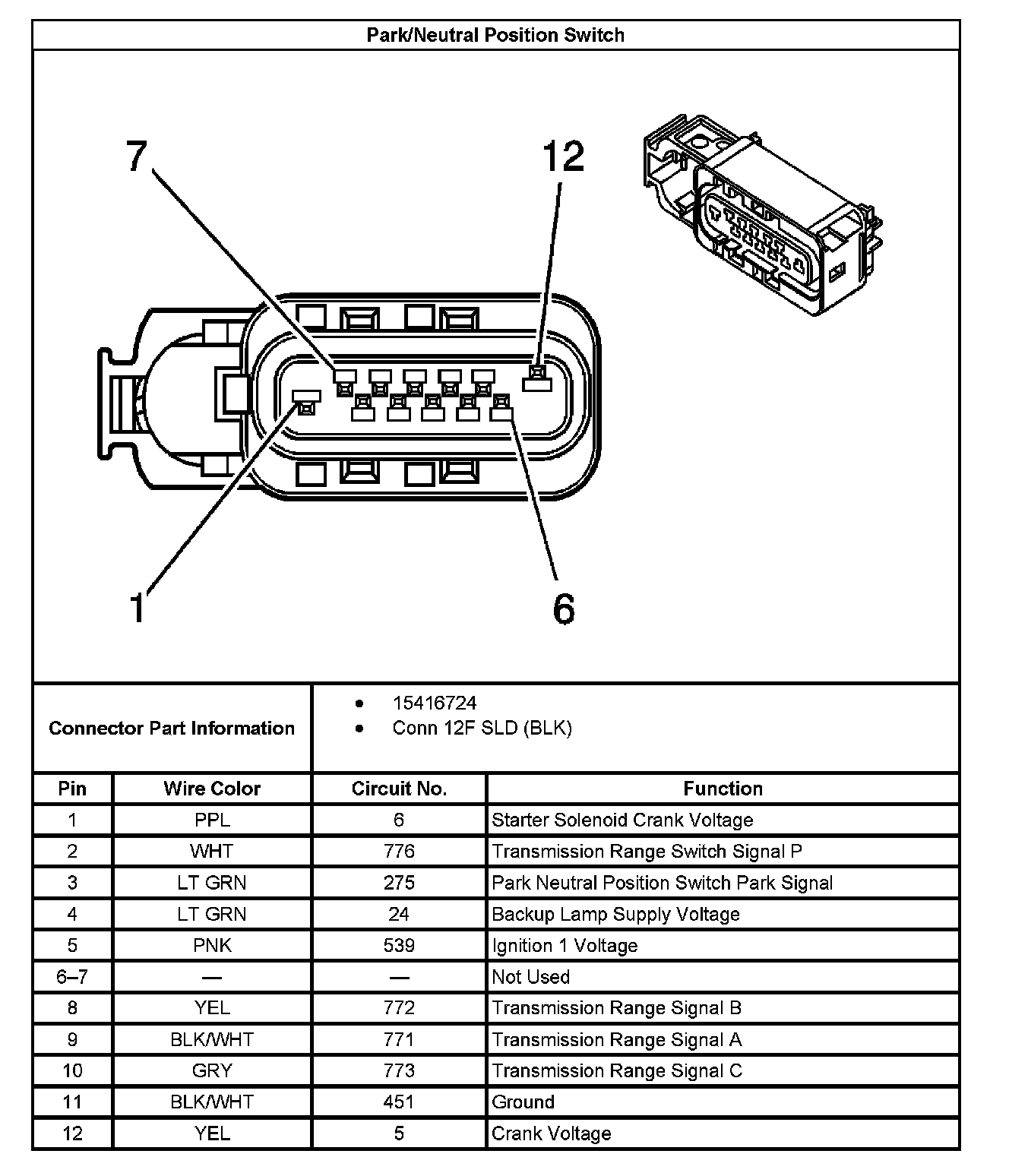

A/T Related Connector End Views
