Body Control Module: Service and Repair

BODY CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Ensure that the ignition switch is in the off position.
2. Remove the right sound insulator.

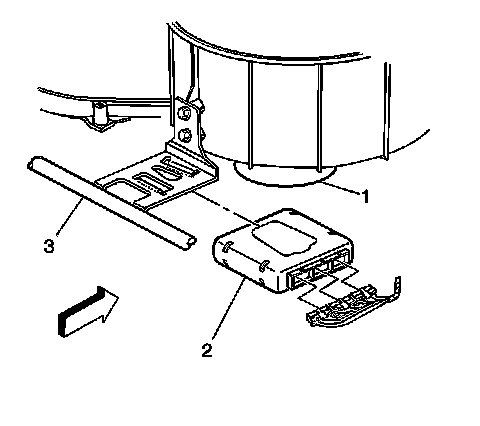

3. Remove the body control module (BCM) (2).
4. Disconnect the BCM connectors from the BCM.

INSTALLATION PROCEDURE




1. Connect the BCM connectors to the BCM.
2. Install the BCM module (2).
3. Install the right sound insulator.
4. Program the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration. Programming and Relearning
