Powertrain Control Module (PCM) C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Powertrain Control Module (PCM) C1

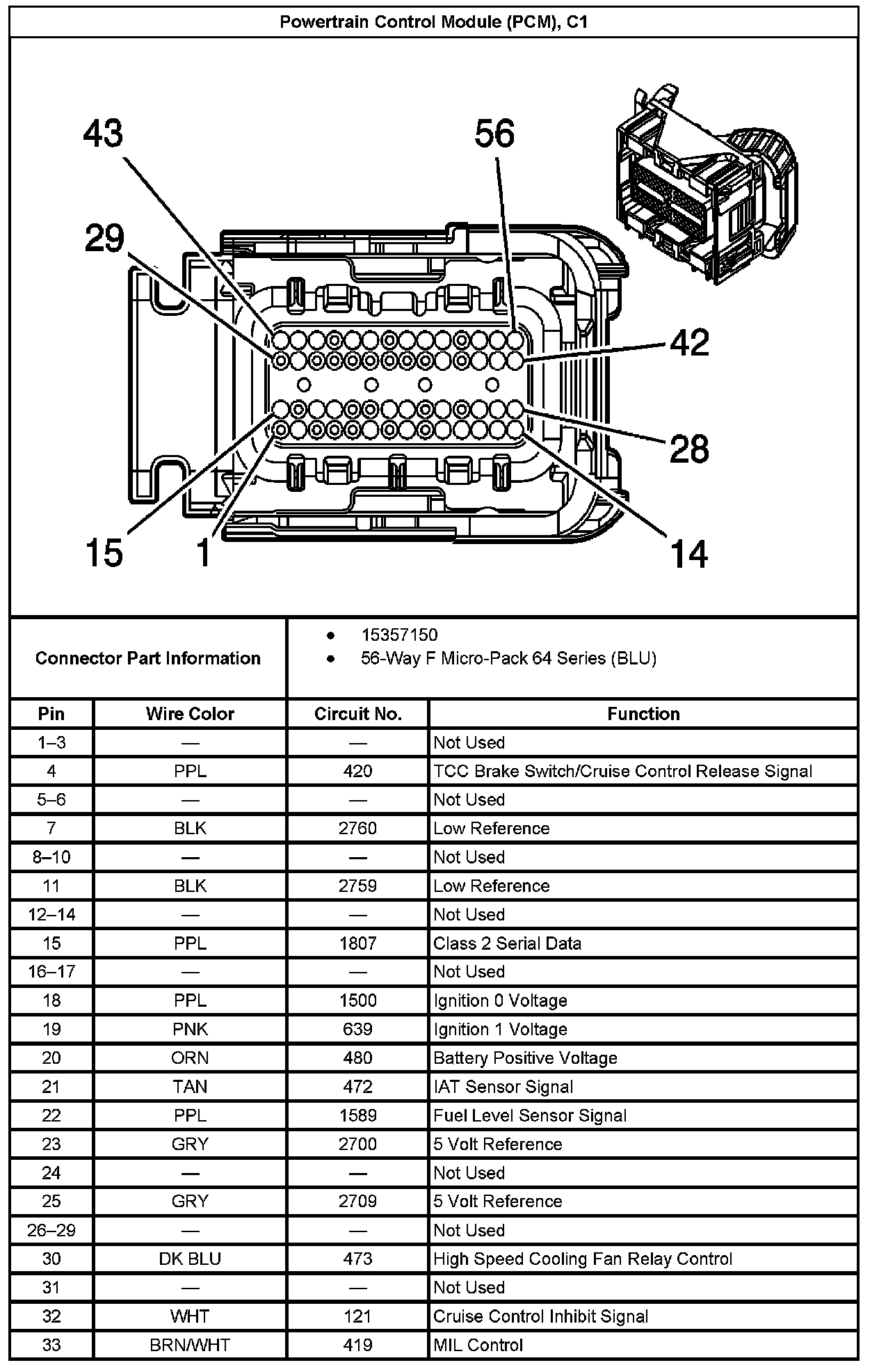

Powertrain Control Module (PCM), C1 Part 1:

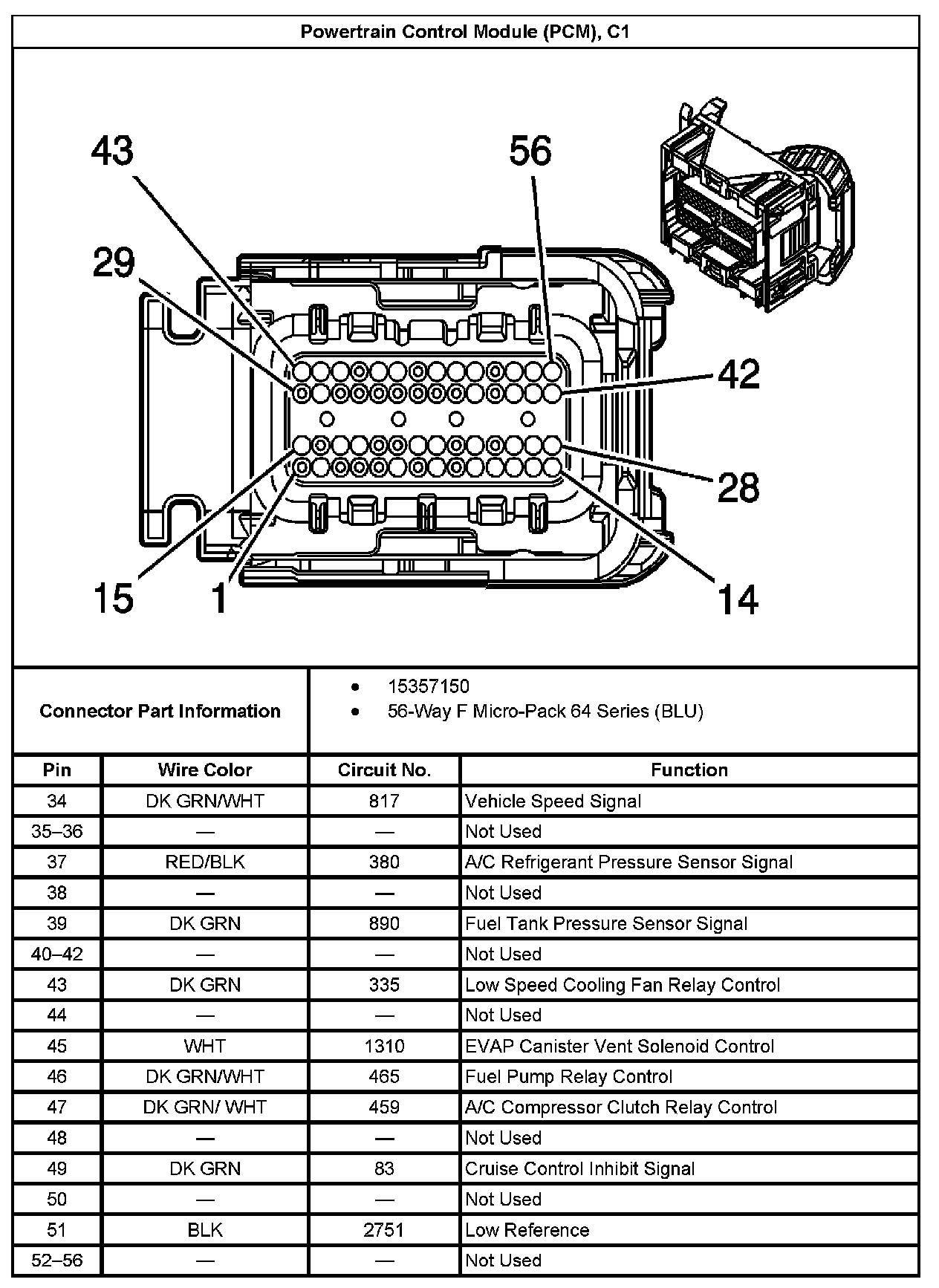

Powertrain Control Module (PCM), C1 Part 2:
