Keyless Entry Component Views

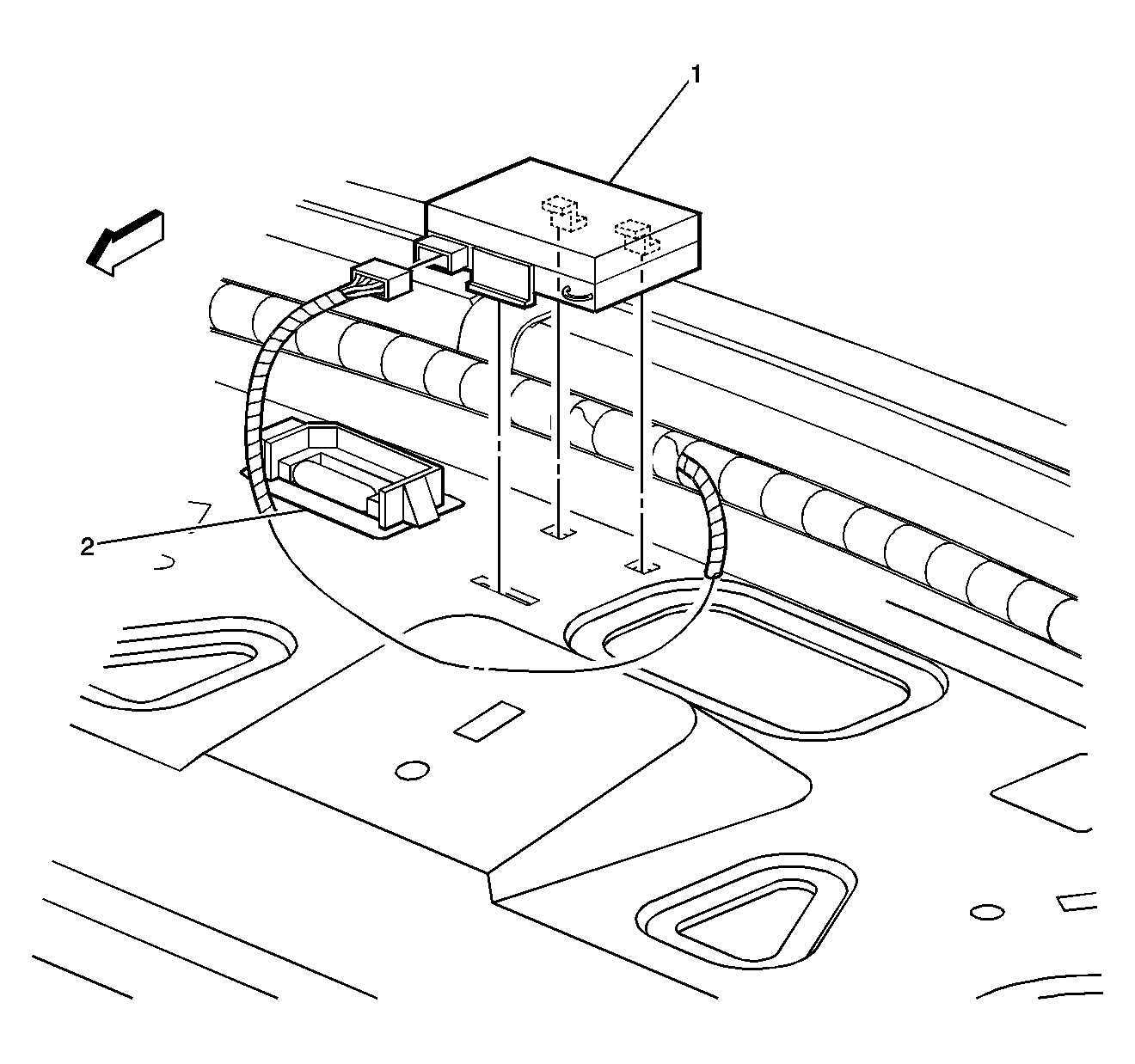

Fig 1: Remote Control Door Lock Receiver
GM328361Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Control Door Lock Receiver
2 Rear Compartment Lamp
