Installation Procedure

  1. Connect the electrical connector.

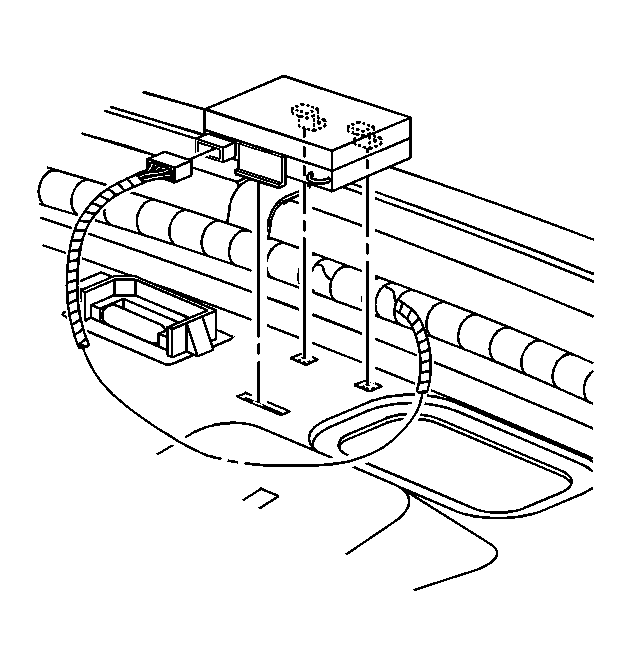

    2. Fig 1: Identifying Remote Door Lock Receiver Electrical Connector
    GM329501Courtesy of GENERAL MOTORS CORP.
  2. Install the receiver through the access hole. Snap the mounting tabs into place.
  3. Install the rear compartment lamp housing. Refer to Rear Compartment Lamp Replacement in Lighting Systems.
  4. Reprogram the new receiver to transmitters. Refer to Transmitter Programming .
