ABS Component Views

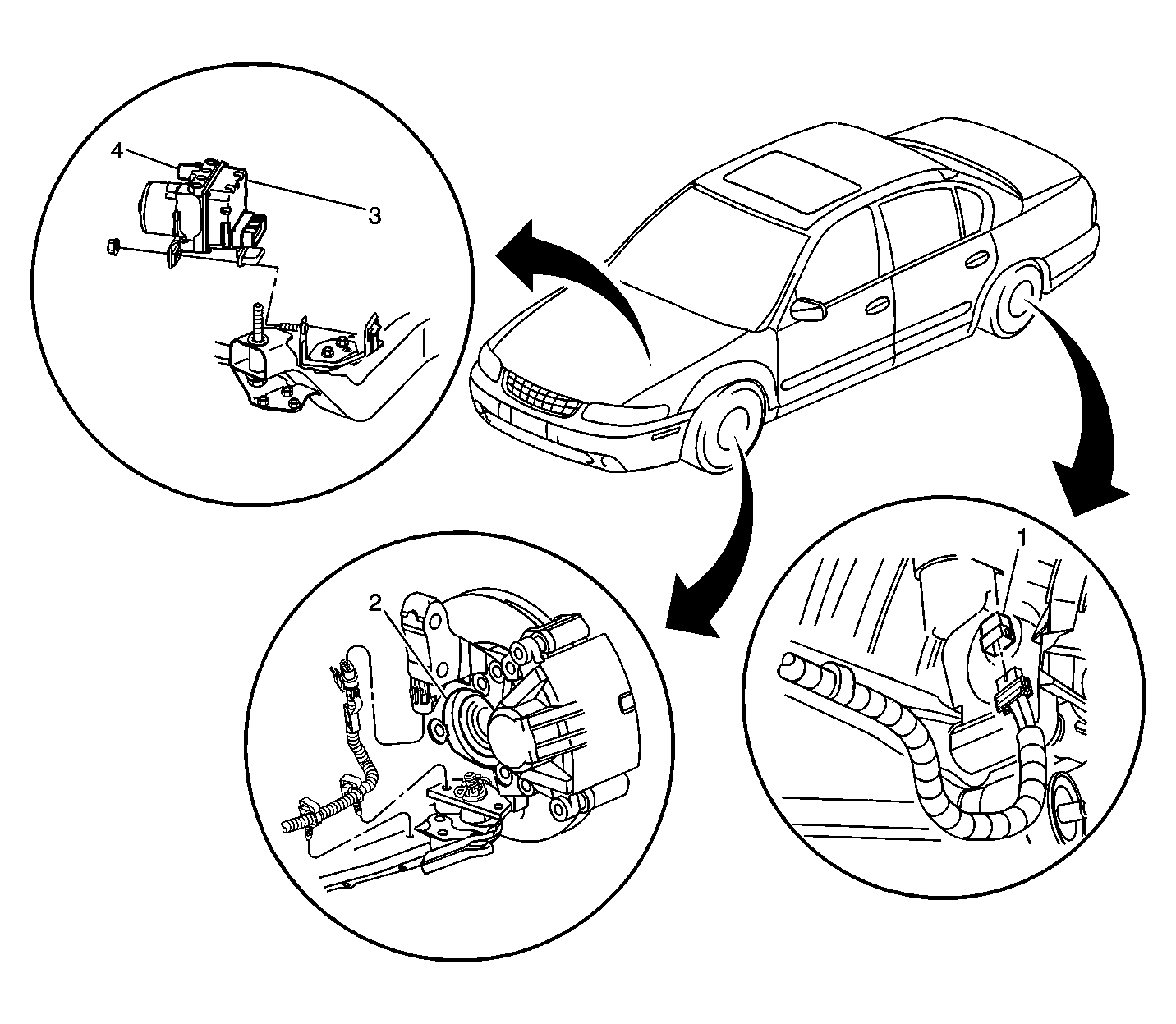

Fig 1: ABS Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Wheel Speed Sensor
2
Front Wheel Speed Sensor
3
Electronic Brake Control Module (EBCM)
4
Brake Pressure Modulator Valve (BPMV)
