Installation Procedure

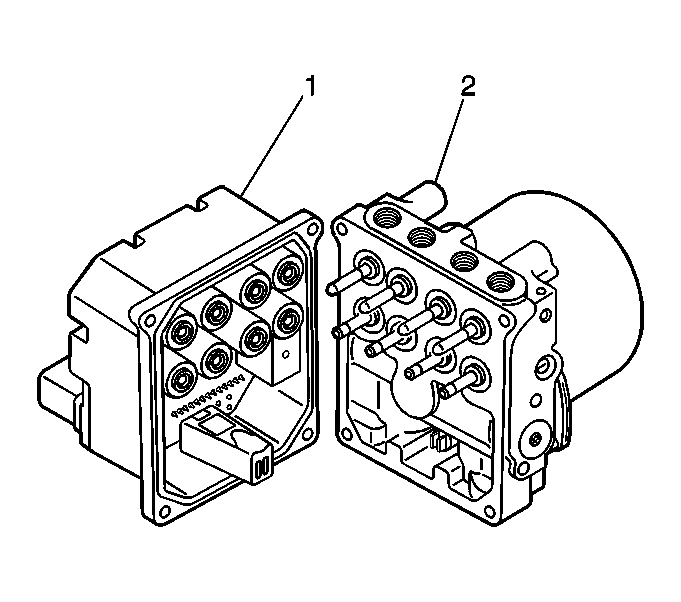

    Fig 1: View Of EBCM/EBTCM
    GM527343Courtesy of GENERAL MOTORS CORP.
  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (1) to the BPMV (2).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 4 screws that attach the EBCM (1) to the BPMV (2).

    Tighten:  Tighten the screws to 5 N.m (44 lb in).

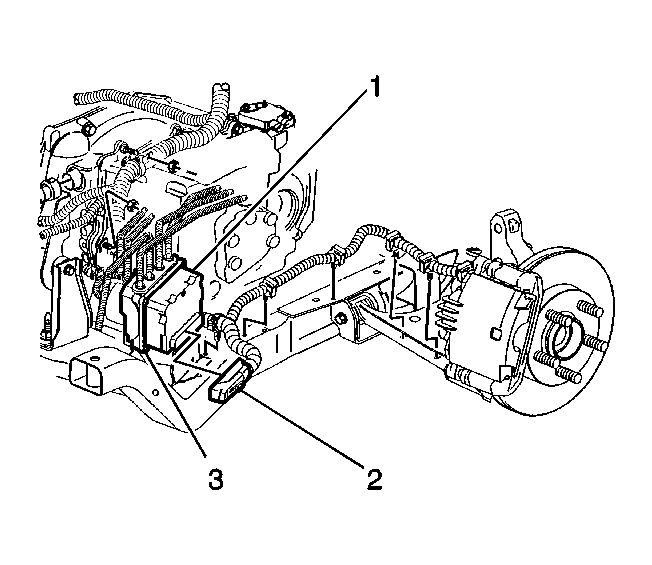

    4. Fig 2: Identifying EBCM & EBCM Harness Connector
    GM567224Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (2) to the EBCM (1).
    5. Fig 3: Identifying Connector Position Assurance (CPA) Locking Tab And Connector Sliding Cover Lock Tab
    GM393786Courtesy of GENERAL MOTORS CORP.
  5. Push down the harness connector lock tab (1) and then move the sliding connector cover back in the home position to lock.
  6. Push the CPA (2) back into place.
  7. Install the left engine splash shield.
  8. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  9. Perform the Diagnostic System Check - ABS .
