Power Outlet Component Views

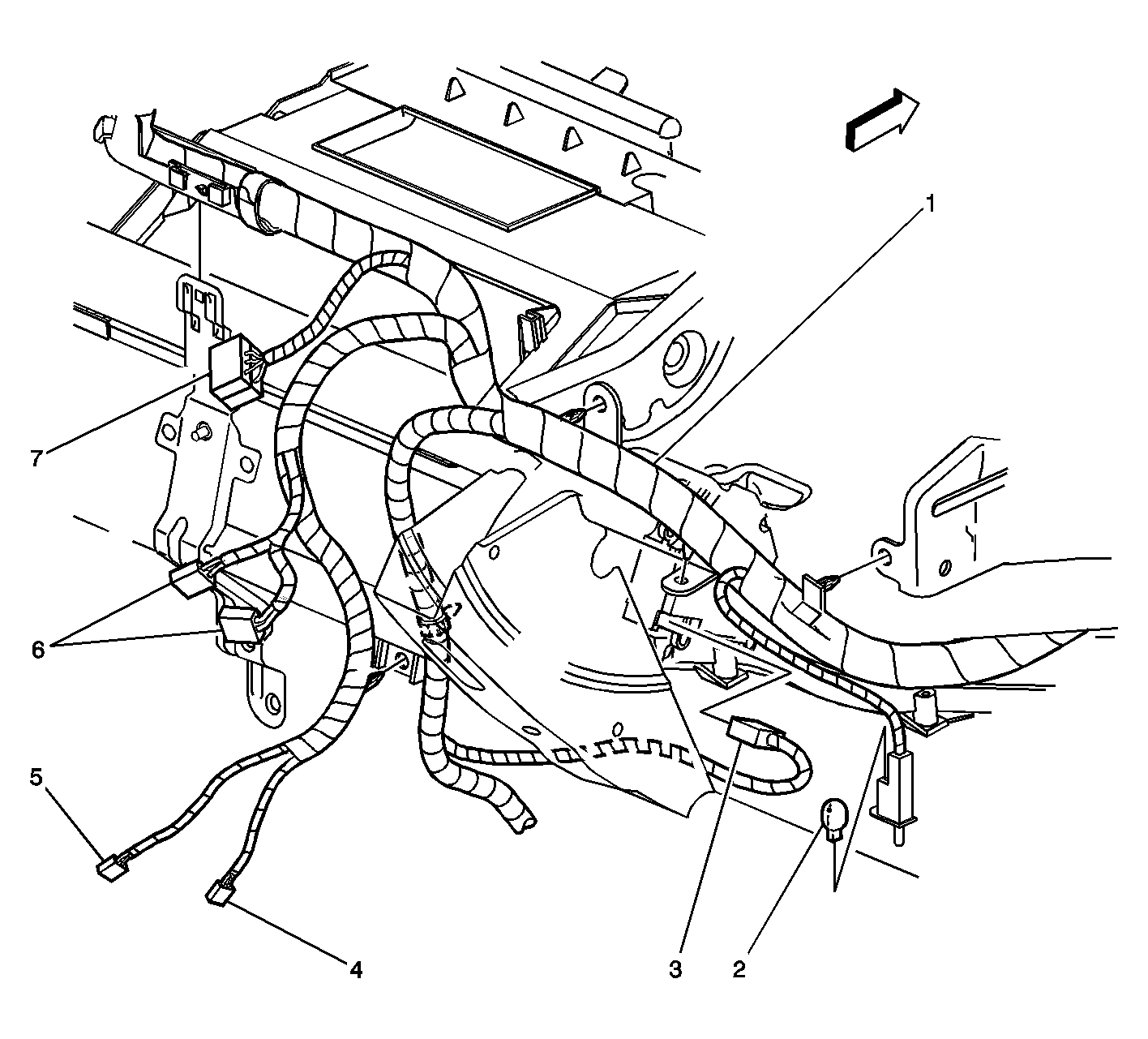

Fig 1: Top Right Side of the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	IP Harness
2	Glove Box Lamp/Switch
3	Air Temperature Actuator Connector
4	Cigar Lighter Connector
5	Accessory Power Outlet Connector
6	HVAC Control Assembly Connectors
7	Radio Connector
