Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

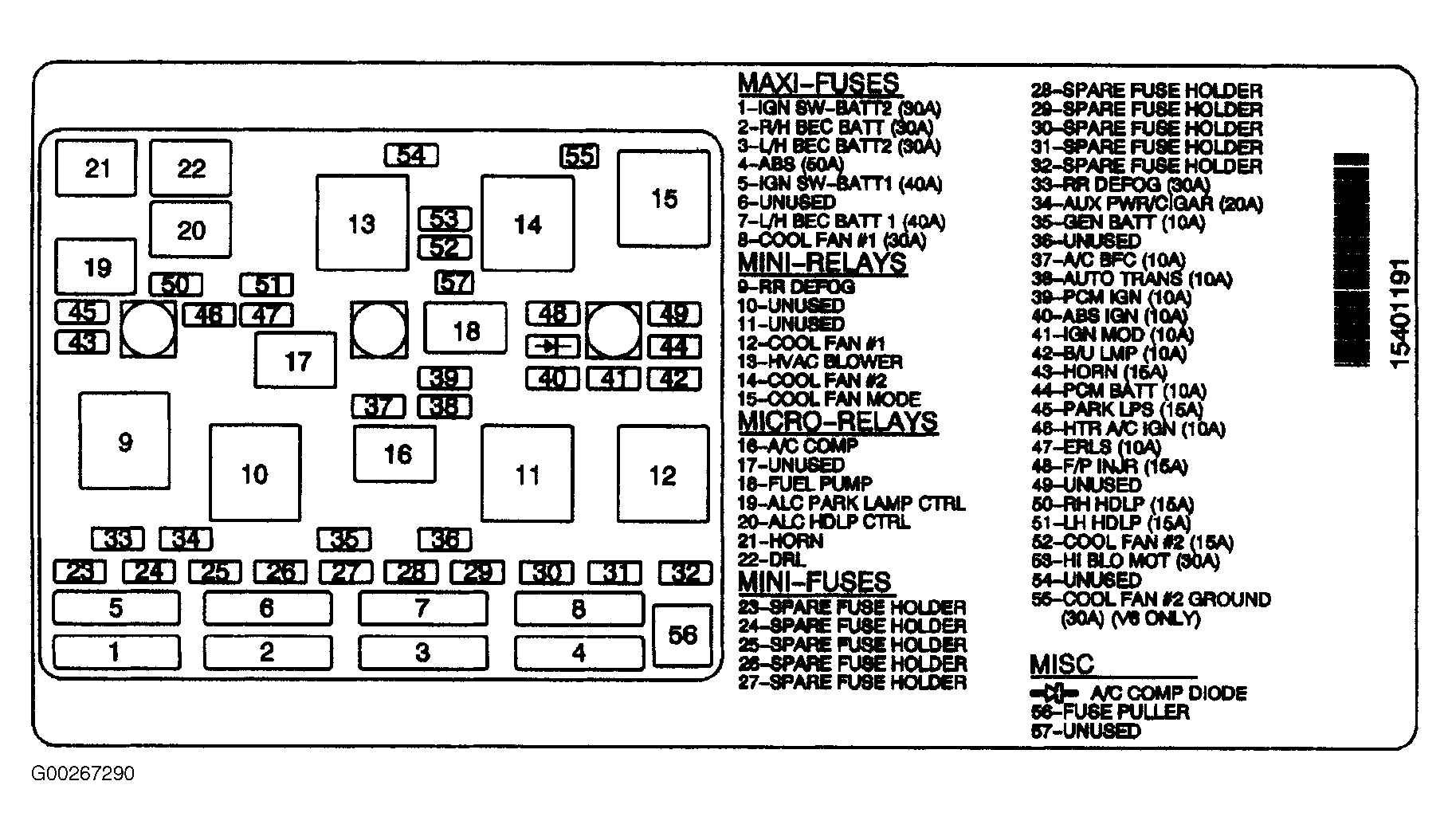

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

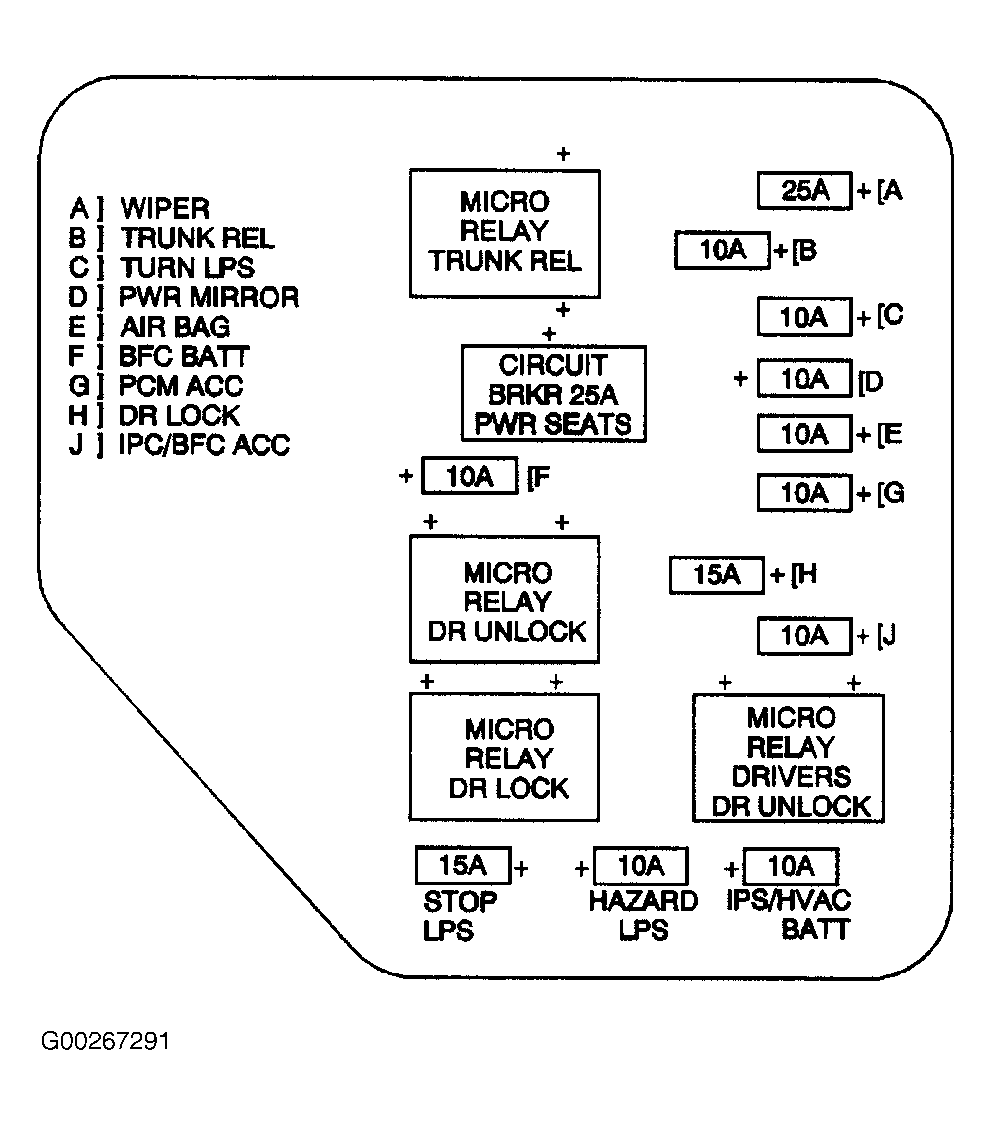

Fig 2: Left I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.

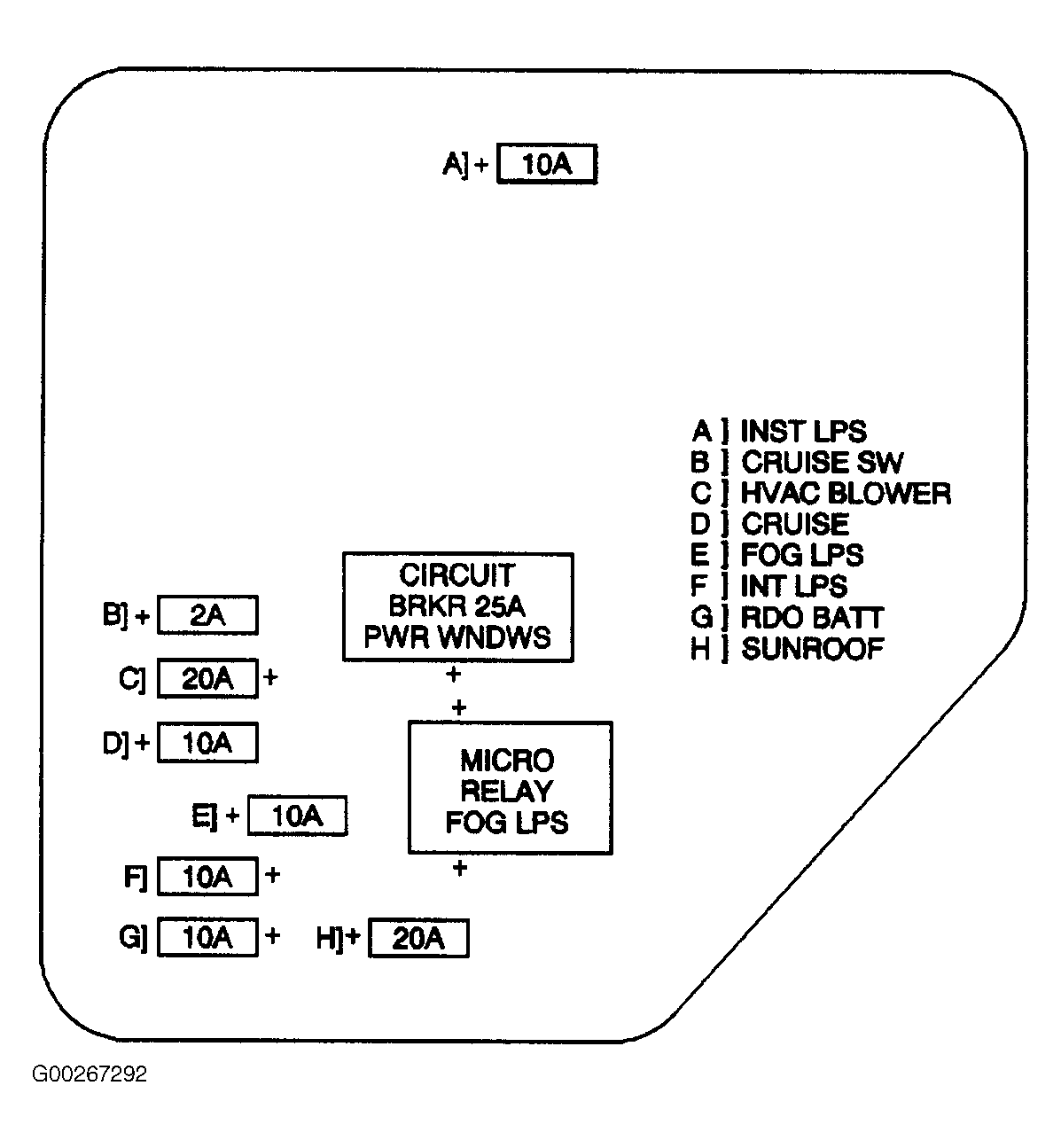

Fig 3: Right I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.

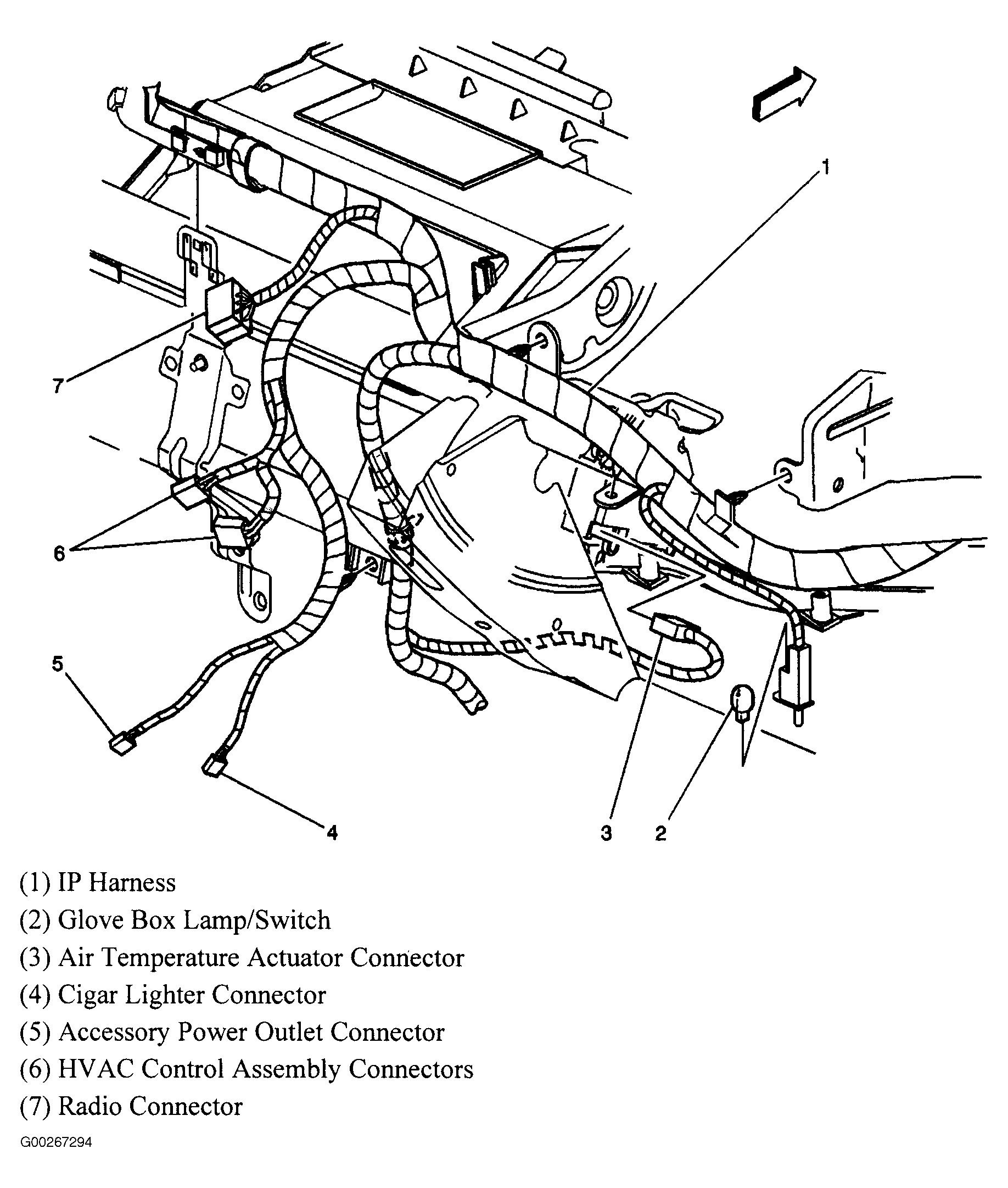

Fig 4: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

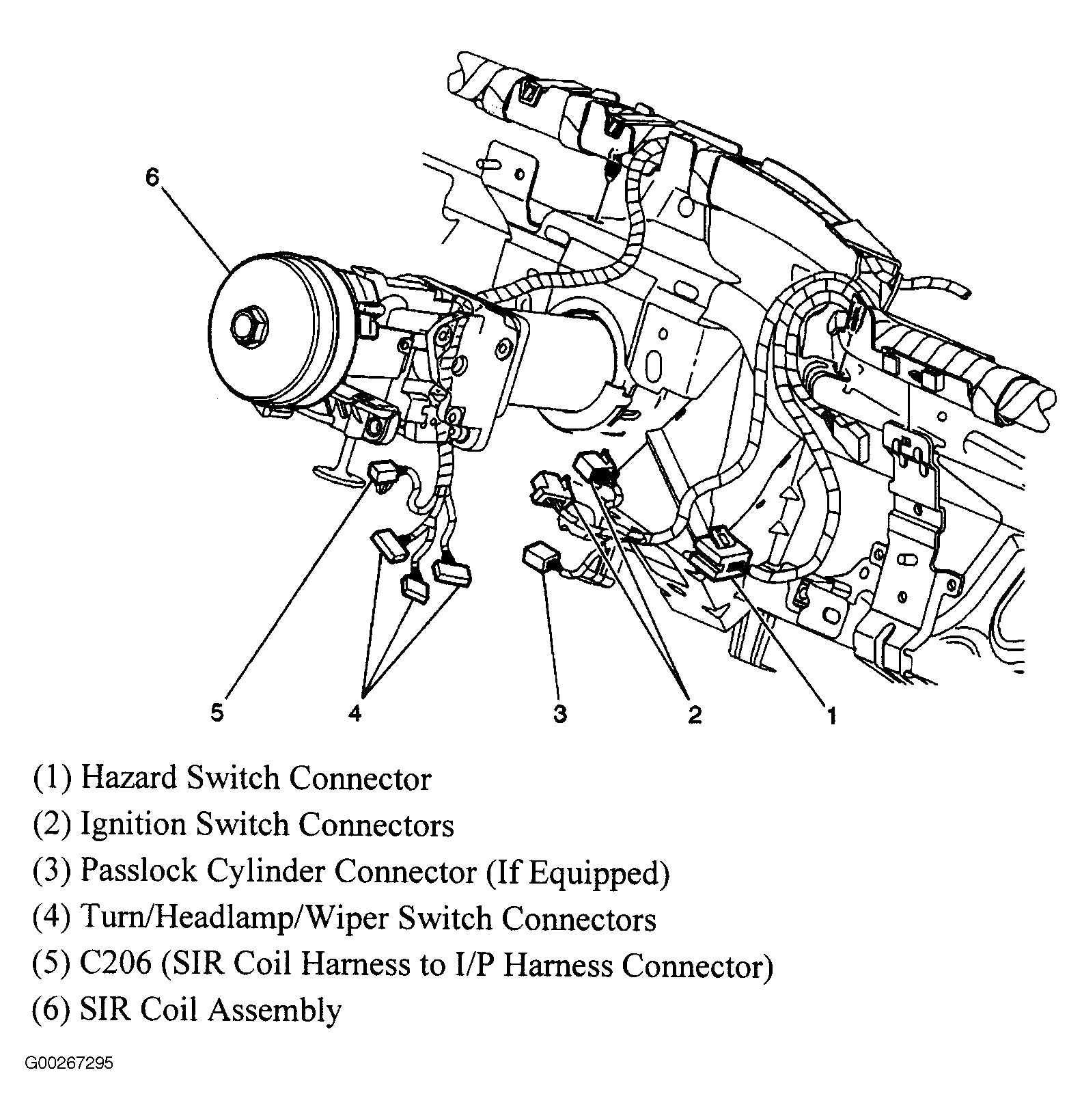

Fig 6: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 7: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

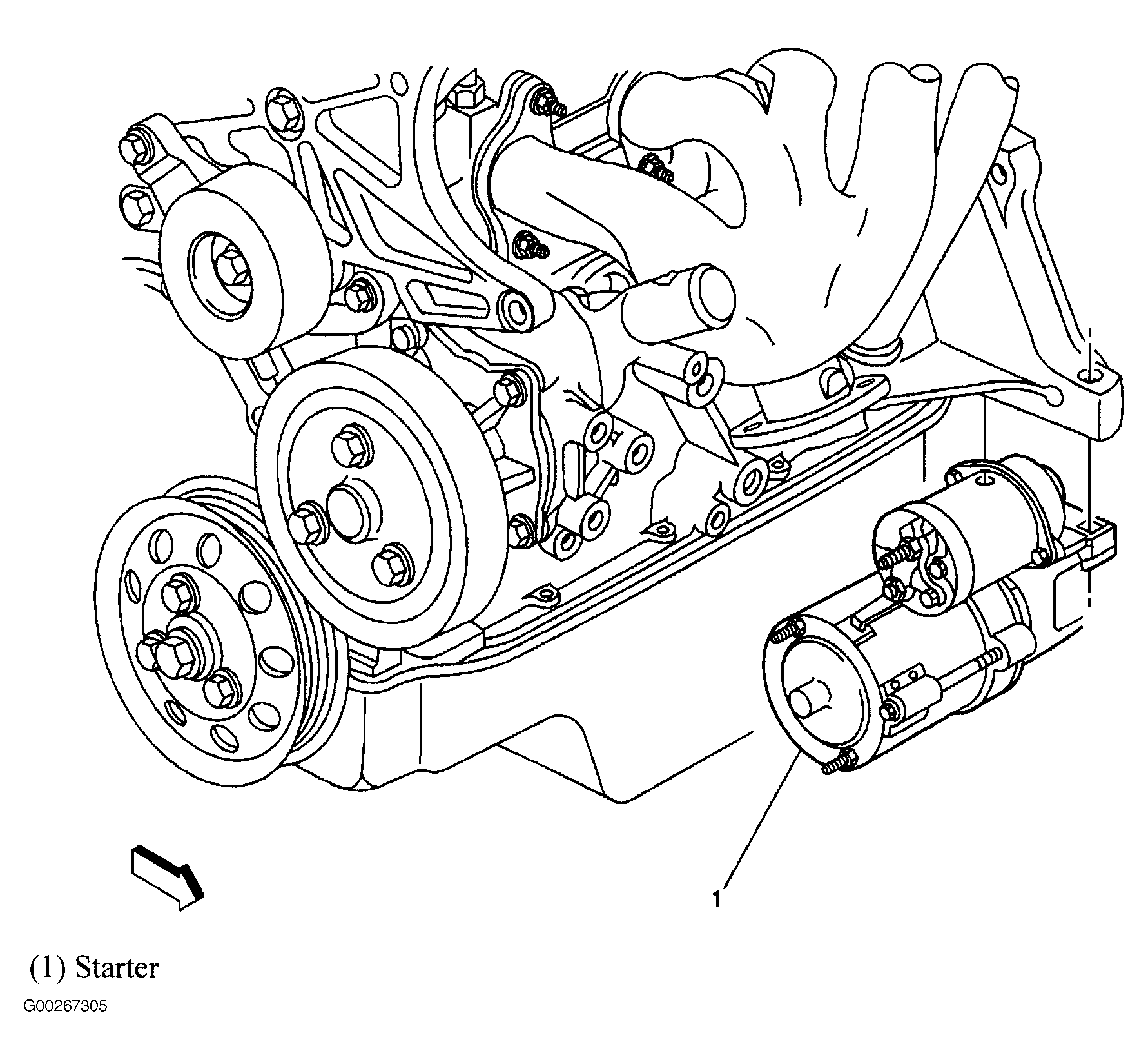

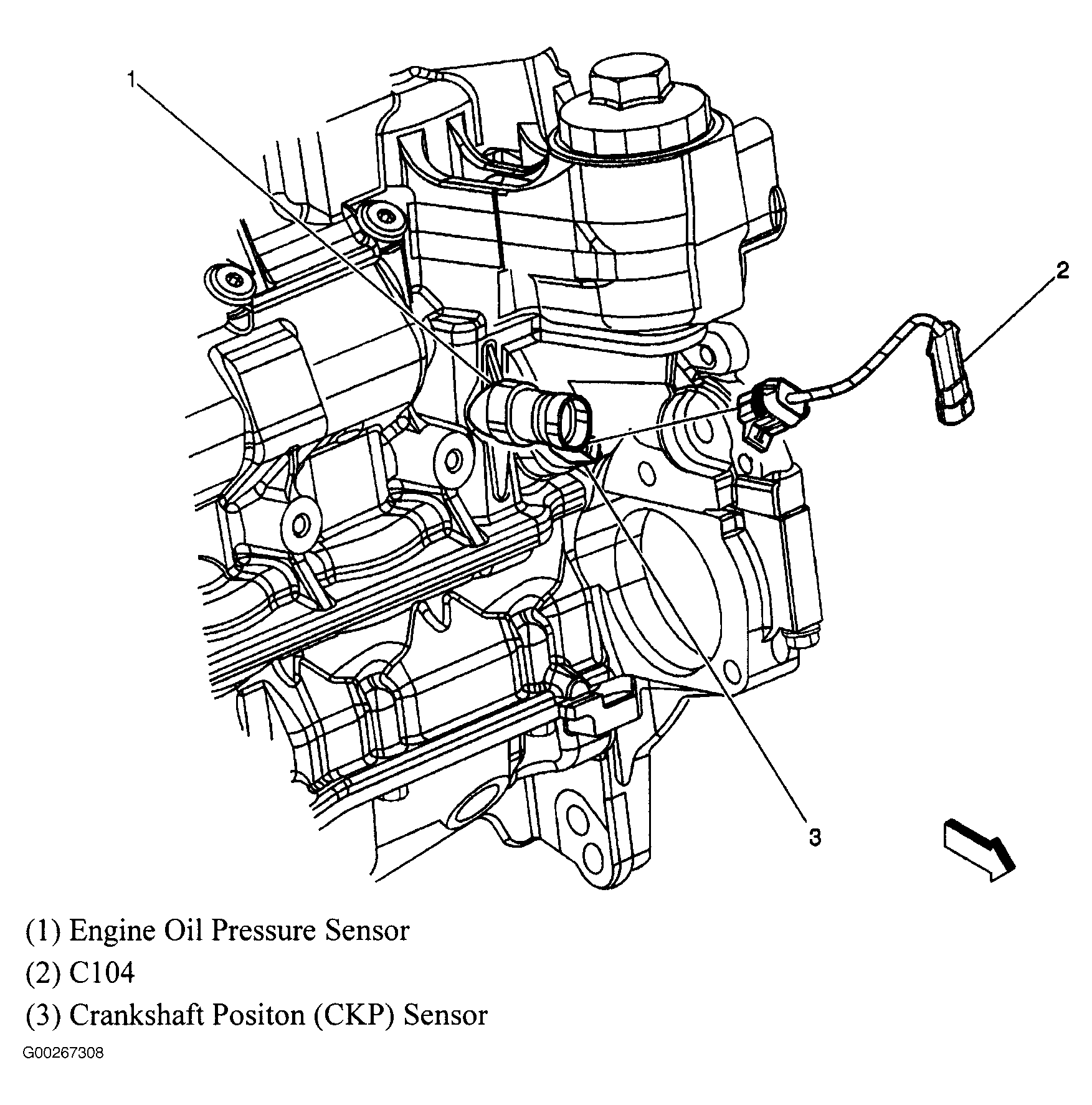

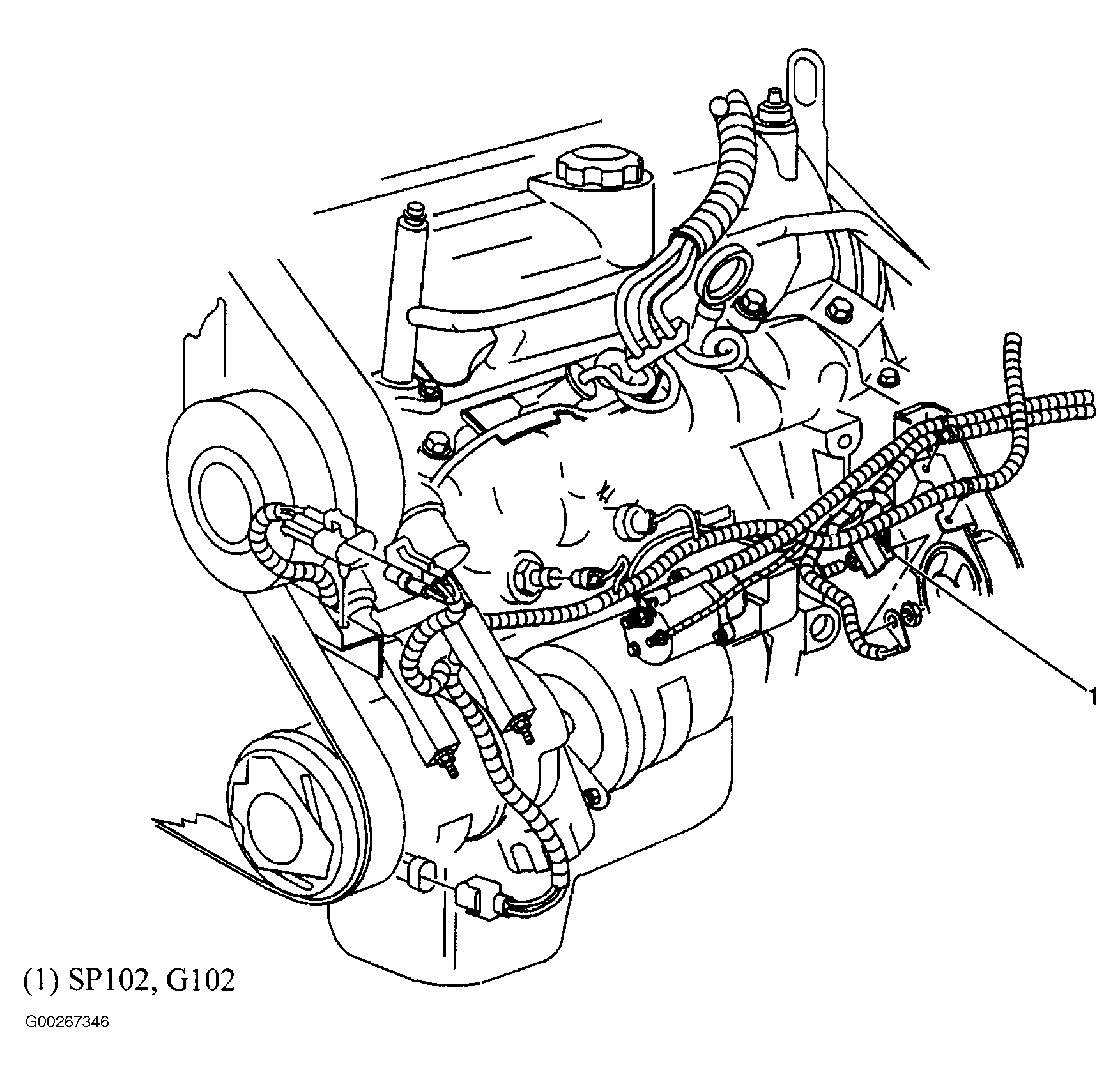

Fig 8: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

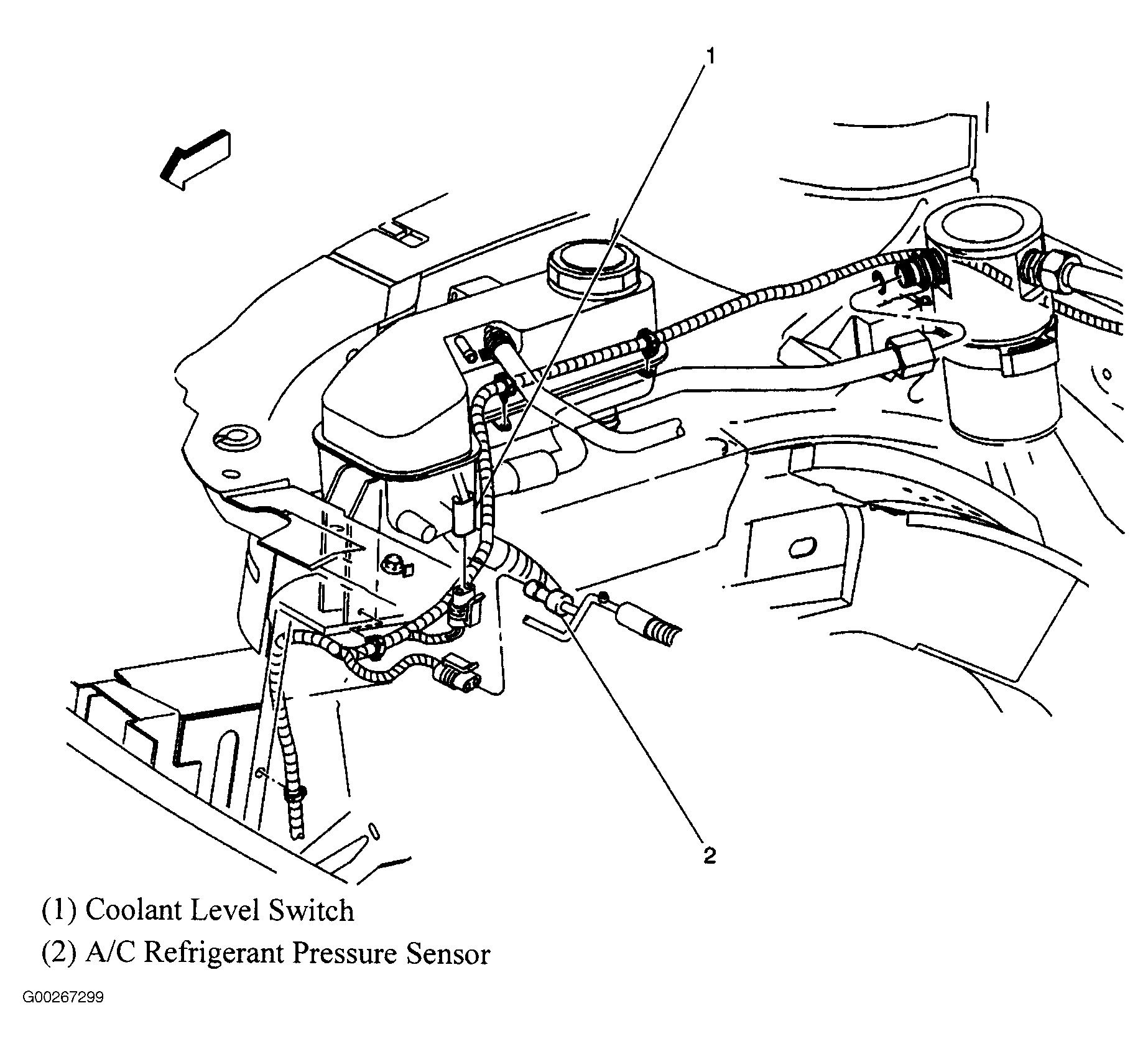

Fig 9: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Anti-Lock Brakes System Overview
Courtesy of GENERAL MOTORS CORP.

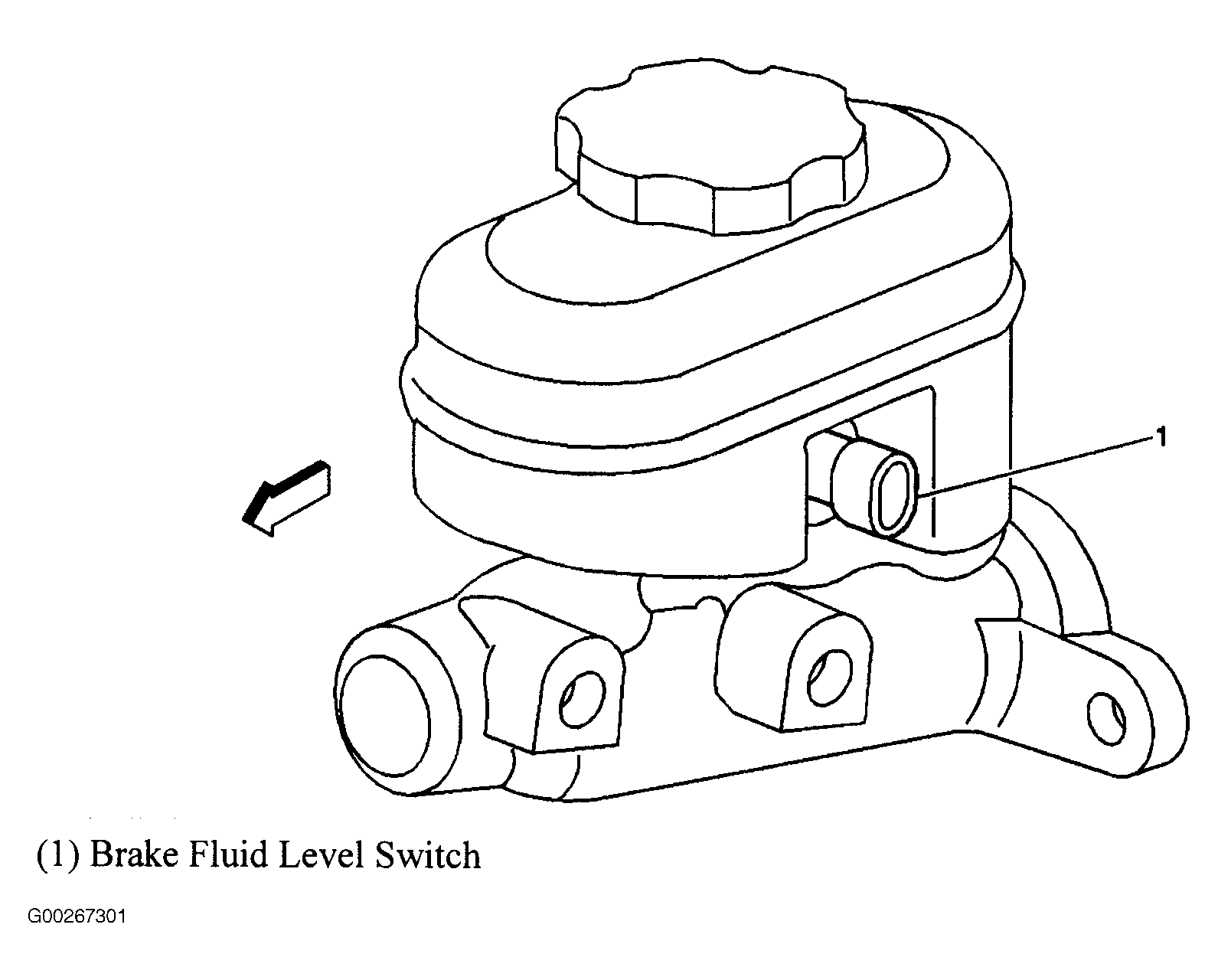

Fig 11: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.

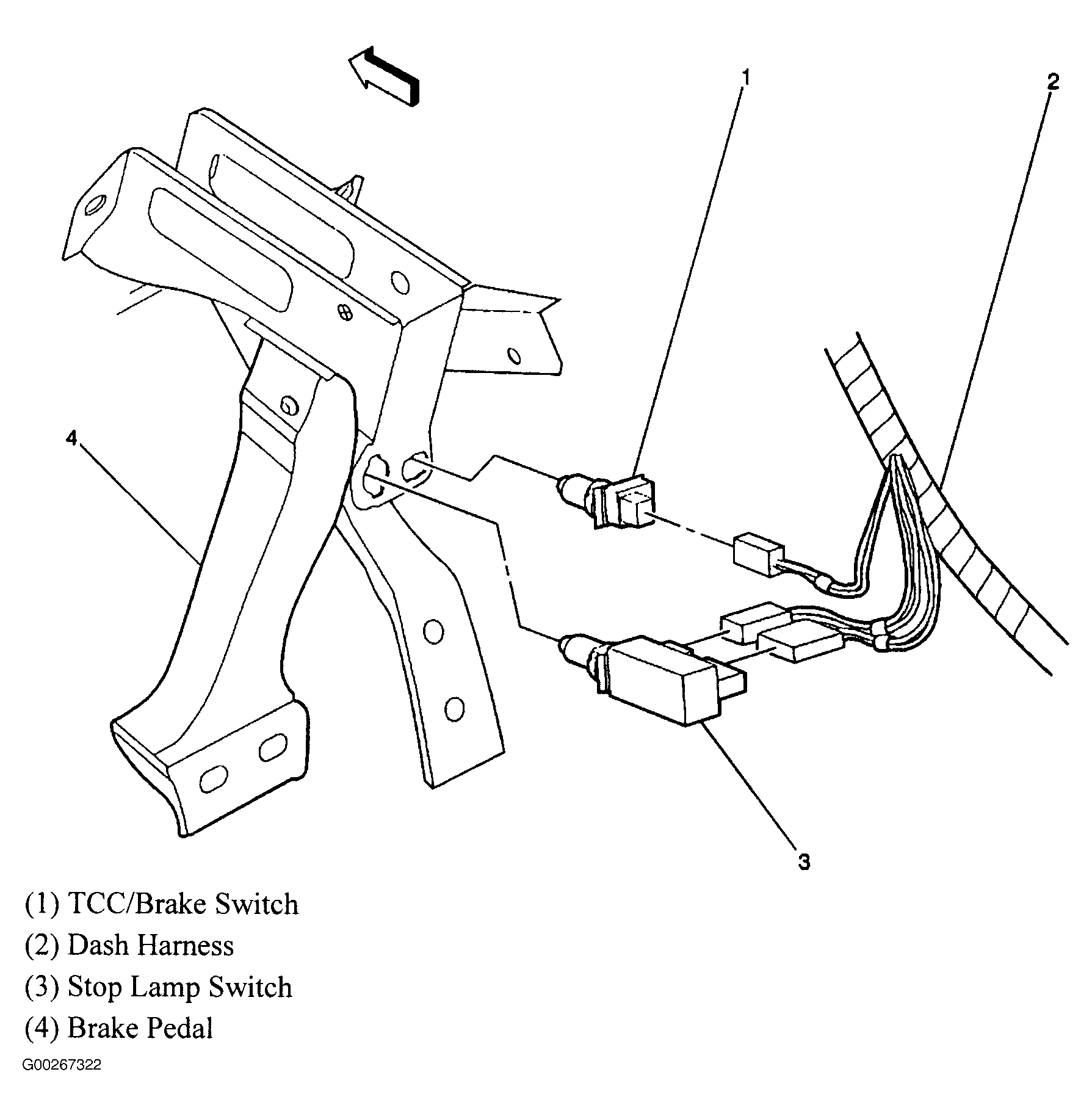

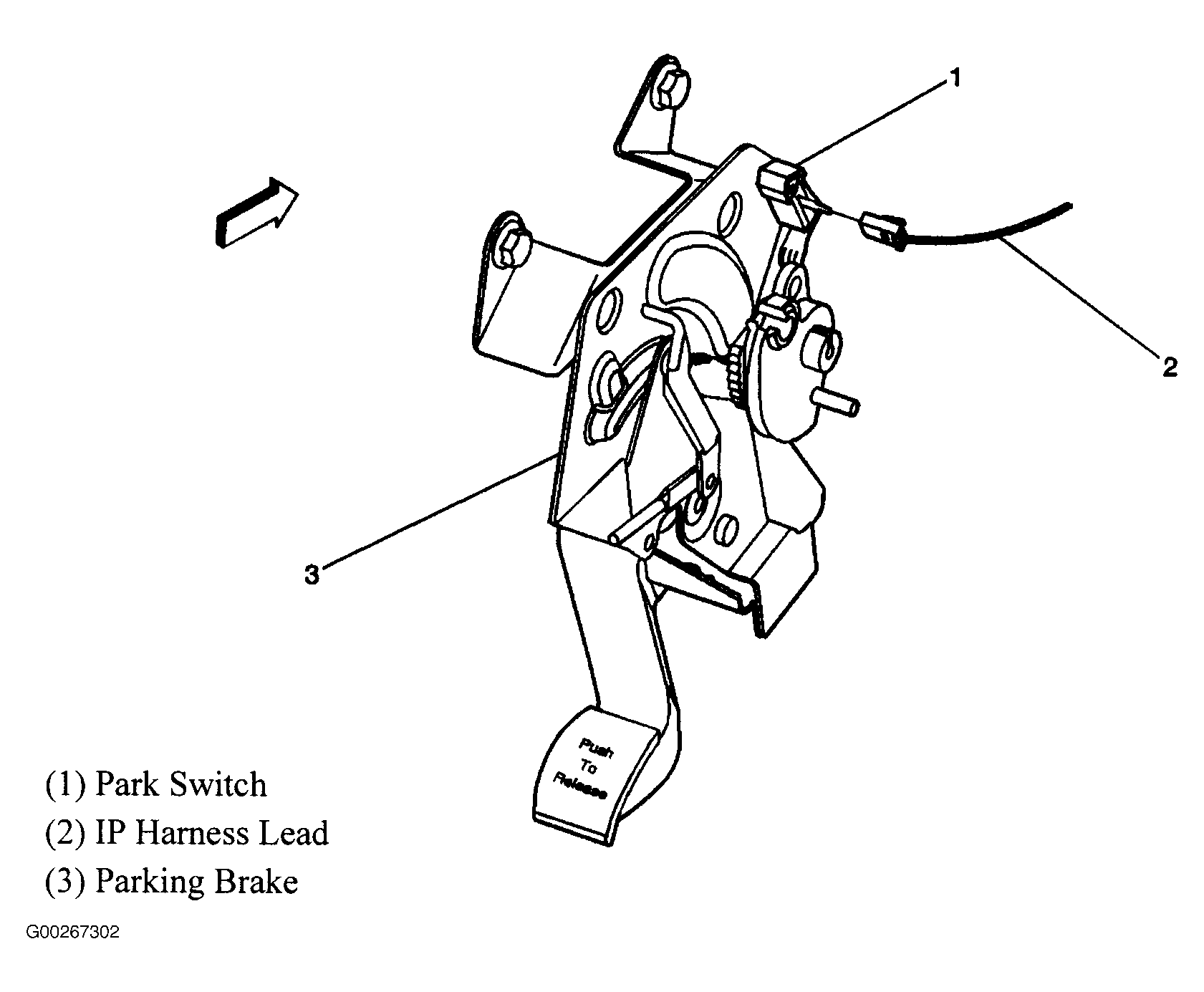

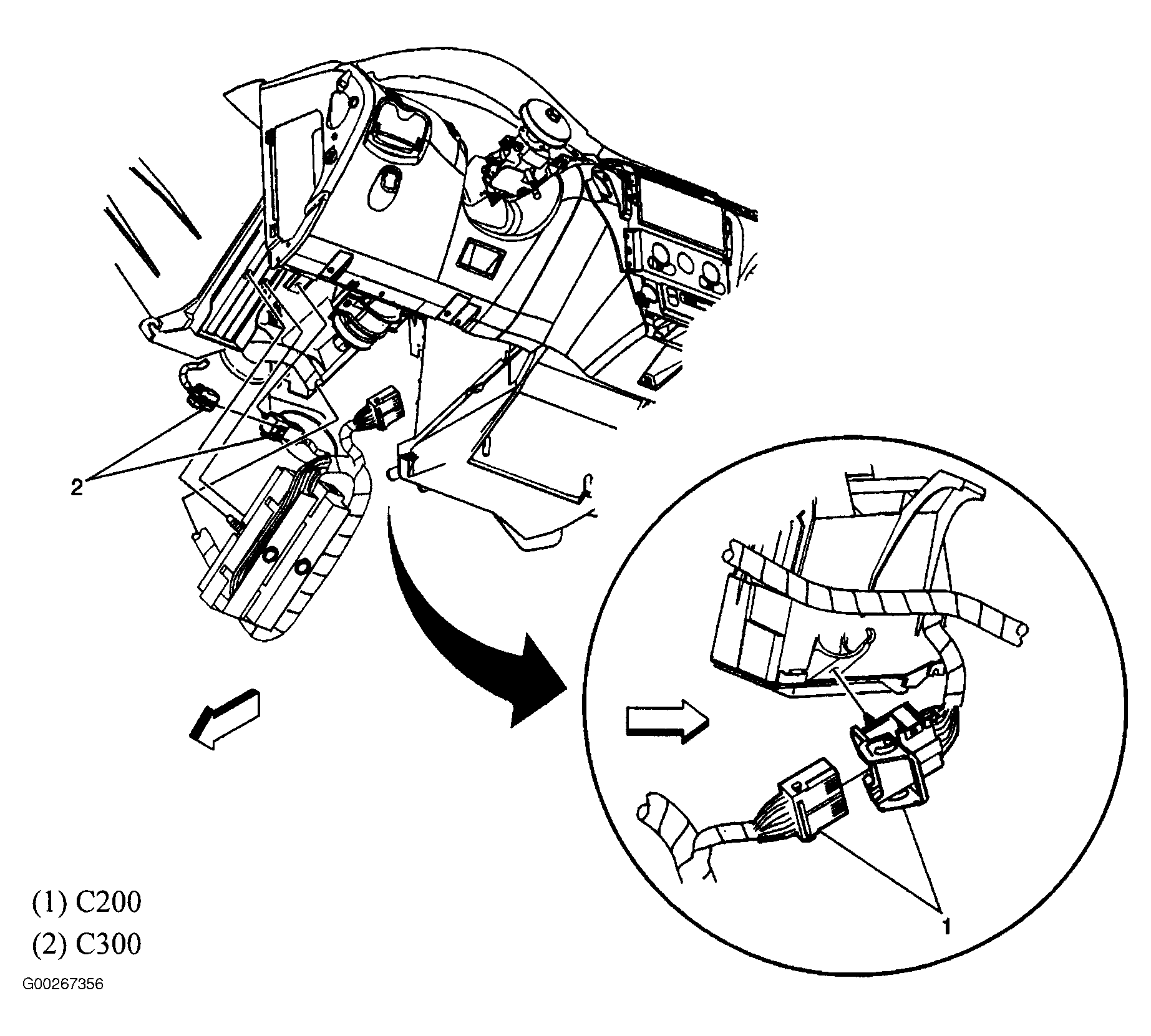

Fig 12: Under Left End Of Dash
Courtesy of GENERAL MOTORS CORP.

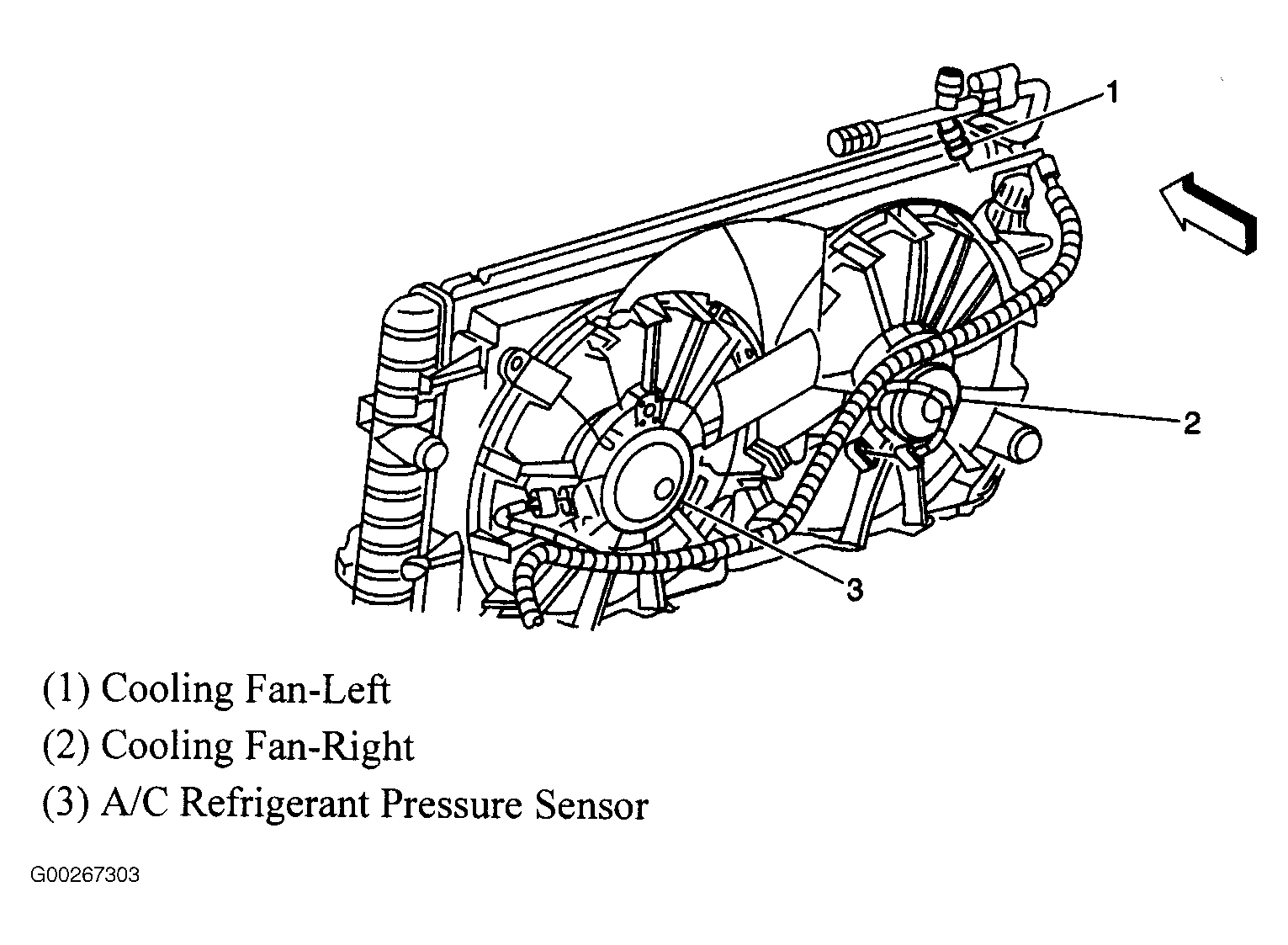

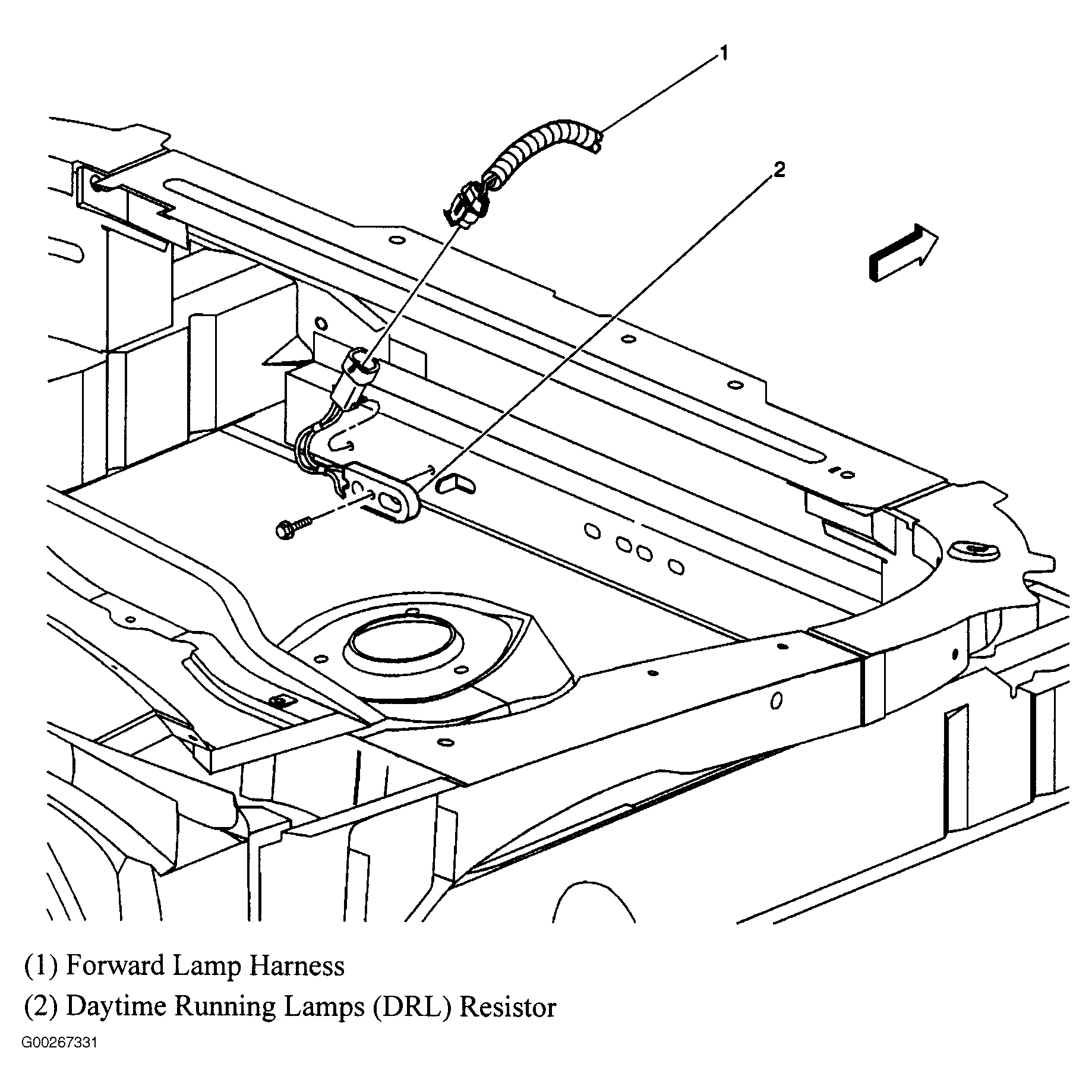

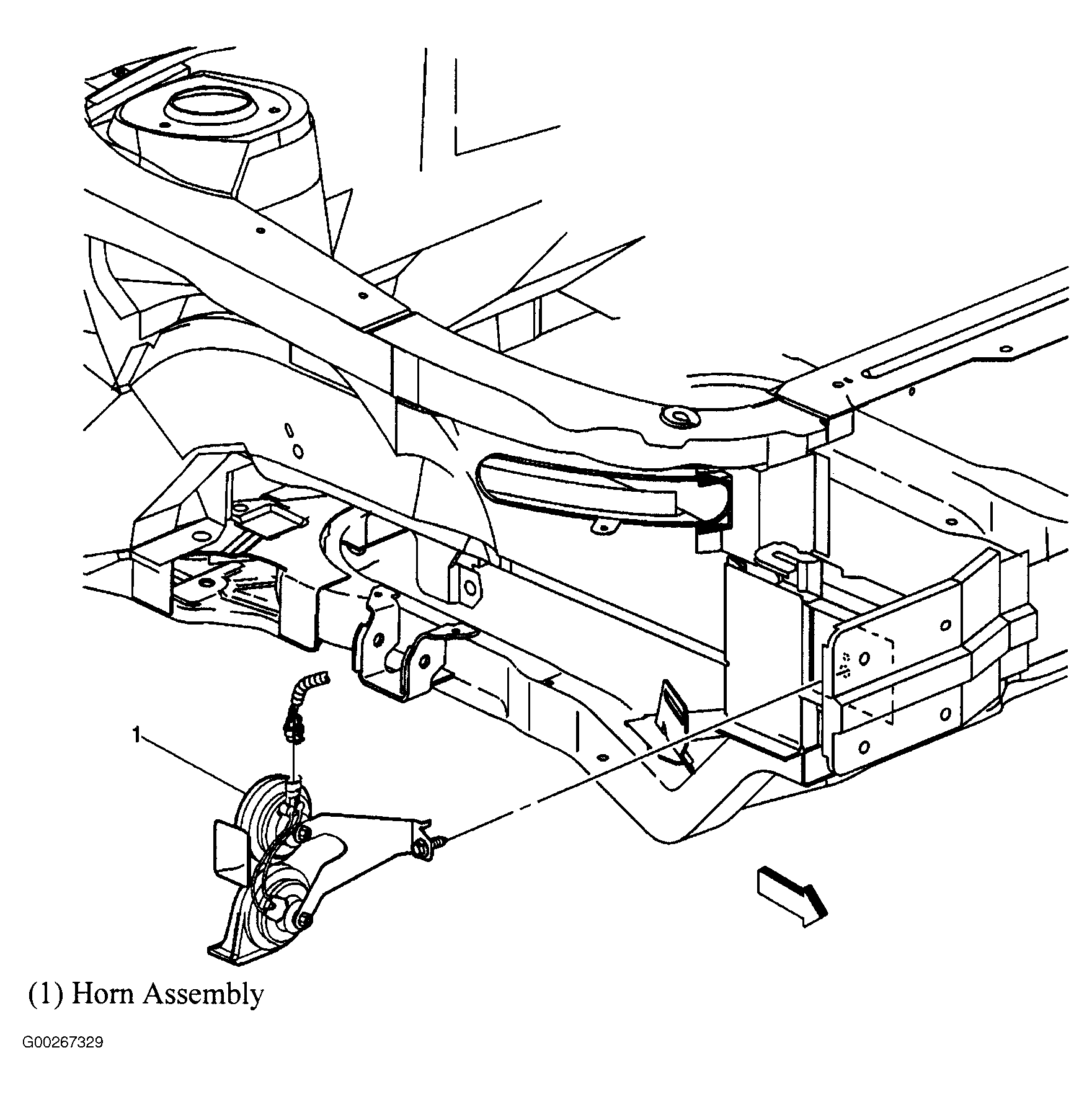

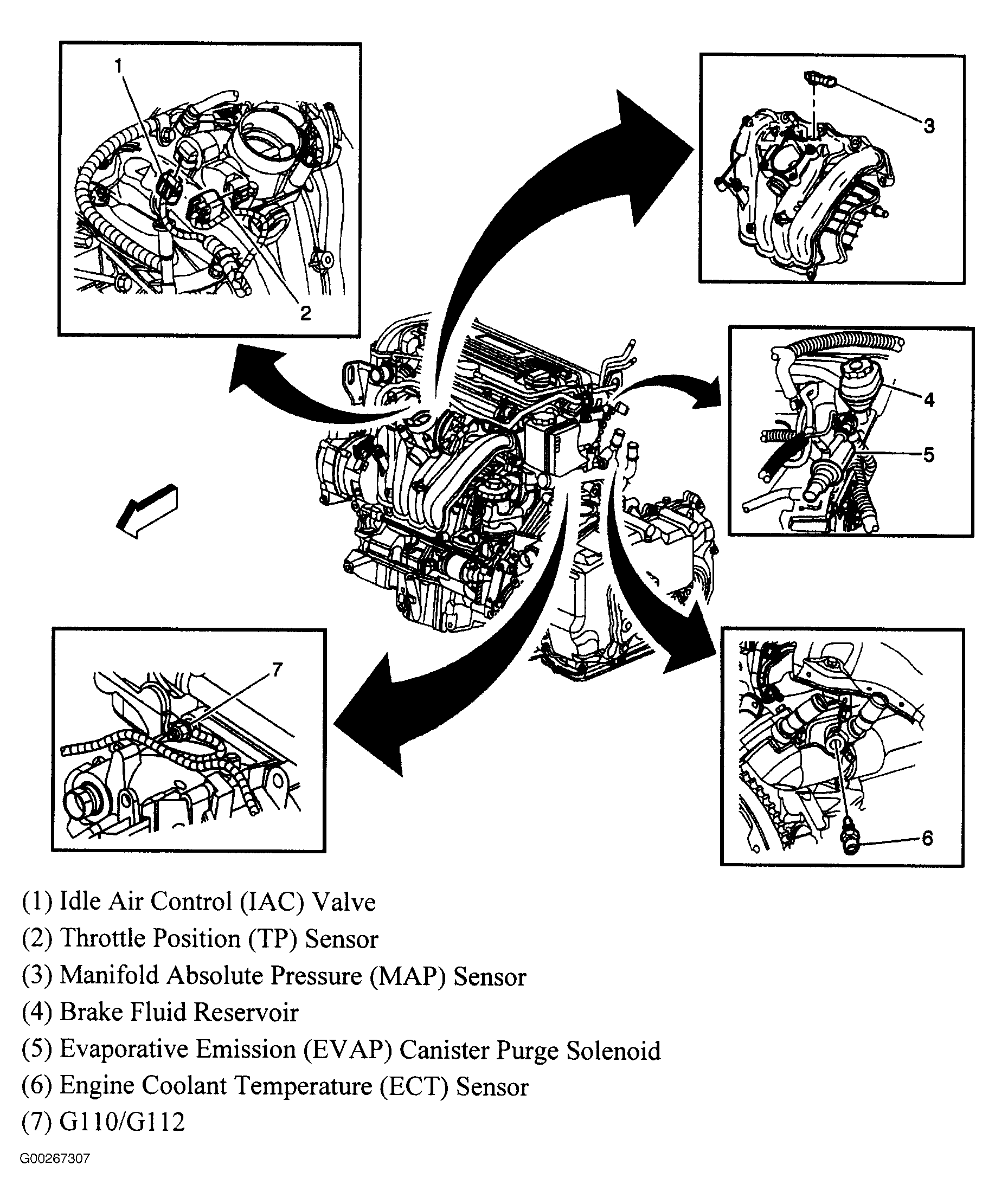

Fig 13: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

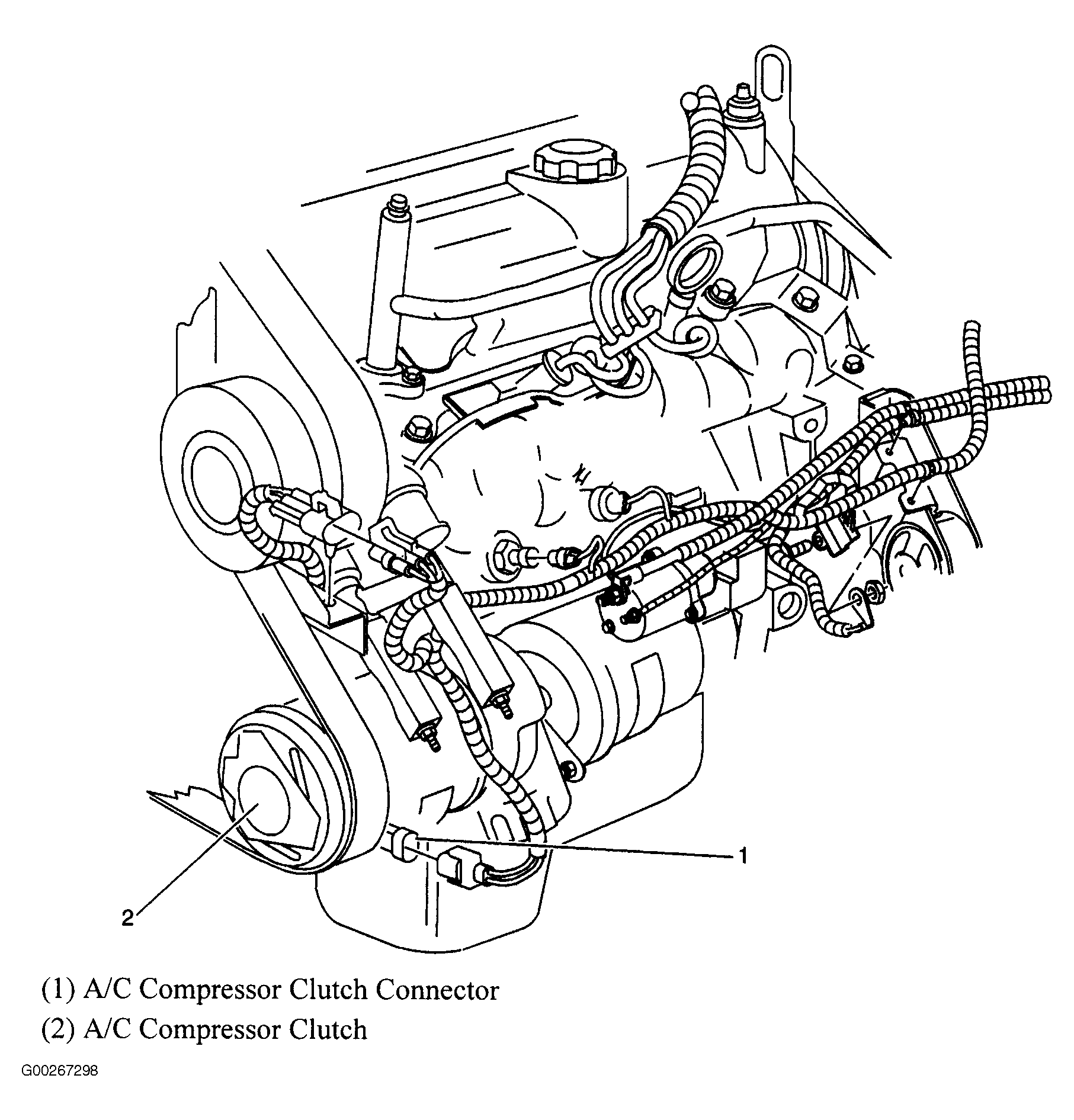

Fig 14: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.

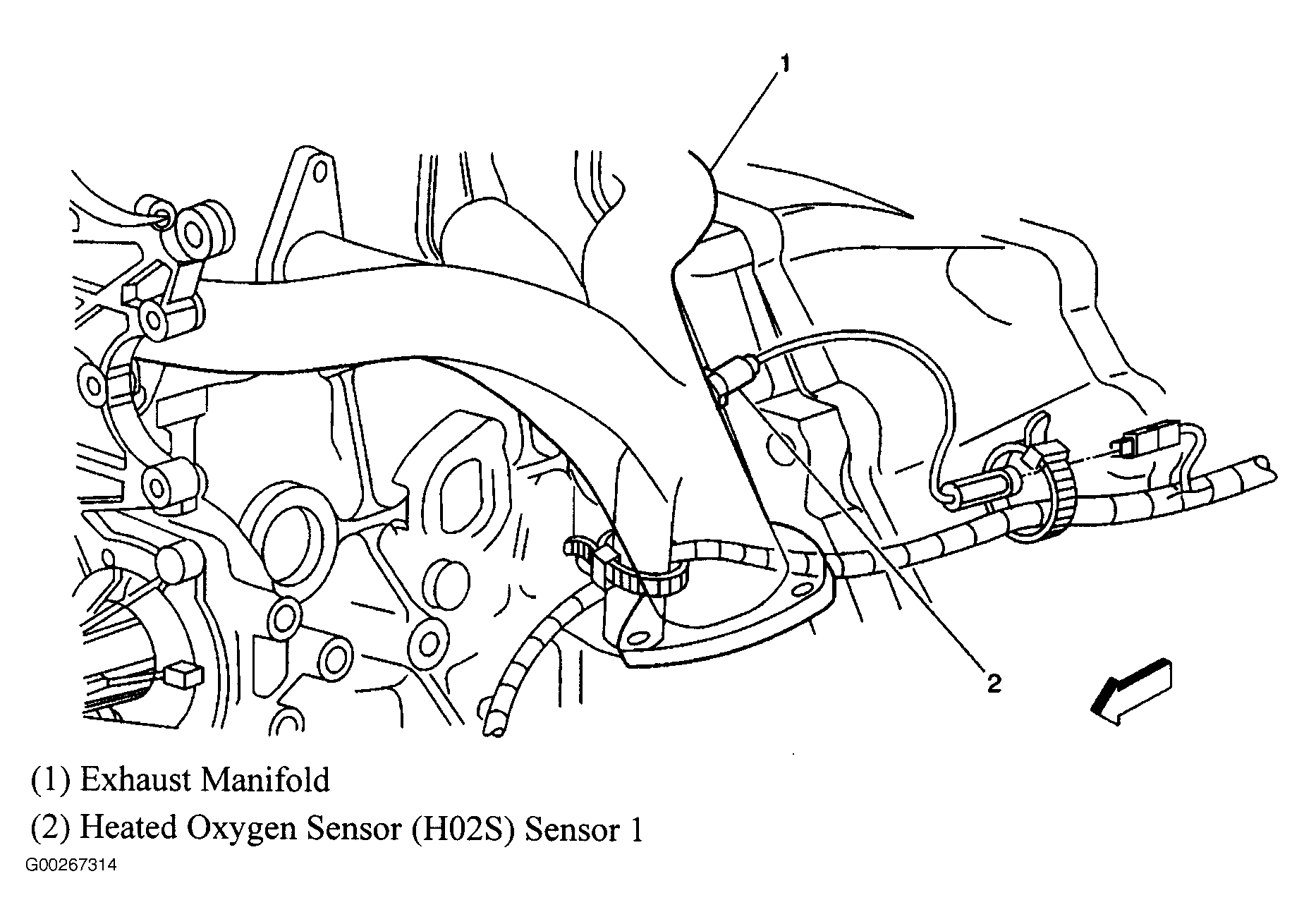

Fig 15: Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

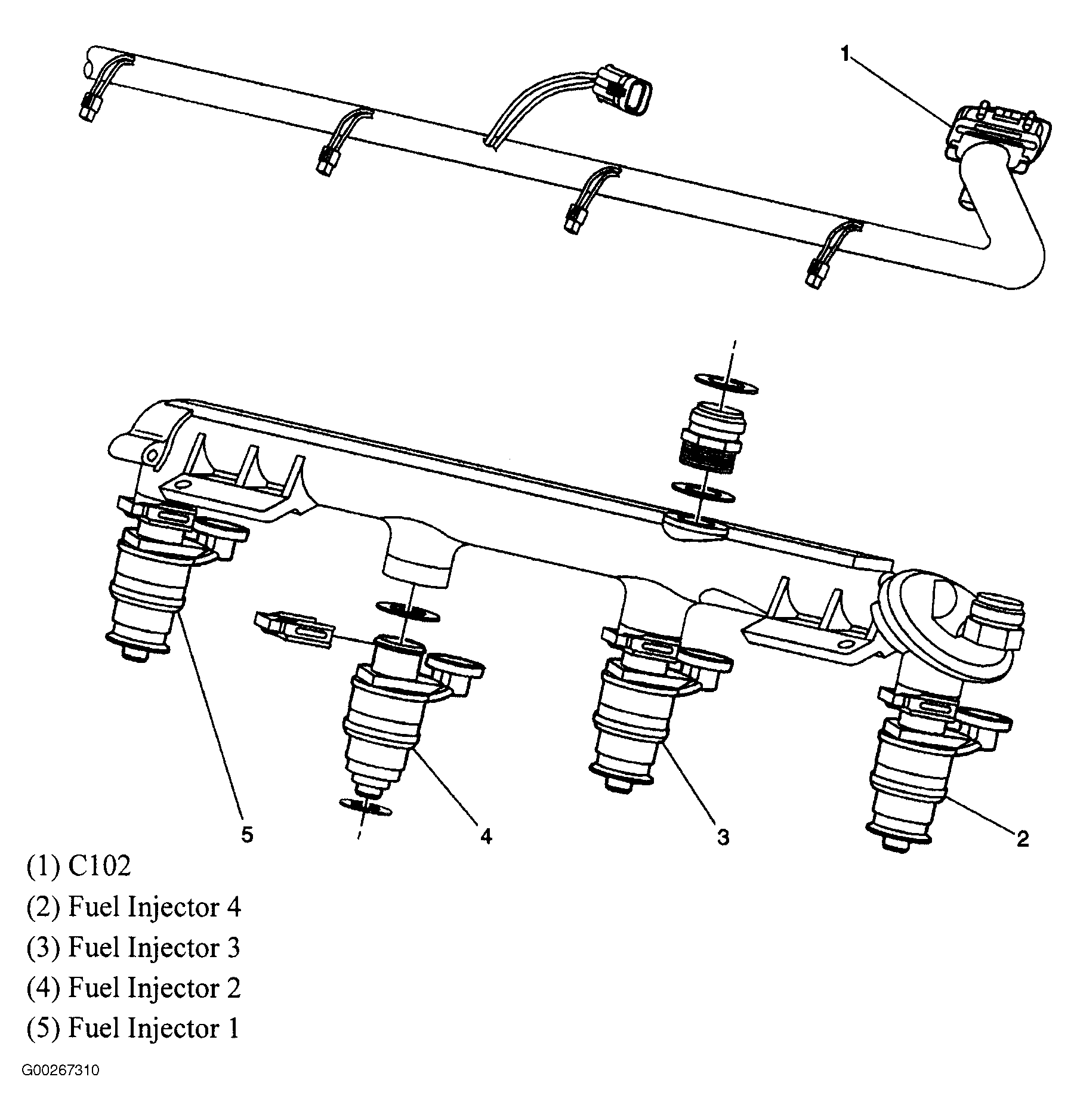

Fig 19: Top Front Of Engine
Courtesy of GENERAL MOTORS CORP.

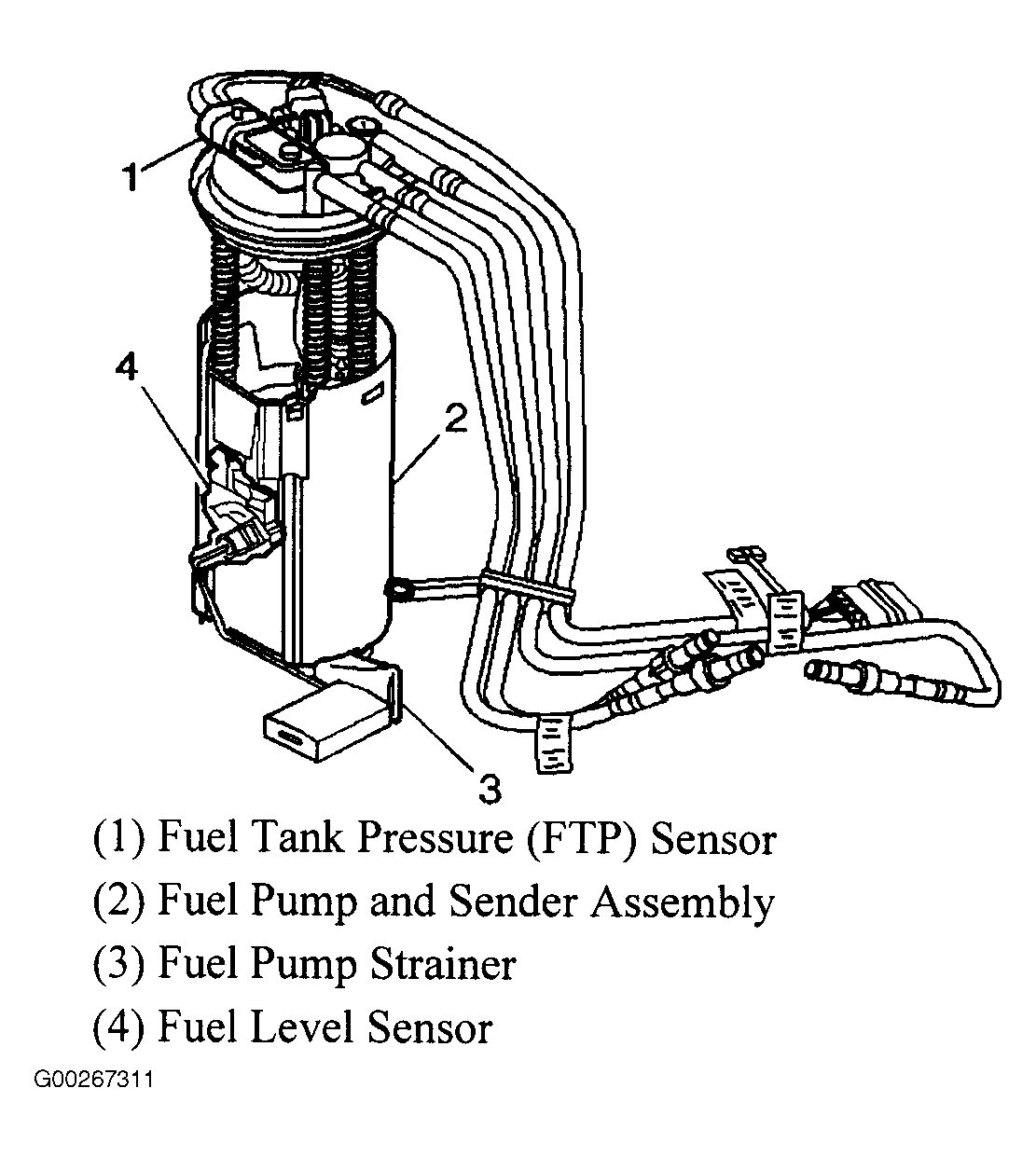

Fig 20: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

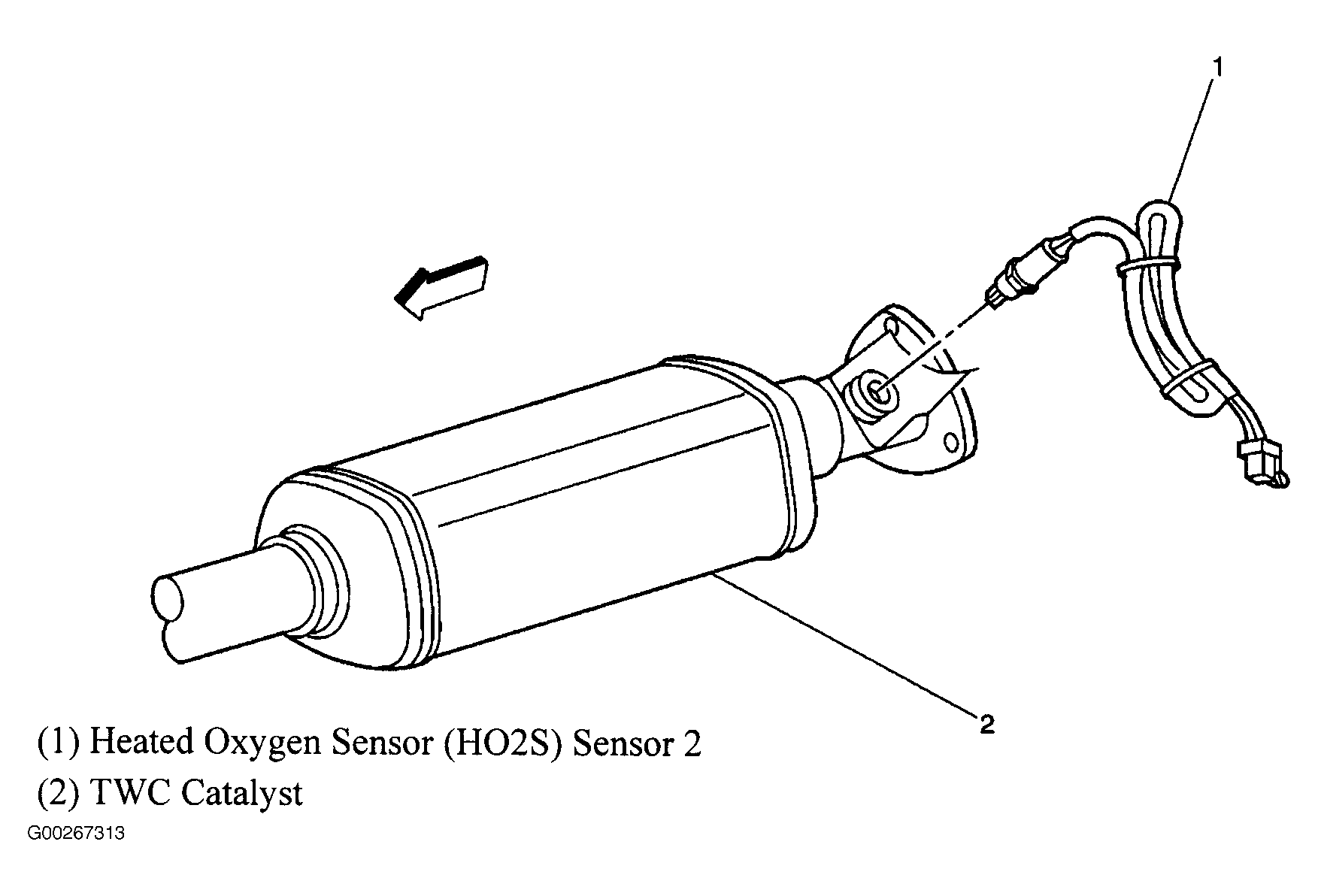

Fig 22: Catalytic Converter
Courtesy of GENERAL MOTORS CORP.
Fig 23: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

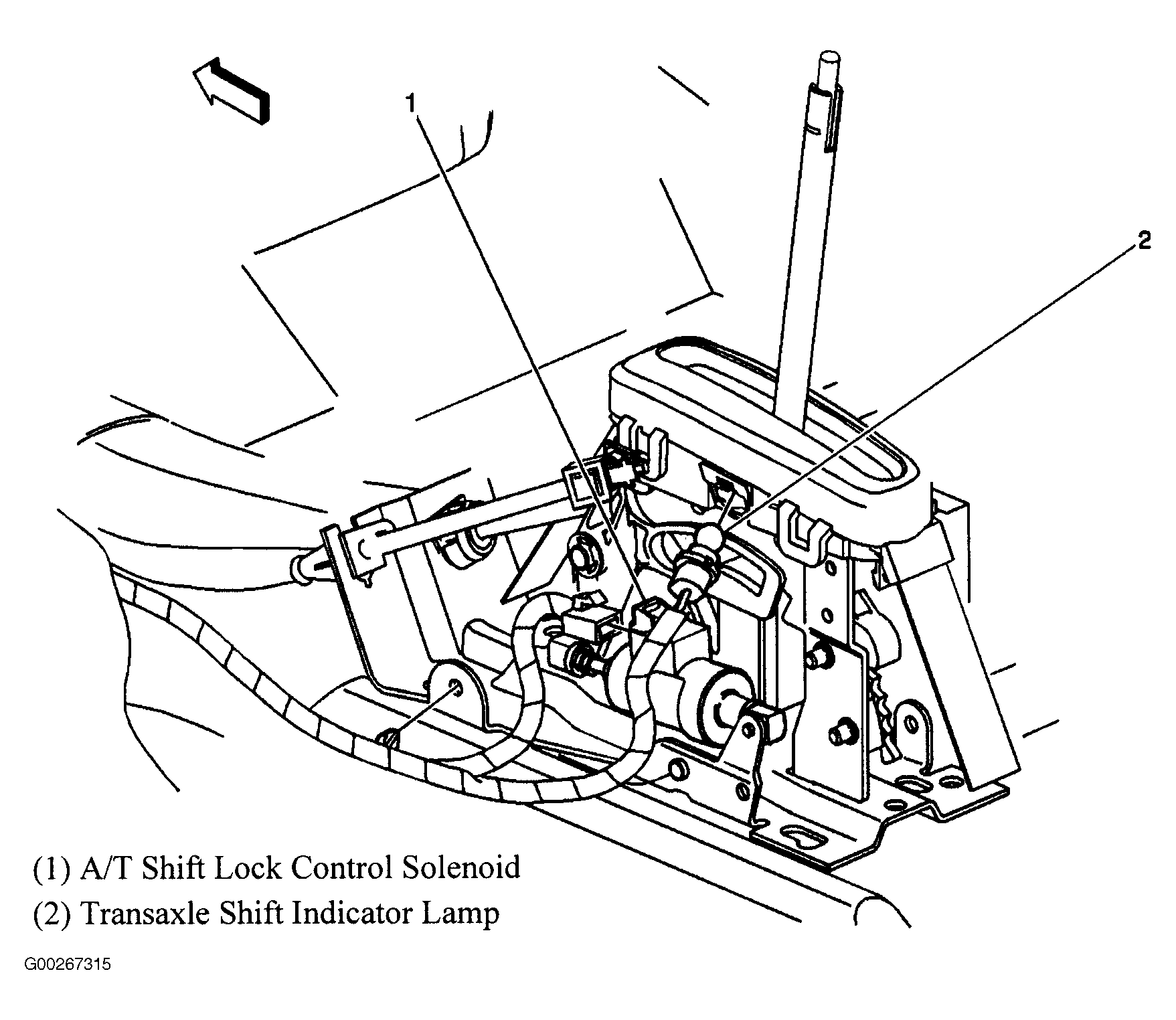

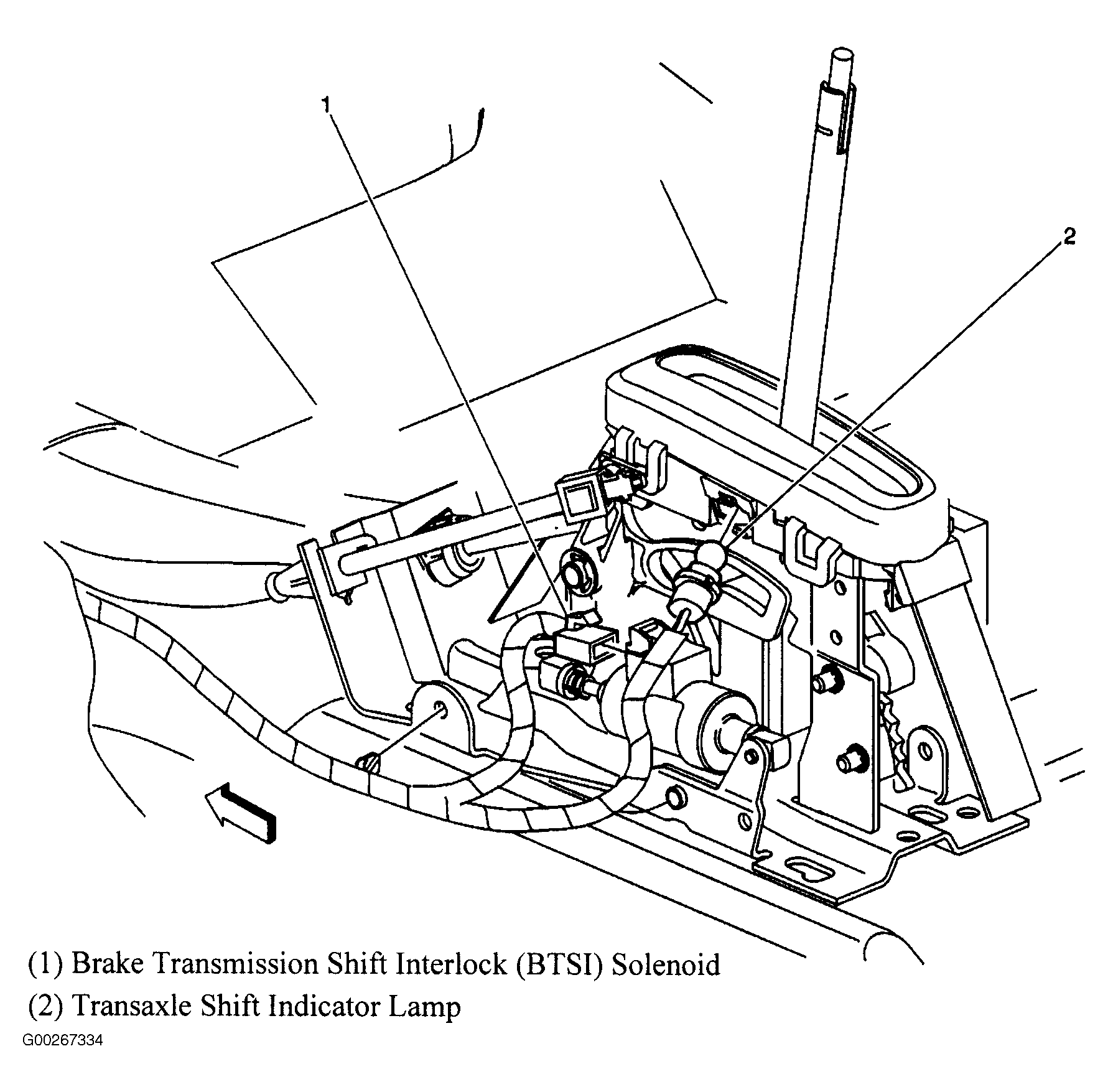

Fig 24: Under Center Console
Courtesy of GENERAL MOTORS CORP.

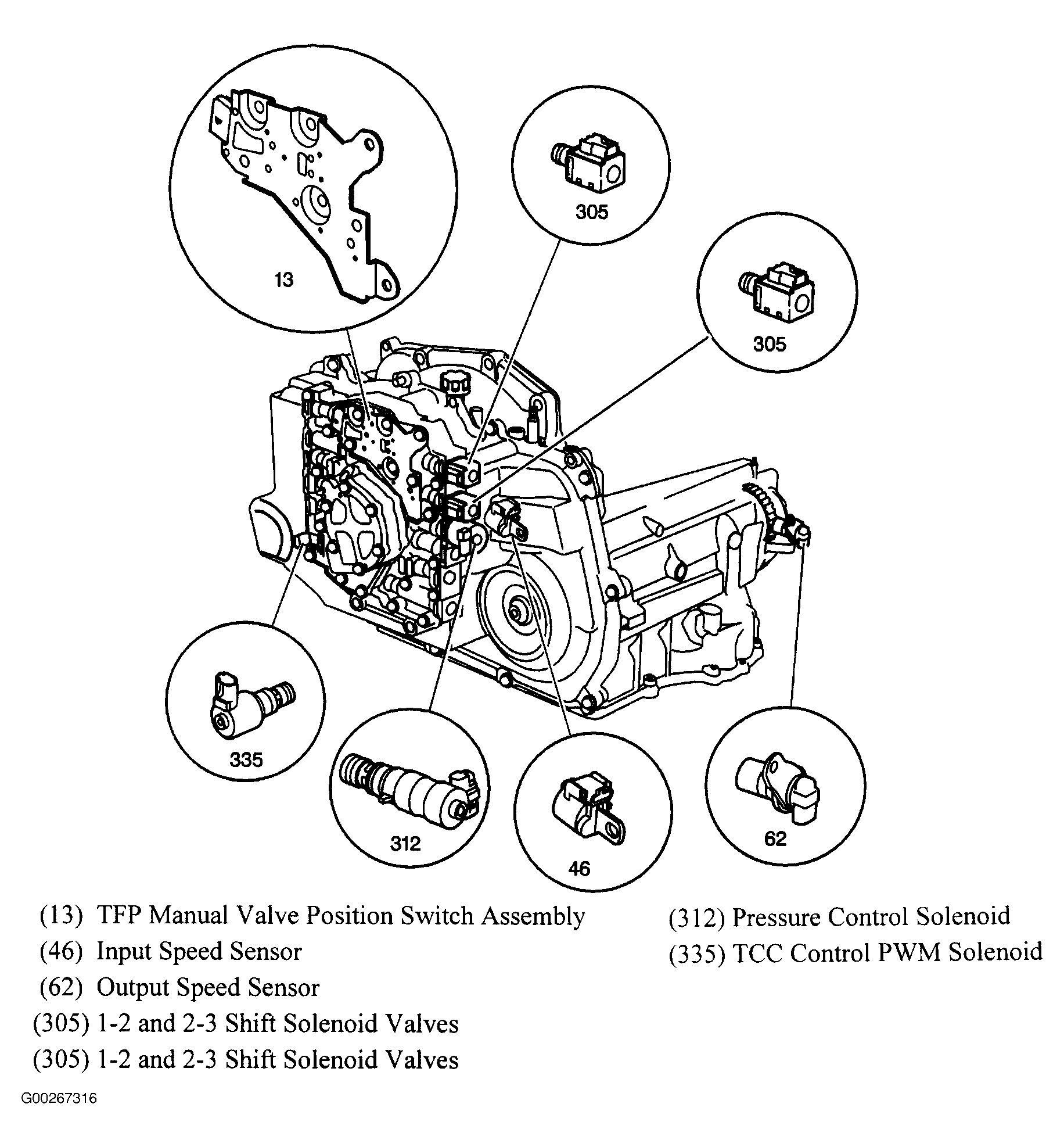

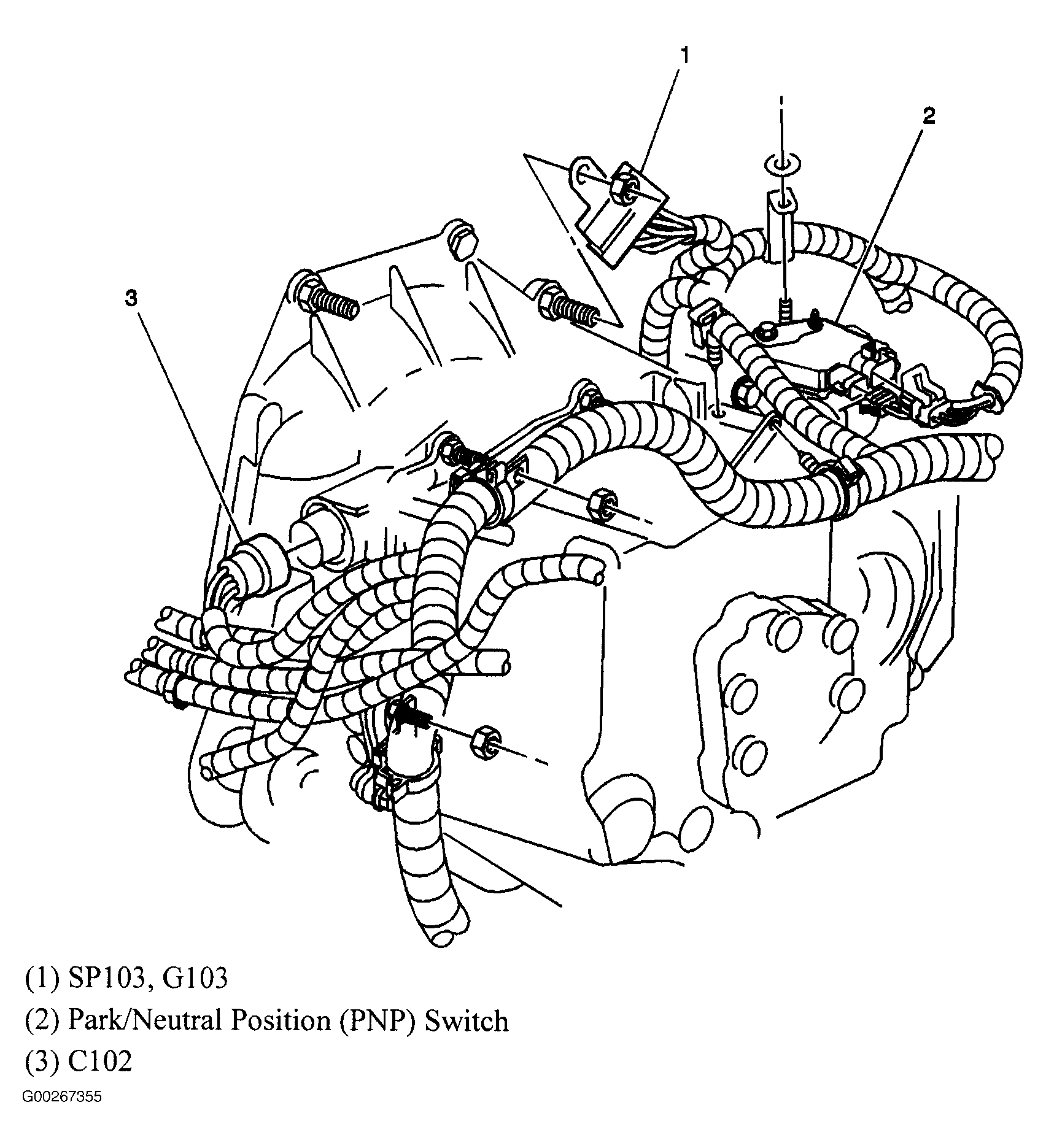

Fig 25: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.
Fig 26: Inflatable Restraint System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 28: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

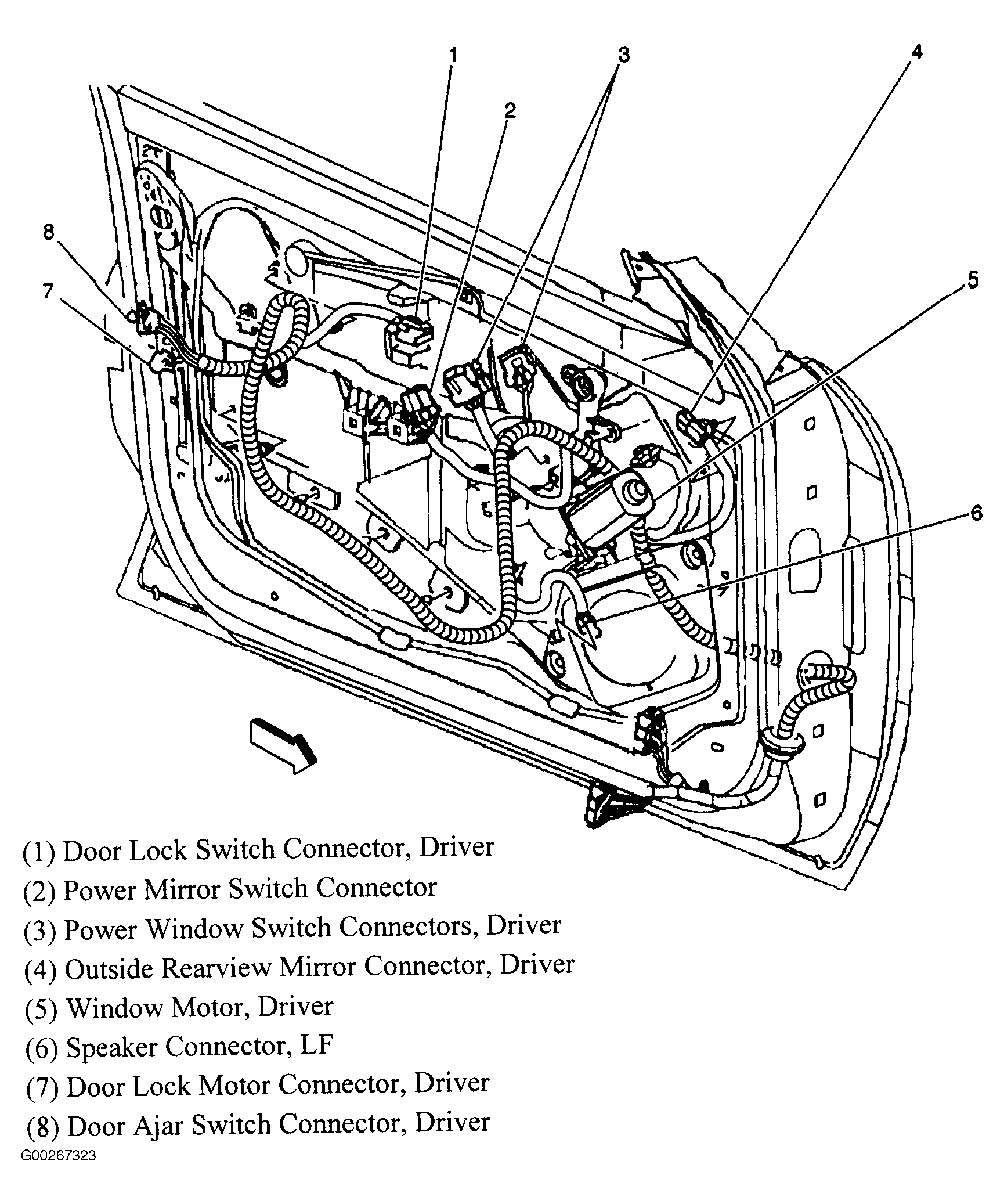

Fig 29: Left Front Door
Courtesy of GENERAL MOTORS CORP.

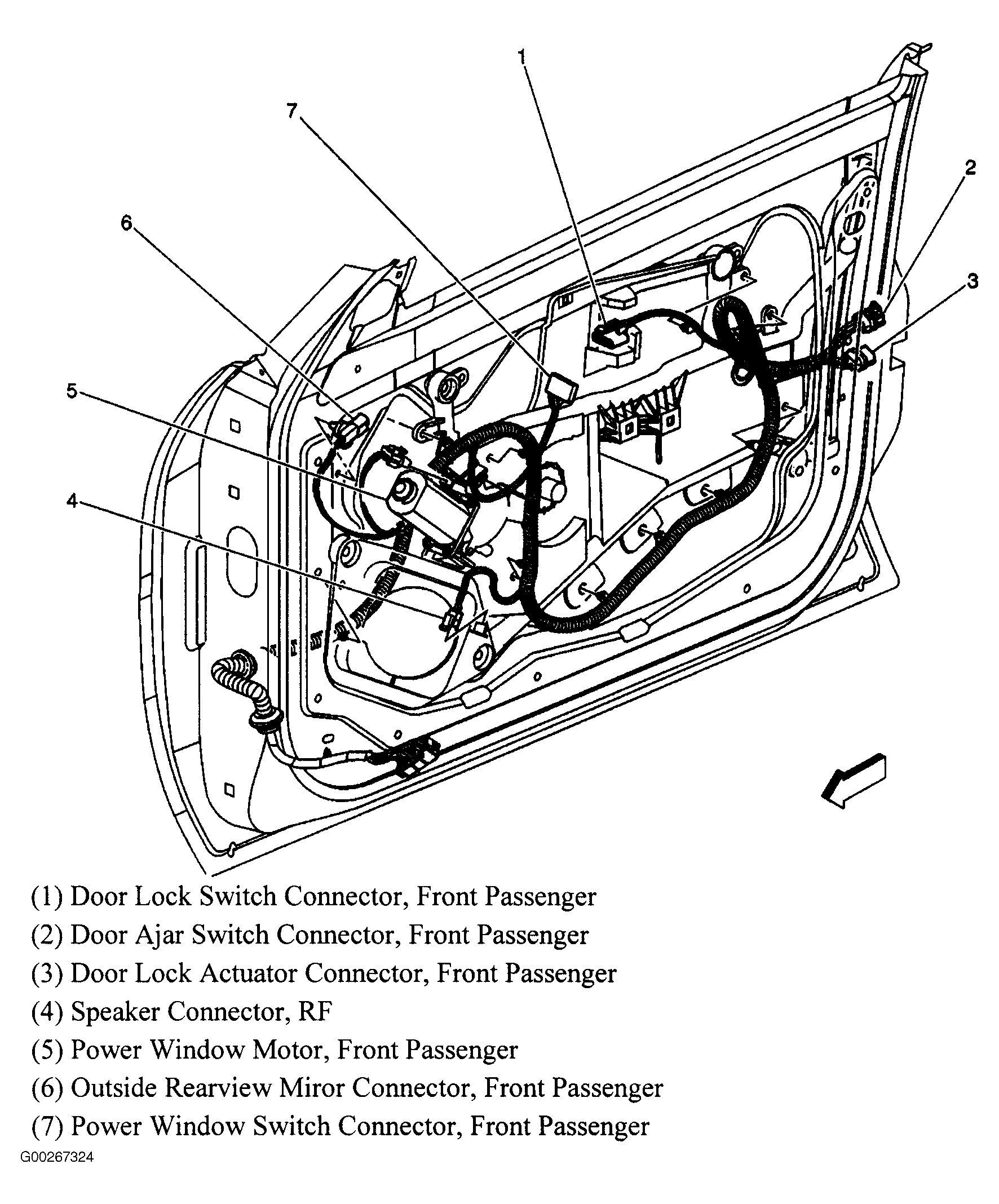

Fig 30: Right Front Door
Courtesy of GENERAL MOTORS CORP.

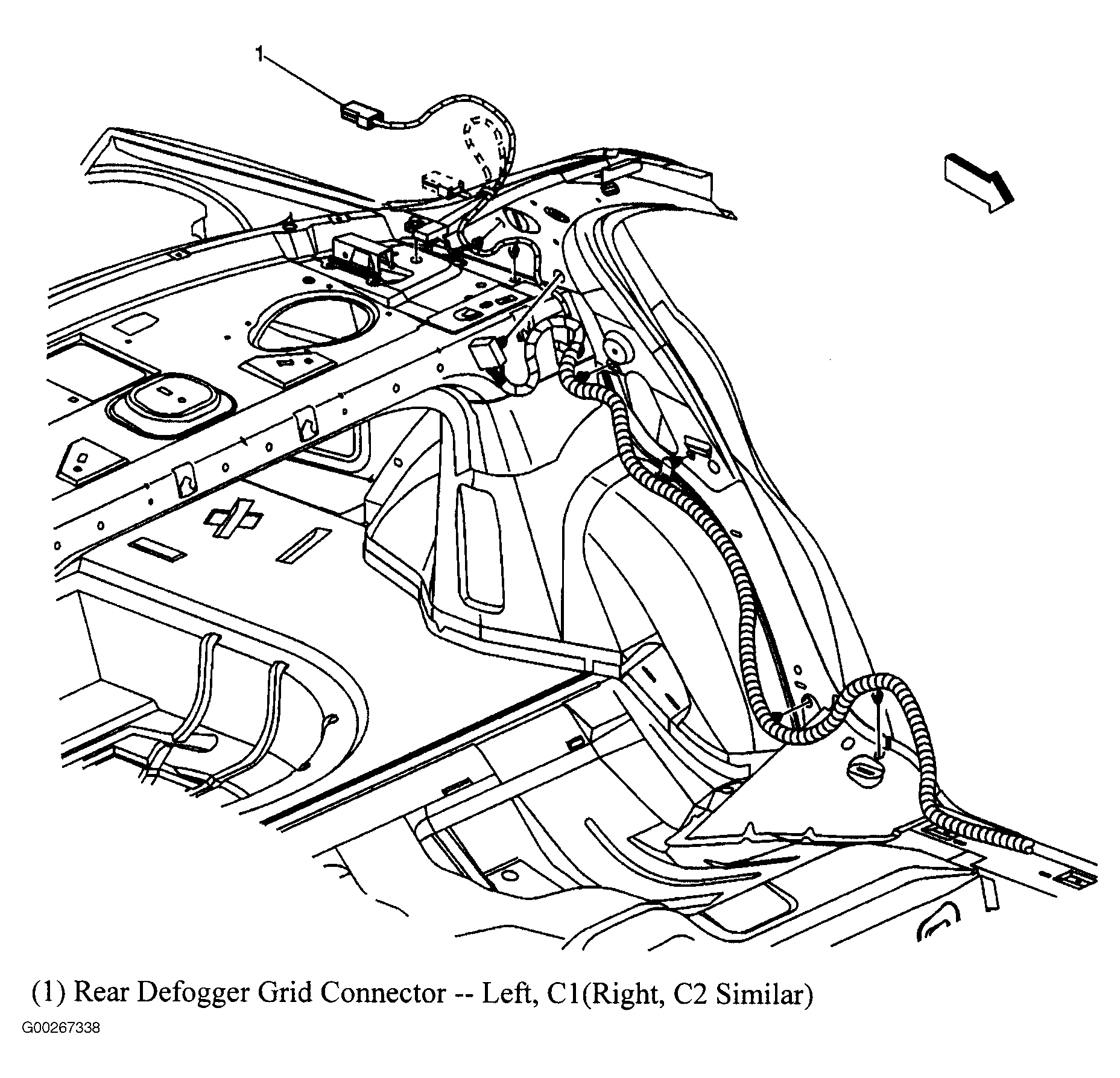

Fig 31: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

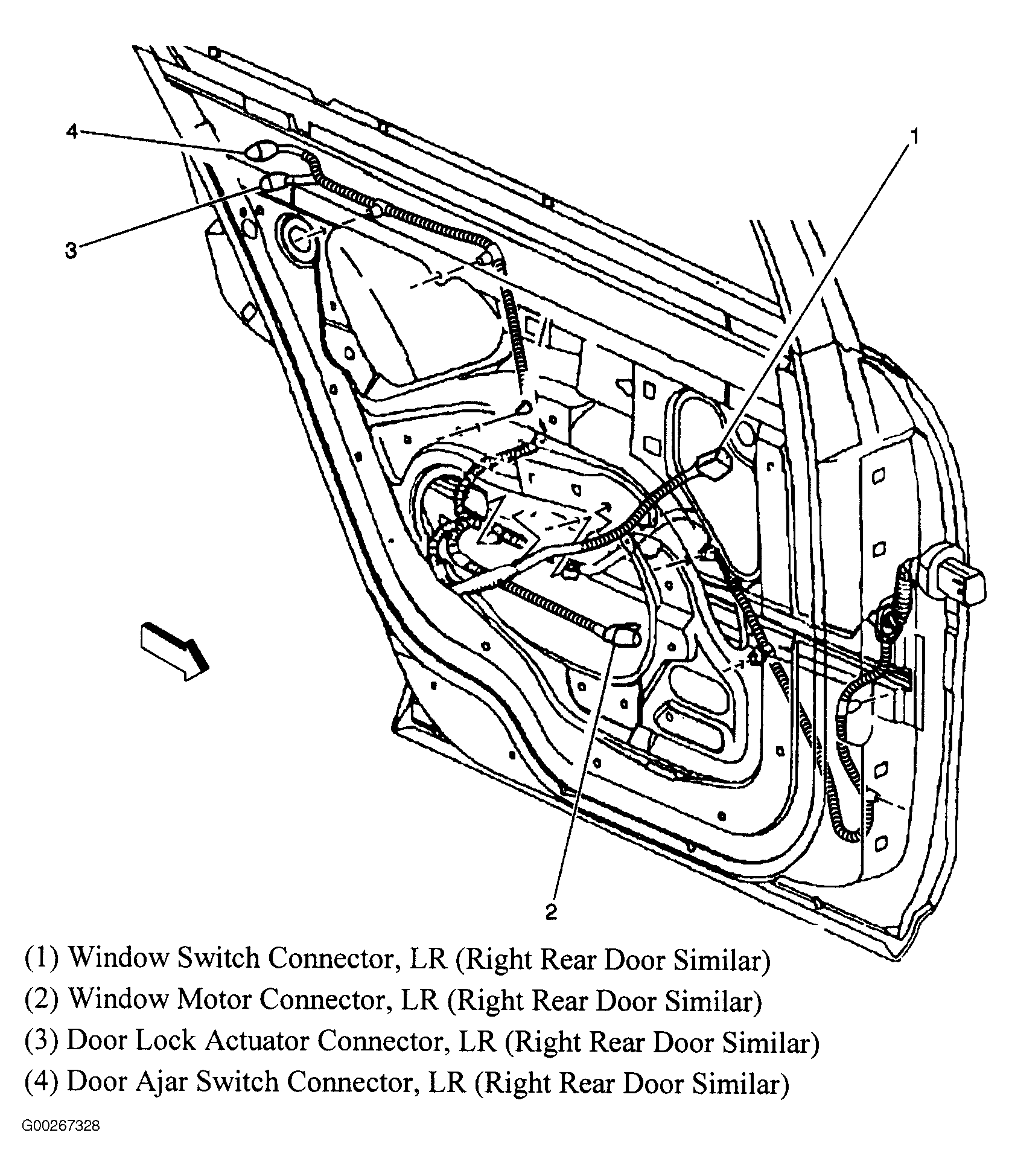

Fig 32: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

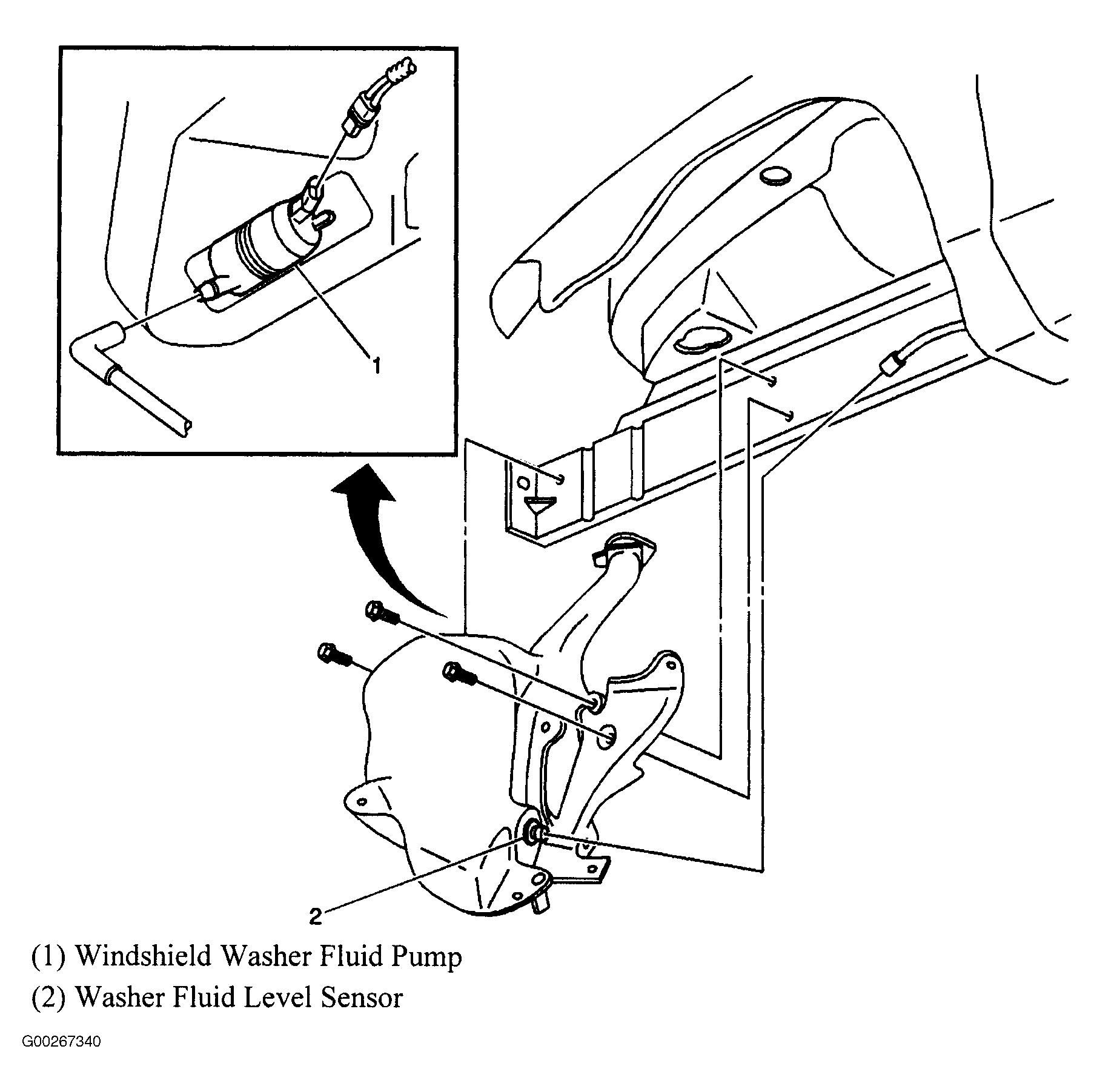

Fig 33: Right Front Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 34: Top Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 36: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 37: Sunroof
Courtesy of GENERAL MOTORS CORP.

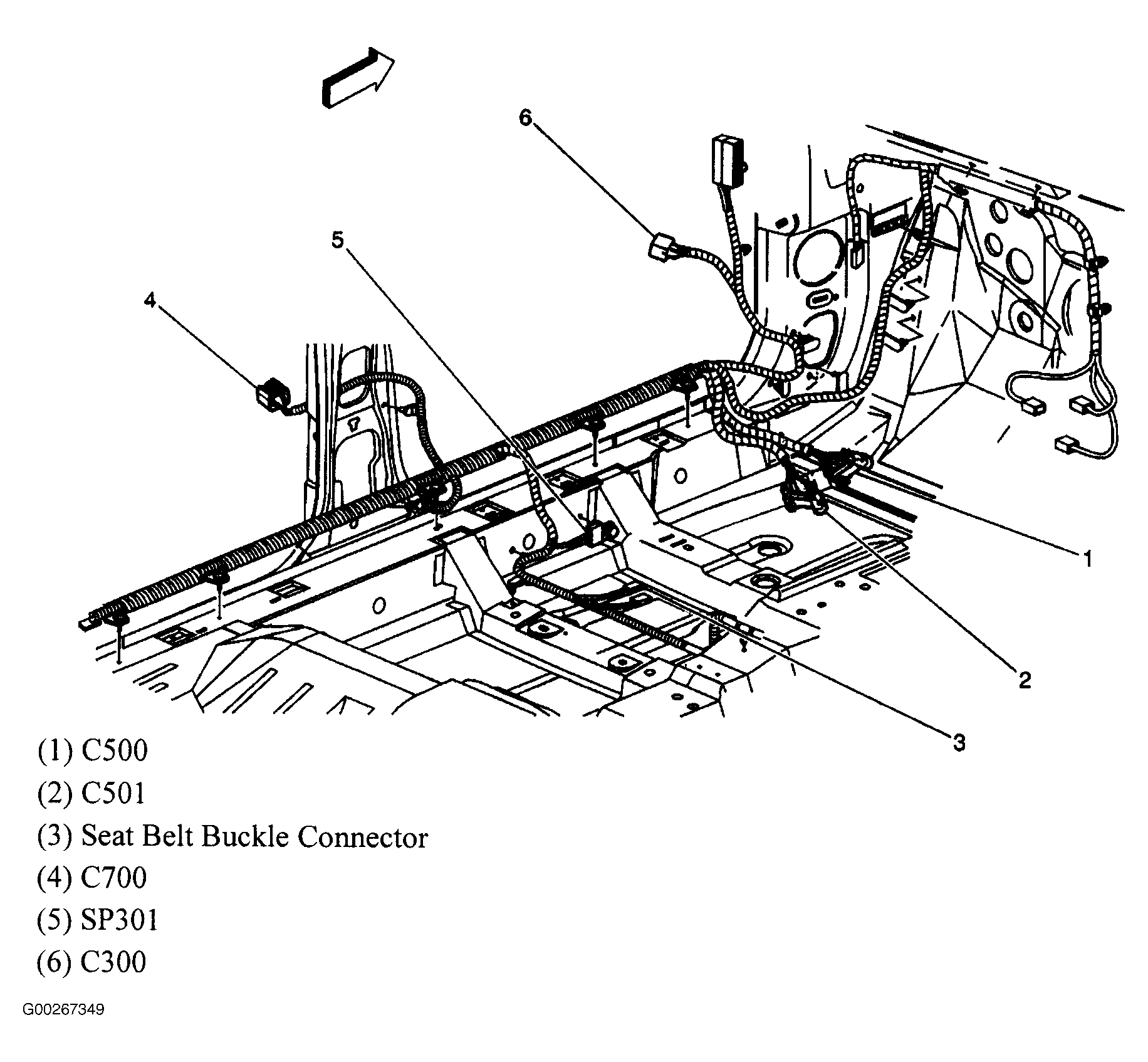

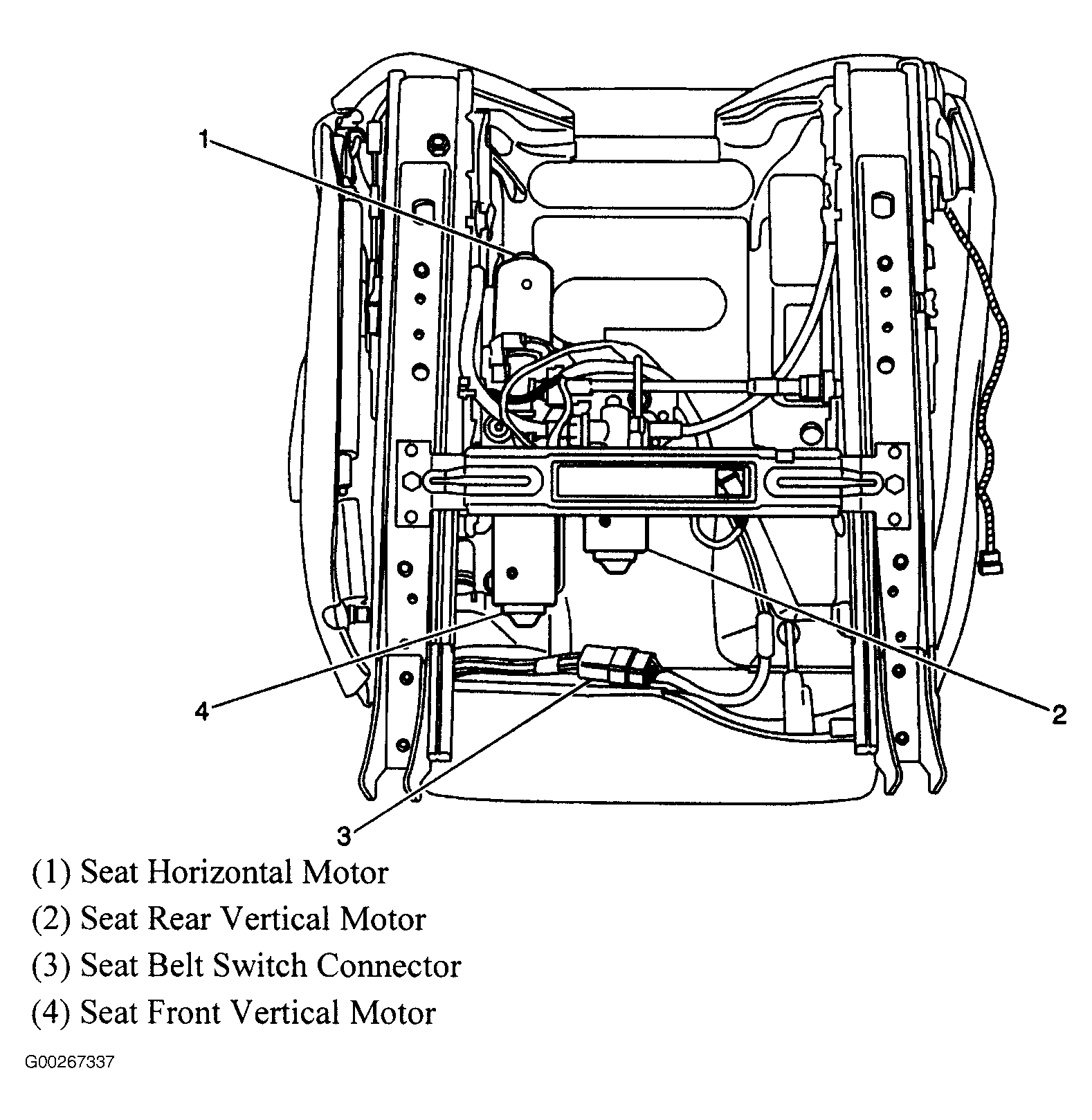

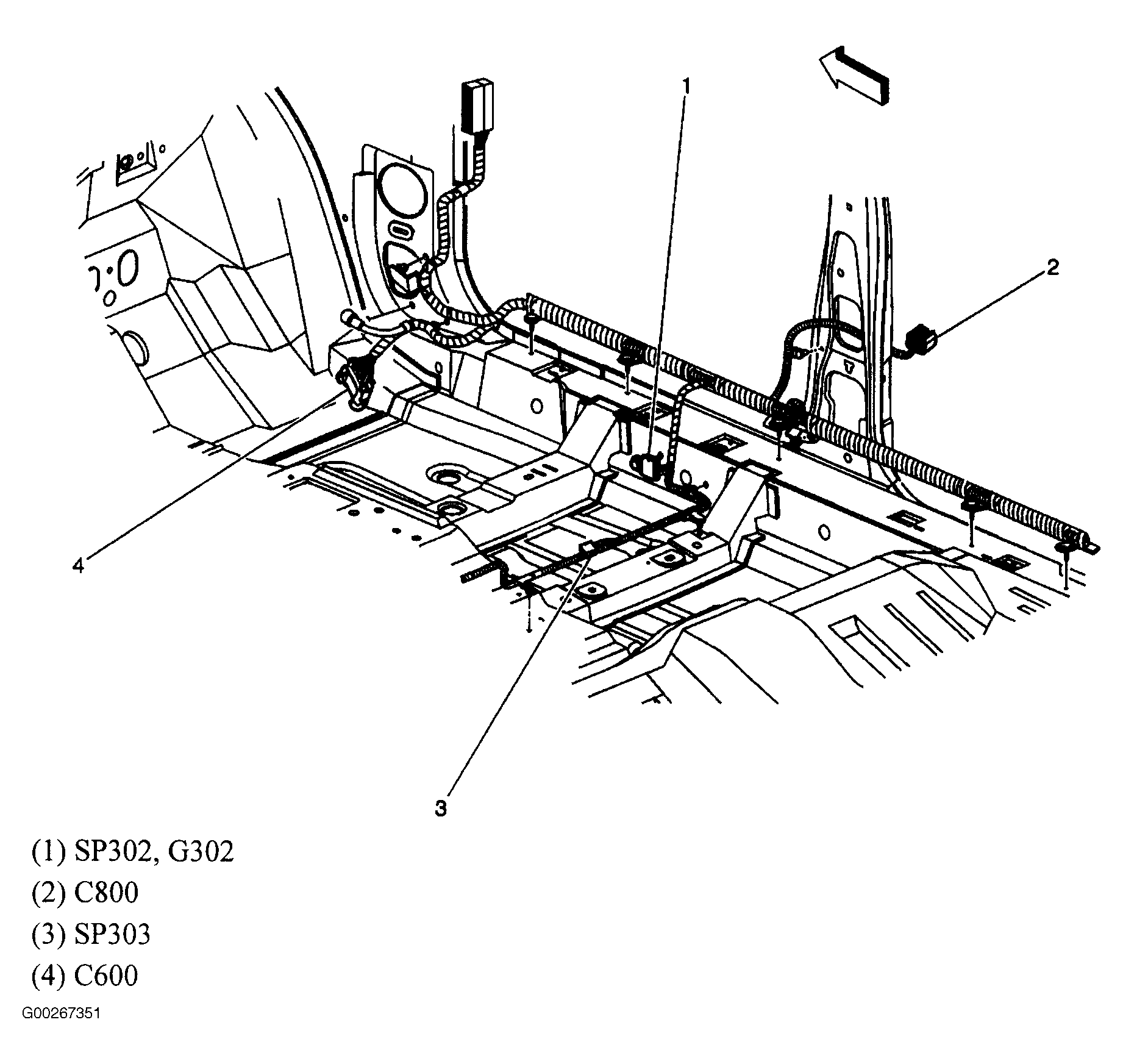

Fig 38: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.

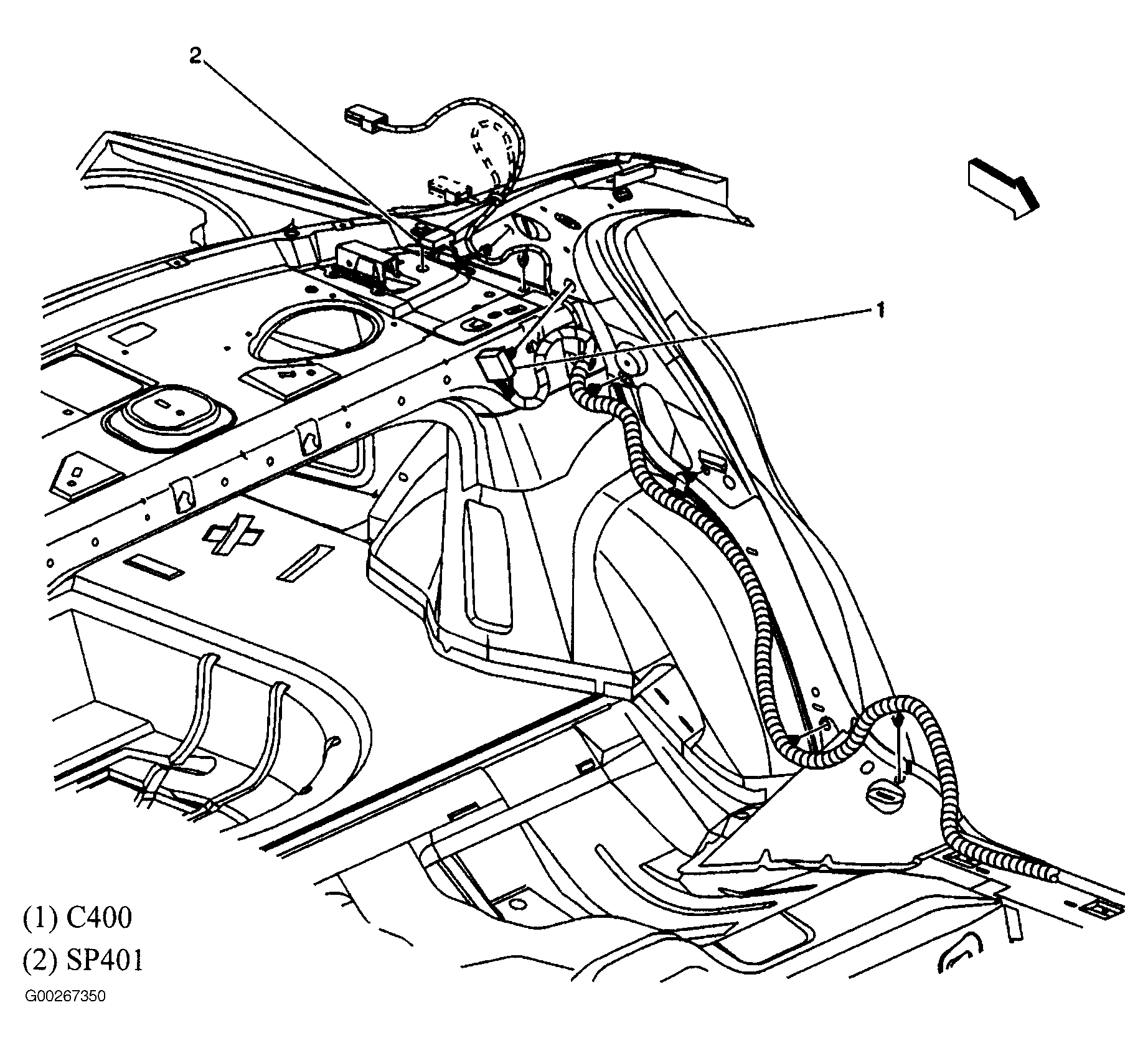

Fig 39: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

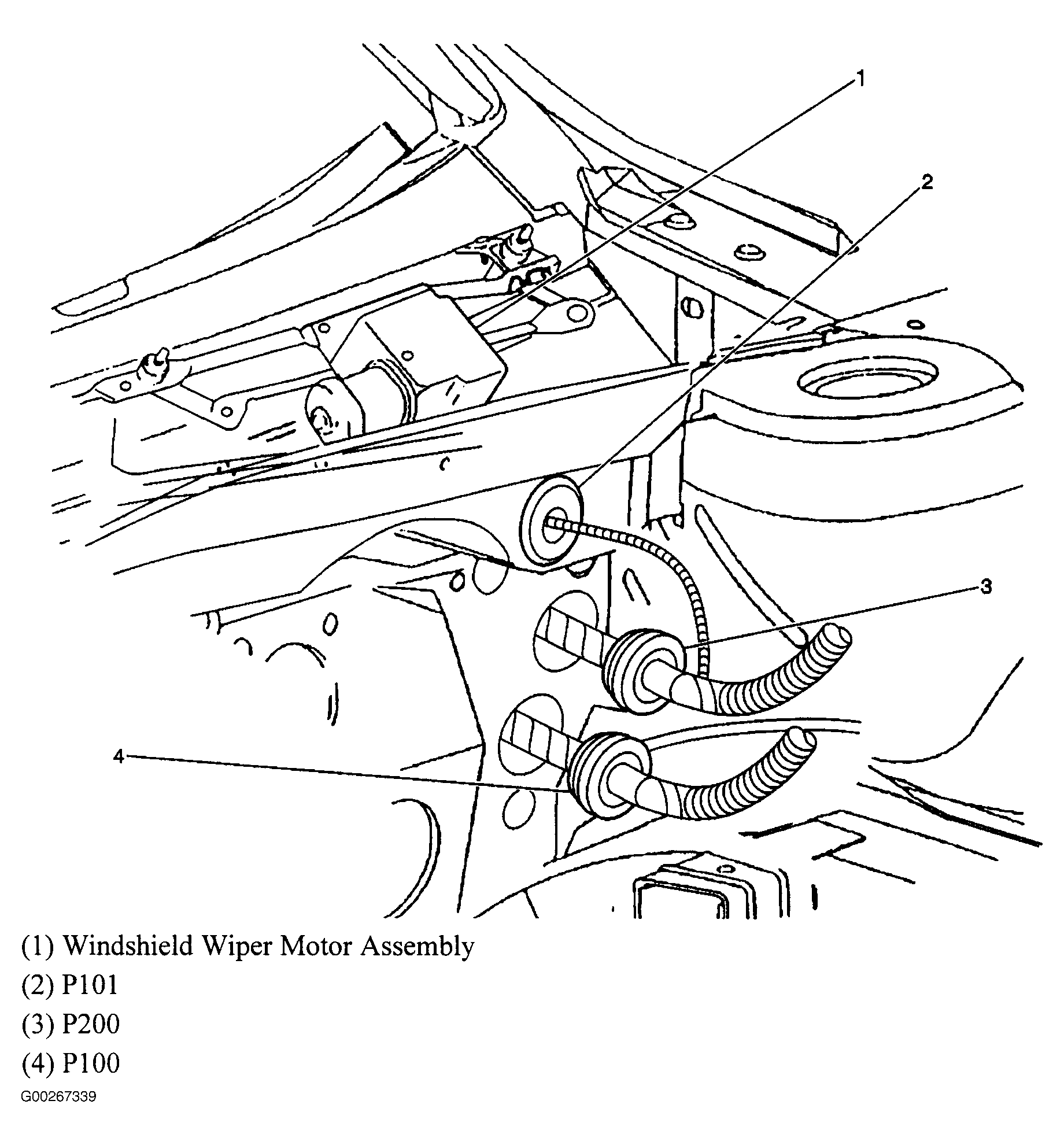

Fig 40: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

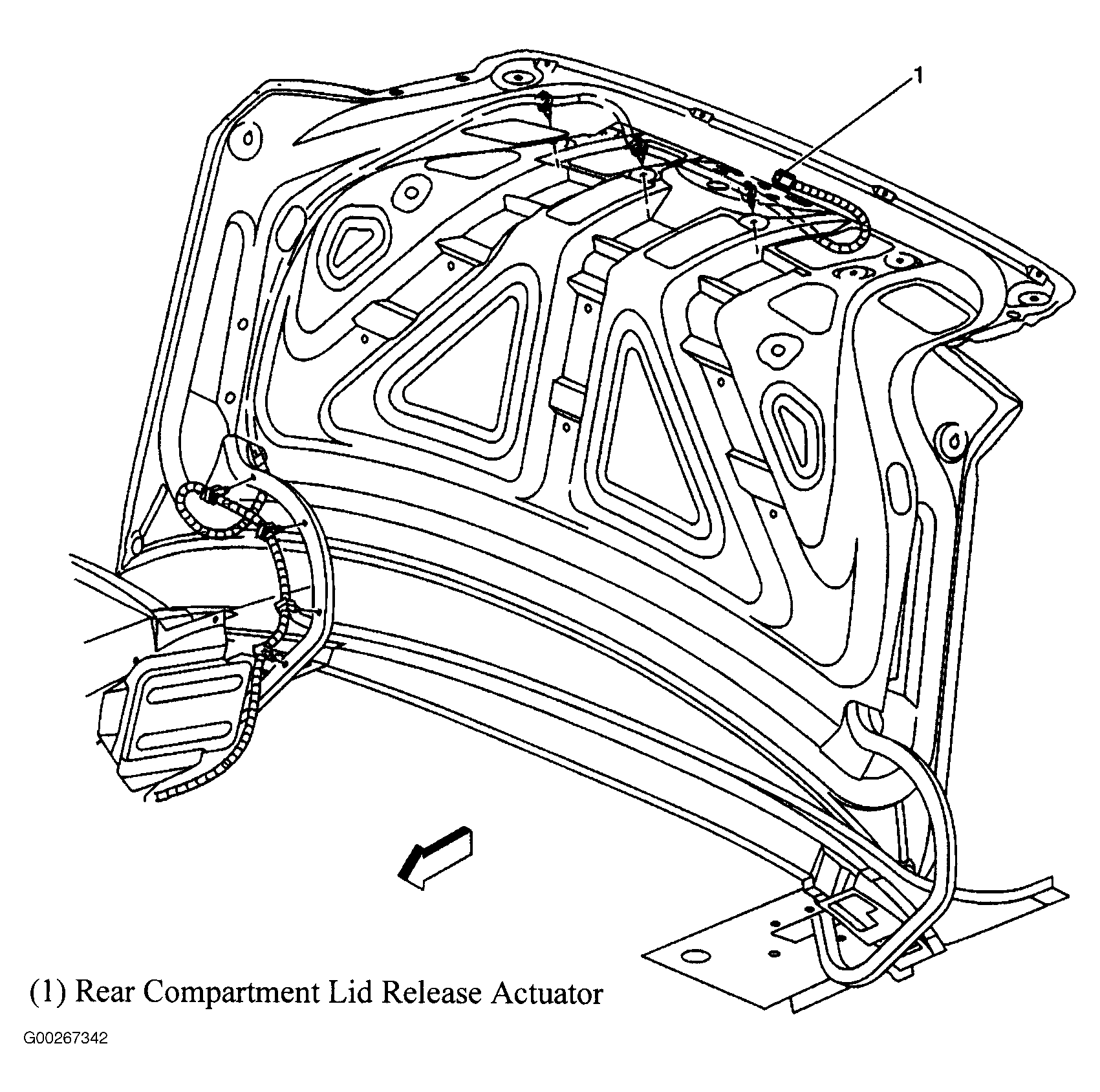

Fig 43: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

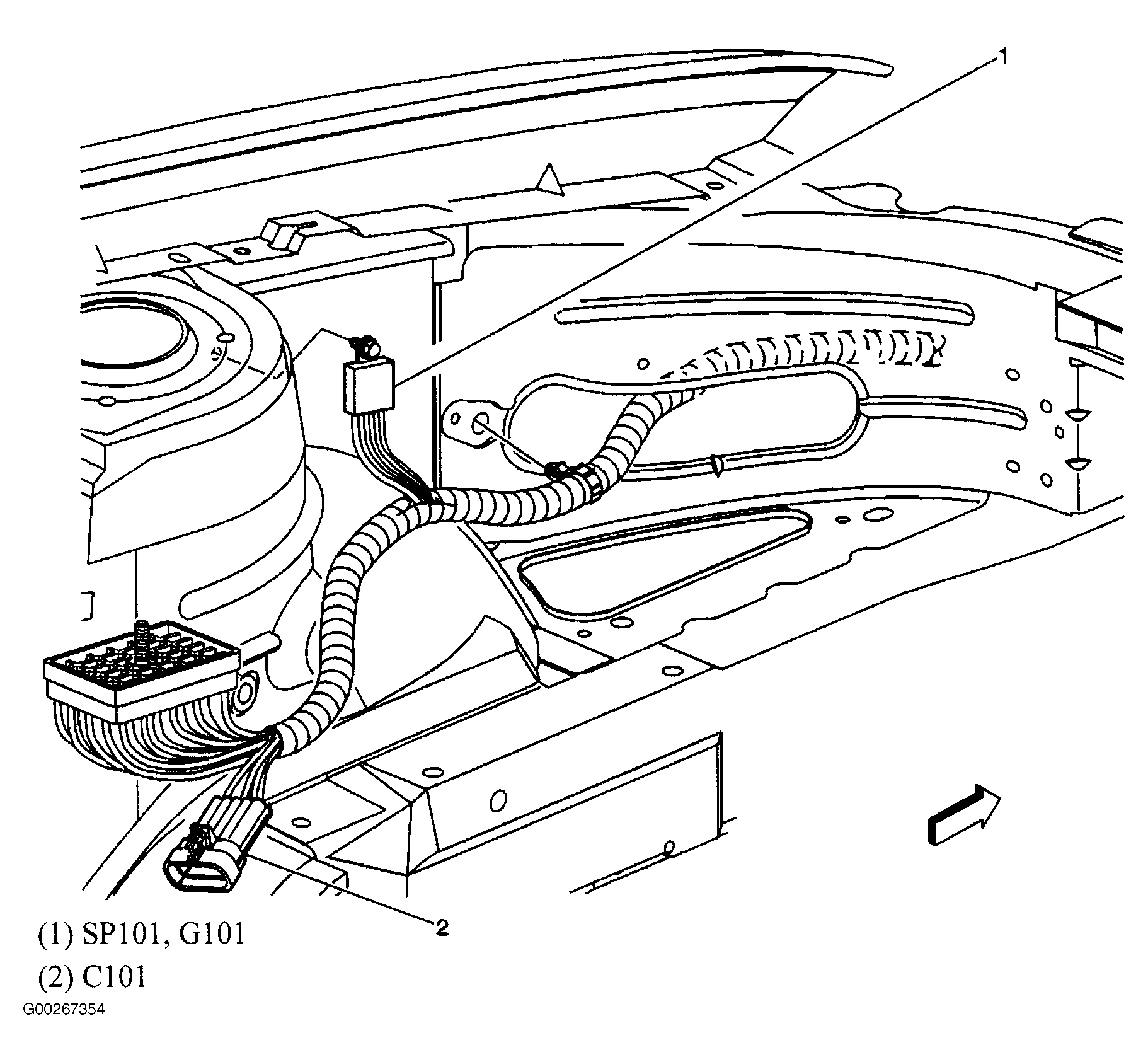

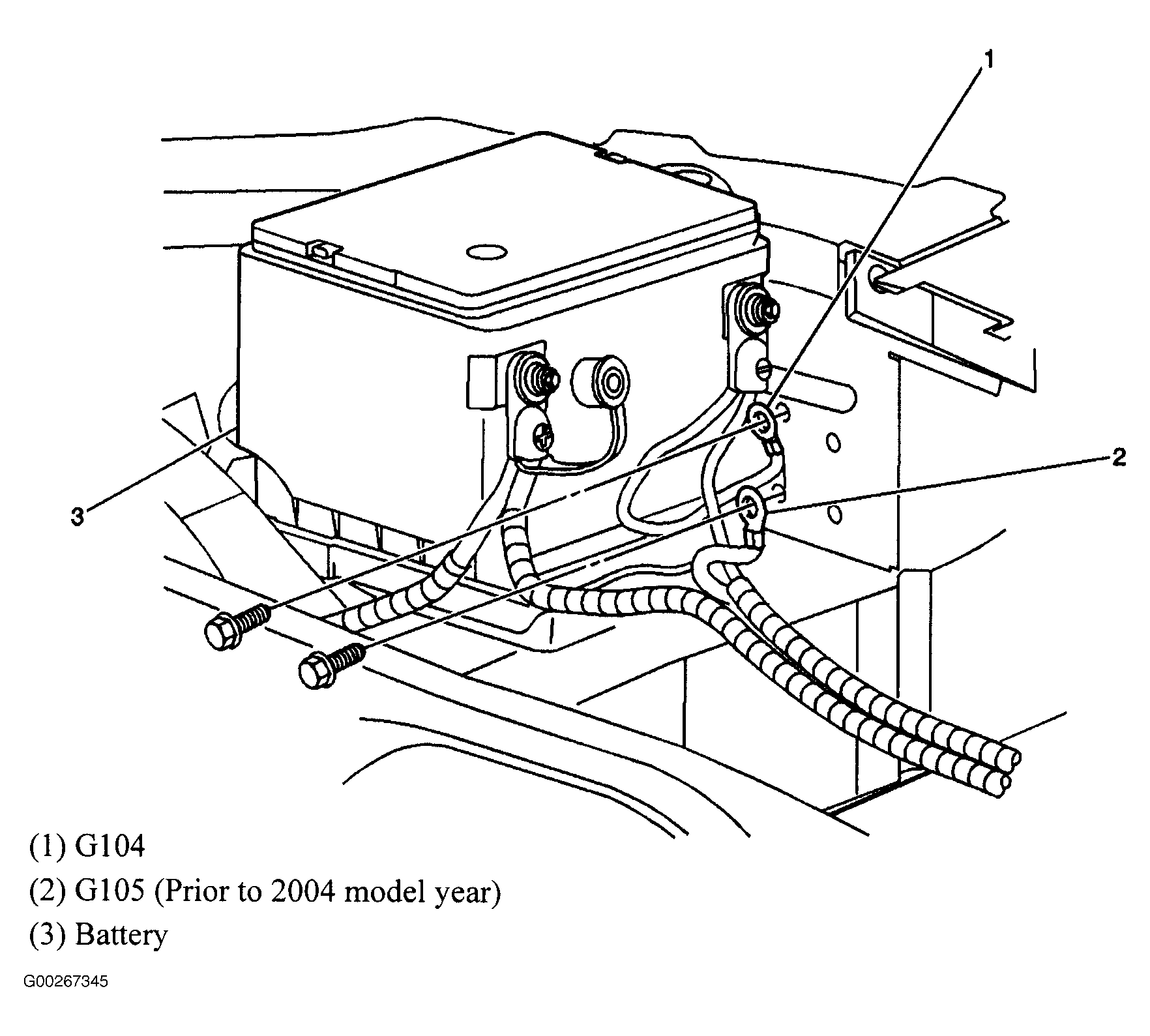

Fig 44: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

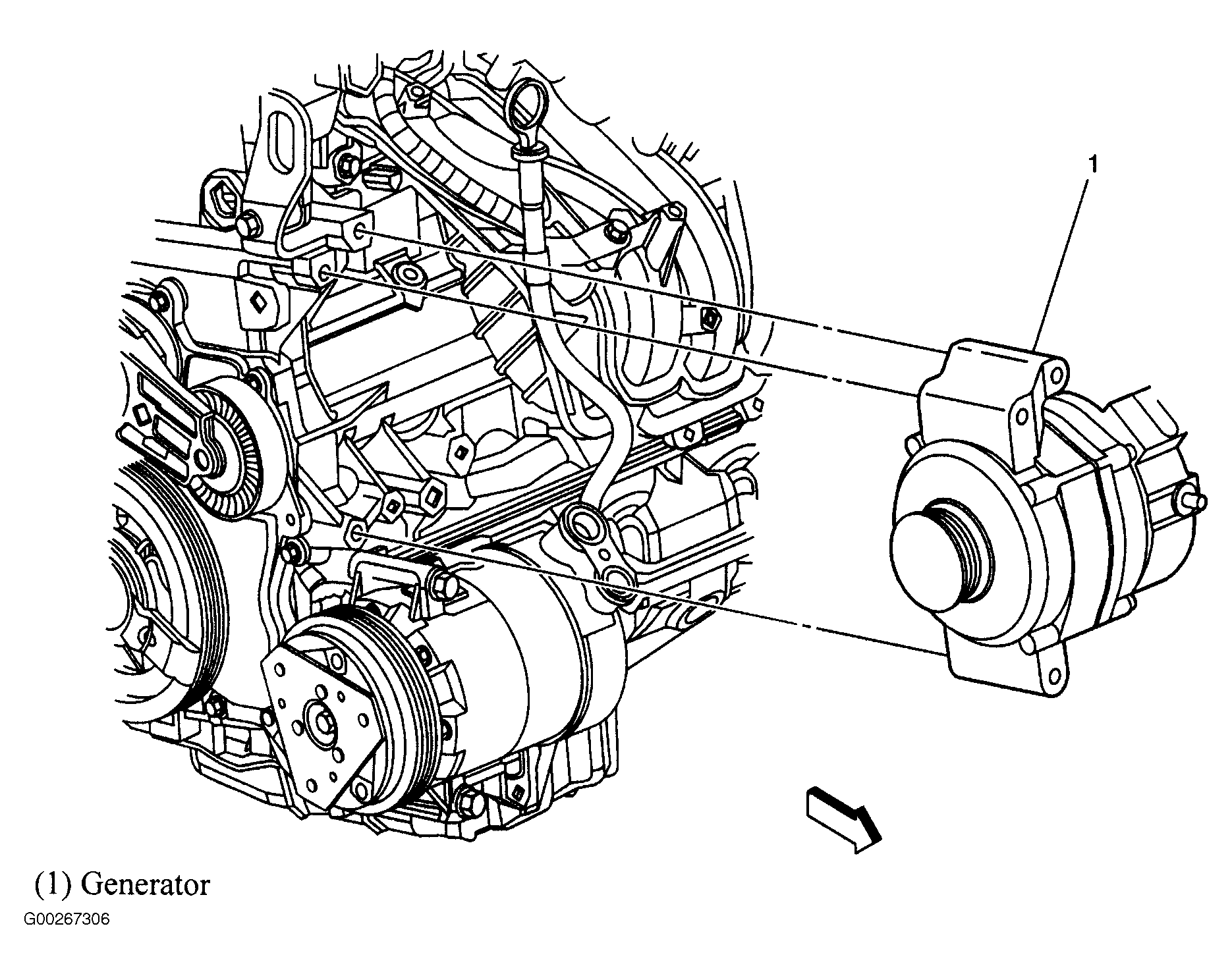

Fig 46: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

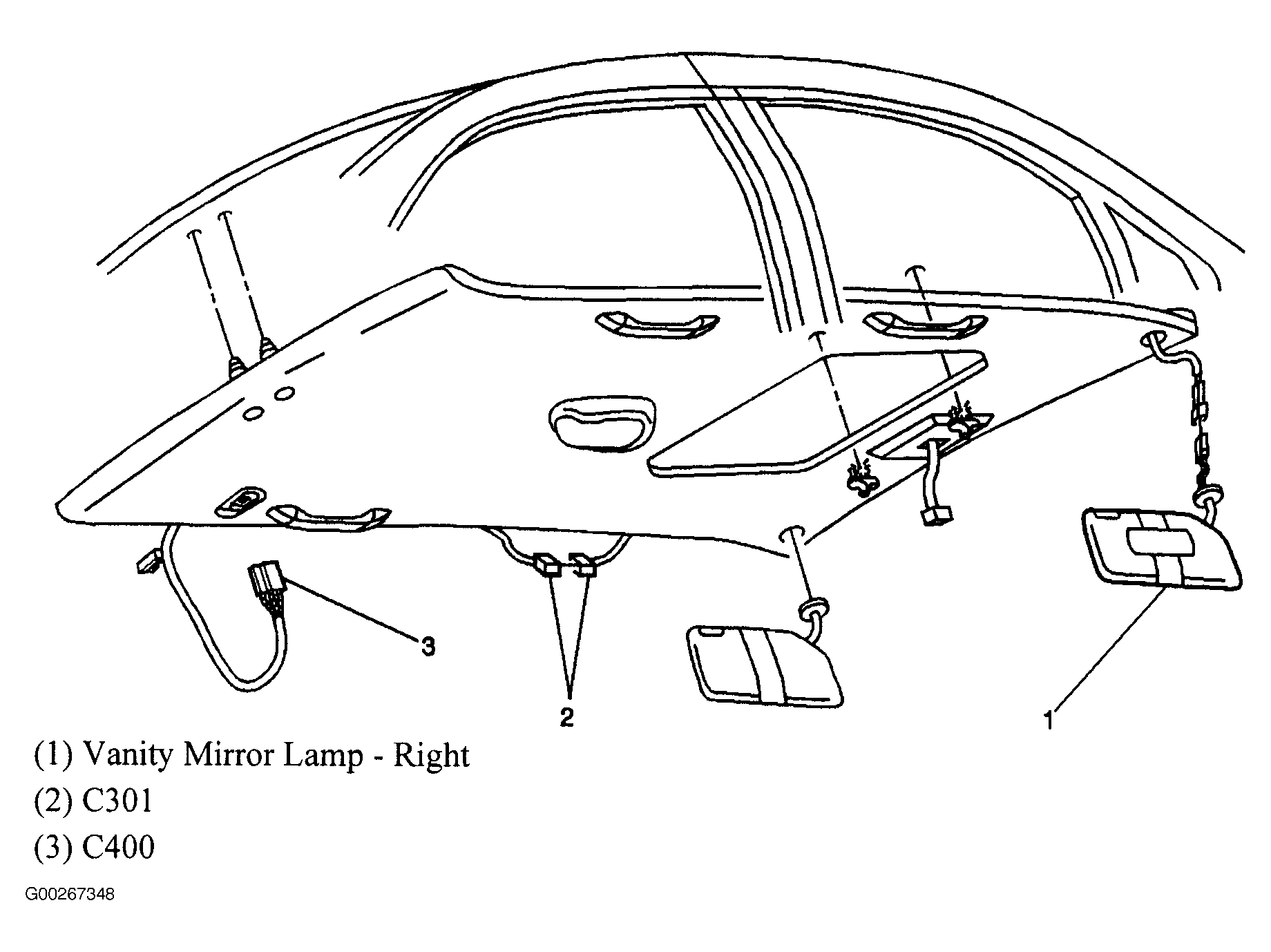

Fig 48: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

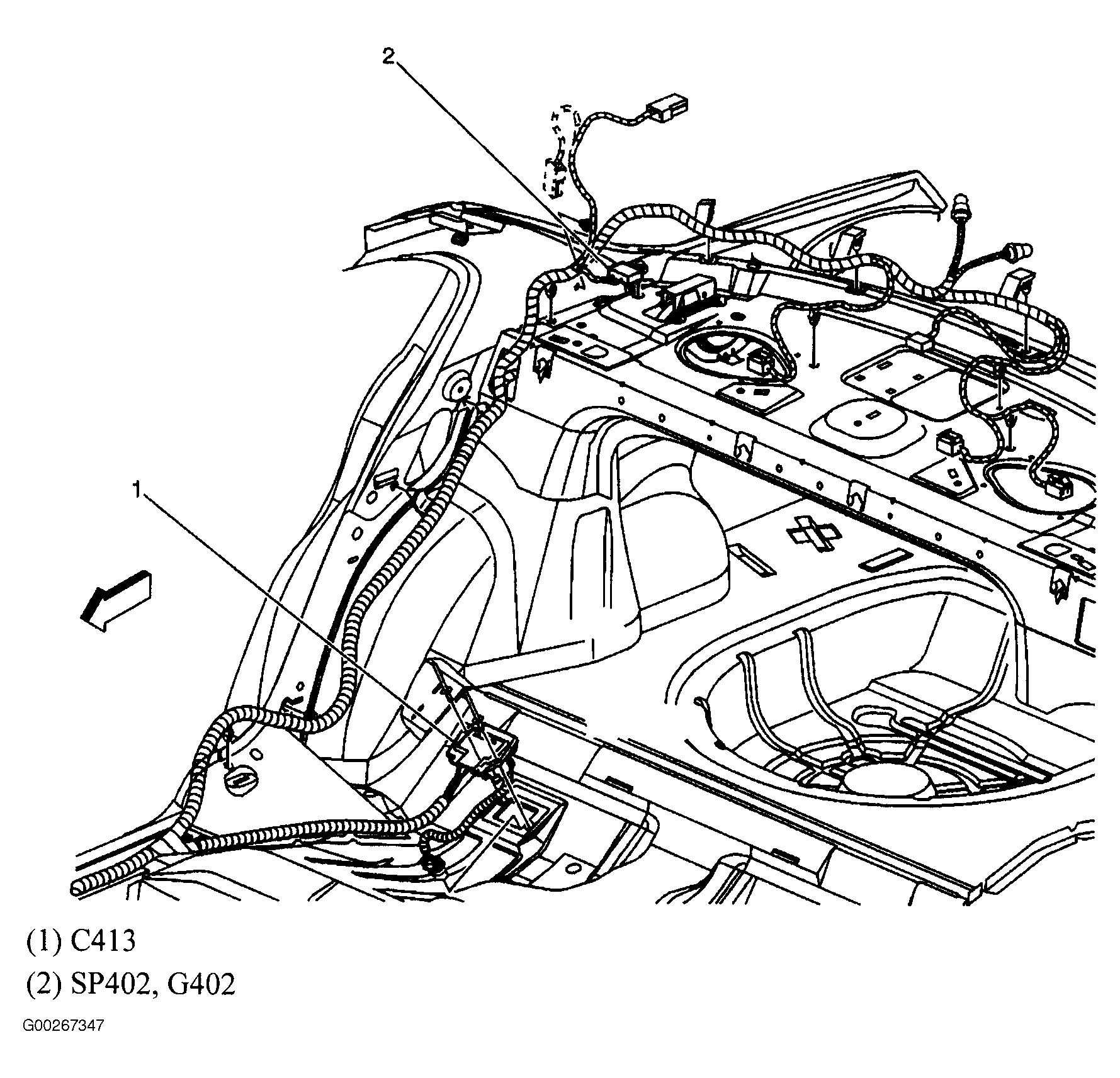

Fig 50: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
