Installation Procedure

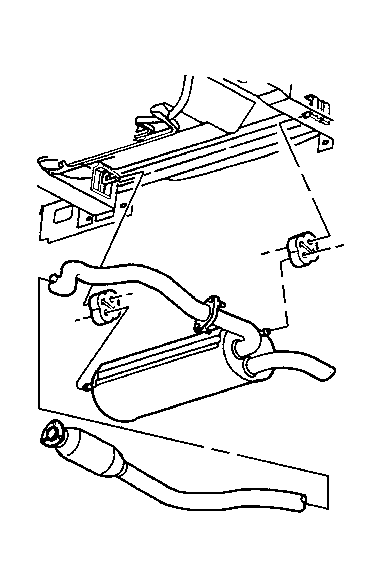

Fig 1: View of Exhaust Muffler

Courtesy of GENERAL MOTORS CORP.

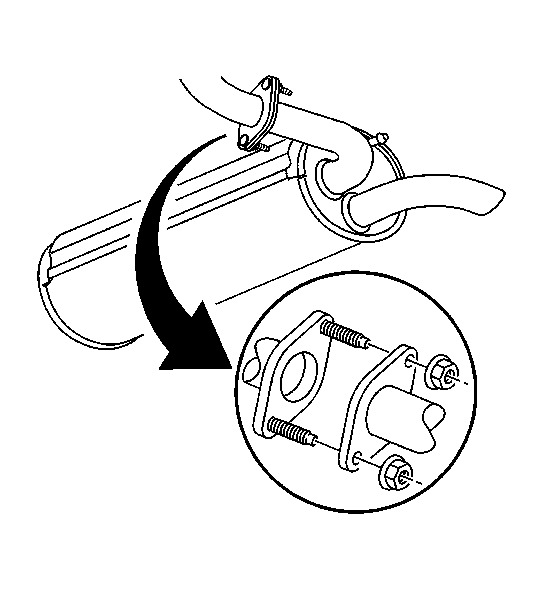

Fig 2: Exploded View of Intermediate Pipe to Muffler Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the exhaust muffler to the intermediate pipe.
Tighten: Tighten the exhaust muffler nuts to 50 N.m (37 lb ft).
Lower the vehicle.
Inspect the exhaust system for leaks and underbody contact.
