Fuel Hose/Pipes Routing Diagram

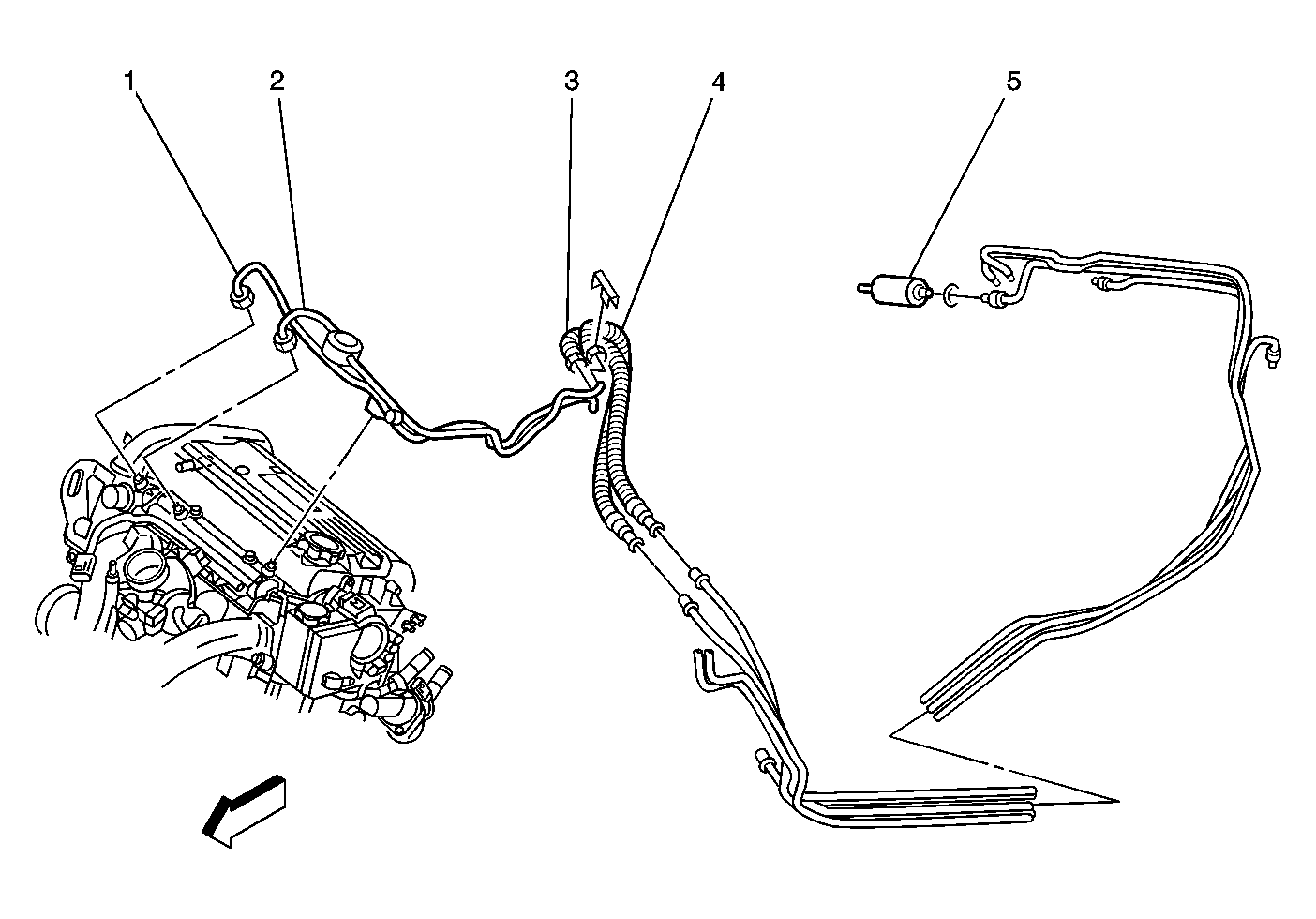

Fig 1: Fuel Hose/Pipes Routing Diagram
GM871255Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Return Pipe
2 Fuel Feed Pipe
3 Fuel Return Hose
4 Fuel Feed Hose
5 Fuel Filter
