Automatic Transmission Shift Lock Control Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Under Center Console Component View
GM329095Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/T Shift Lock Control Solenoid
2 Shift Indicator Lamp

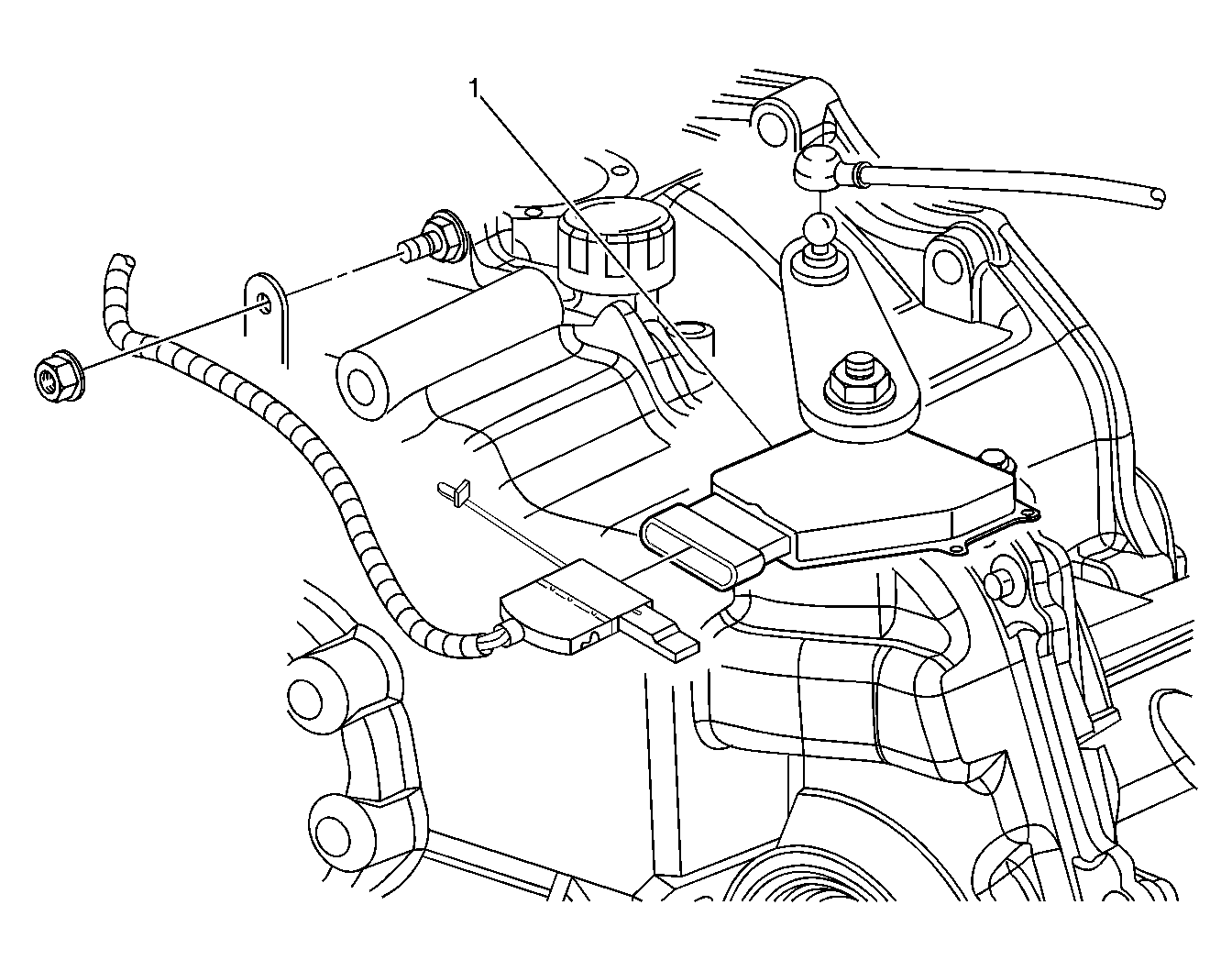

Fig 2: Top Of The Transmission Component View
GM1288661Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Neutral Position (PNP) Switch
