Installation Procedure

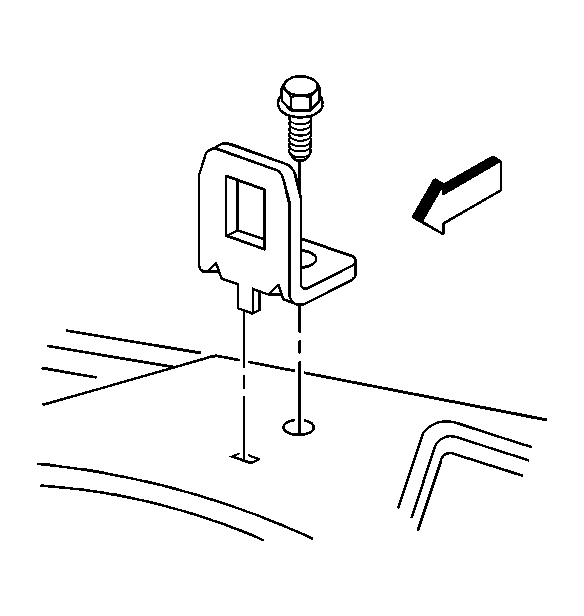

    Fig 1: View of Tether Anchor Bracket
    GM600783Courtesy of GENERAL MOTORS CORP.
  1. Install the tether anchor bracket to the rear shelf.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the tether anchor bolt.

    Tighten:  Tighten the bolt to 28 N.m (21 lb ft).

  3. Install the tether bezel to the rear shelf.
