Assembly Procedure

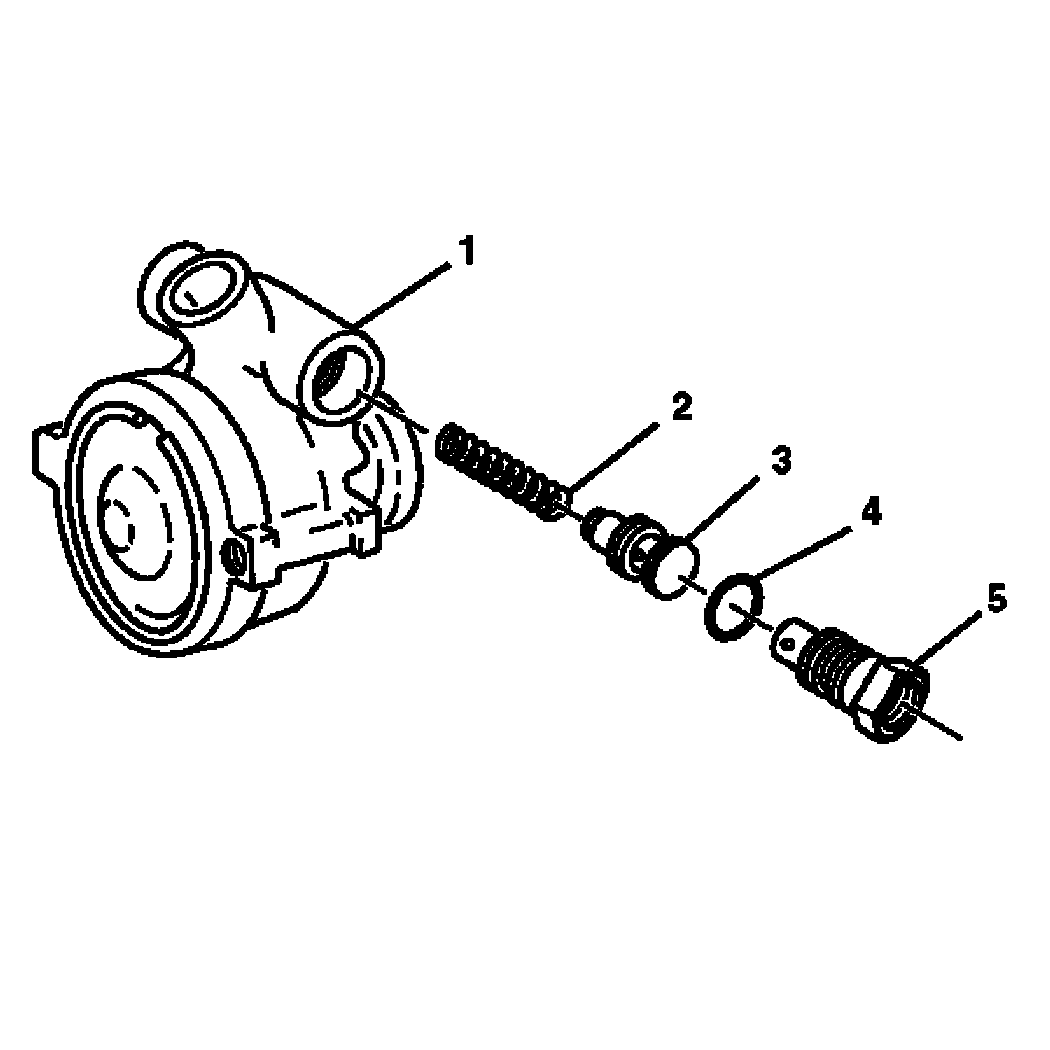

Fig 1: Hydraulic Pump Housing Assembly Components

GM428353

Courtesy of GENERAL MOTORS CORP.

Install the flow control spring (2) to the hydraulic pump housing assembly (1).
Install the control valve assembly (3).
Lubricate the new O-ring seal (4) with power steering fluid.
Install the O-ring seal (4) on to the O-ring union fitting (5).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the O-ring union fitting (5) into the hydraulic pump housing assembly (1).
Tighten: Tighten the O-ring union fitting to 75 N.m (55 lb ft).
