Engine Controls Component Views

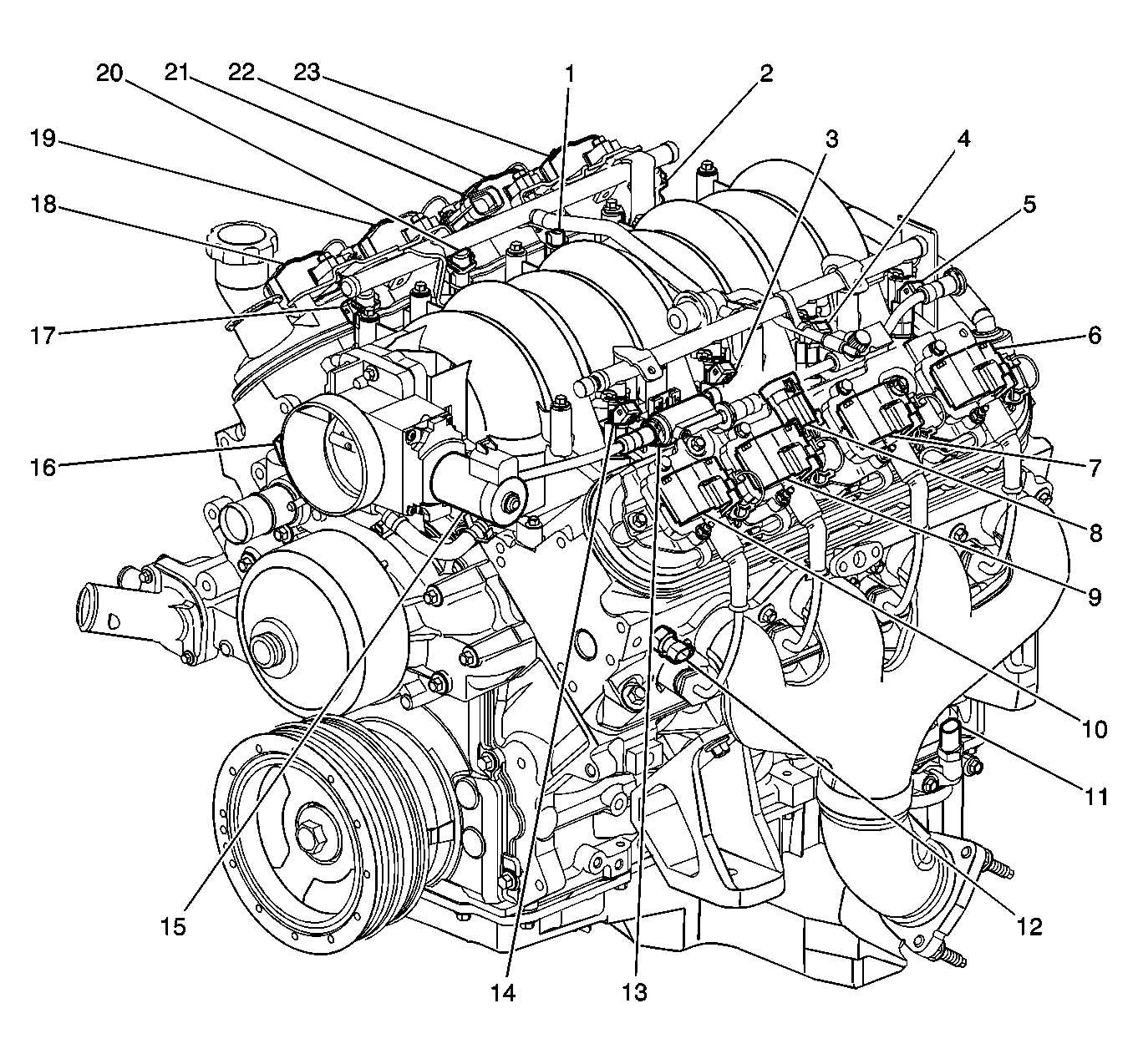

Fig 1: Engine Component View
GM695524Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 6
2 Fuel Injector 8
3 Fuel Injector 3
4 Fuel Injector 5
5 Fuel Injector 7
6 Ignition Coil/Module 7
7 Ignition Coil/Module 5
8 C109
9 Ignition Coil/Module 3
10 Ignition Coil/Module 1
11 Engine Oil Temperature (EOT) Sensor
12 Engine Coolant Temperature (ECT) Sensor
13 Evaporative Emission (EVAP) Canister Purge Solenoid
14 Fuel Injector 1
15 Throttle Actuator Control (TAC) Motor
16 Throttle Position (TP) Sensor
17 Fuel Injector 2
18 Ignition Coil/Module 2
19 Ignition Coil/Module 4
20 Fuel Injector 4
21 C110
22 Ignition Coil/Module 6
23 Ignition Coil/Module 8

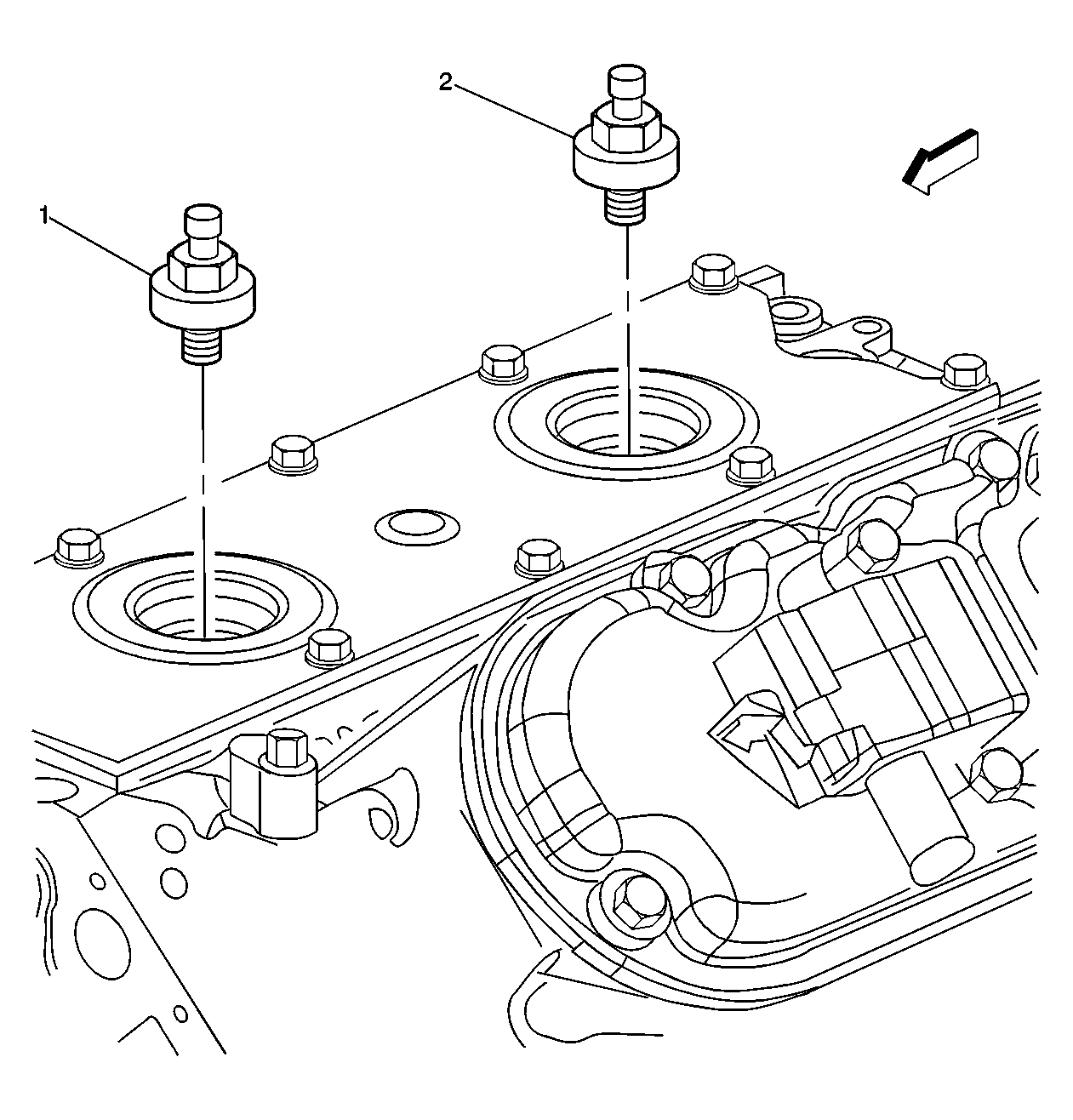

Fig 2: Knock Sensors Component View
GM698339Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor (KS) 1
2 Knock Sensor (KS) 2

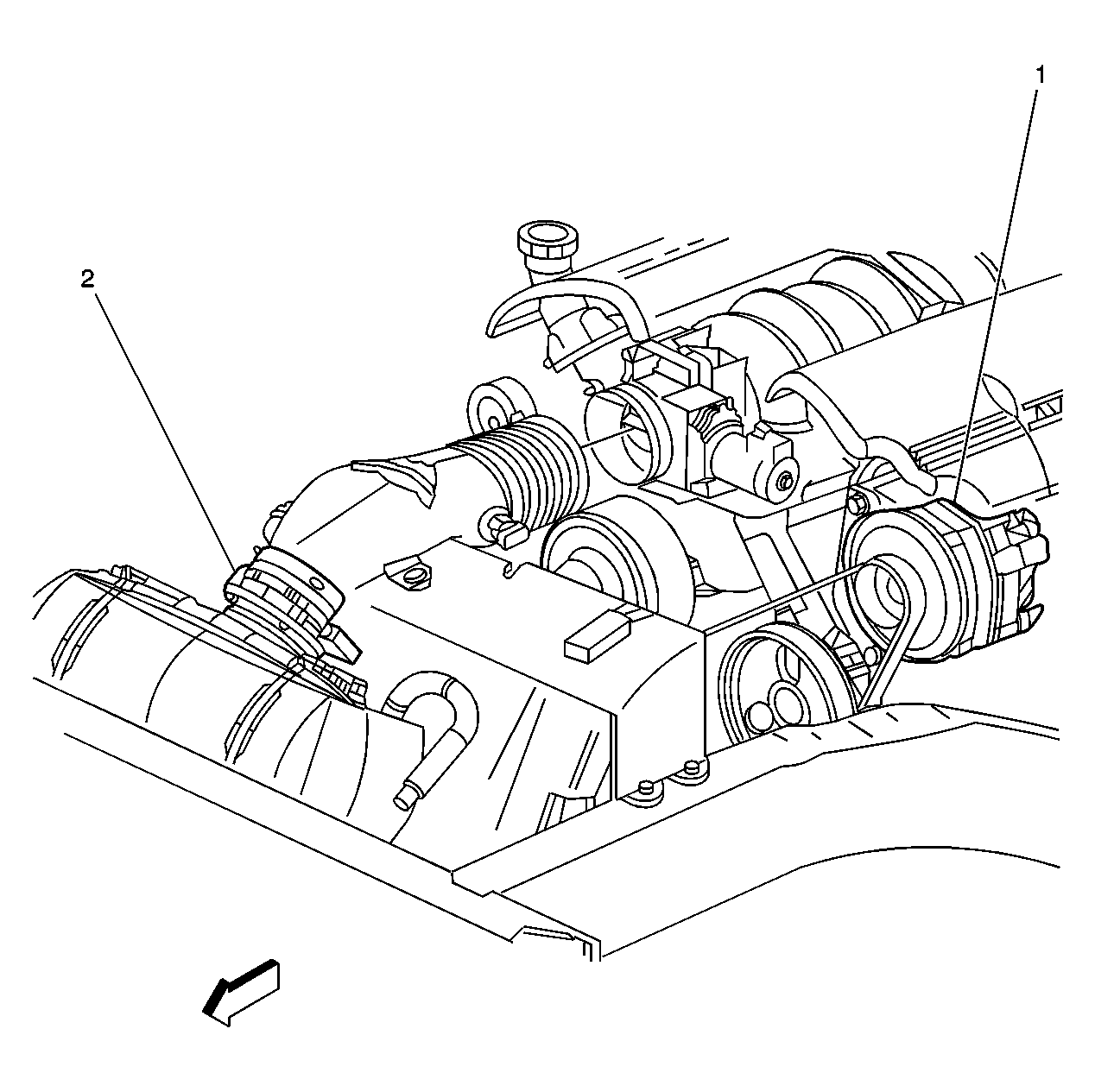

Fig 3: Front Of Engine Compartment Component View
GM696034Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Mass Air Flow (MAF) Sensor

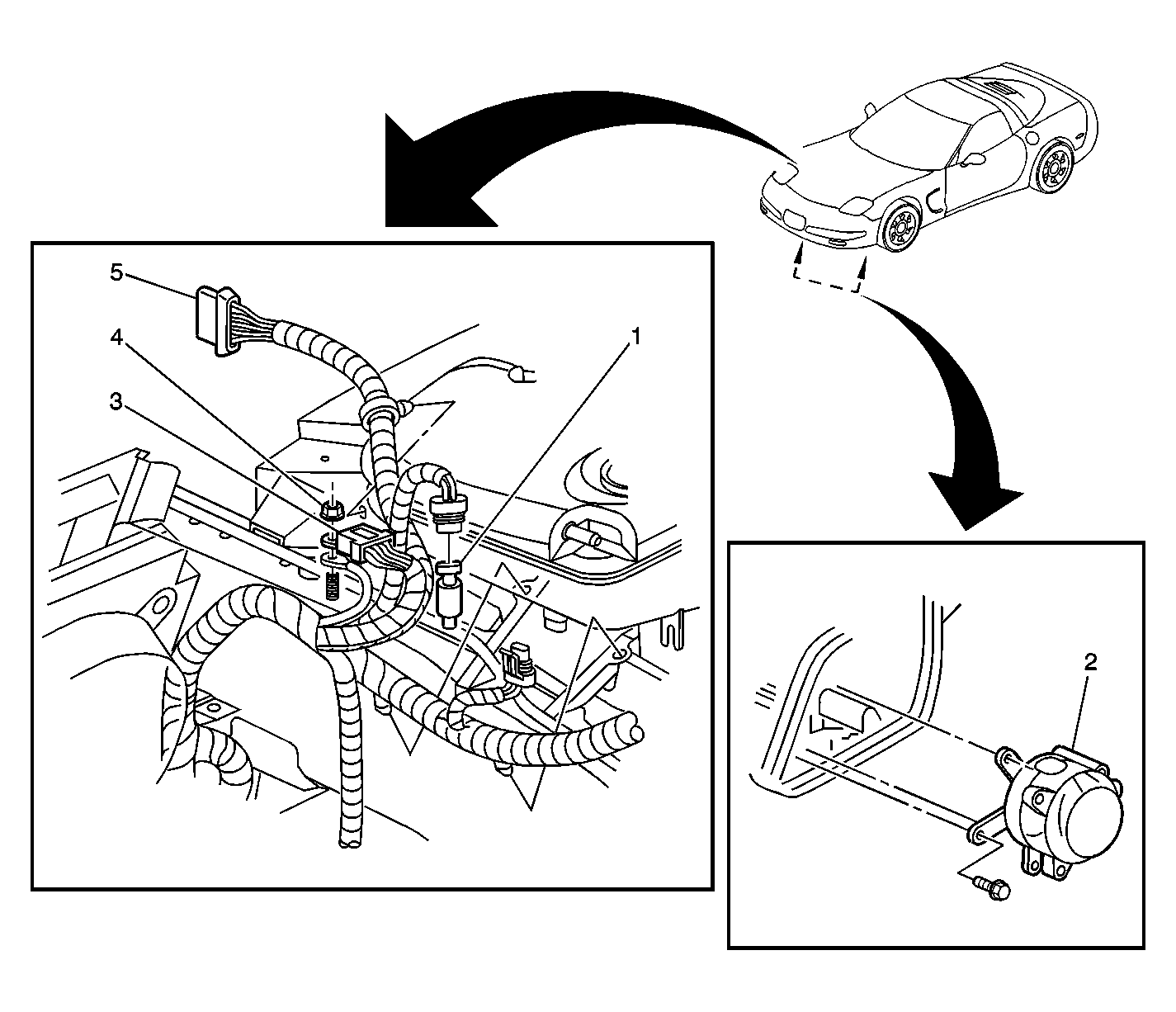

Fig 4: Front Of Engine Compartment Component View
GM698487Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Refrigerant Pressure Sensor
2 Secondary Air Injection (AIR) Pump
3 SP100
4 G102
5 Headlamp Door Assembly-Right Connector

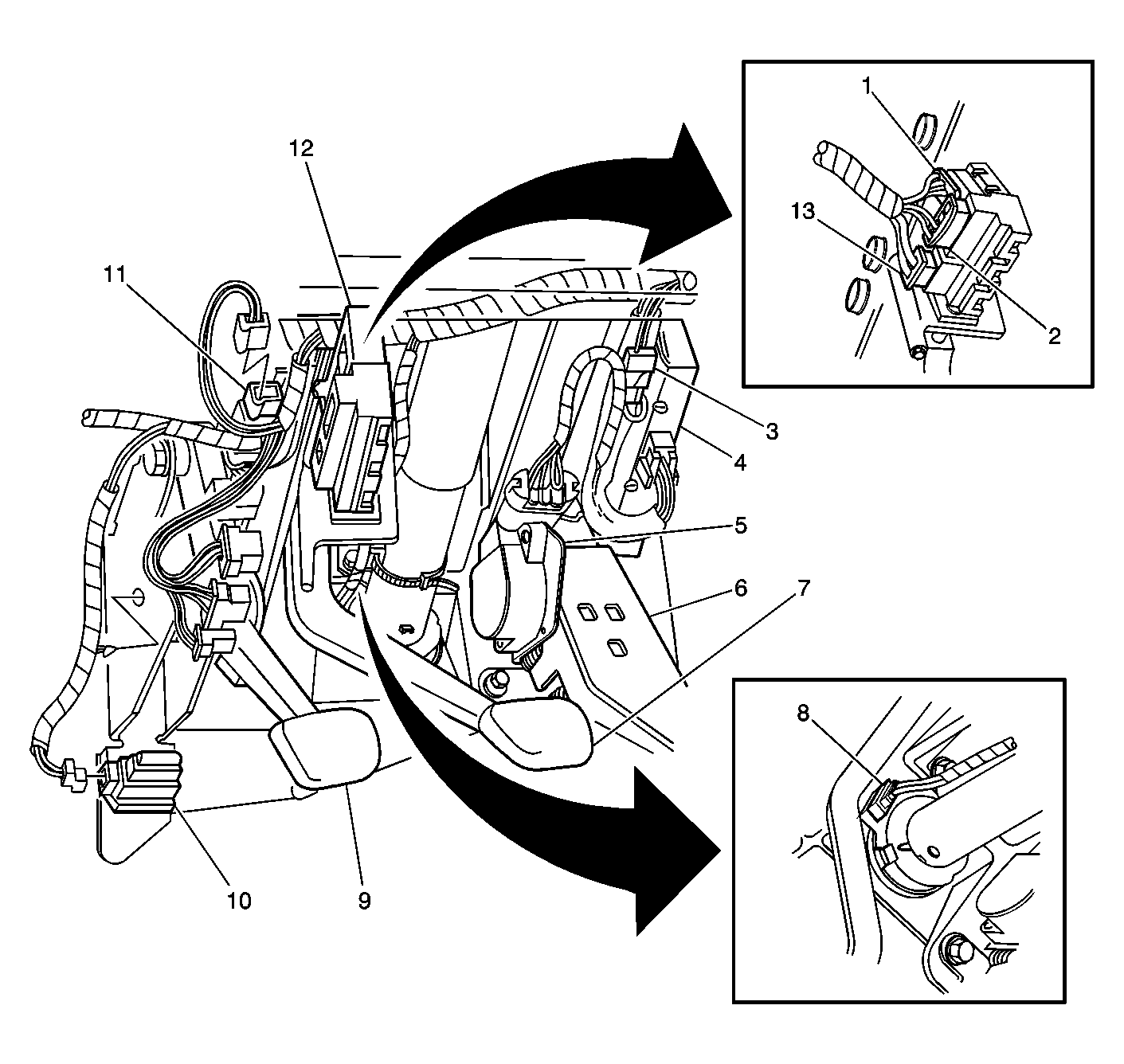

Fig 5: Under Side Of The Dash Component View - Left
GM698493Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Stop Lamp Switch C1
2 Stop Lamp Switch C3
3 C213
4 Bose Signal Processor
5 Accelerator Pedal Position (APP) Sensor
6 Accelerator Pedal
7 Brake Pedal
8 Steering Wheel Position Sensor
9 Clutch Pedal
10 Clutch Pedal Start Switch
11 Clutch Pedal Position Switch
12 Stop Lamp Switch
13 Stop Lamp Switch Connector C2

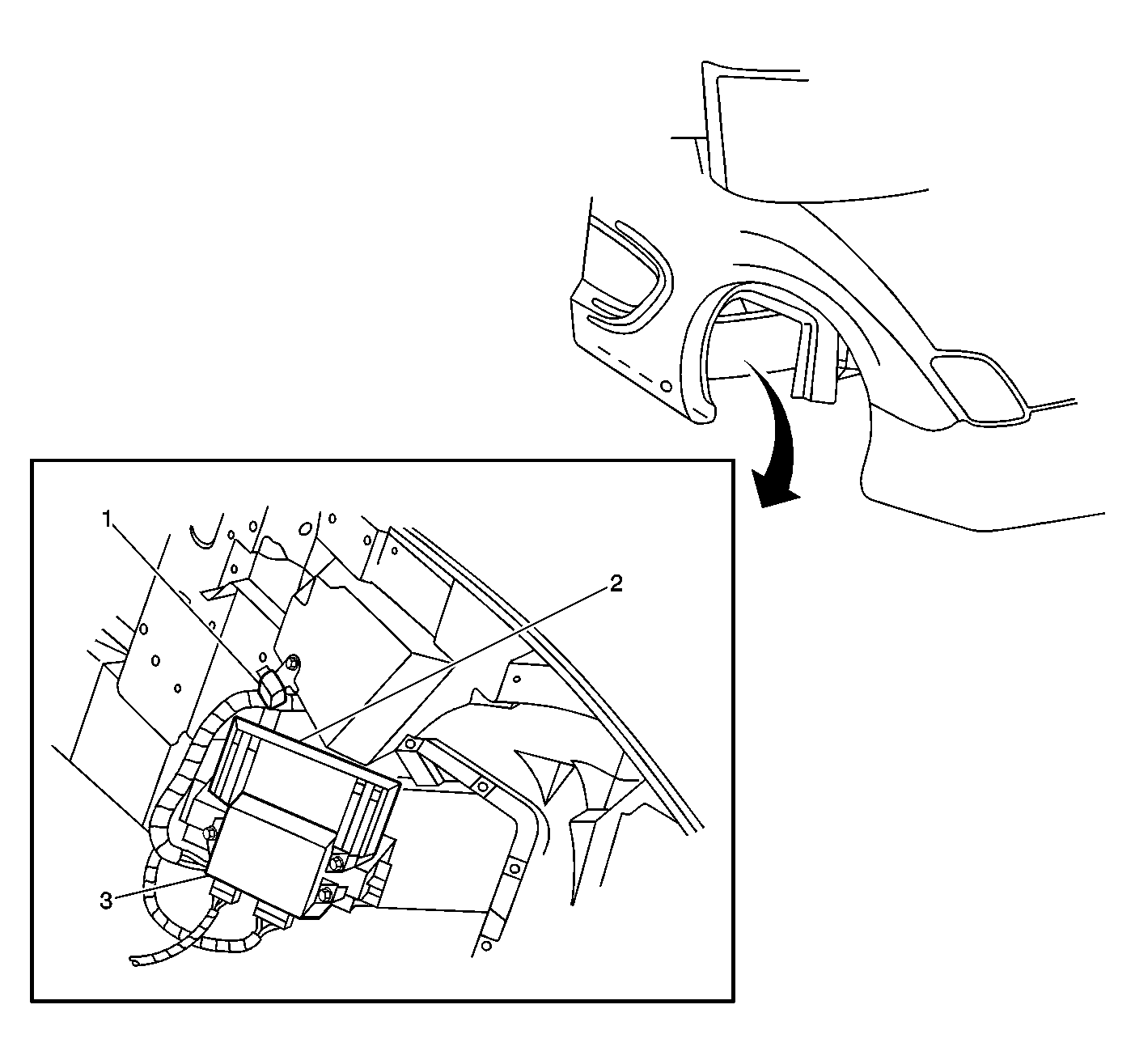

Fig 6: RH Wheel Well Component View
GM696610Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Secondary Air Injection (AIR) Solenoid
2 Powertrain Control Module (PCM)
3 Throttle Actuator Control (TAC) Module
Fig 7: Fuel Tanks Component View
GM901394Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank - Left
2 Fuel Pump and Sender Assembly
3 C402
4 Fuel Tank Pressure (FTP) Sensor
5 Fuel Level Sensor - Right
6 Fuel Tank - Right
7 C414
8 C412

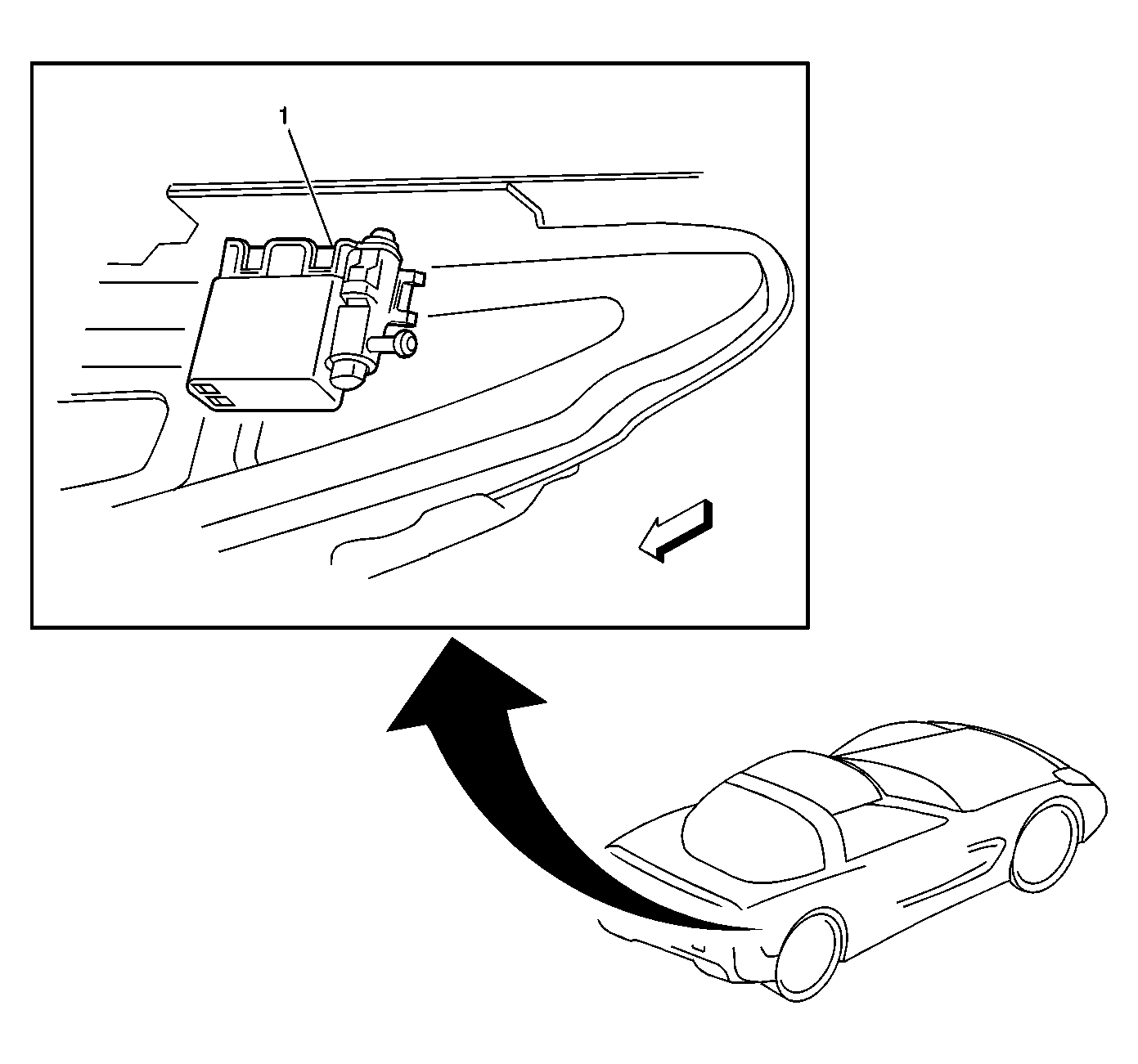

Fig 8: Evaporative Emission (EVAP) Canister Vent Solenoid
GM698362Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Vent Solenoid

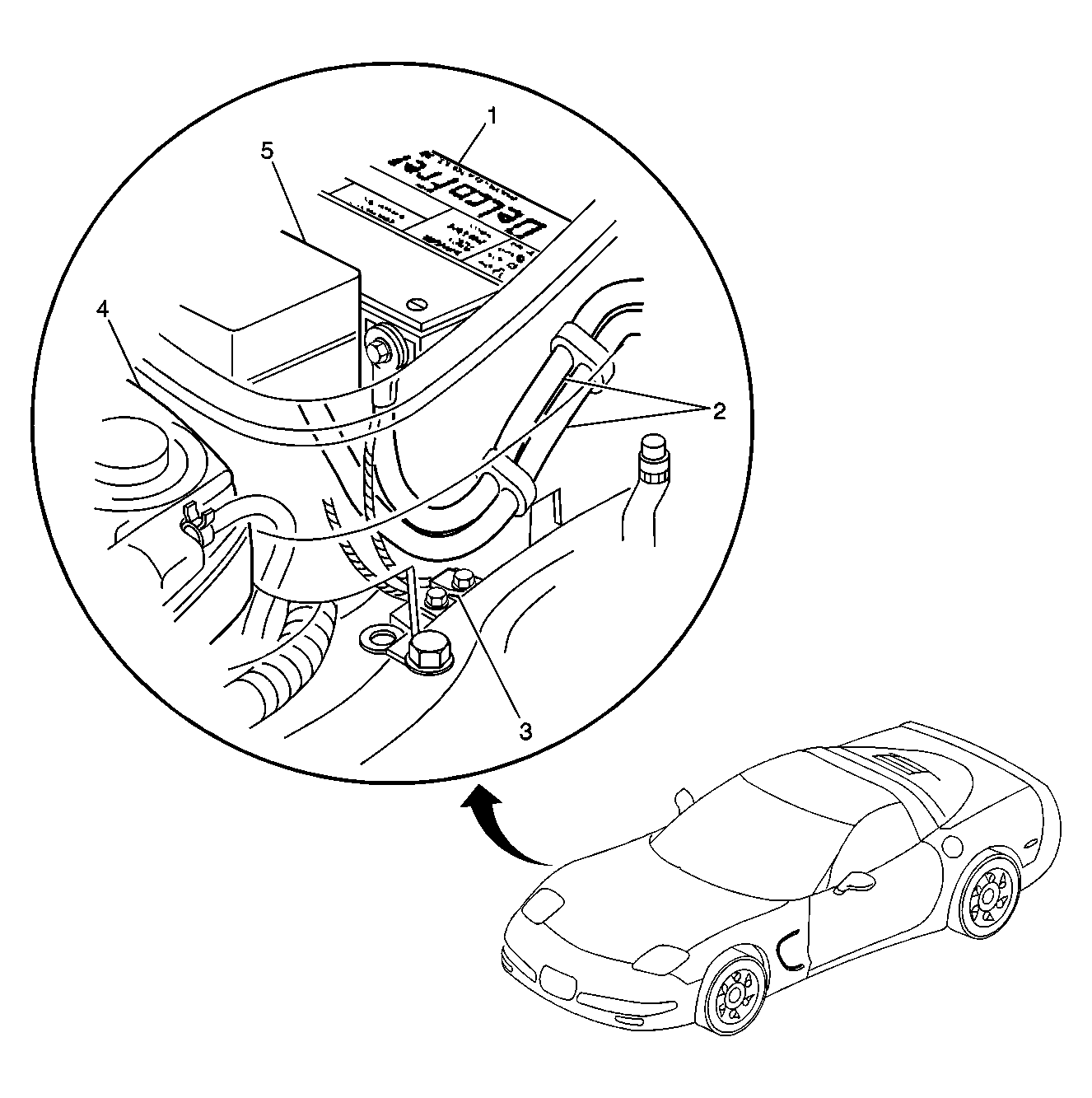

Fig 9: Engine Compartment Under The Battery Component View
GM531303Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Battery Cables
3 G104
4 Engine Coolant Reservoir
5 Fuse Block-Underhood

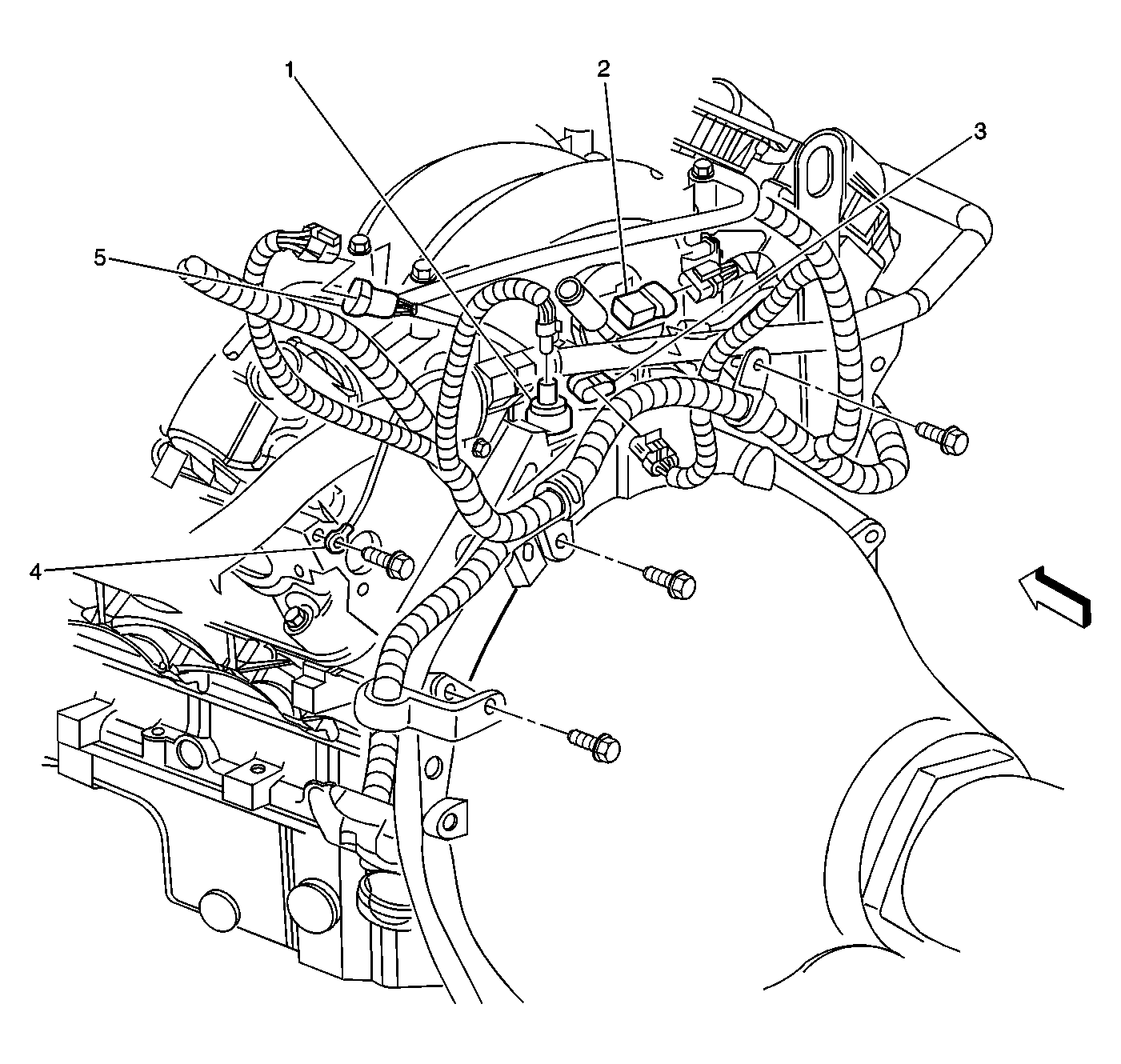

Fig 10: Rear Of Engine Component View
GM696026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Pressure (EOP) Sensor
2 Manifold Absolute Pressure (MAP) Sensor
3 Camshaft Position (CMP) Sensor
4 G107
5 C112

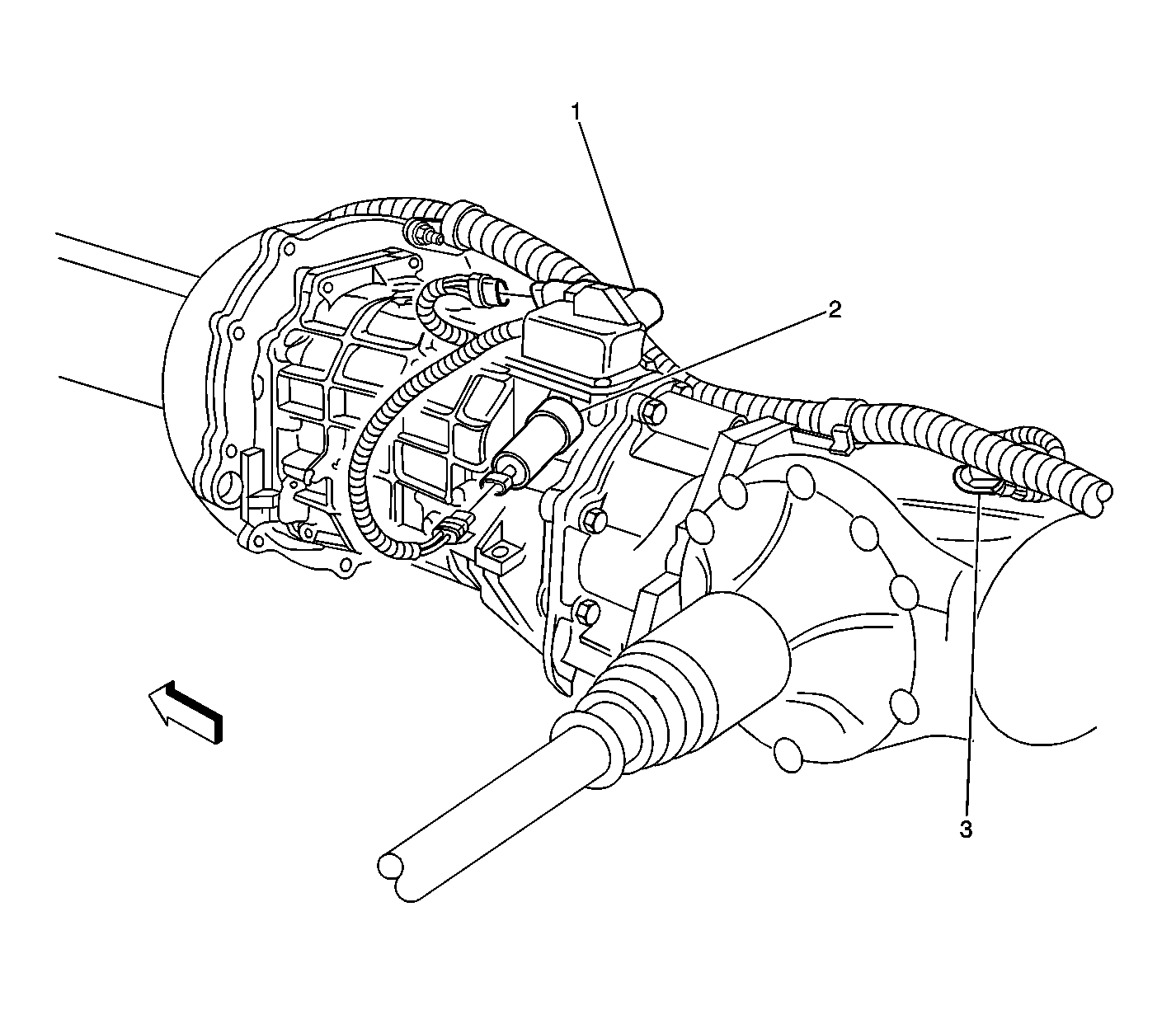

Fig 11: Manual Transmission Component View
GM184235Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Reverse Inhibit Solenoid
2 Skip Shift Solenoid
3 Vehicle Speed Sensor (VSS)

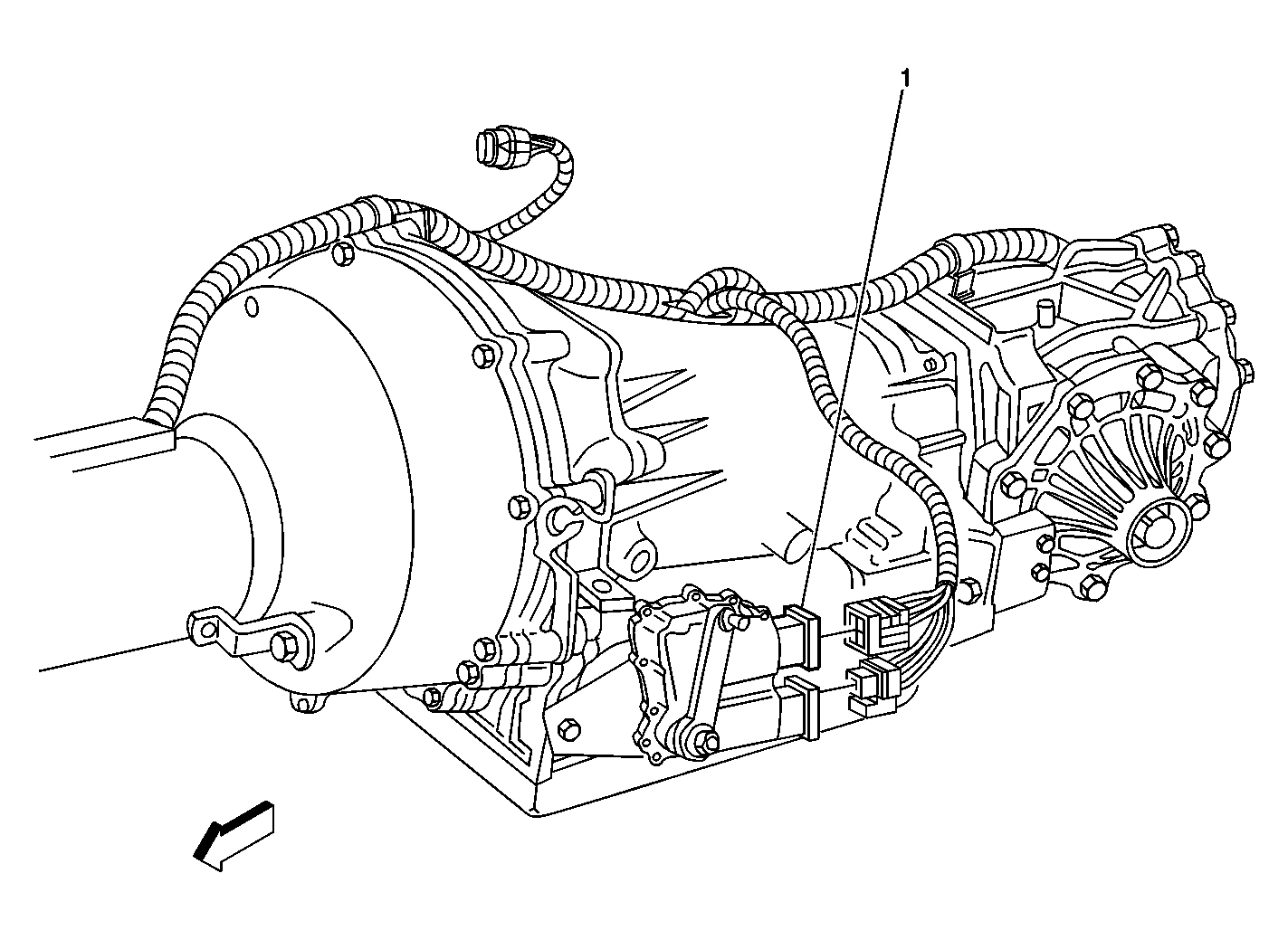

Fig 12: Automatic Transmission Component View
GM183863Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Neutral Position (PNP) Switch

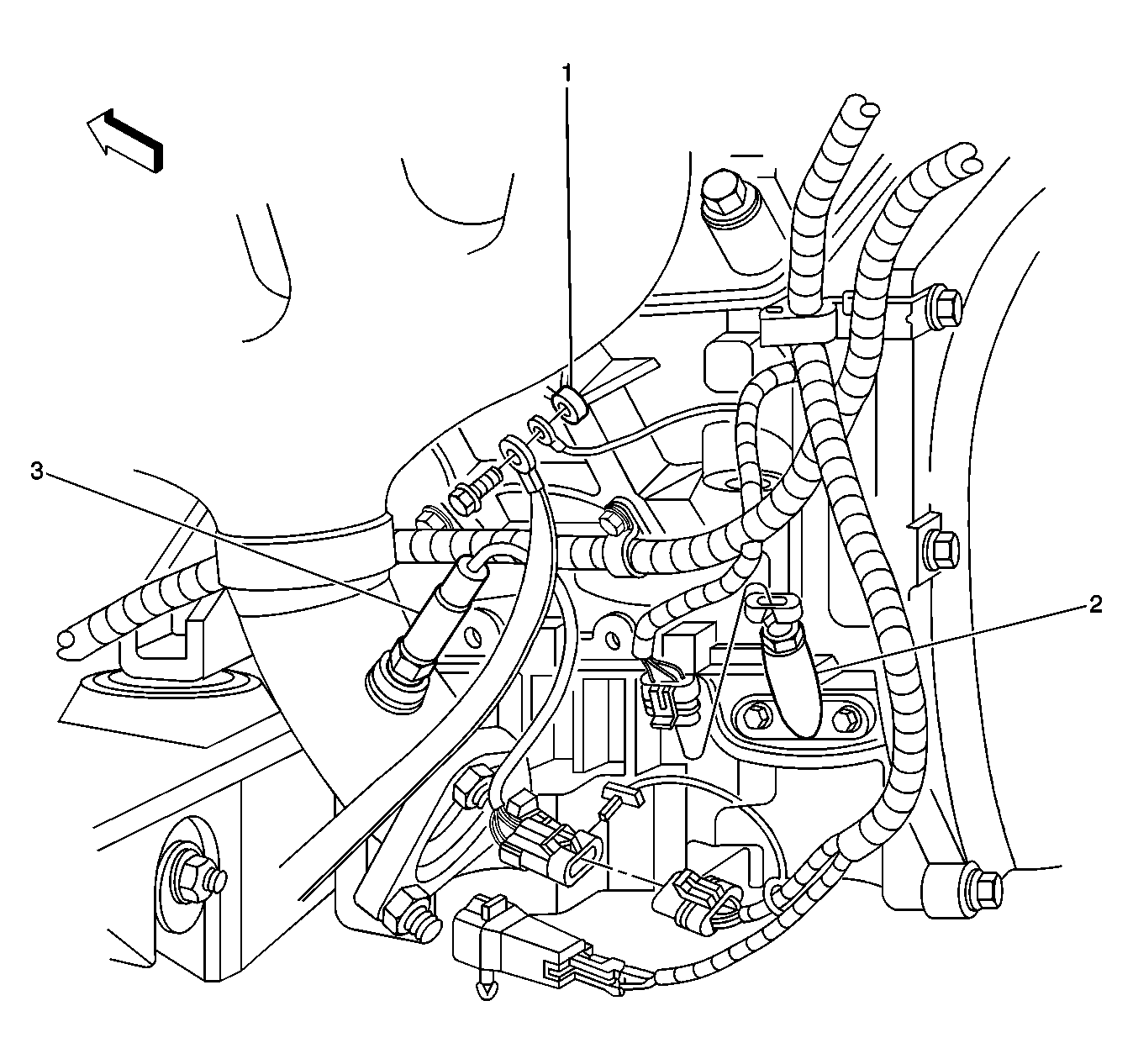

Fig 13: Lower Side Of Engine Component View - Left
GM697239Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 Engine Oil Temperature (EOT) Sensor
3 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

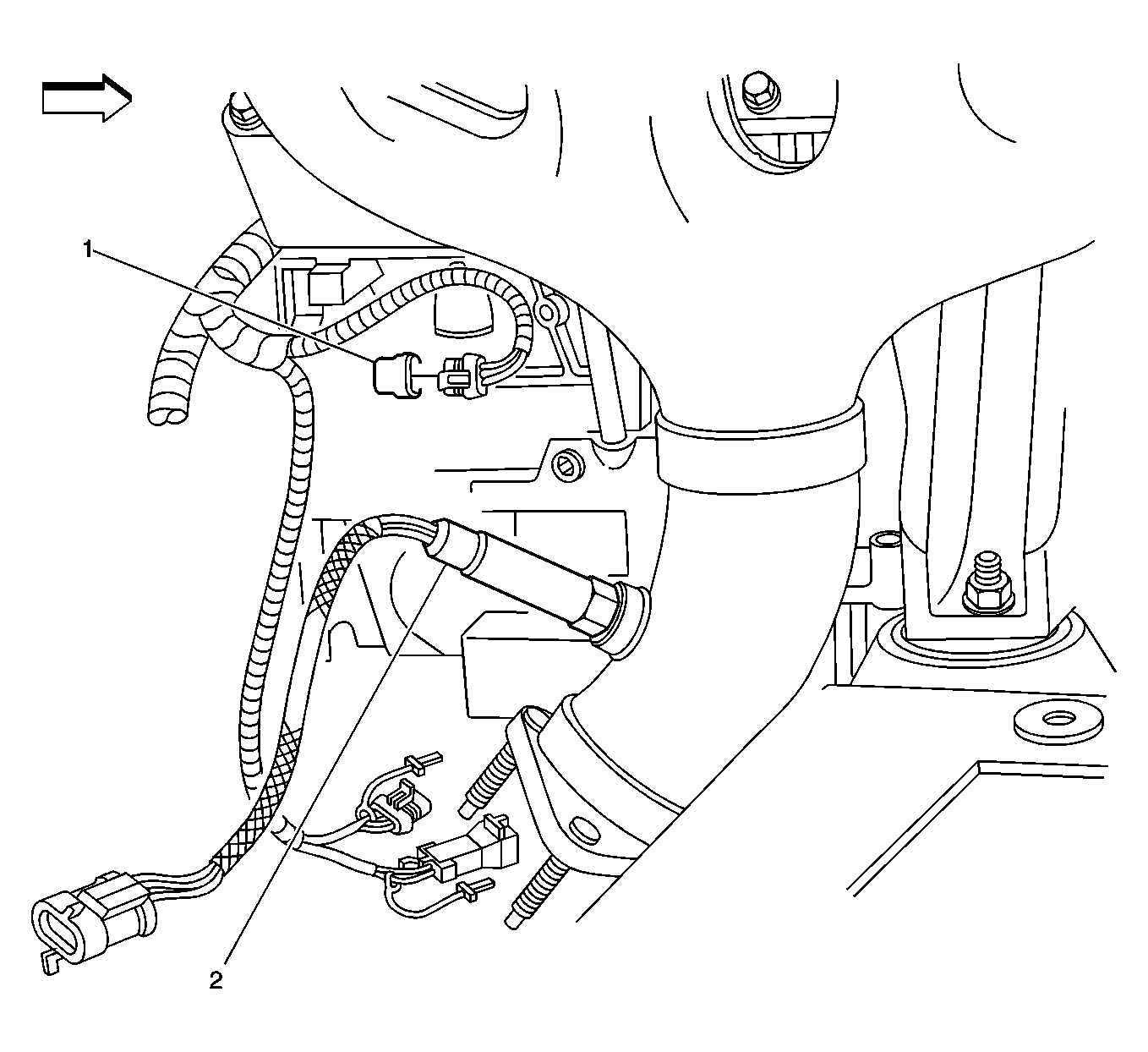

Fig 14: Lower Side Of Engine Component View - Right
GM698352Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Position (CKP) Sensor
2 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

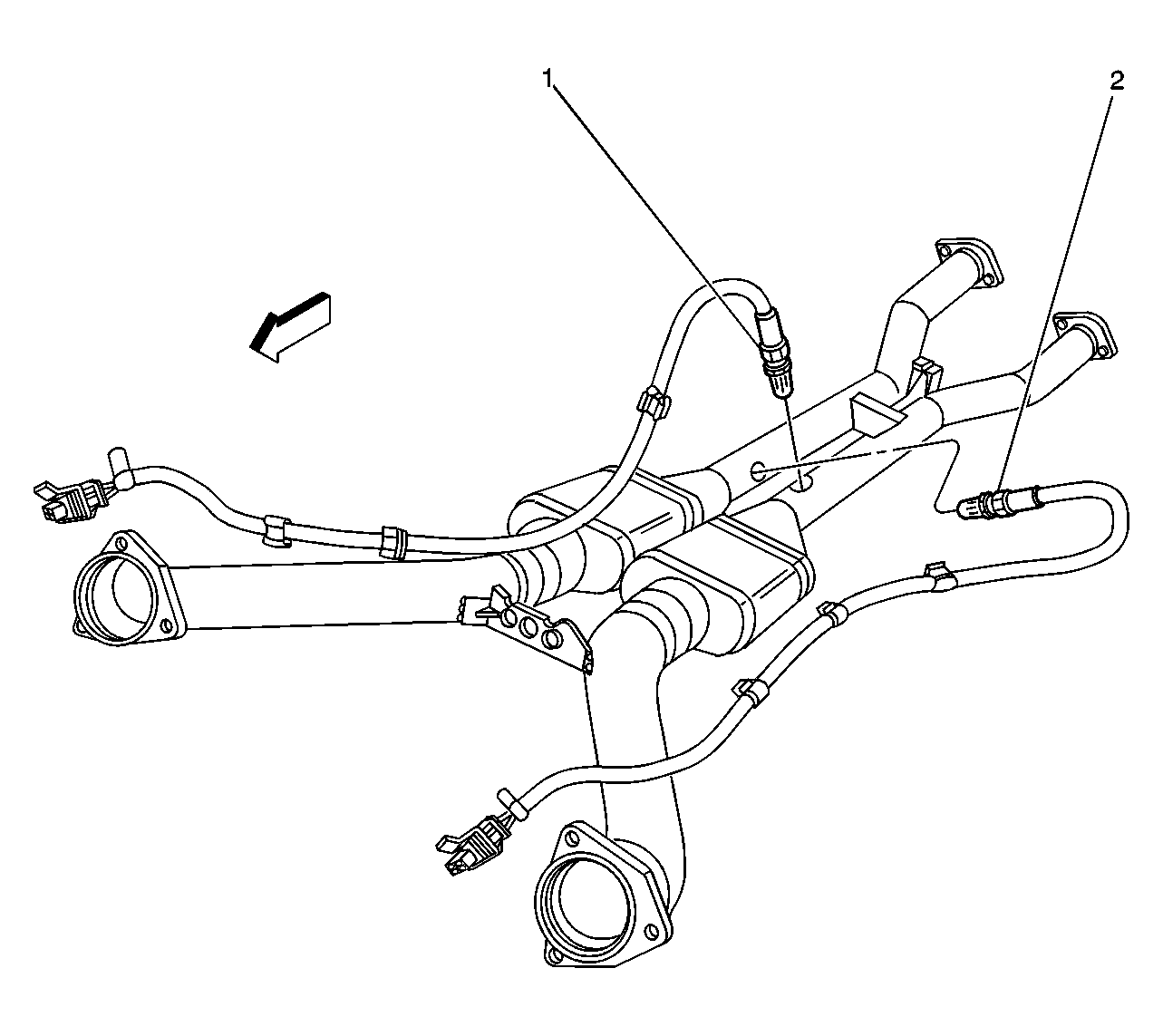

Fig 15: Oxygen Sensors Component View - Rear
GM698361Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
2 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
