Engine Electrical Component Views

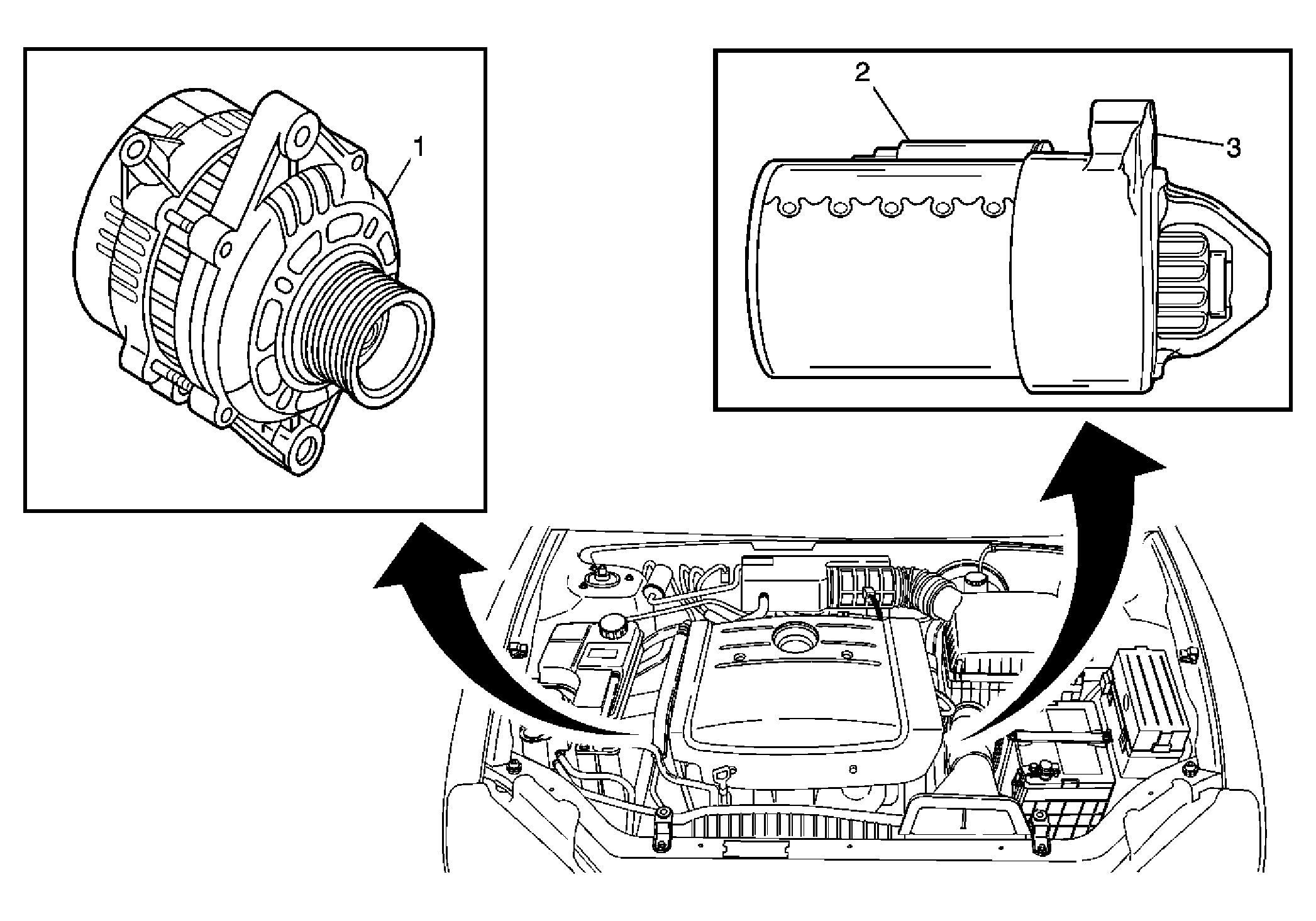

Fig 1: View Of Generator And Starter Components
GM1469245Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Starter Solenoid
3 Starter

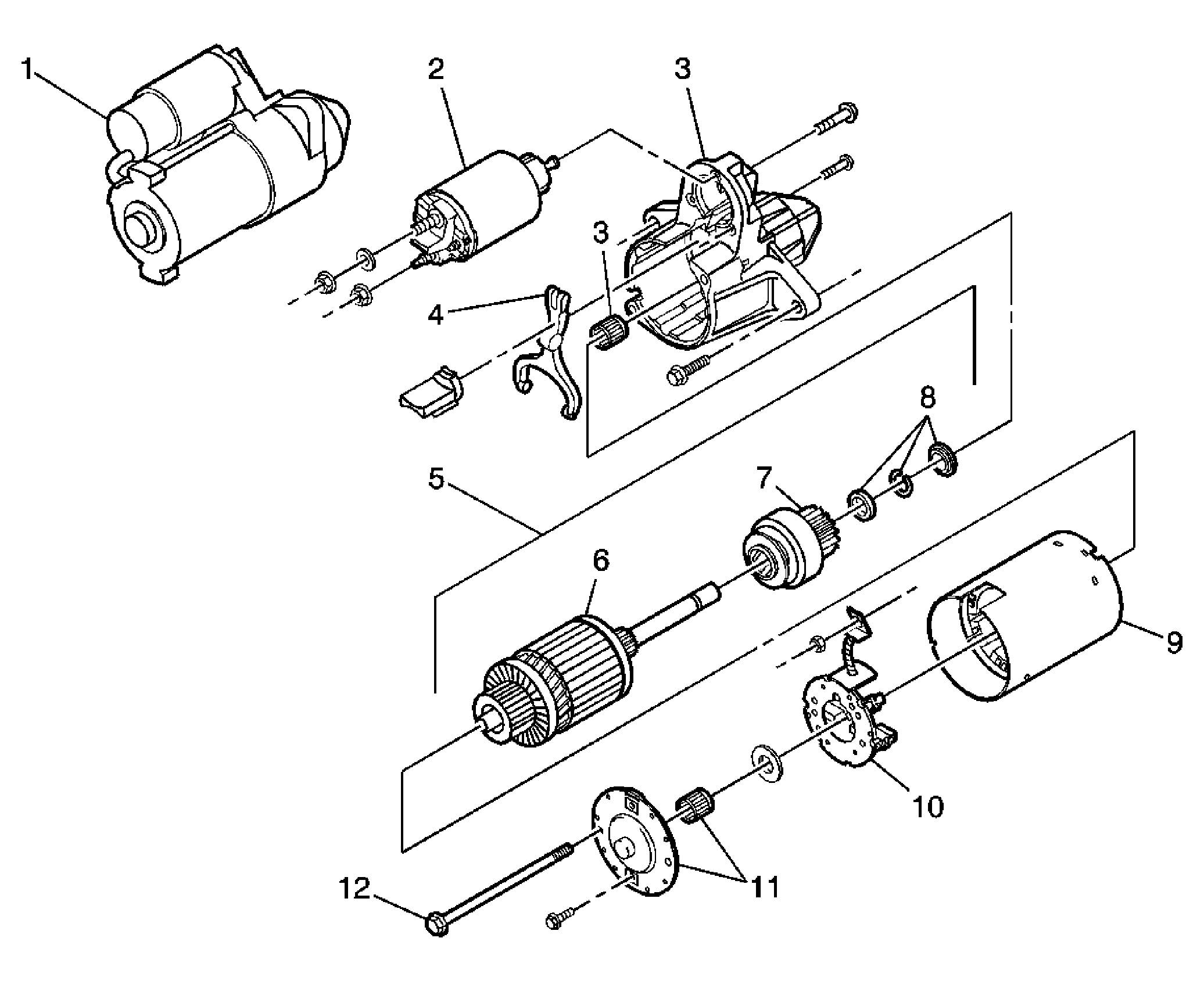

Fig 2: Starter Motor Assembly
GM1291917Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Motor Assembly
2 Starter Solenoid Assembly
3 Starter Housing
4 Shift Lever
5 Armature Set
6 Armature
7 Pinion Gear Assembly
8 Ring Set
9 Field Frame Assembly
10 Brush Holder Assembly
11 Contact End Frame Assembly
12 Starter Through-Bolts

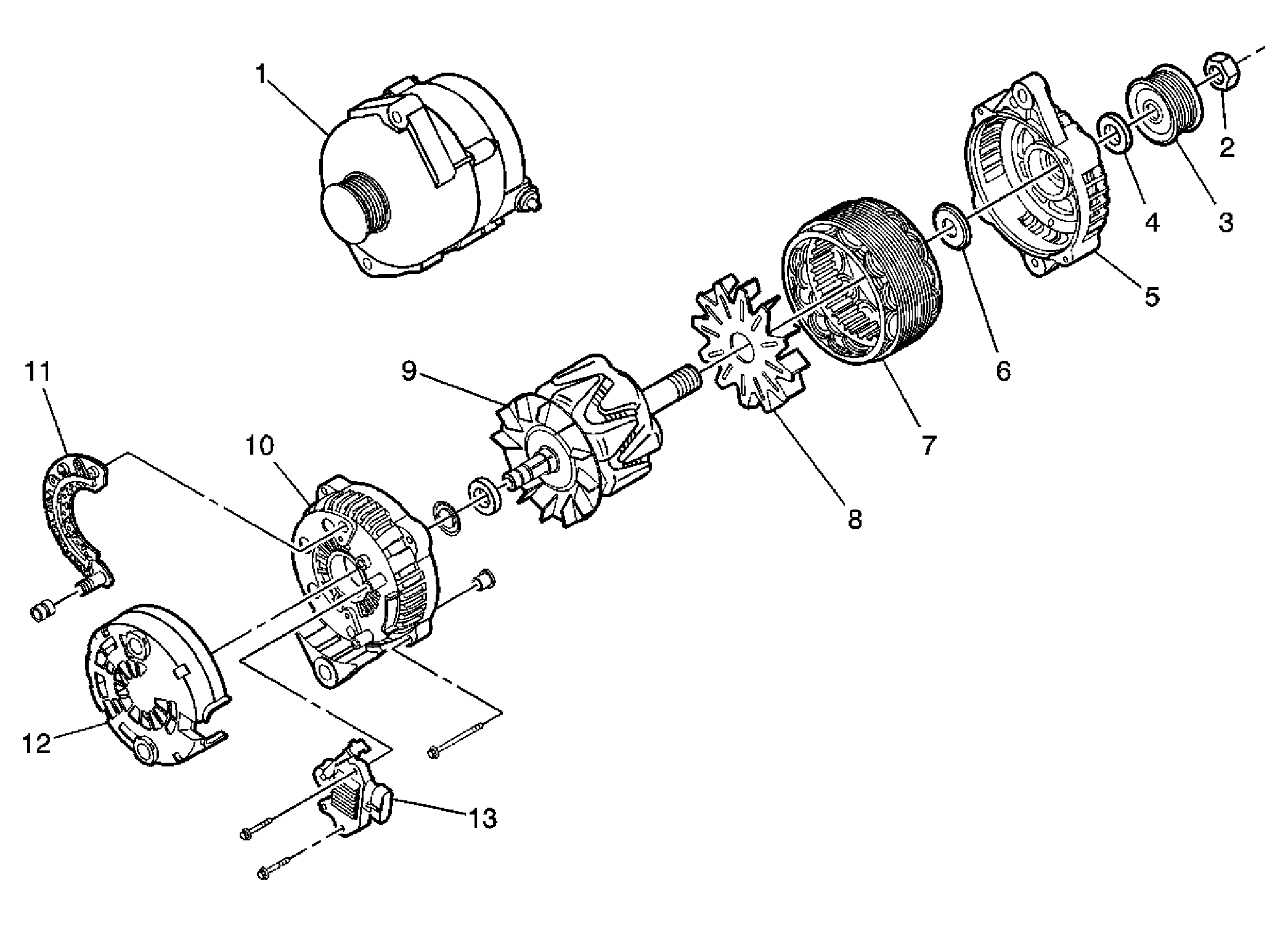

Fig 3: Generator Assembly DOHC Component Views
GM1282553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator Assembly
2 Generator Drive End Nut
3 Generator Pulley
4 Generator Collar
5 Generator Front Bracket
6 Front Bearing
7 Generator Stator Assembly
8 Fan
9 Generator Rotor Assembly
10 Generator Rear Bracket
11 Rectifier Assembly
12 Cover
13 Voltage Regulator/Brush Holder Assembly
