Removal Procedure

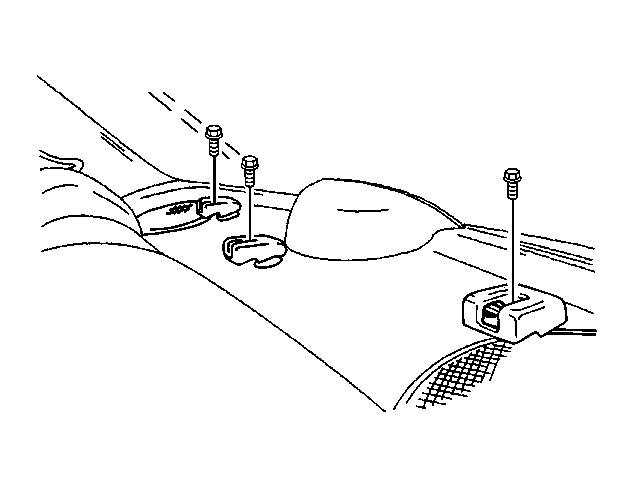

    Fig 1: Identifying Child Seat Anchors And Bolts
    GM1256732Courtesy of GENERAL MOTORS CORP.
  1. Open the tether anchor access cap.
  2. Remove bolt and the child seat anchorage.
