Automatic Transmission Shift Lock Control Component Views

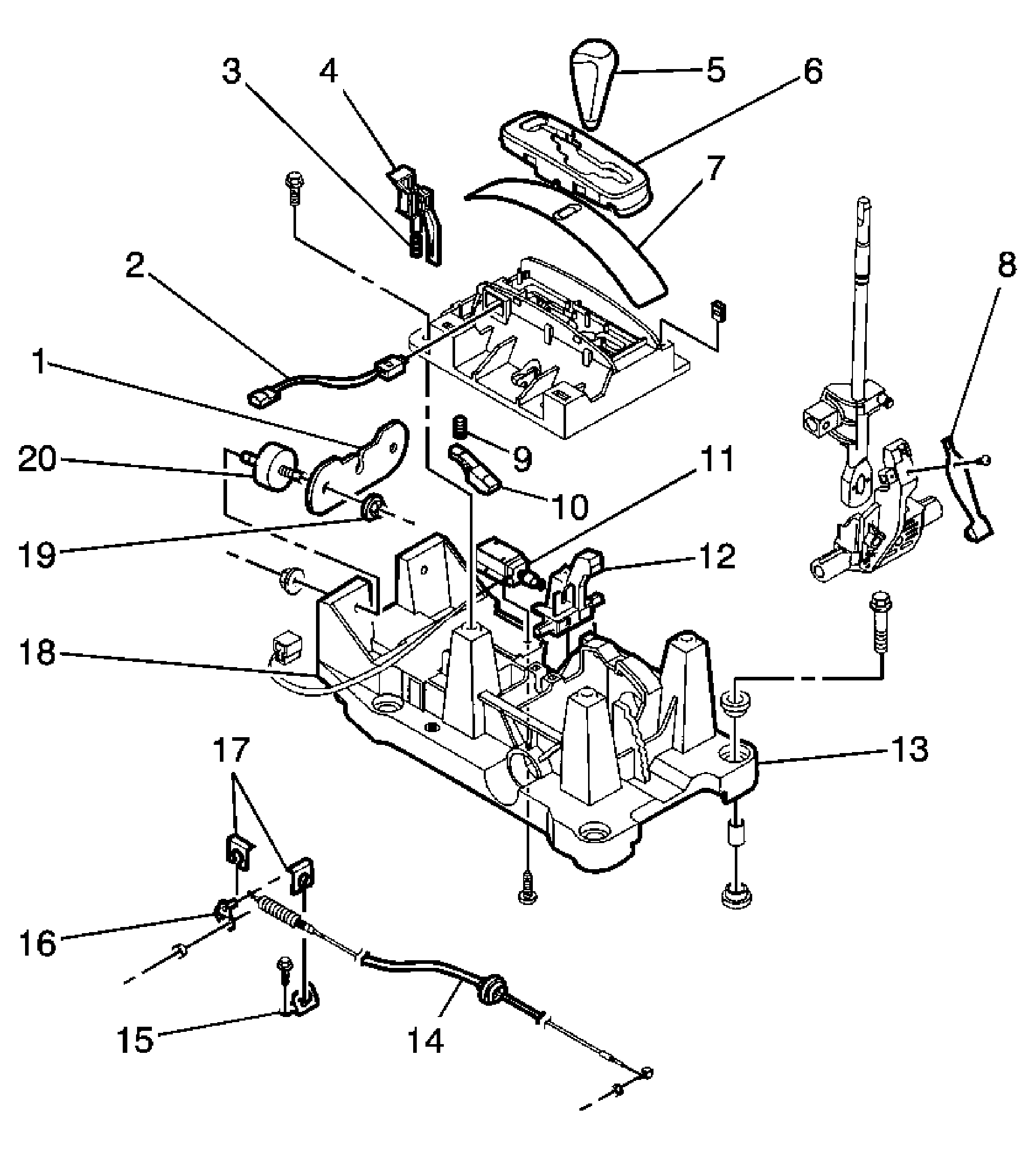

Fig 1: View Of Shift Select Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fastener Plate
2	Park Position Switch
3	Spring
4	BTSI Button
5	Gear Shift Knob
6	Cover
7	Step Gate Slider
8	Positioning Spring
9	Spring
10	Safety Stopper
11	A/T Shift Lock Solenoid
12	A/T Shift Lock Solenoid Lever
13	Base Plate
14	Select Cable
15	Cable Fastener
16	T/A Lever
17	E-Ring
18	Base Plate Front
19	Nut
20	Selector Control Isolator
