Automatic Transmission Shift Lock Control Connector End Views

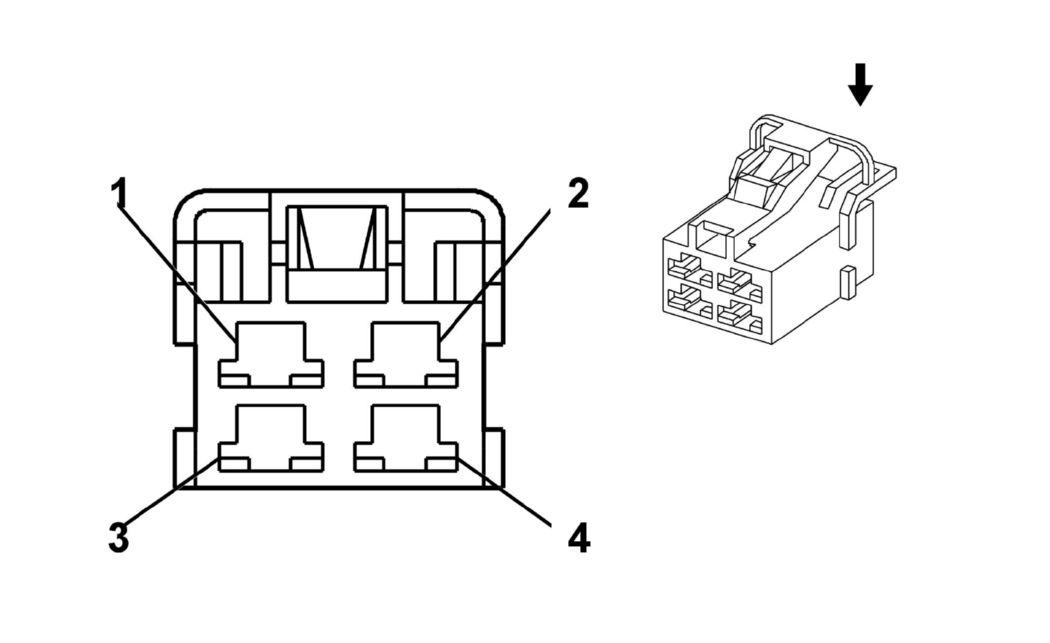

Automatic Transmission Shift Lever 2.0L

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610396 4-Way F SDL Series (WH)
Pin	Wire Color	Circuit Number	Function
1	BK	250	Ground
2	L-GN	275	Park/Neutral Position (PNP) Switch Park Signal
3	L-GN	275	Park/Neutral Position (PNP) Switch Park Signal
4	BN/WH	186	A/T Shift Lock Control

Automatic Transmission Shift Lever 2.5L

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610396 4-Way F SDL Series (WH)
Pin	Wire Color	Circuit Number	Function
1	BK	250	Ground
2	L-GN	1076	Park Position Switch Signal
3	BN/WH	186	A/T Shift Lock Control
4	PK/BK	439	Ignition 1 Voltage

Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610267 4-Way F 250 D/L Series (WH)
Pin	Wire Color	Circuit Number	Function
1	PK/WH	439	Ignition 1 Voltage
2	BN/WH	186	A/T Shift Lock Control
3	OG	540	Battery Positive Voltage
4	L-BU	20	Stop Lamp Supply Voltage/Stop Lamp Switch Signal
	L-BU	20	Stop Lamp Supply Voltage/Stop Lamp Switch Signal
