Power Outlet Component Views

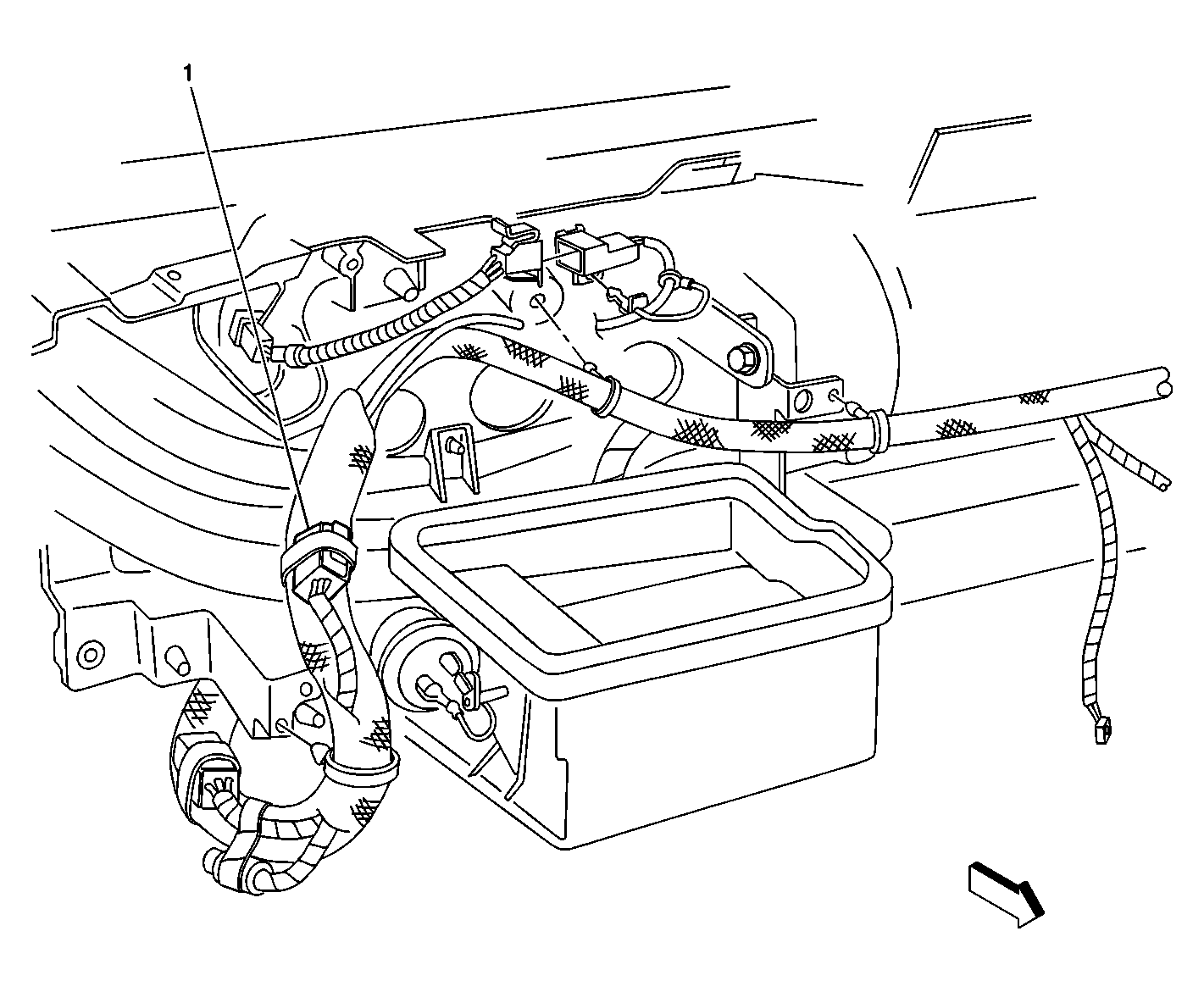

Fig 1: Auxiliary Power Drop Connector, Behind Right Side of Instrument Panel (9C1/9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Drop Connector

Fig 2: Electrical Components, Console and Center of Floor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Heated Seat Switch-Driver (Monte Carlo) Connector
3	Heated Seat Switch-Front Passenger (Monte Carlo) Connector
4	C317
5	C315
6	Auxiliary Power Outlet
7	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
8	C312
9	Inflatable Restraint Side Impact Module-LF Connector
10	C311
11	A/T Shift Lock Control Solenoid
