Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

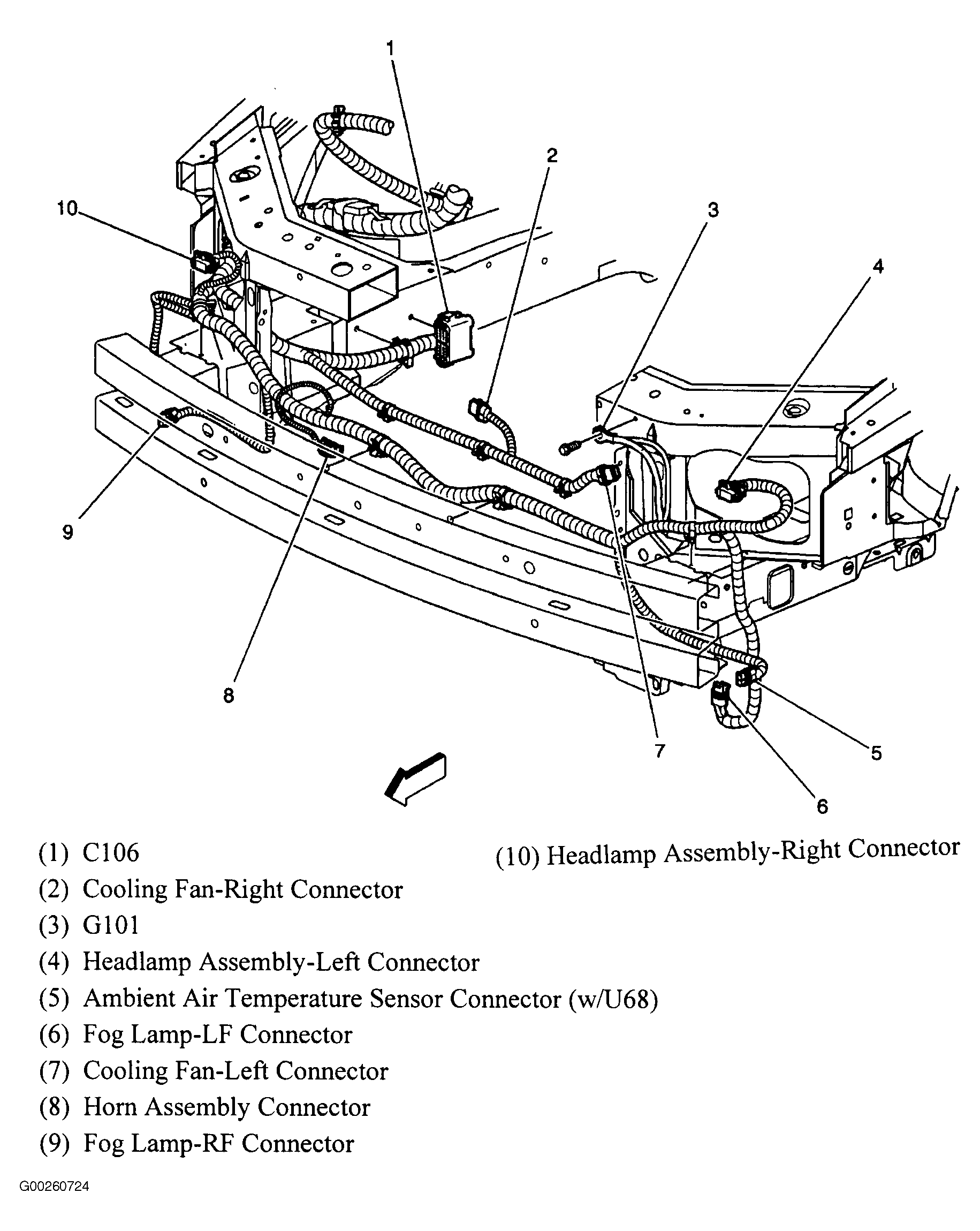

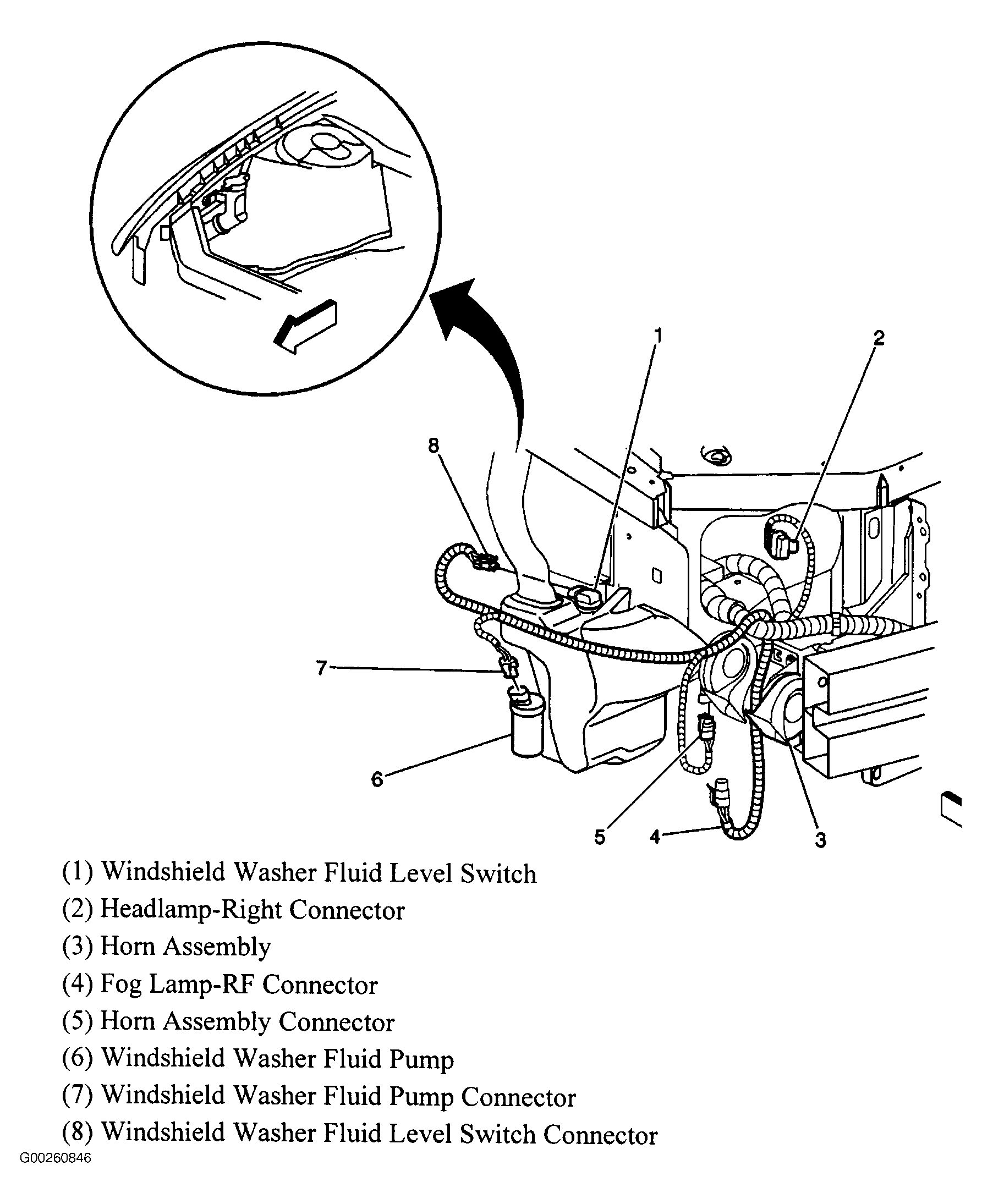

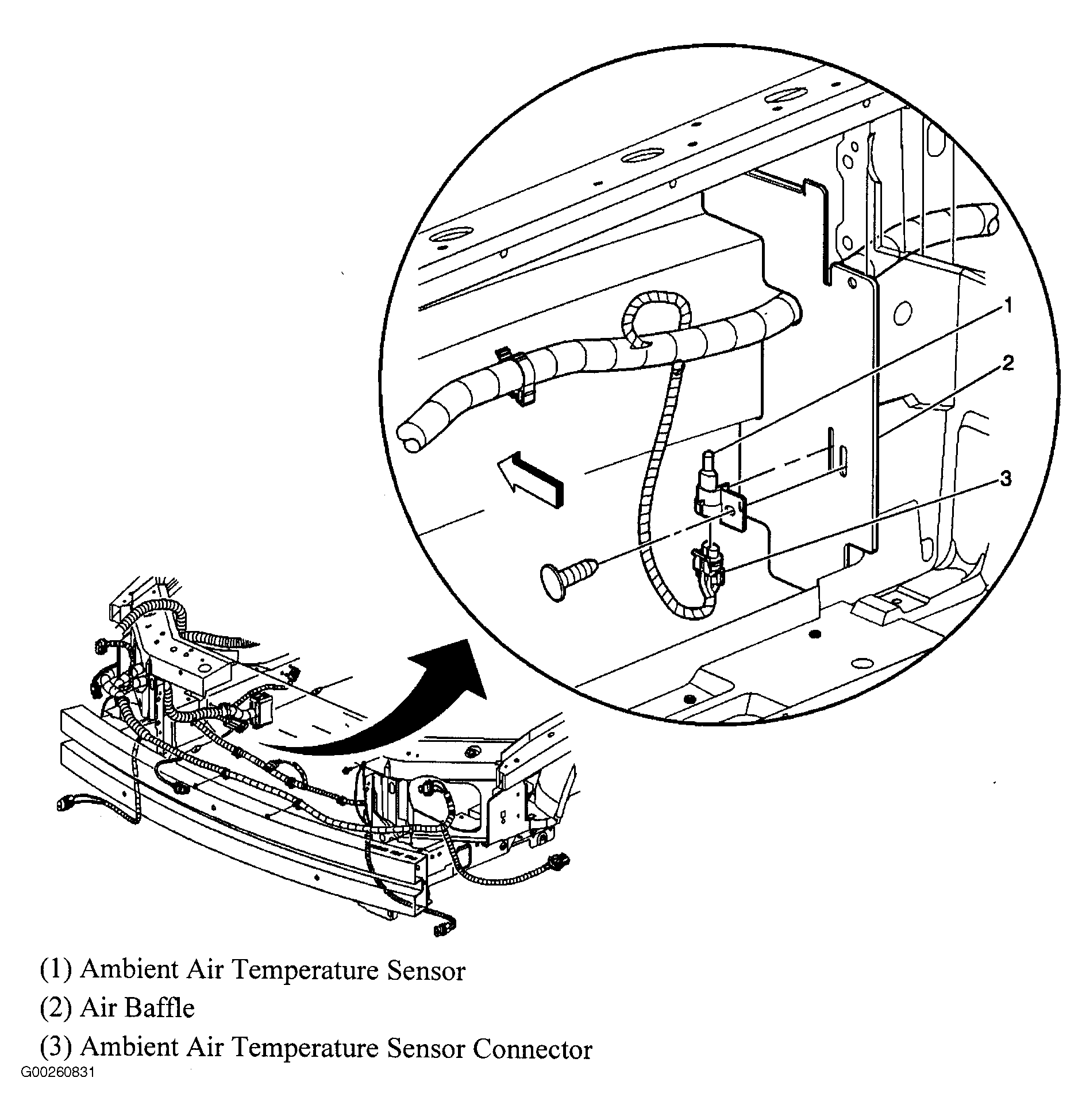

Fig 1: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

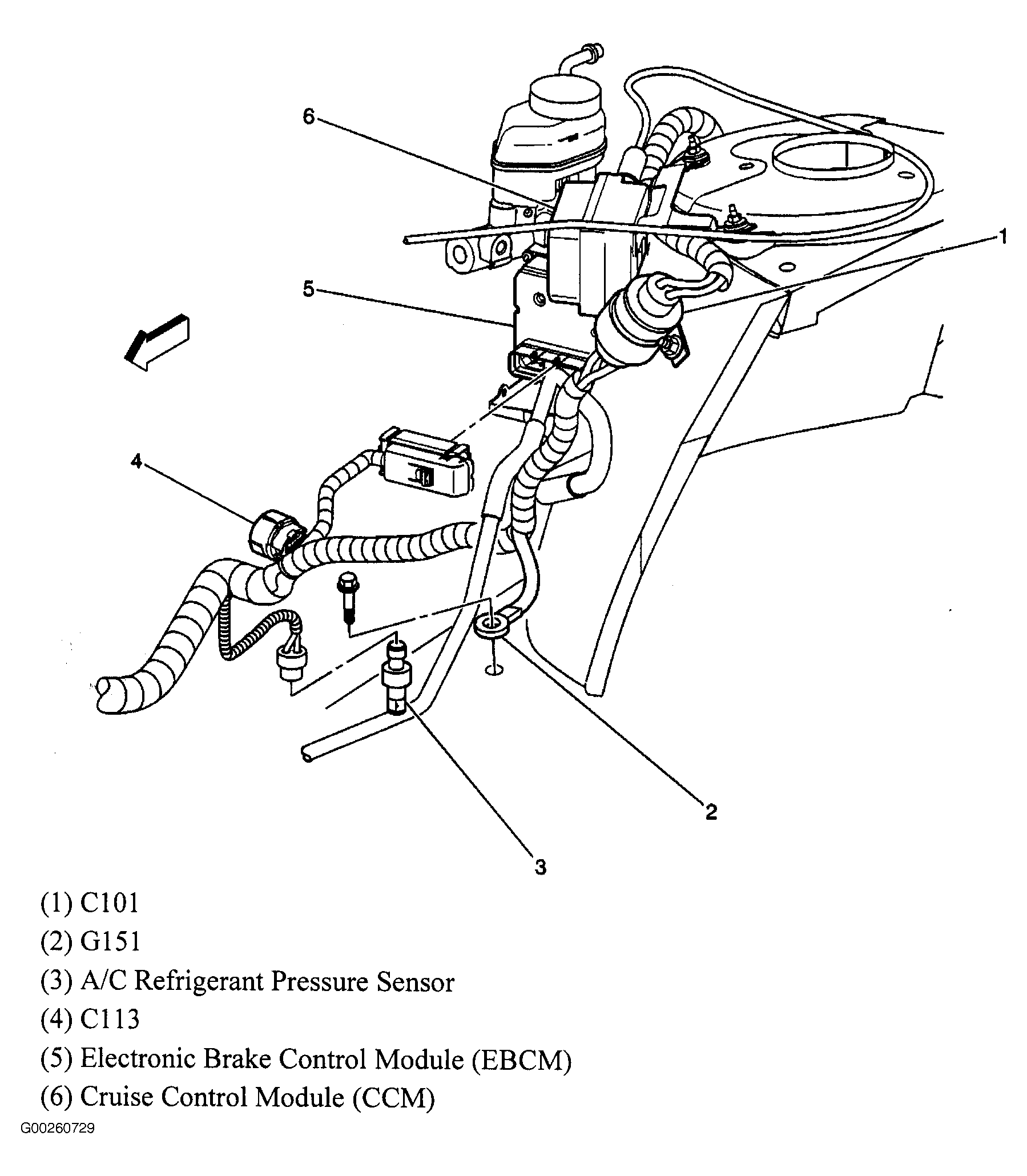

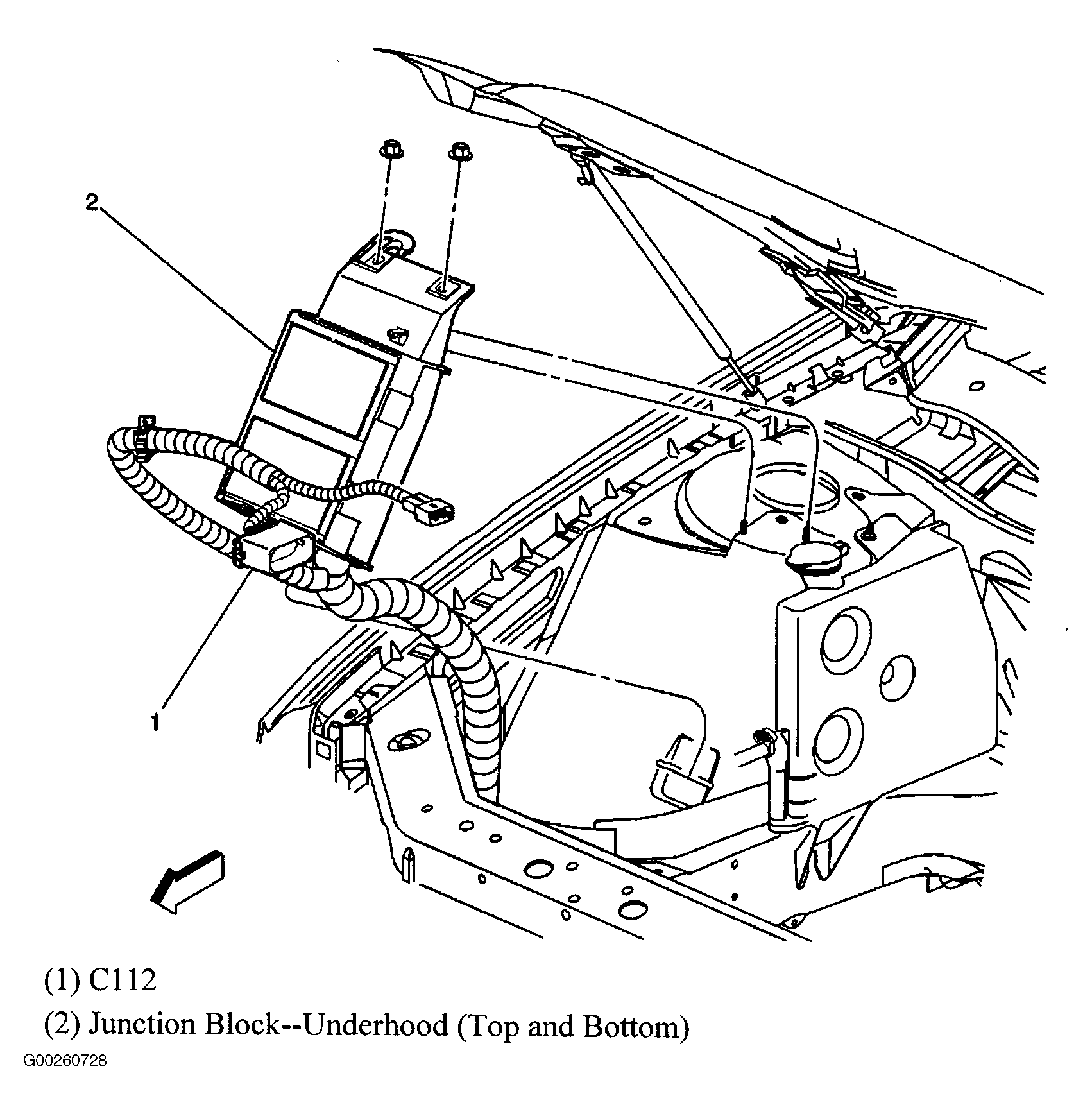

Fig 2: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

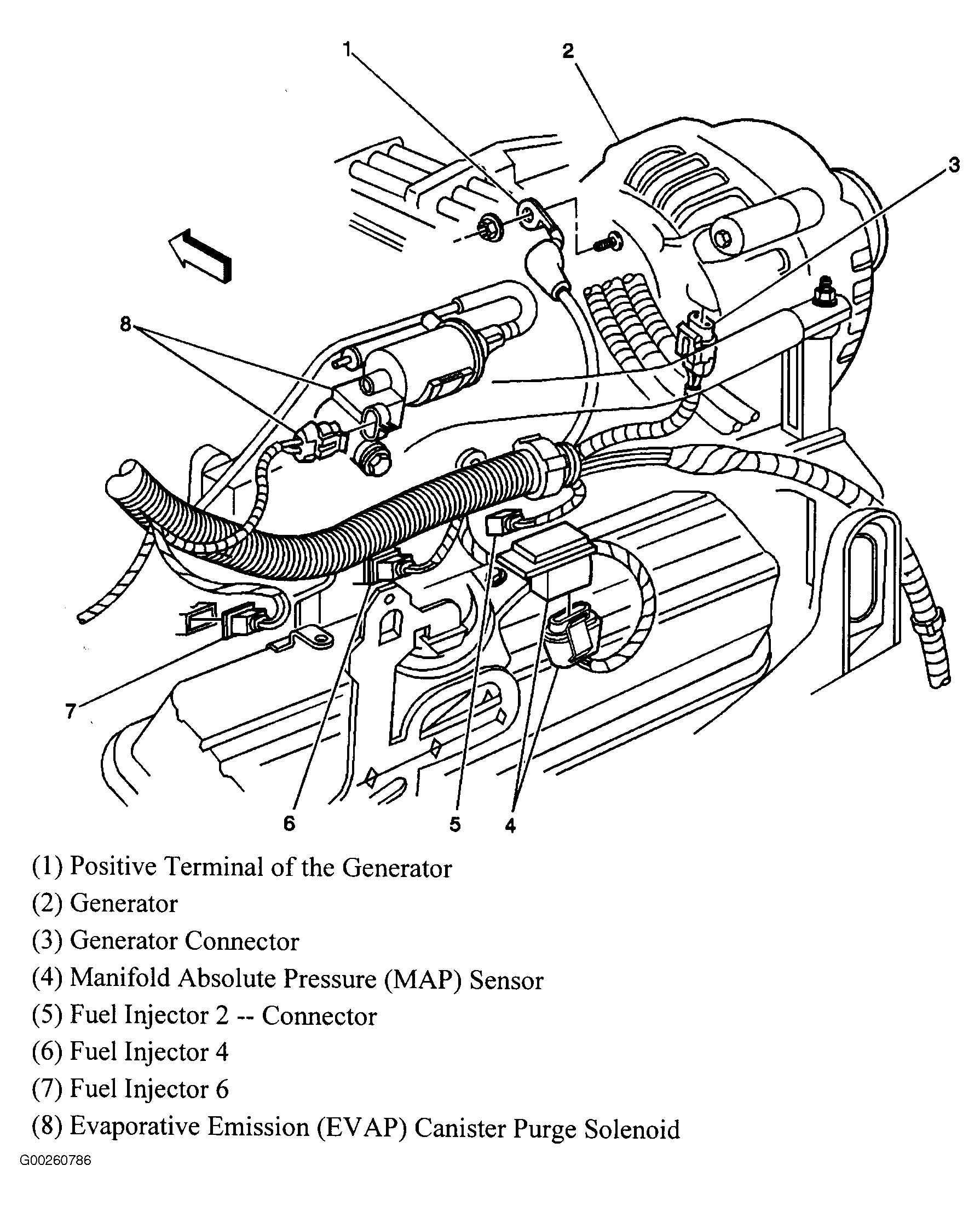

Fig 3: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

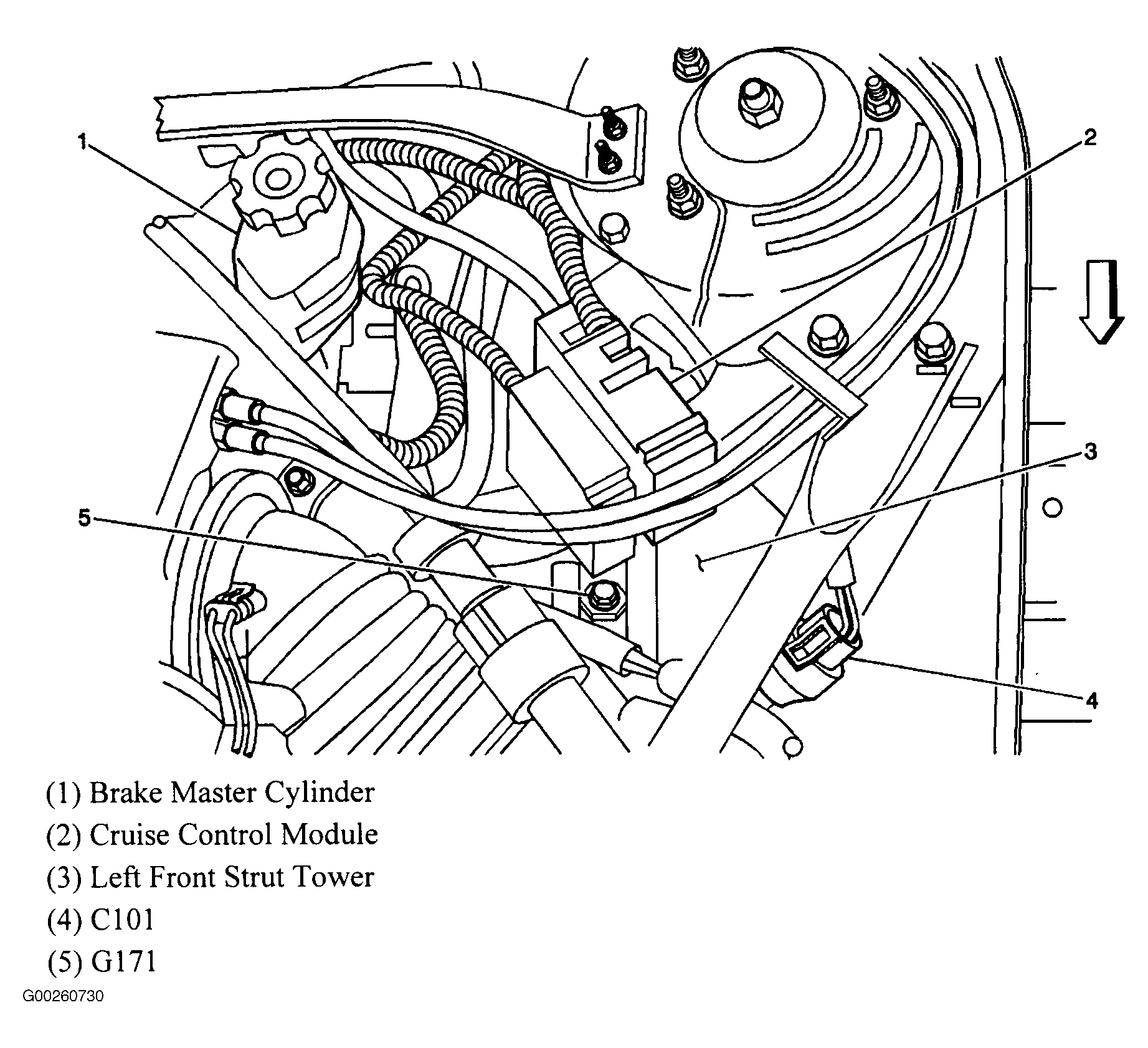

Fig 5: Left Center Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

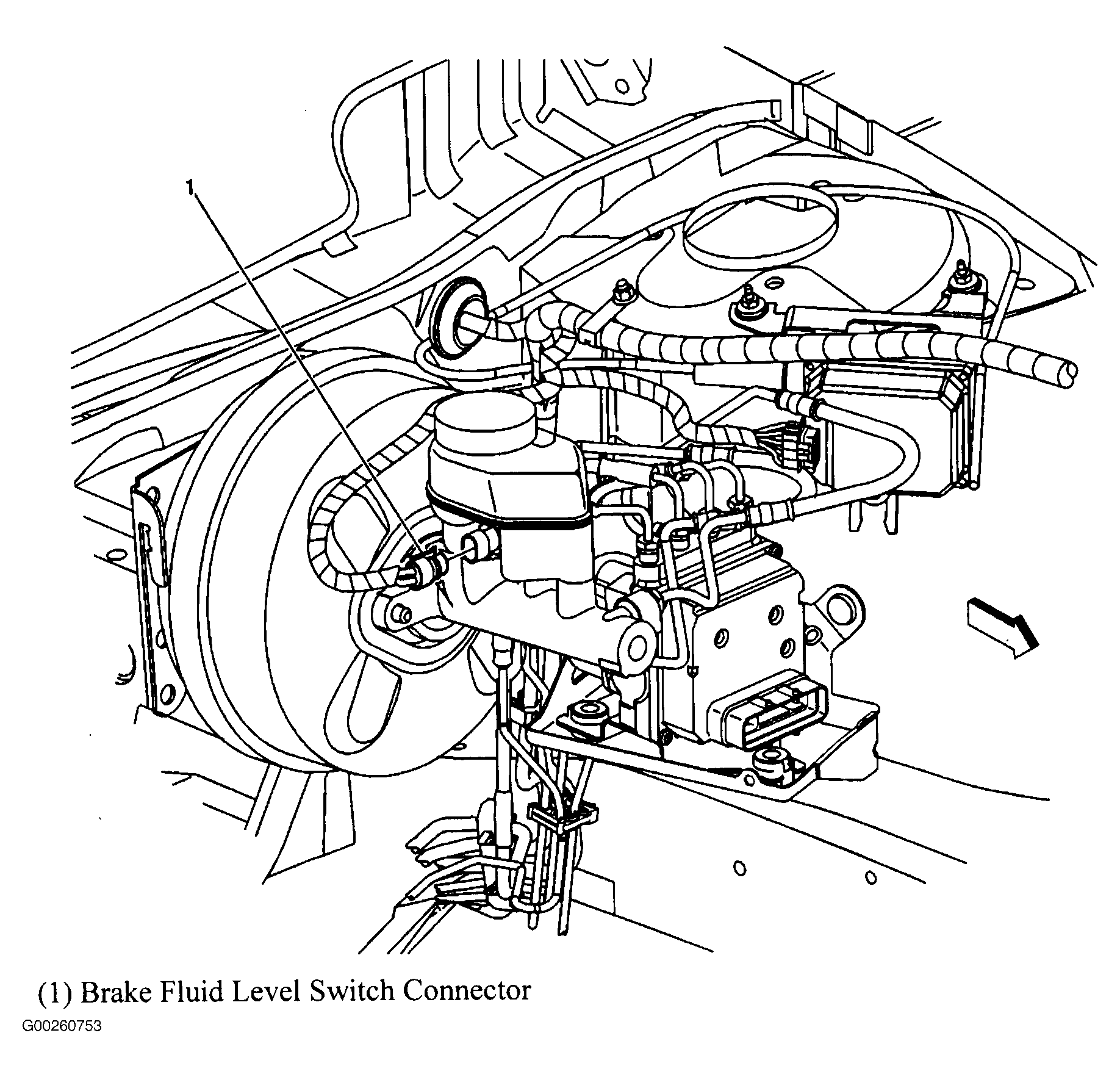

Fig 6: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

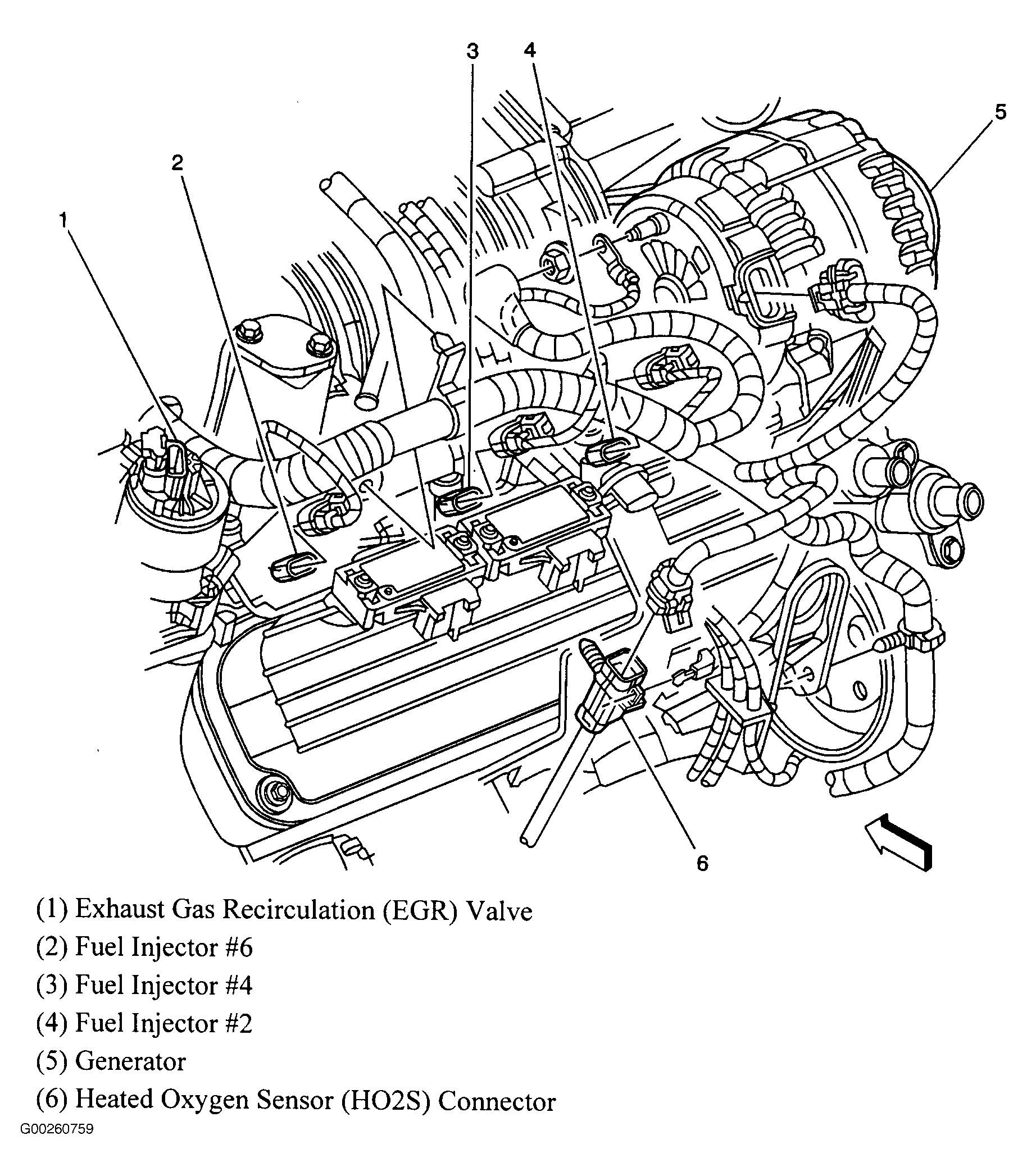

Fig 7: Right Side Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.

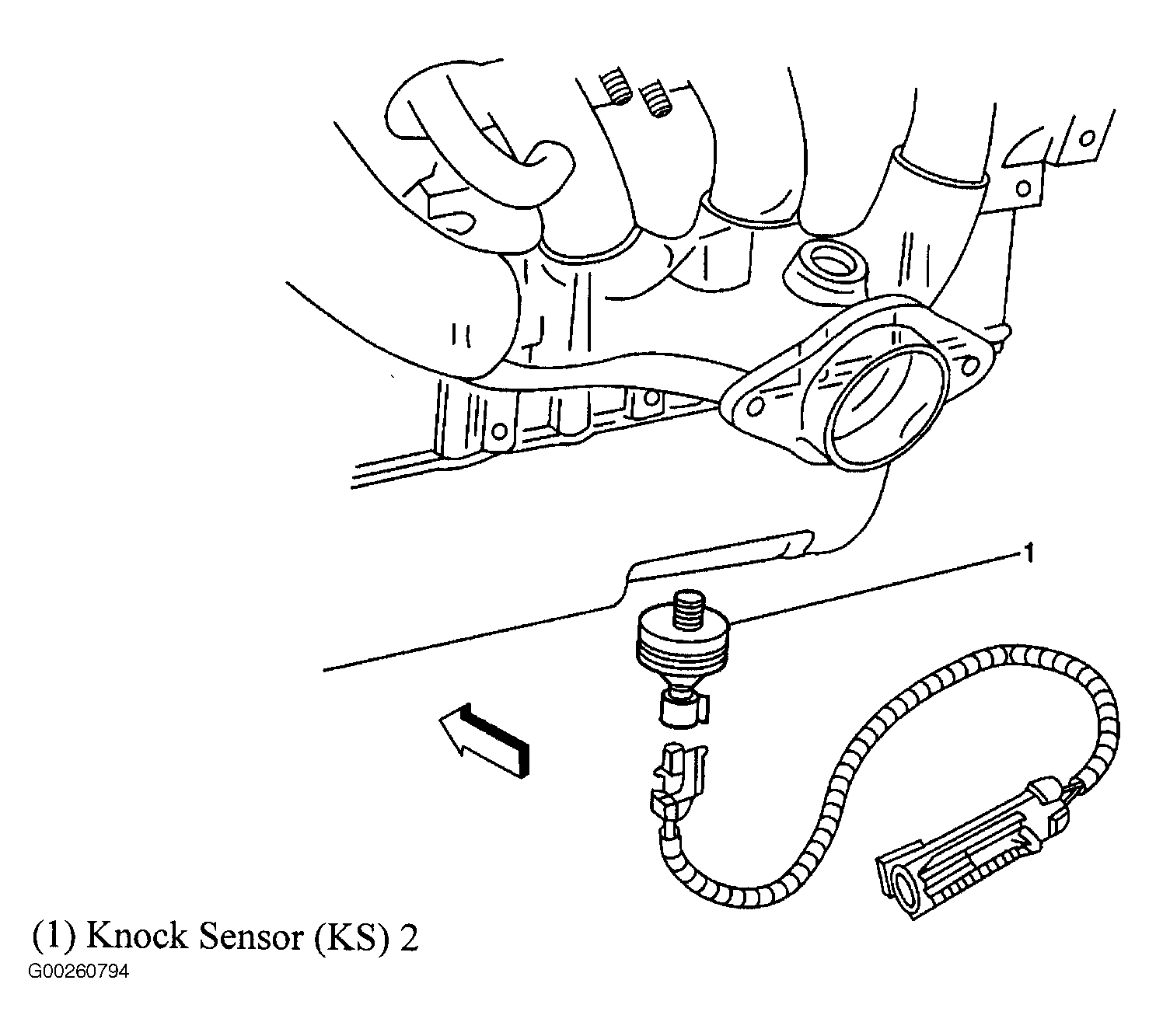

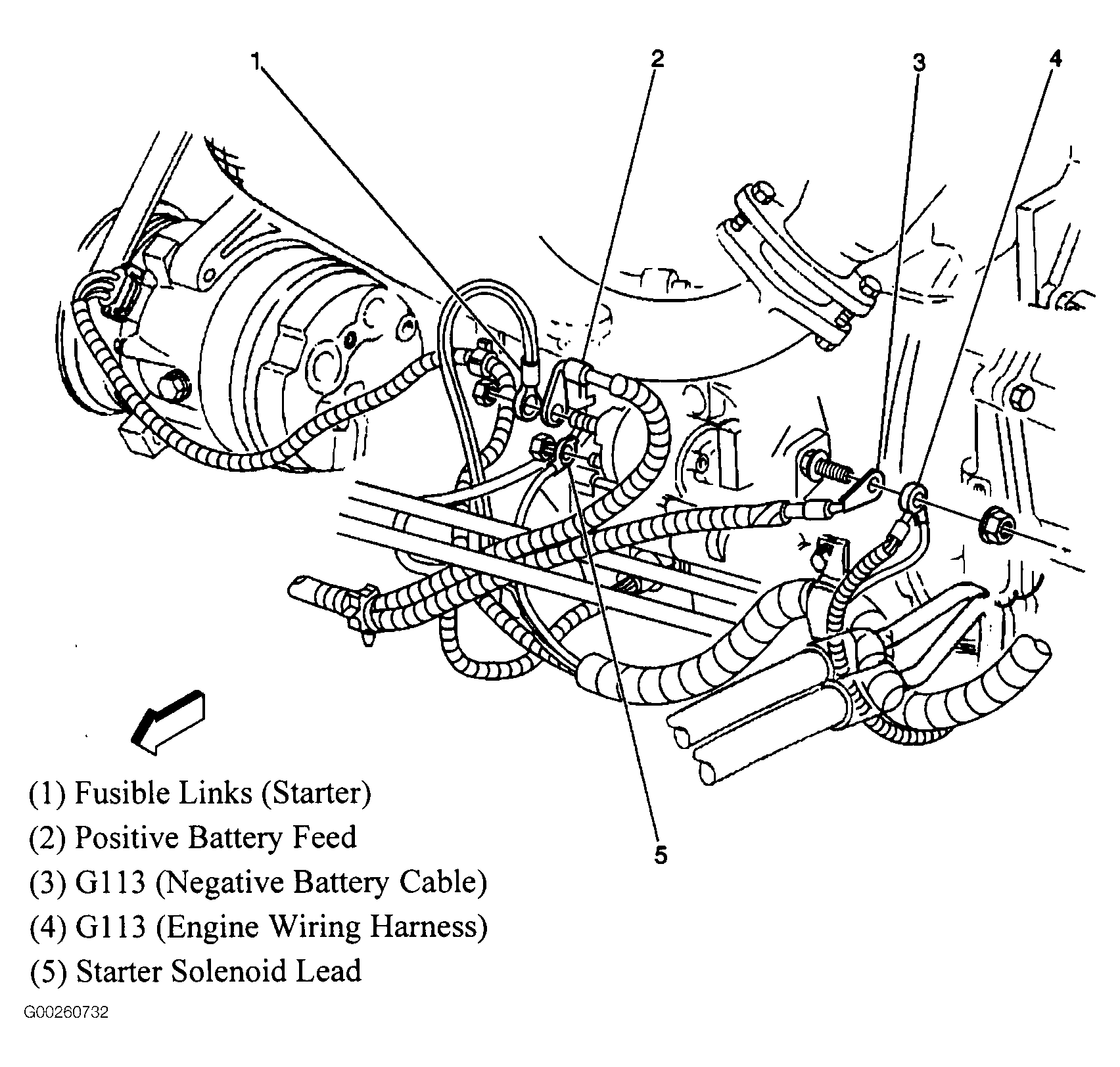

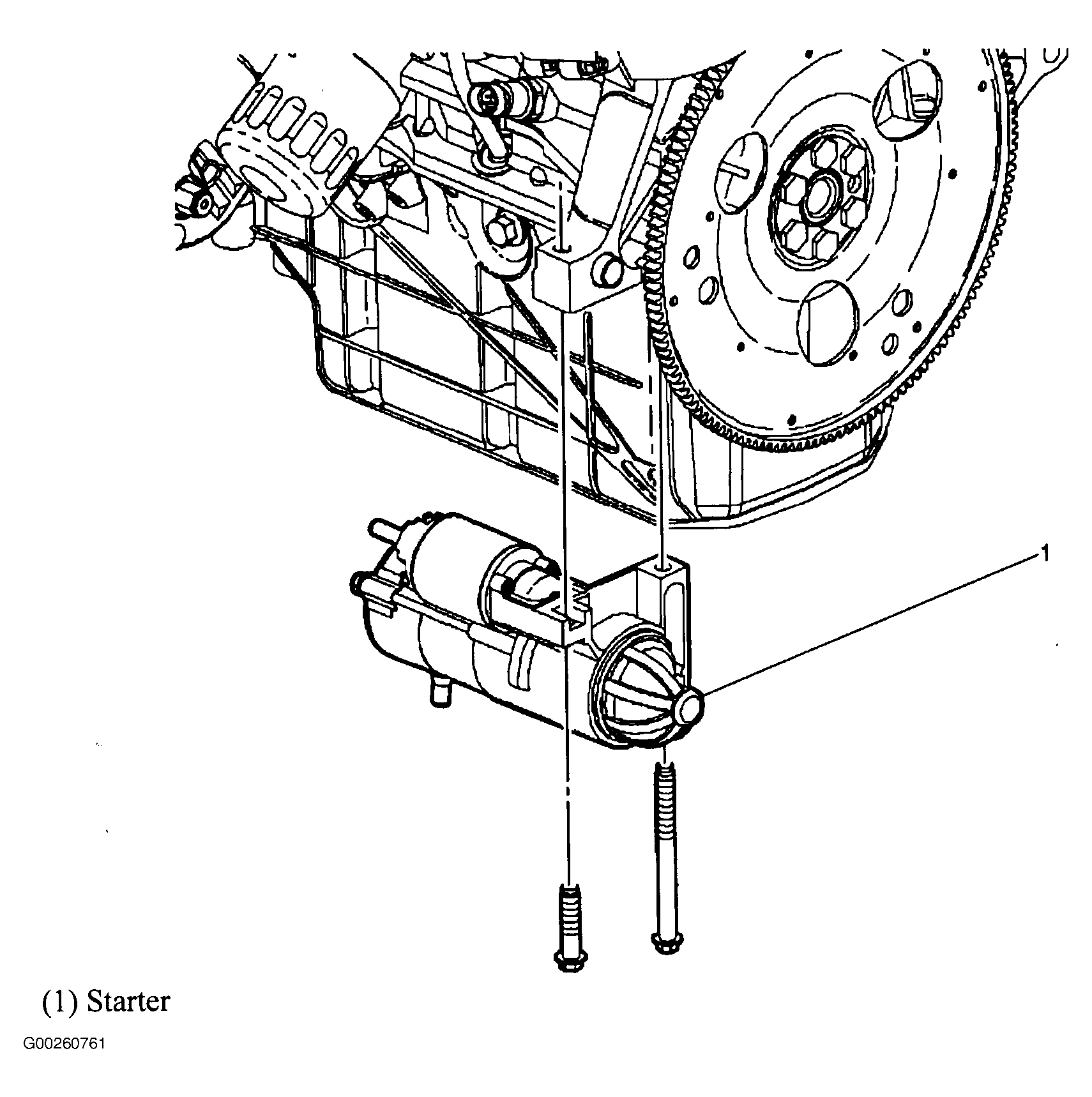

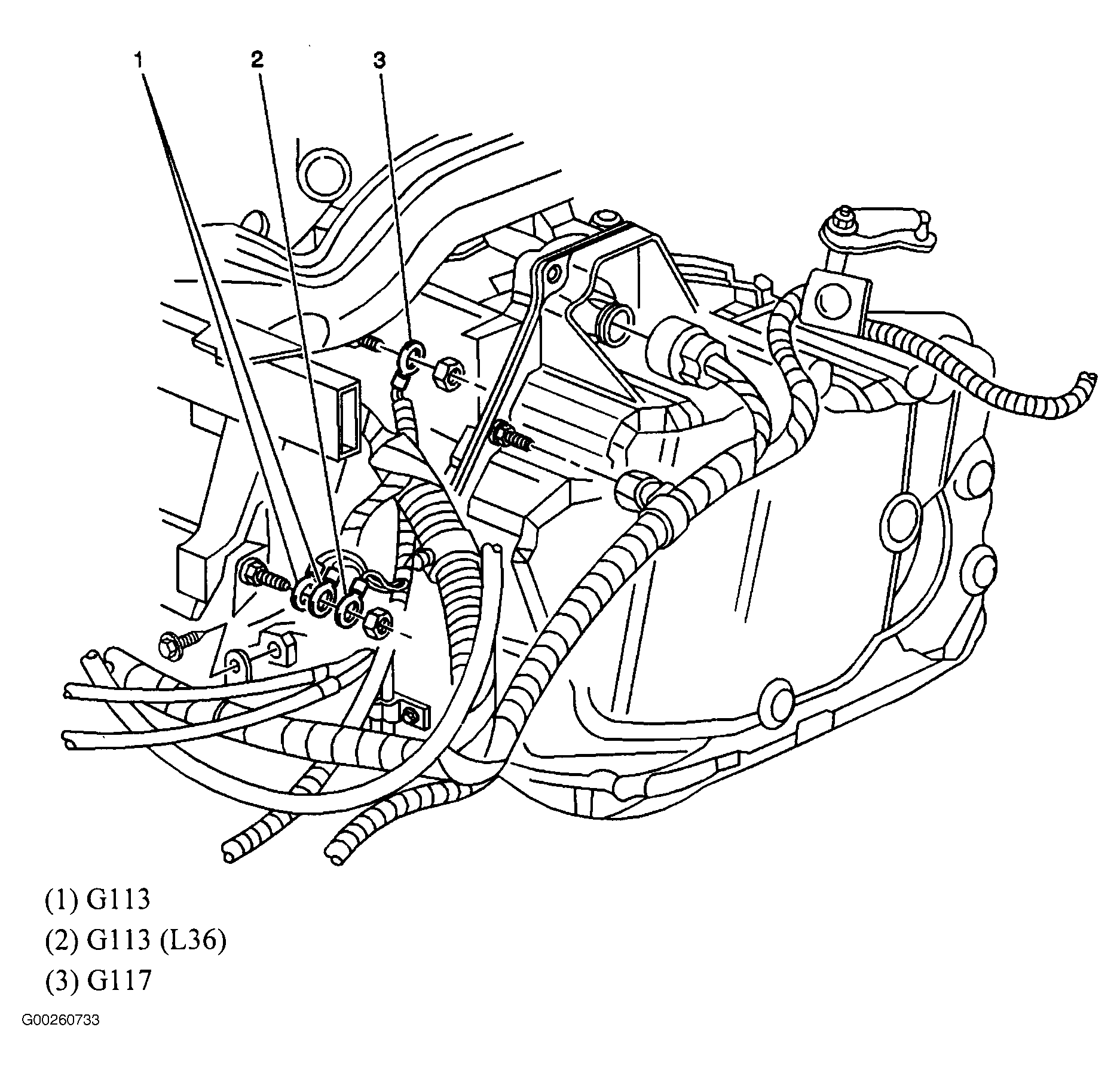

Fig 8: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

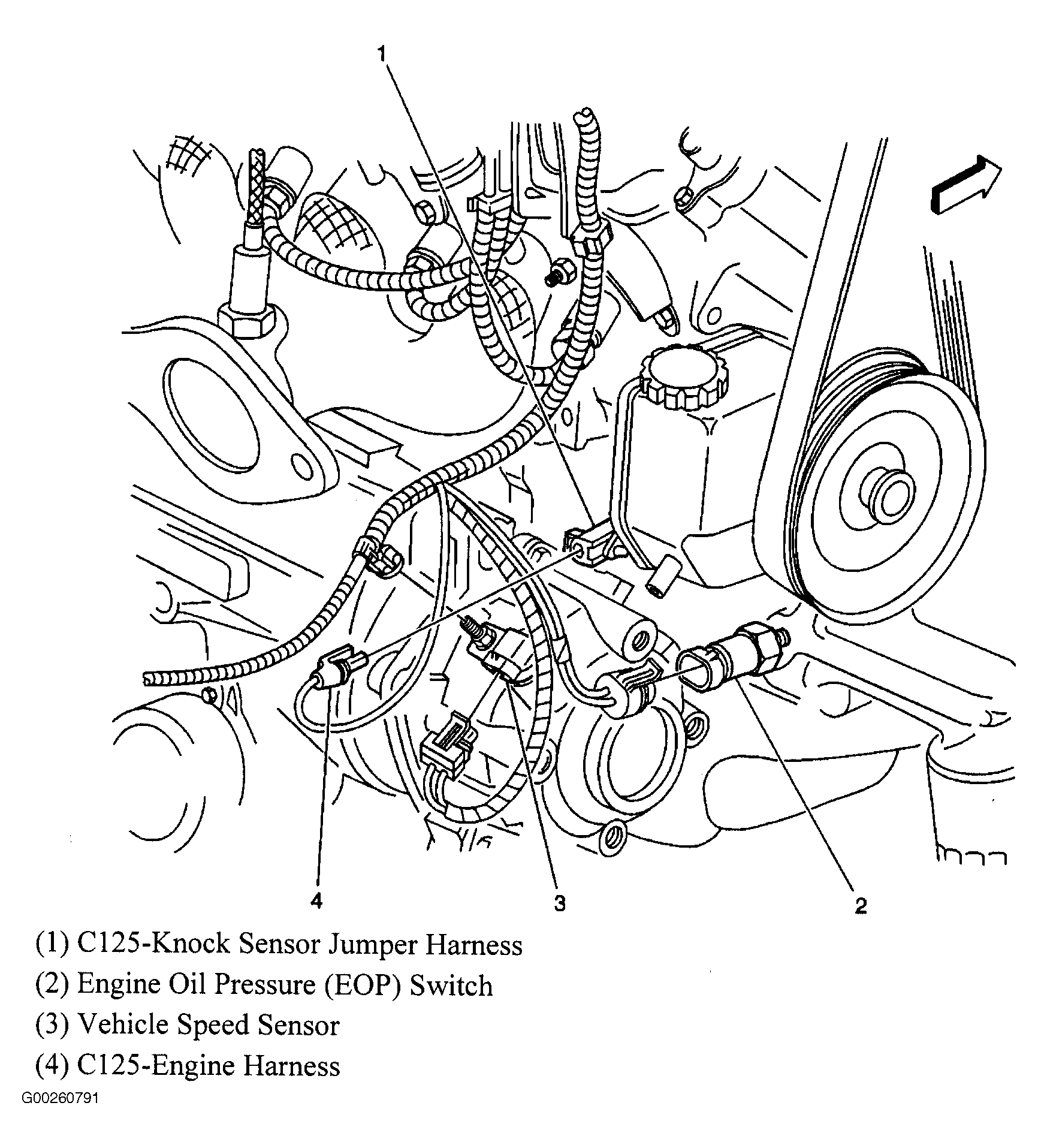

Fig 9: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

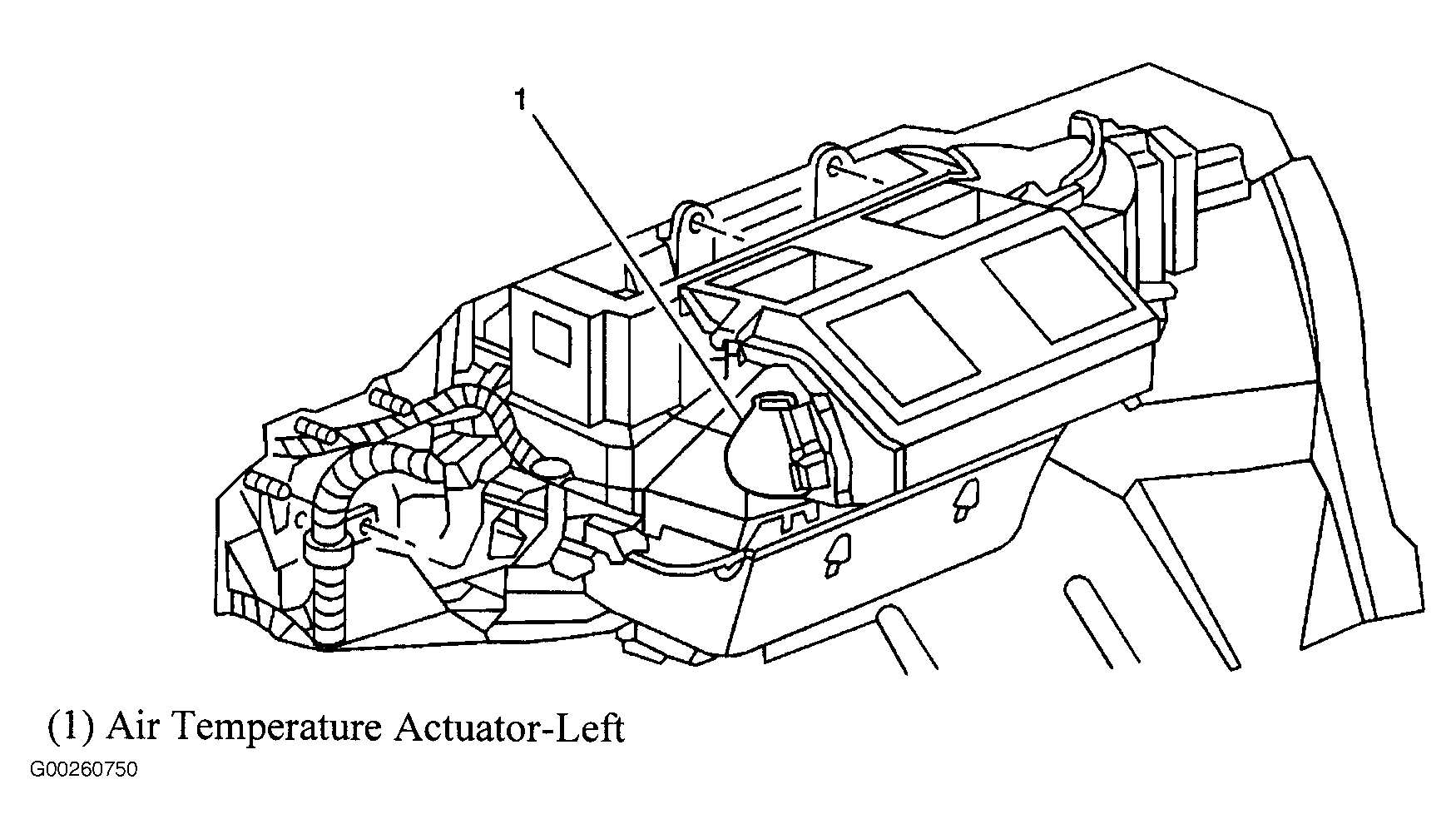

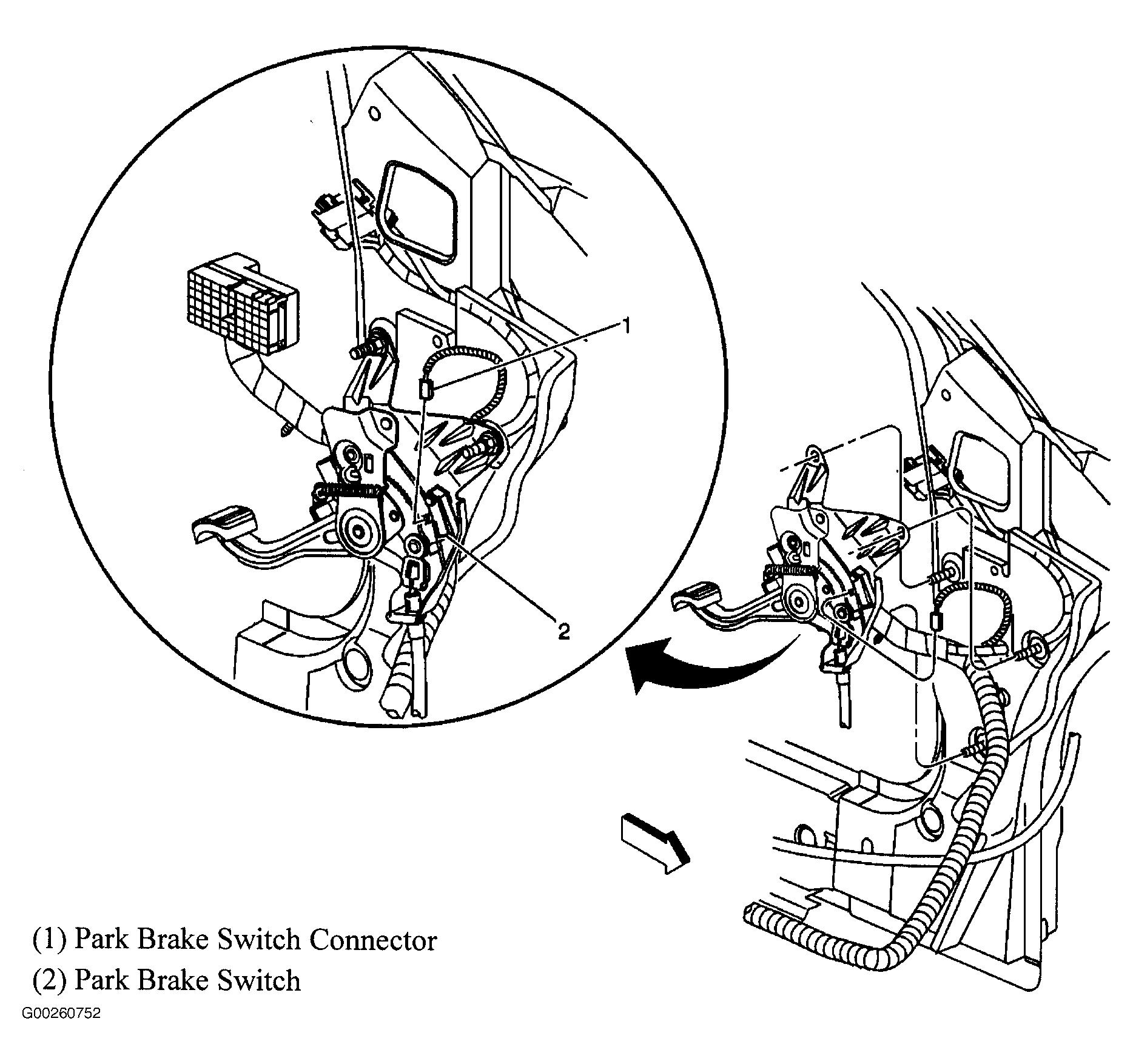

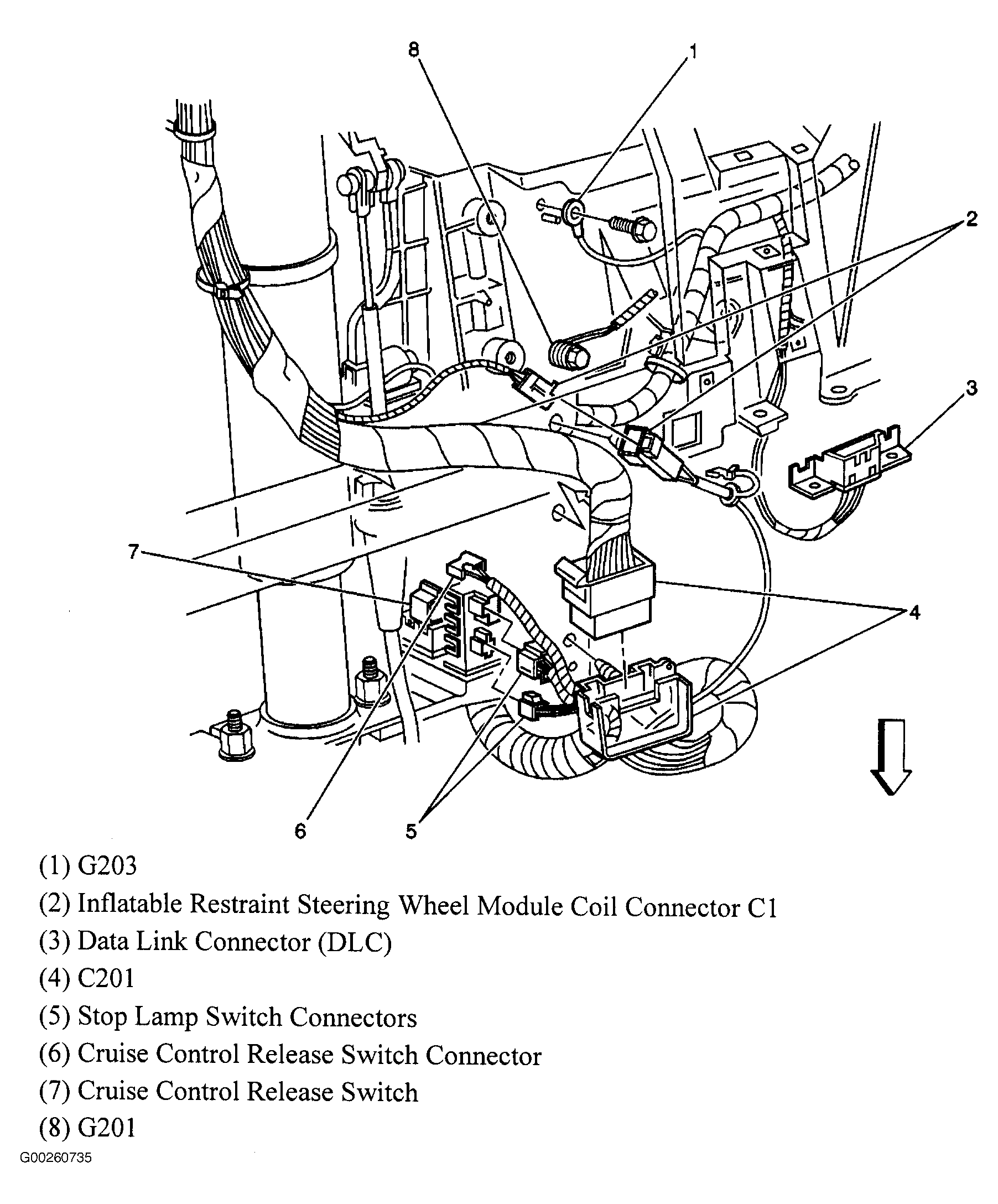

Fig 10: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

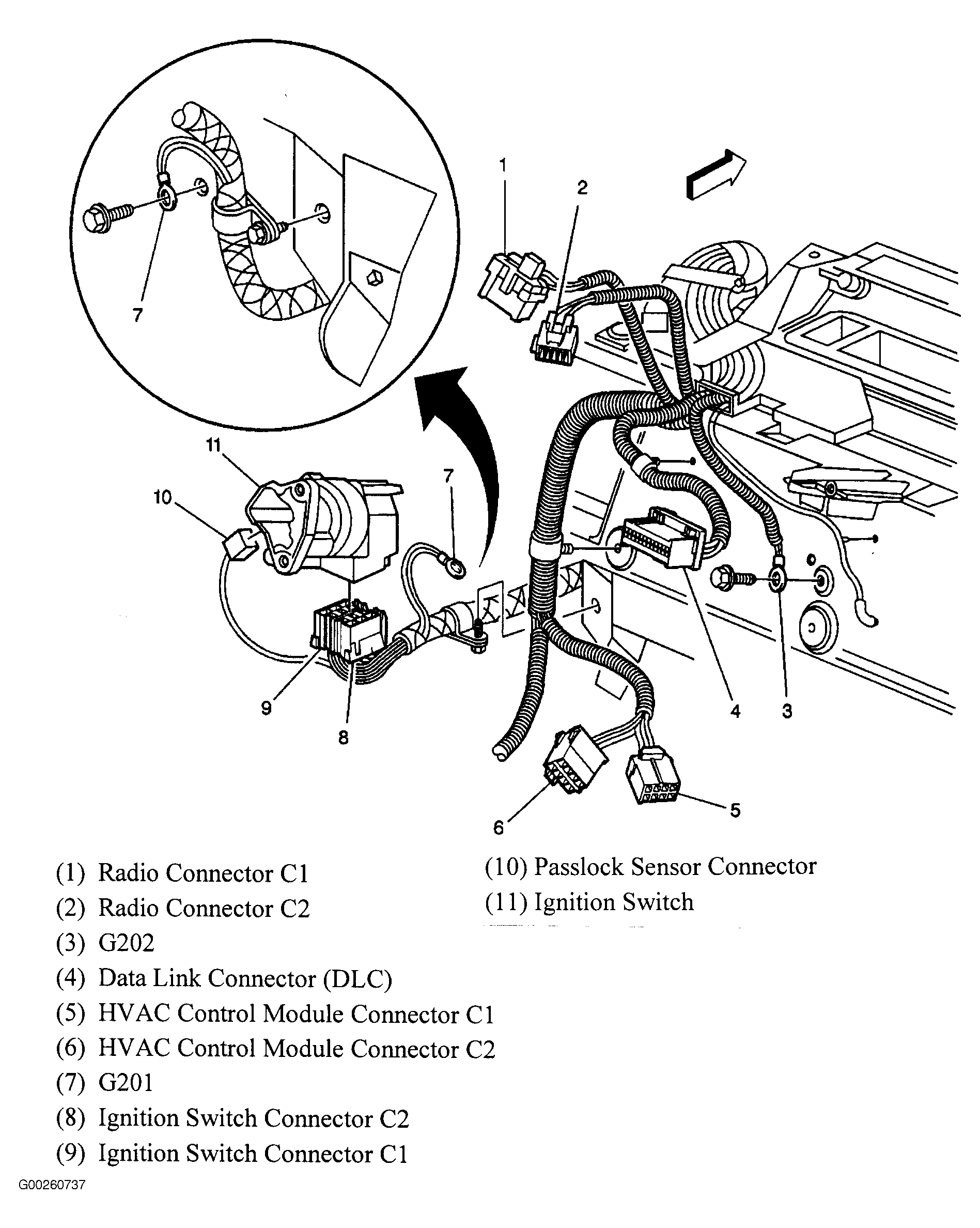

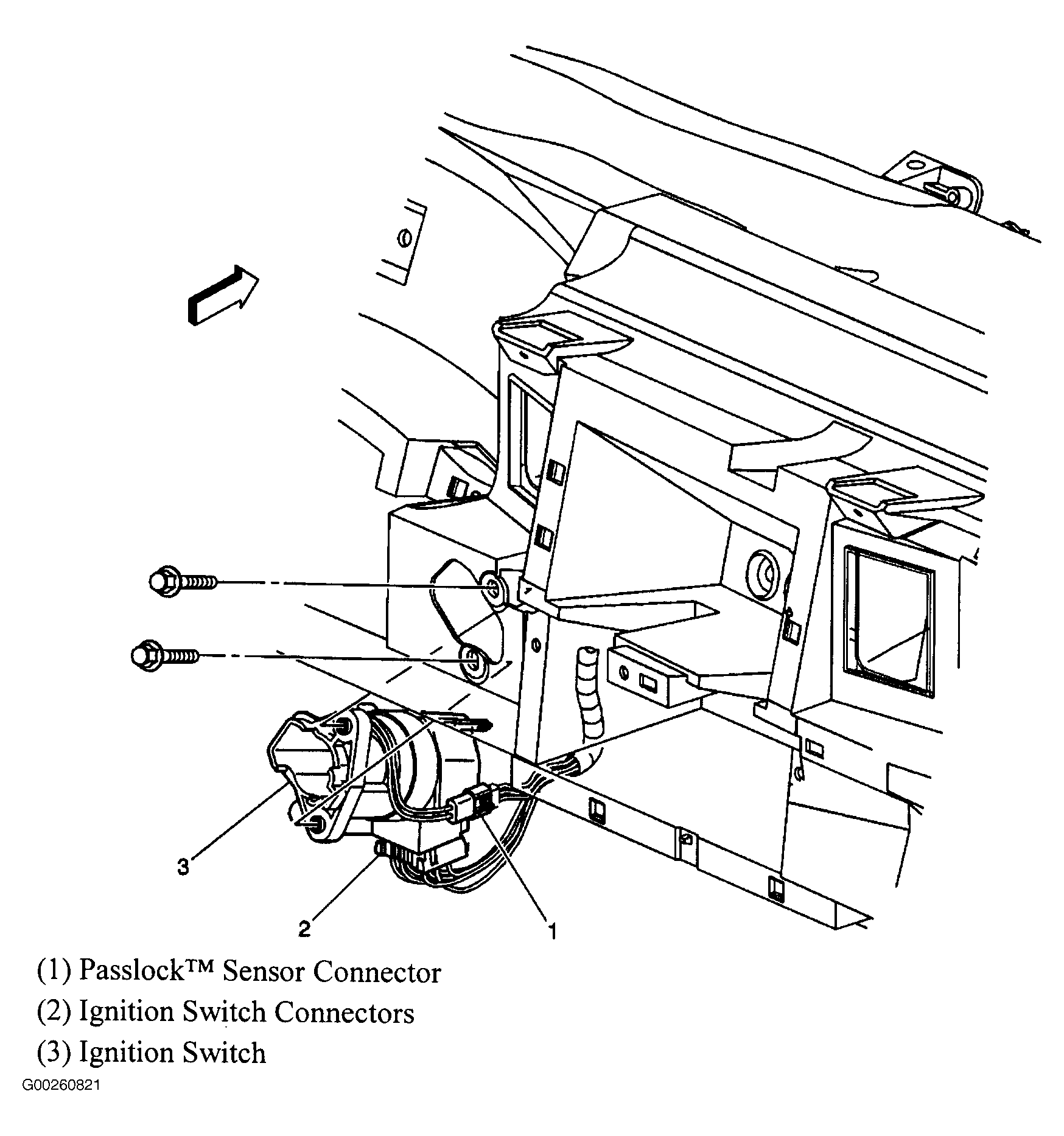

Fig 11: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.

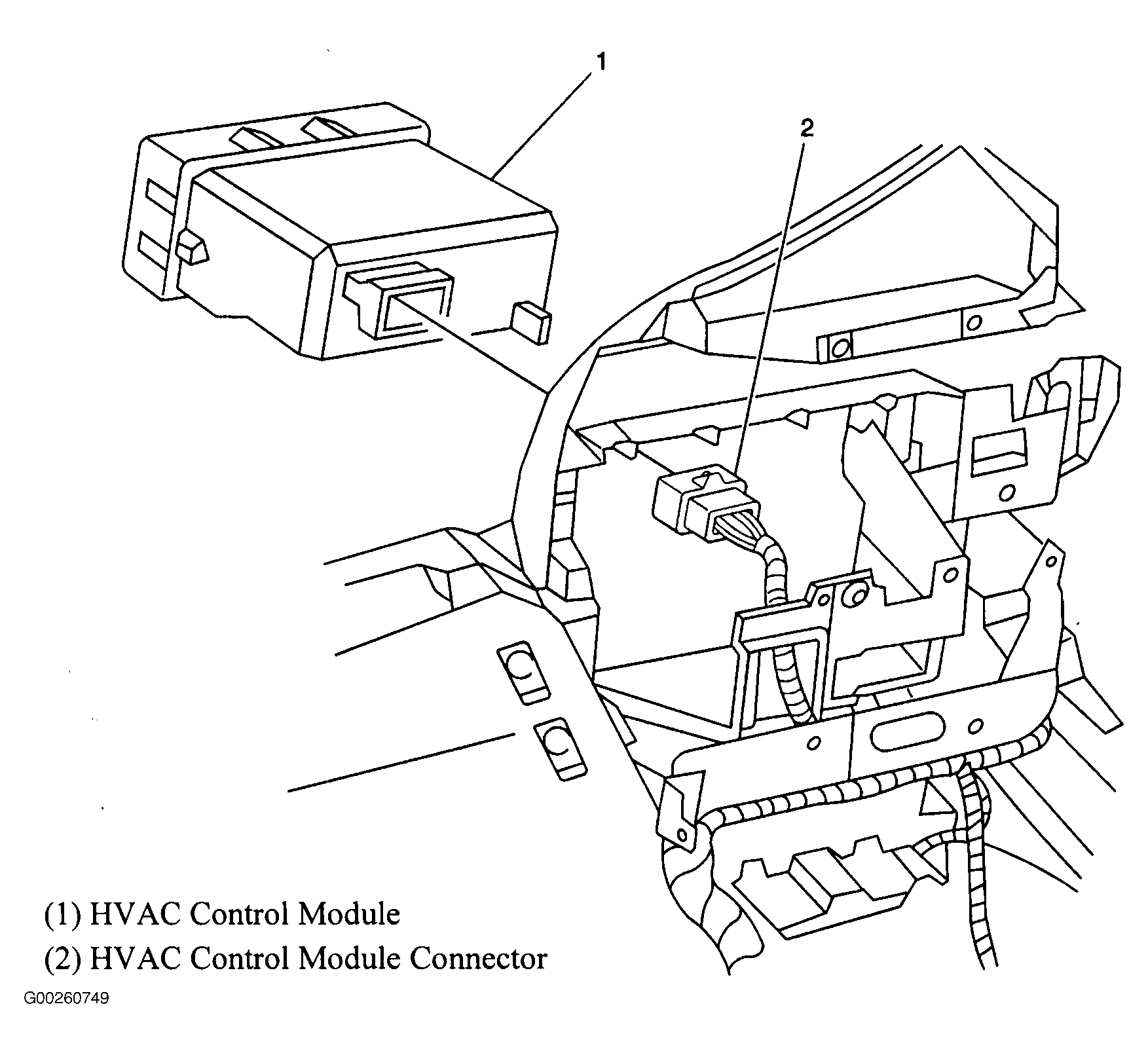

Fig 12: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

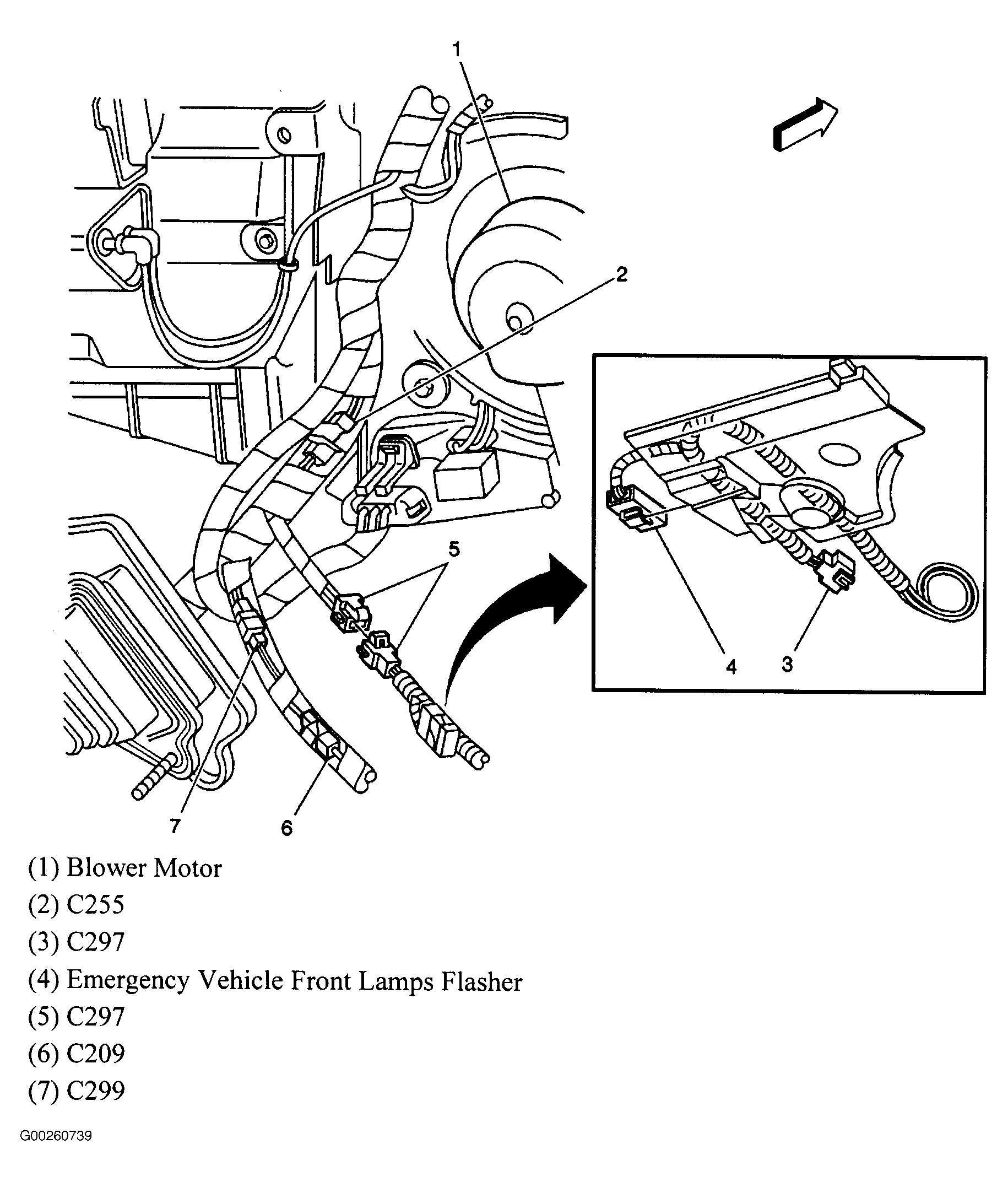

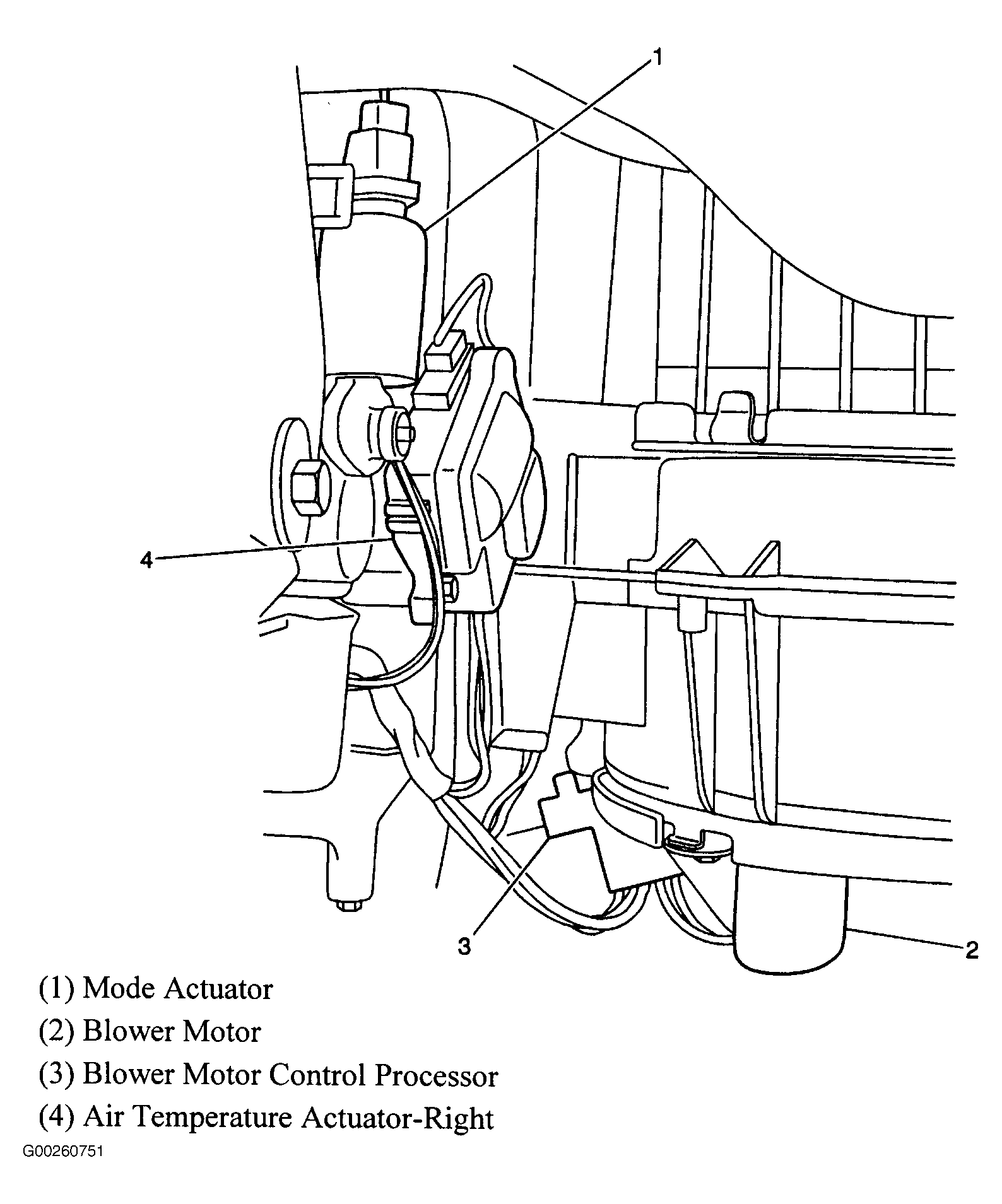

Fig 13: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

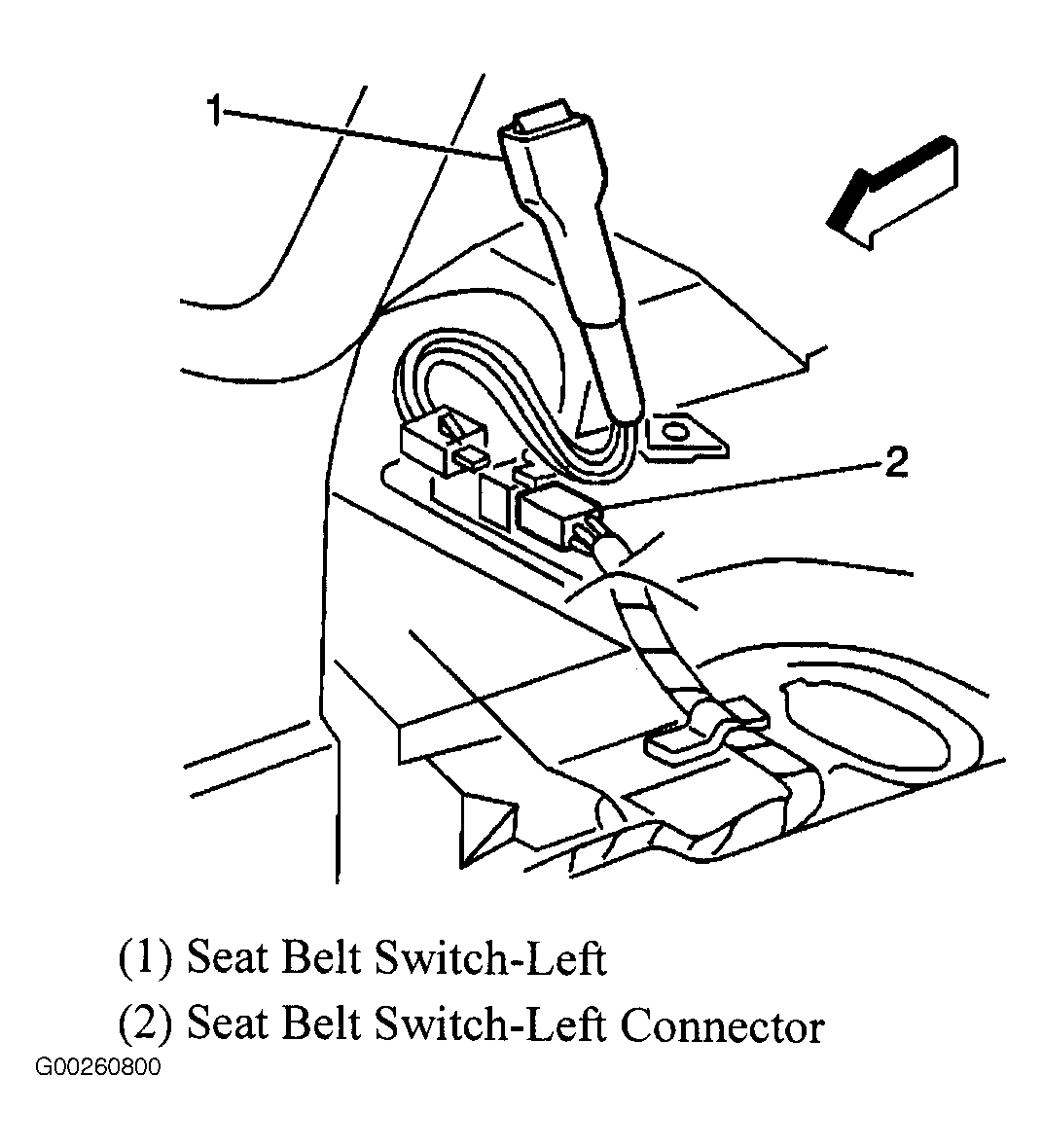

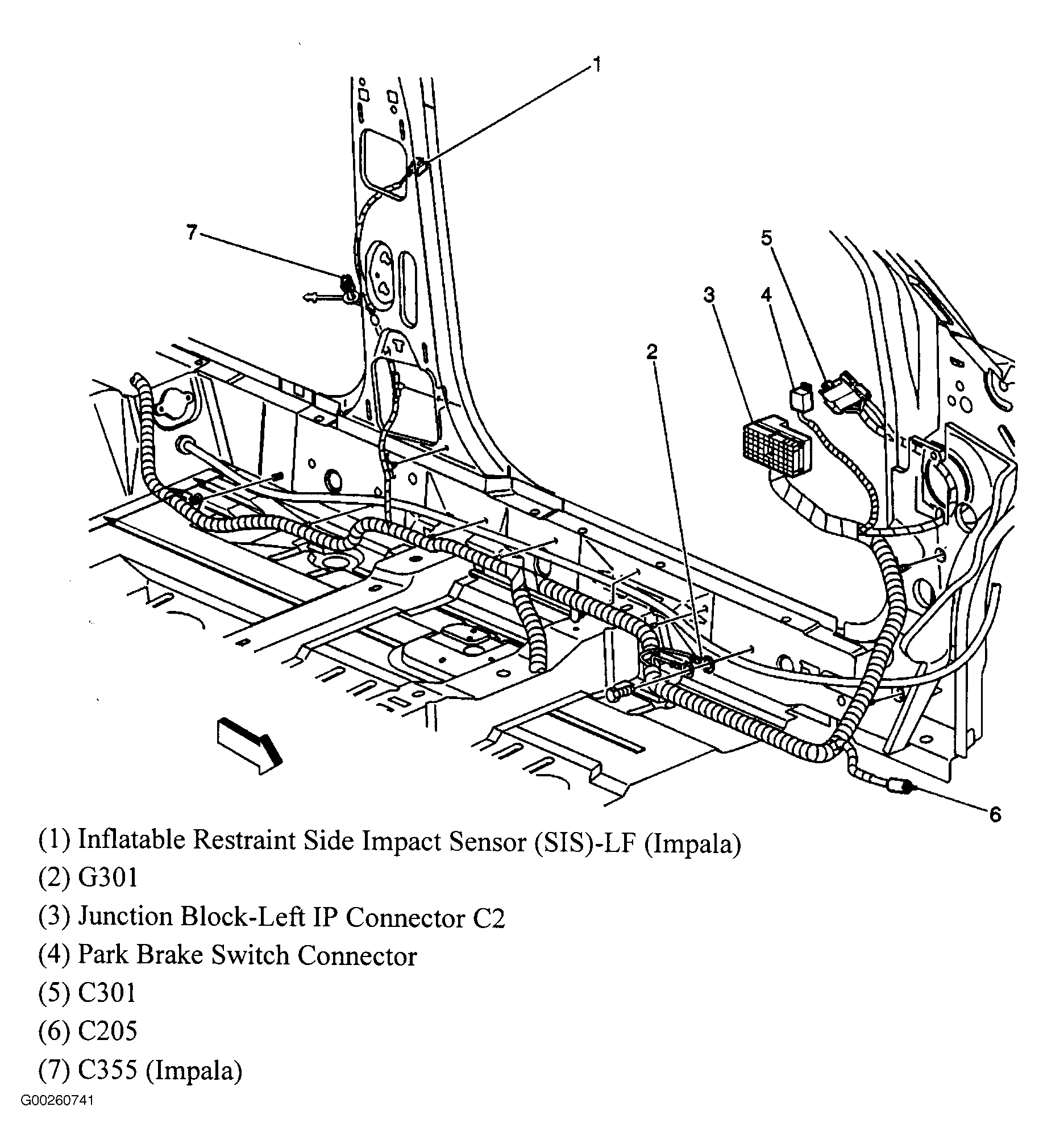

Fig 15: Left Floor Pan, "B" Pillar & Kick Panel
Courtesy of GENERAL MOTORS CORP.

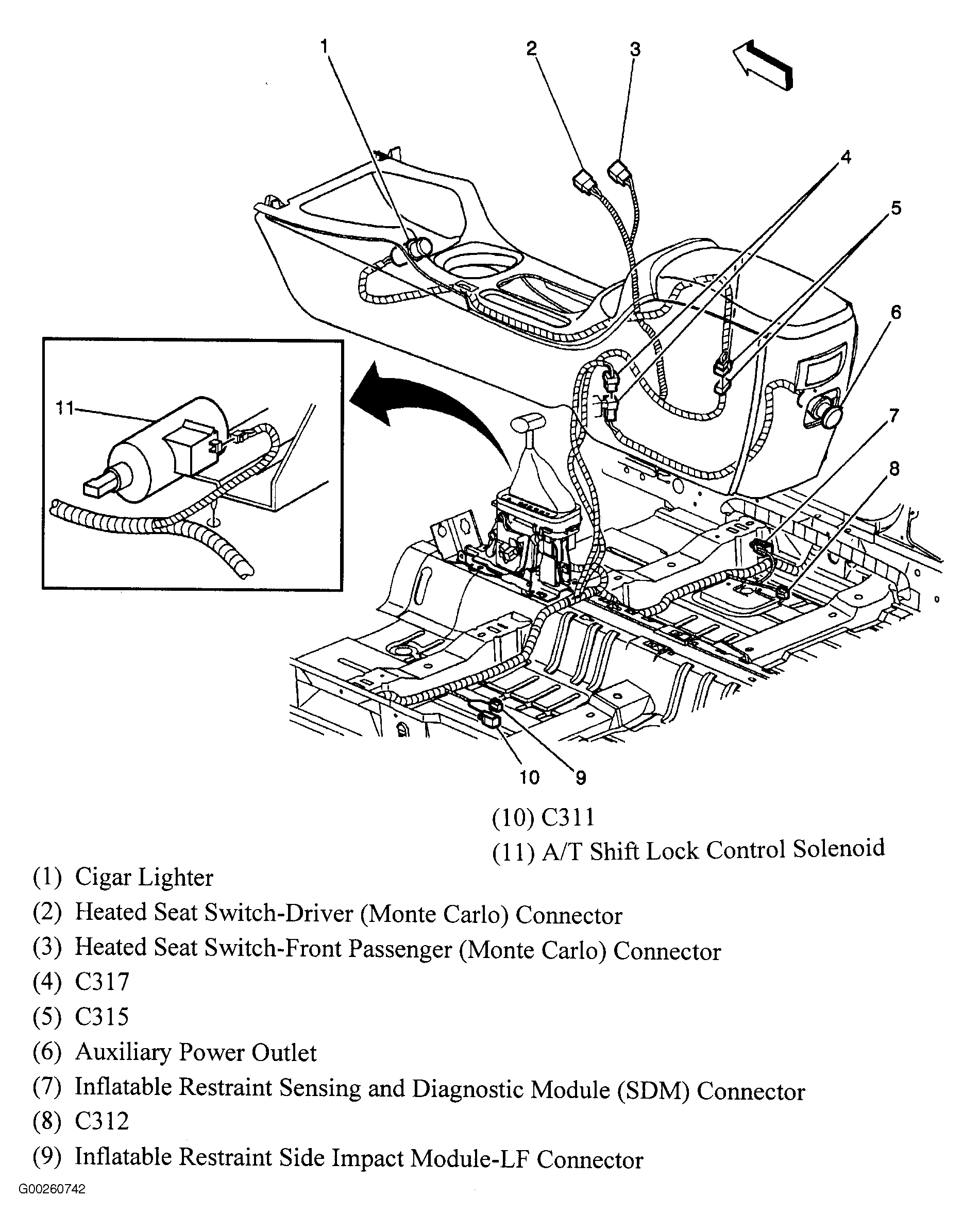

Fig 16: Console & Center Floor Pan
Courtesy of GENERAL MOTORS CORP.

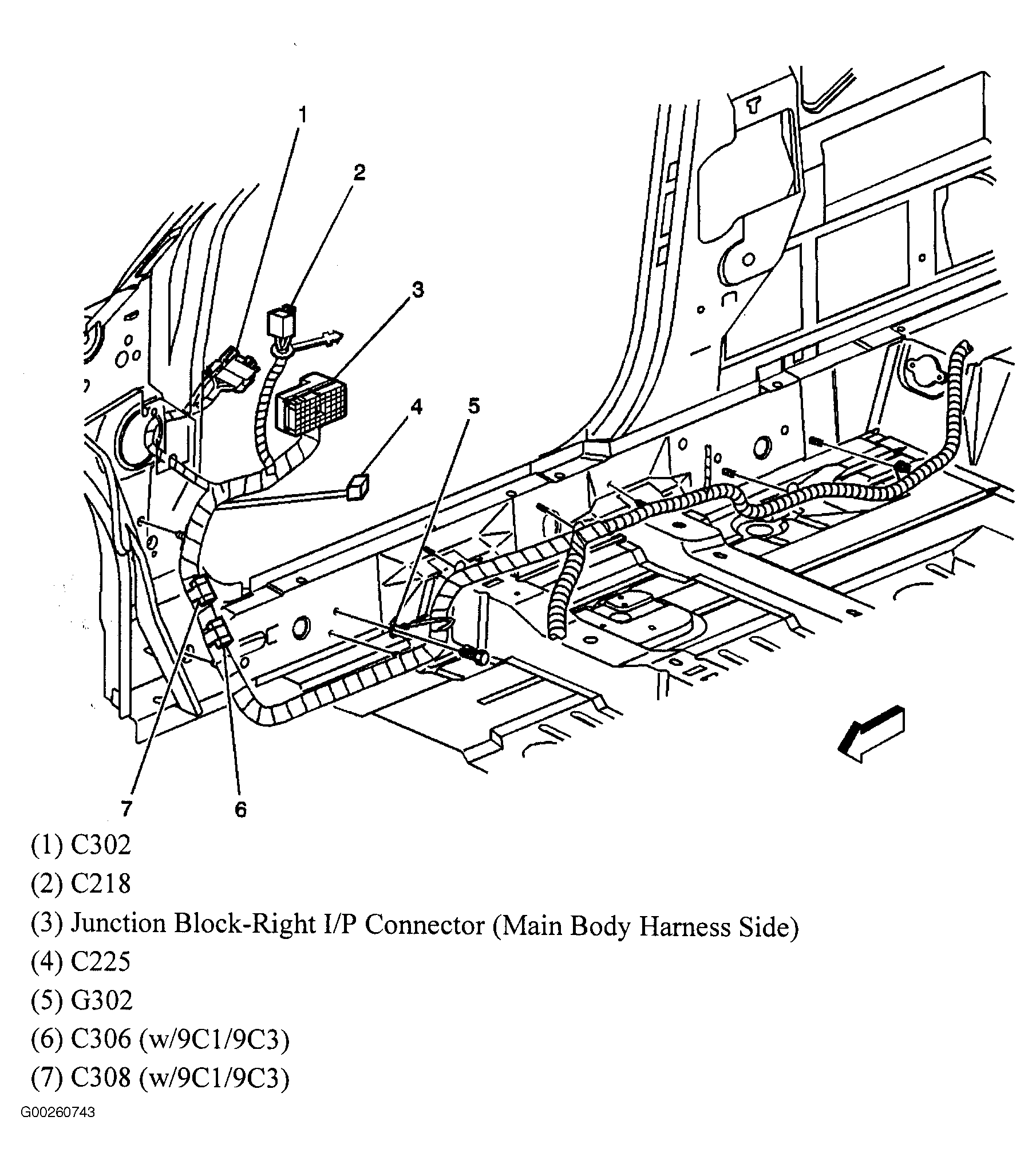

Fig 17: Right Floor Pan & Kick Panel
Courtesy of GENERAL MOTORS CORP.

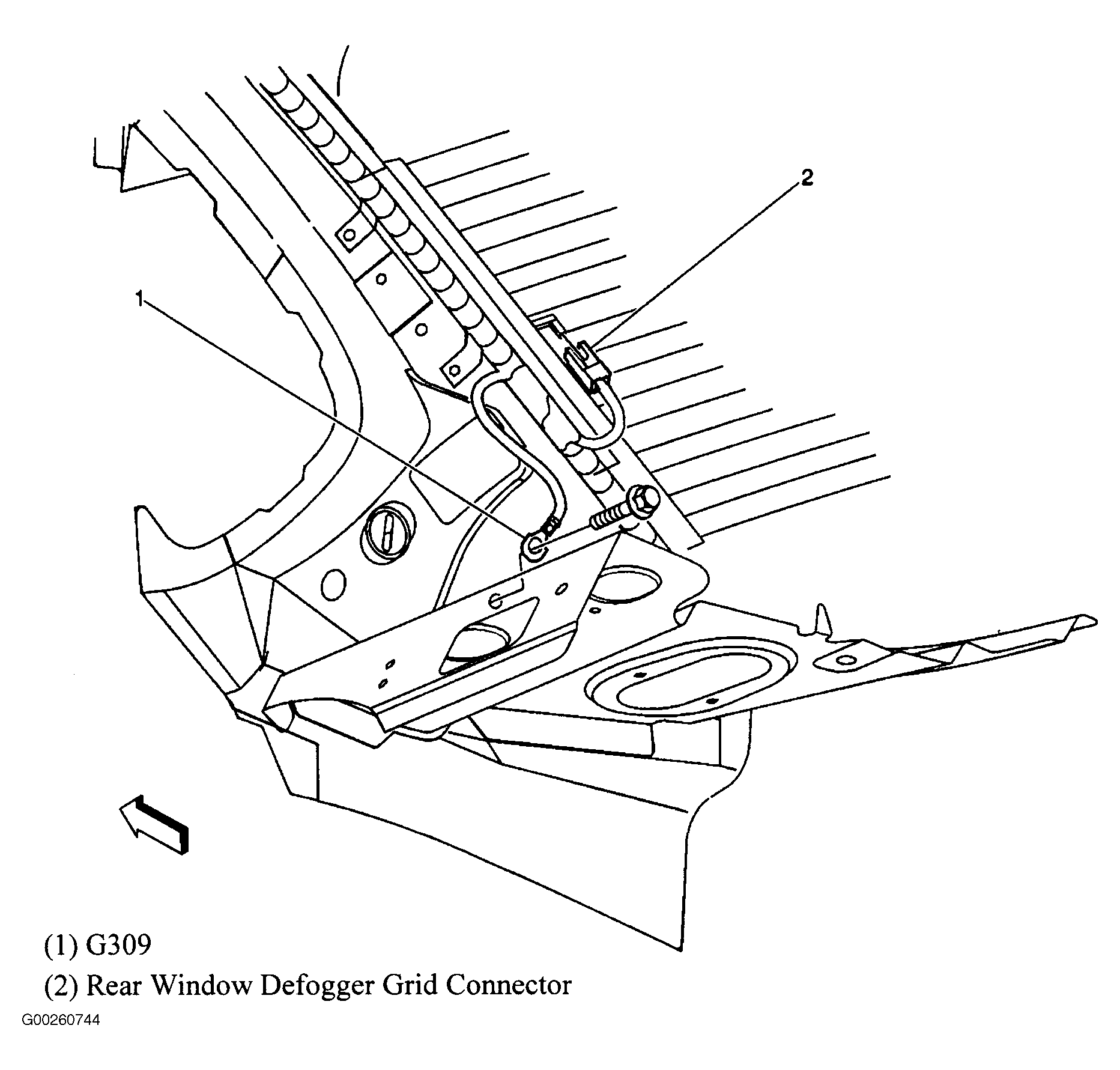

Fig 18: Right Lower Corner Of Rear Window
Courtesy of GENERAL MOTORS CORP.

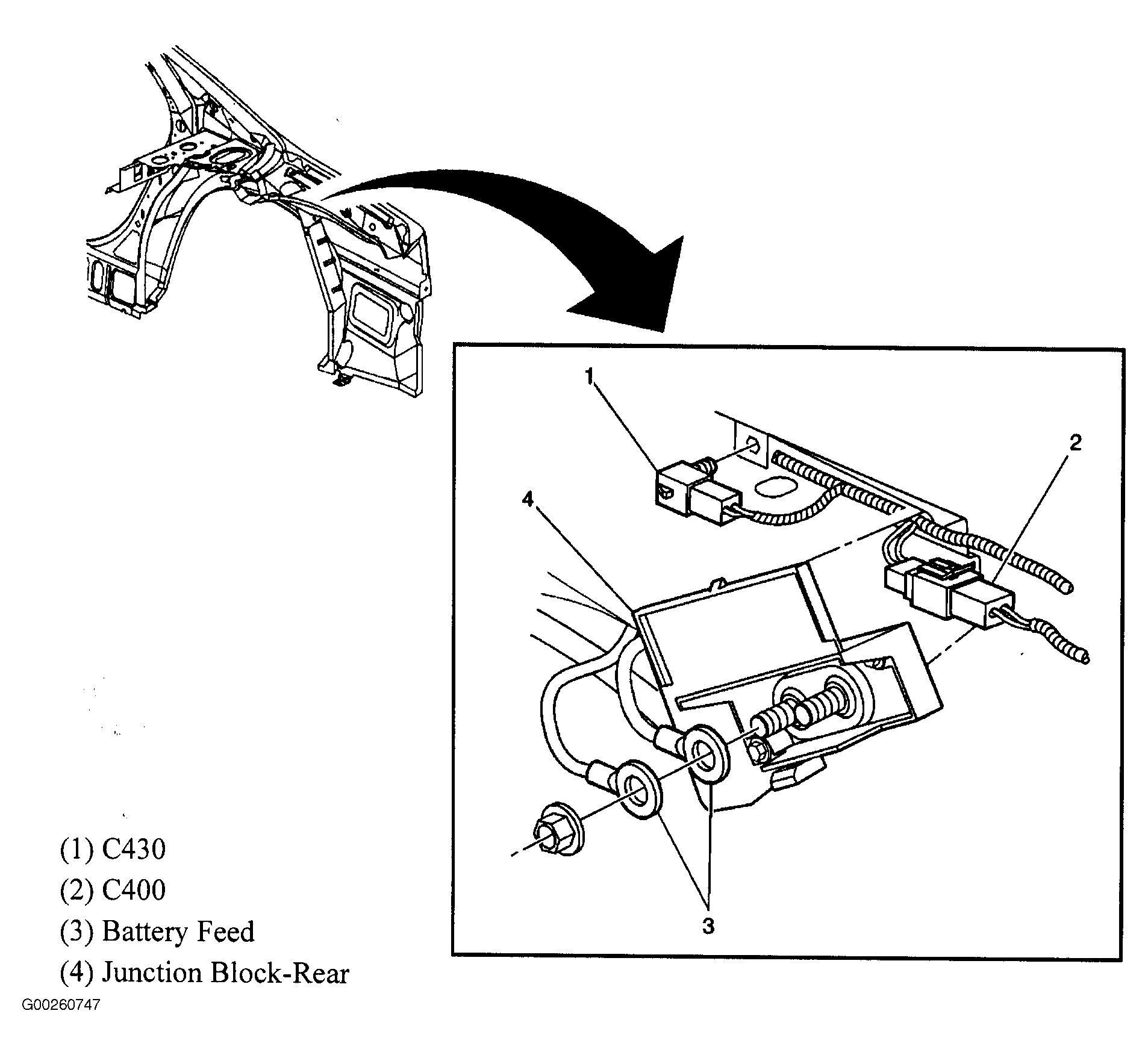

Fig 19: Rear Compartment Above Right Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lower Left Side Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 23: Lower Right Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 24: Lower Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 25: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

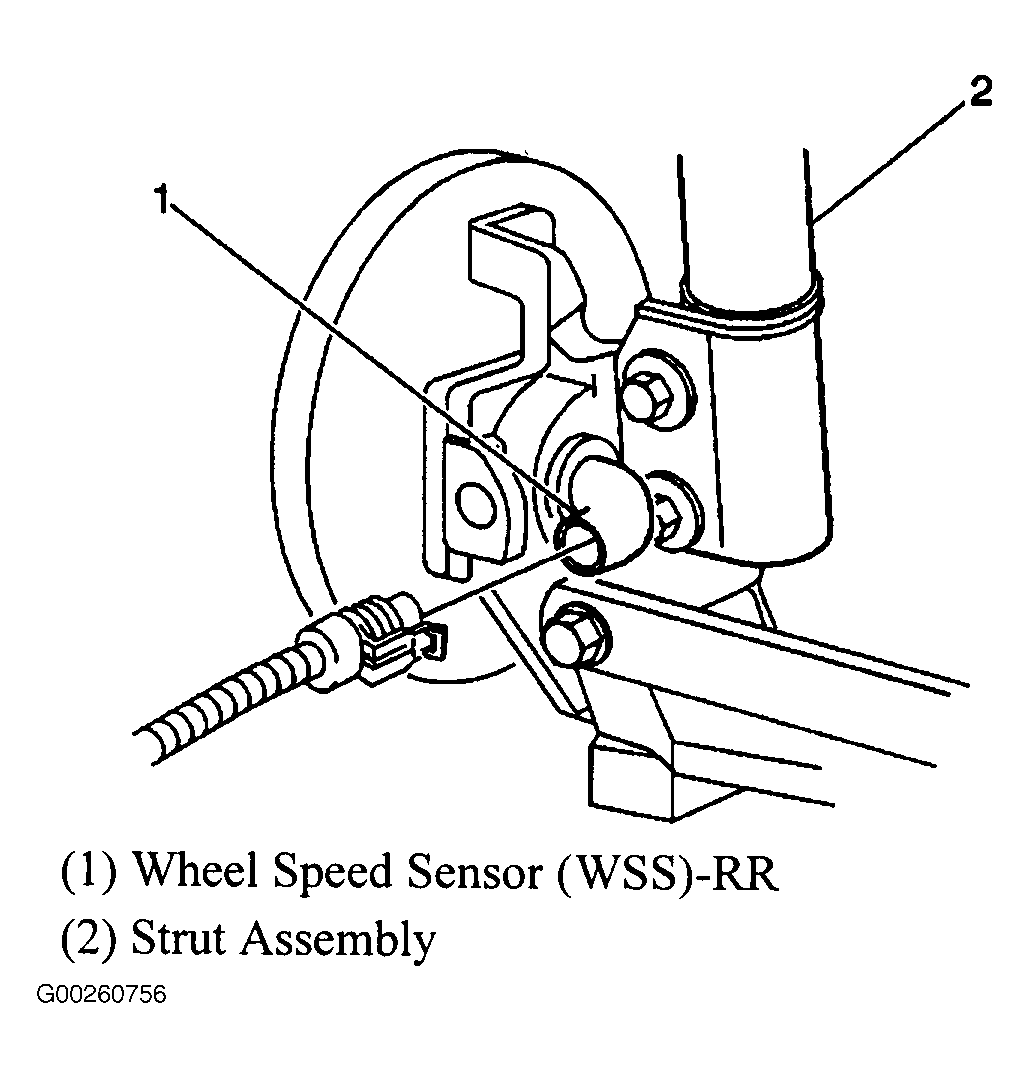

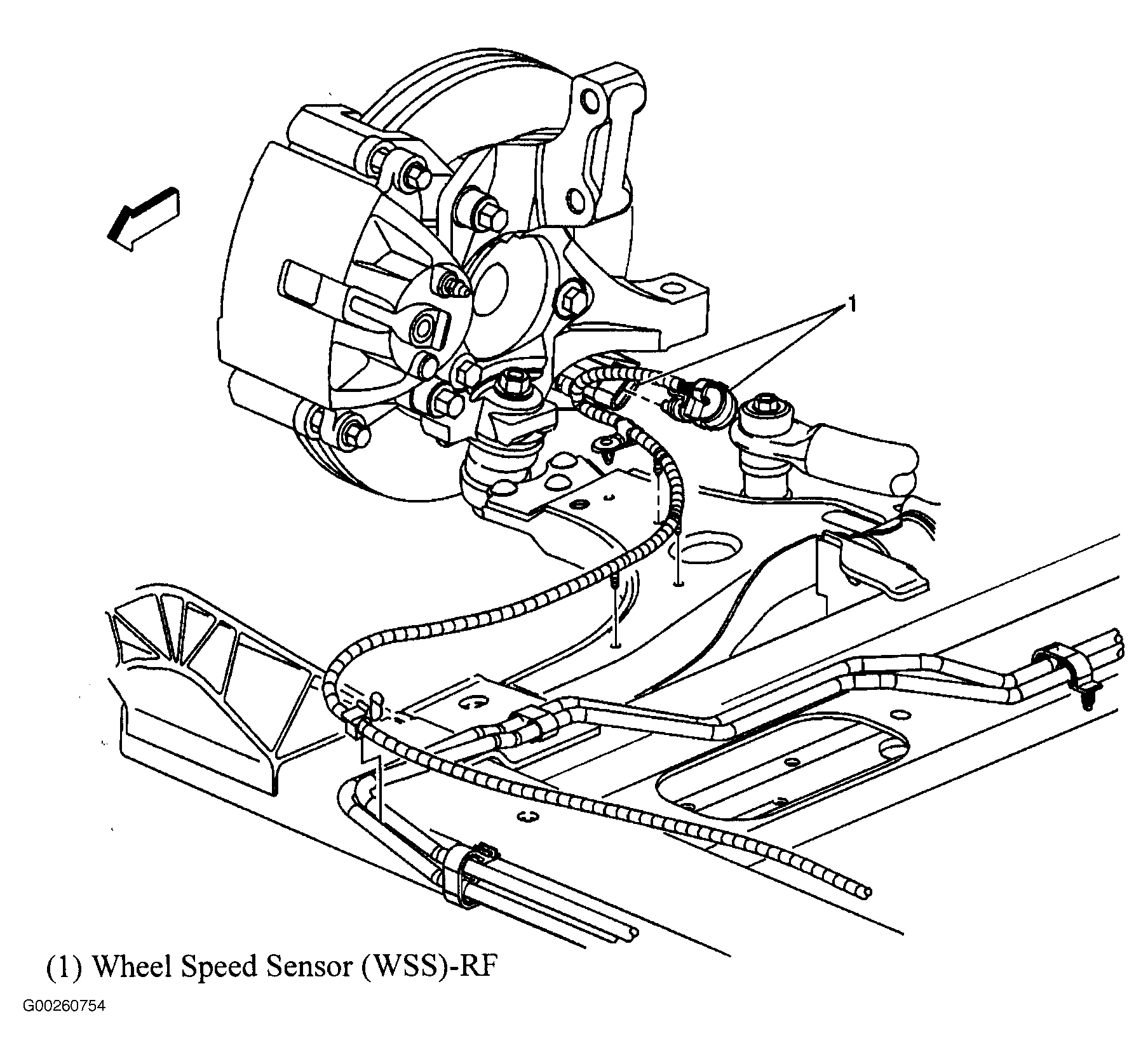

Fig 26: Right Front Suspension
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Rear Suspension
Courtesy of GENERAL MOTORS CORP.

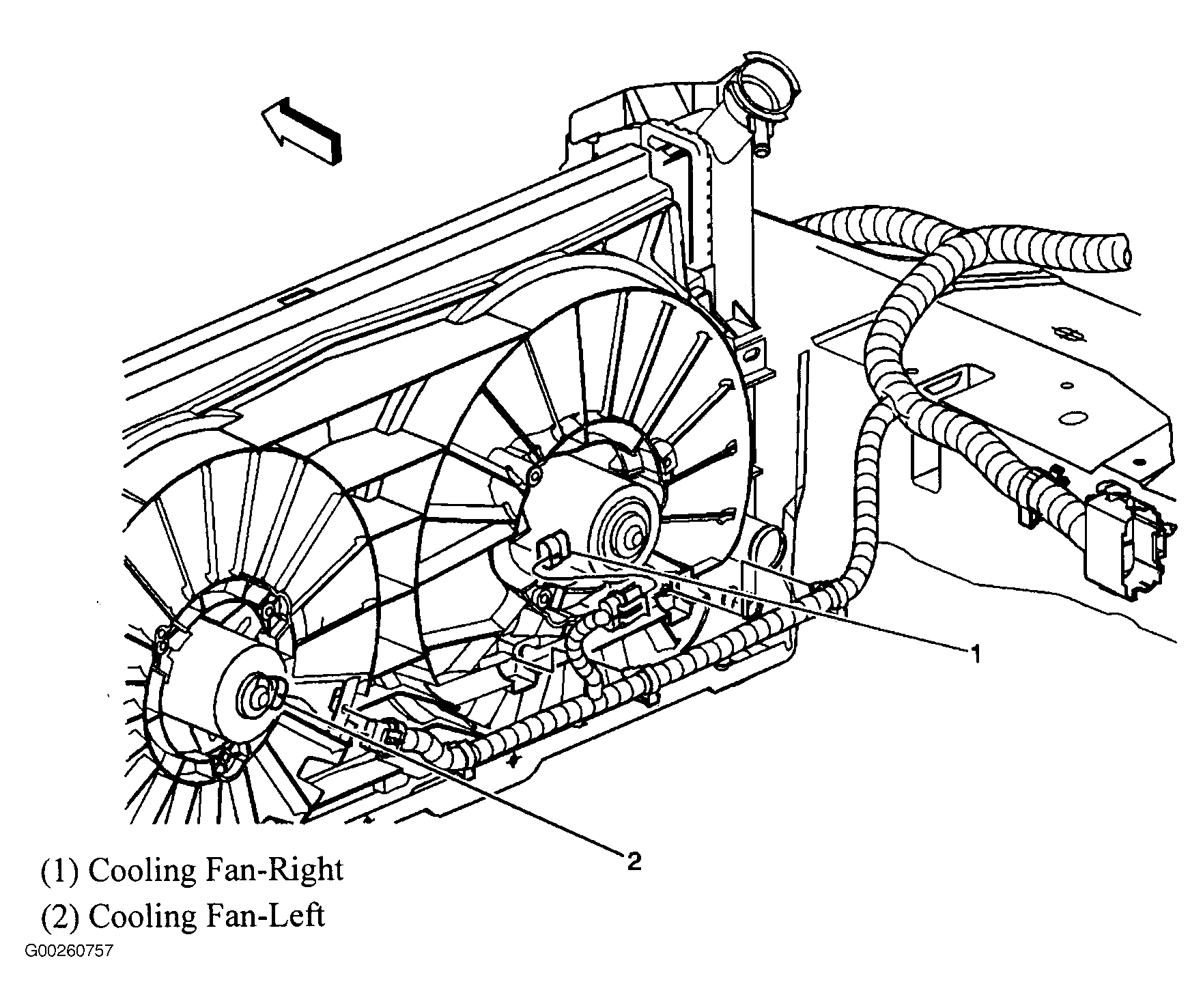

Fig 28: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

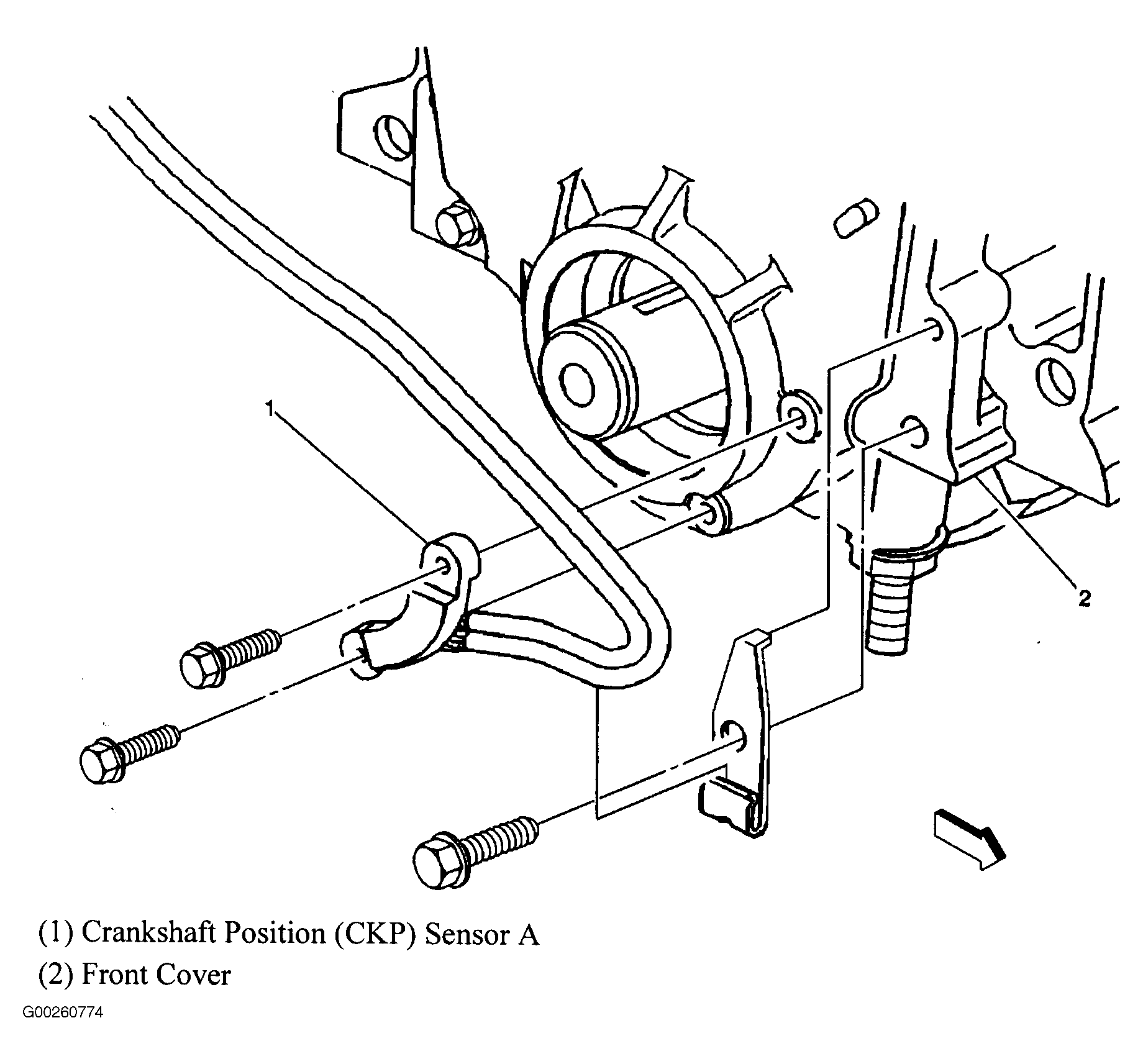

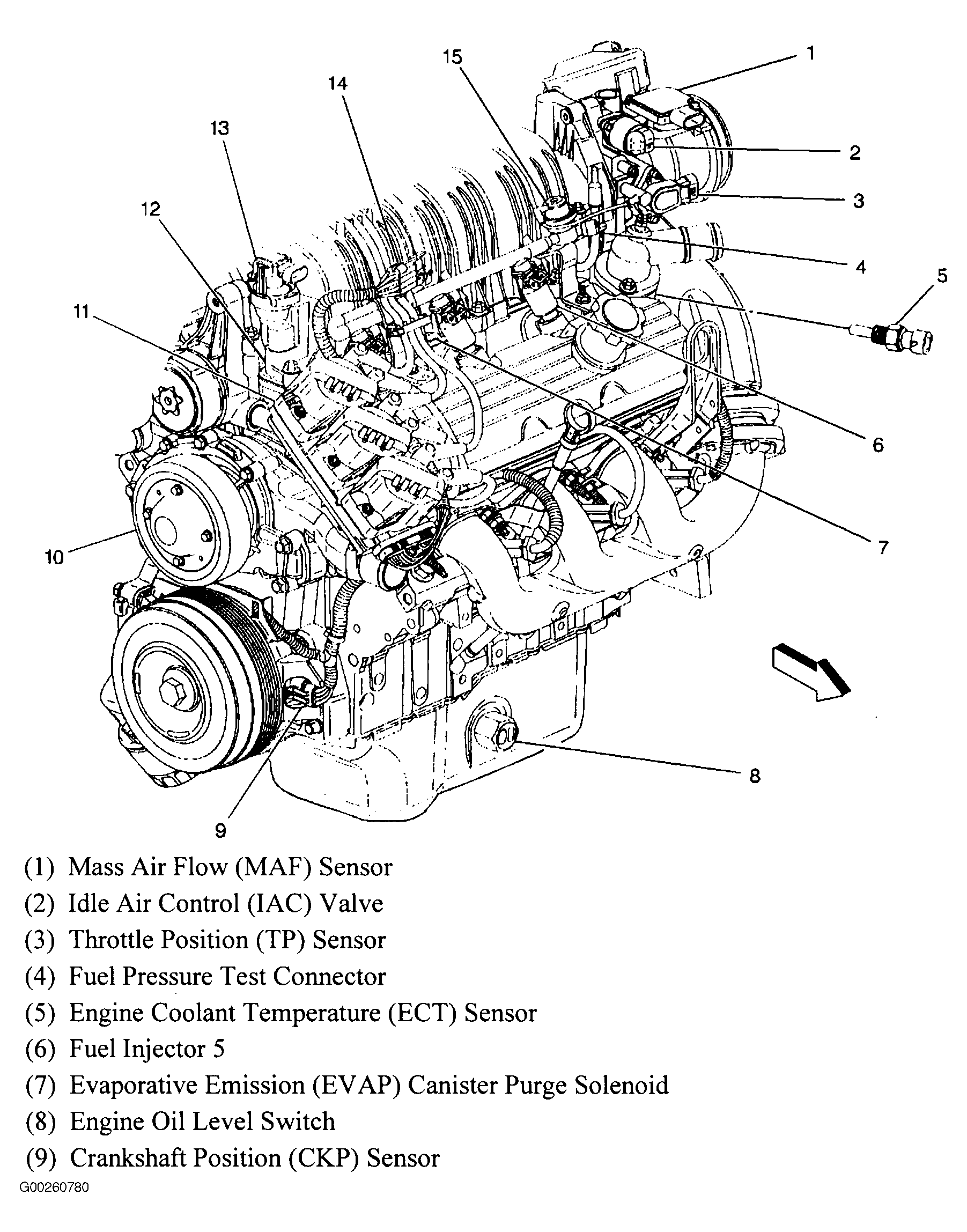

Fig 29: Front Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

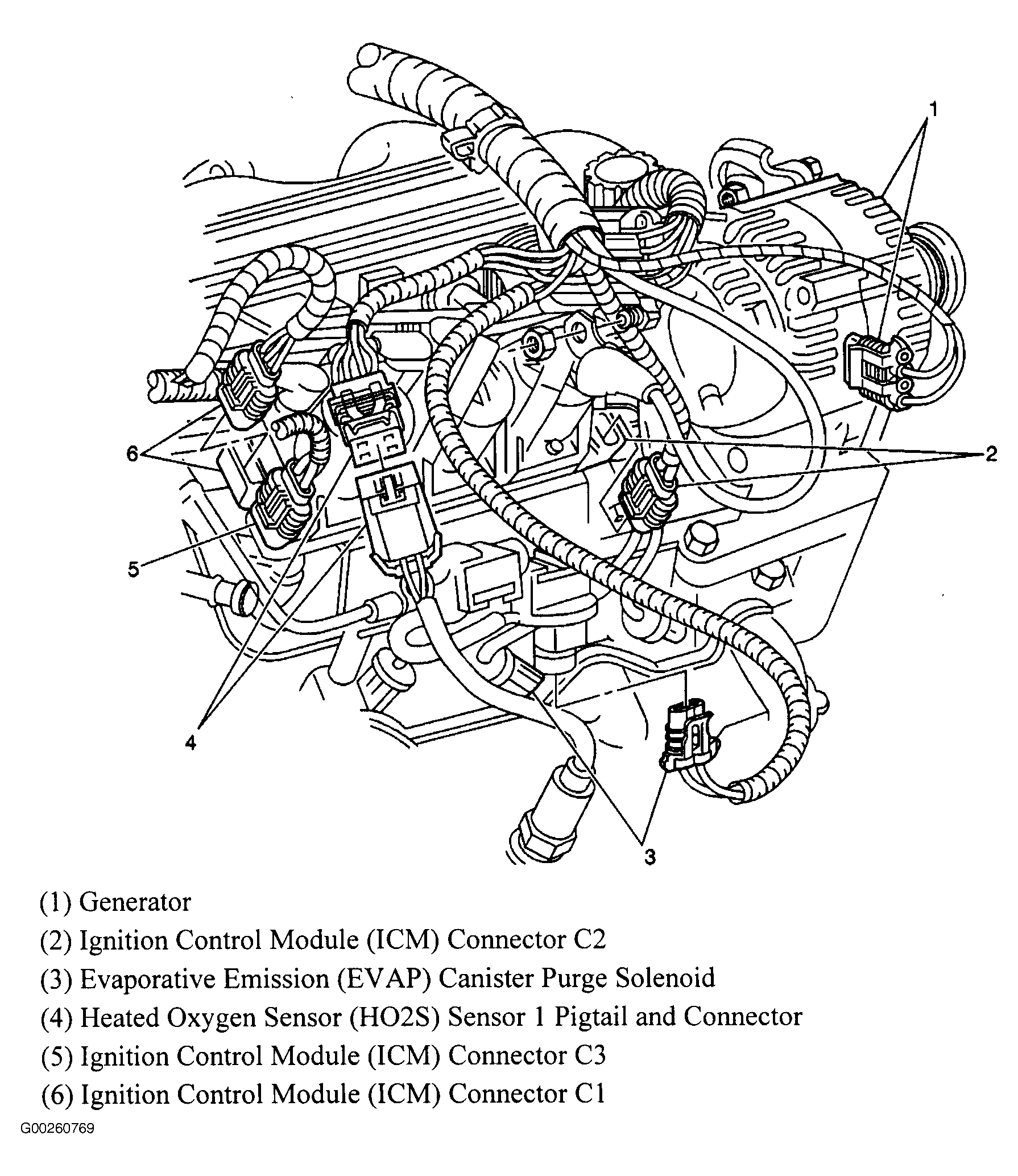

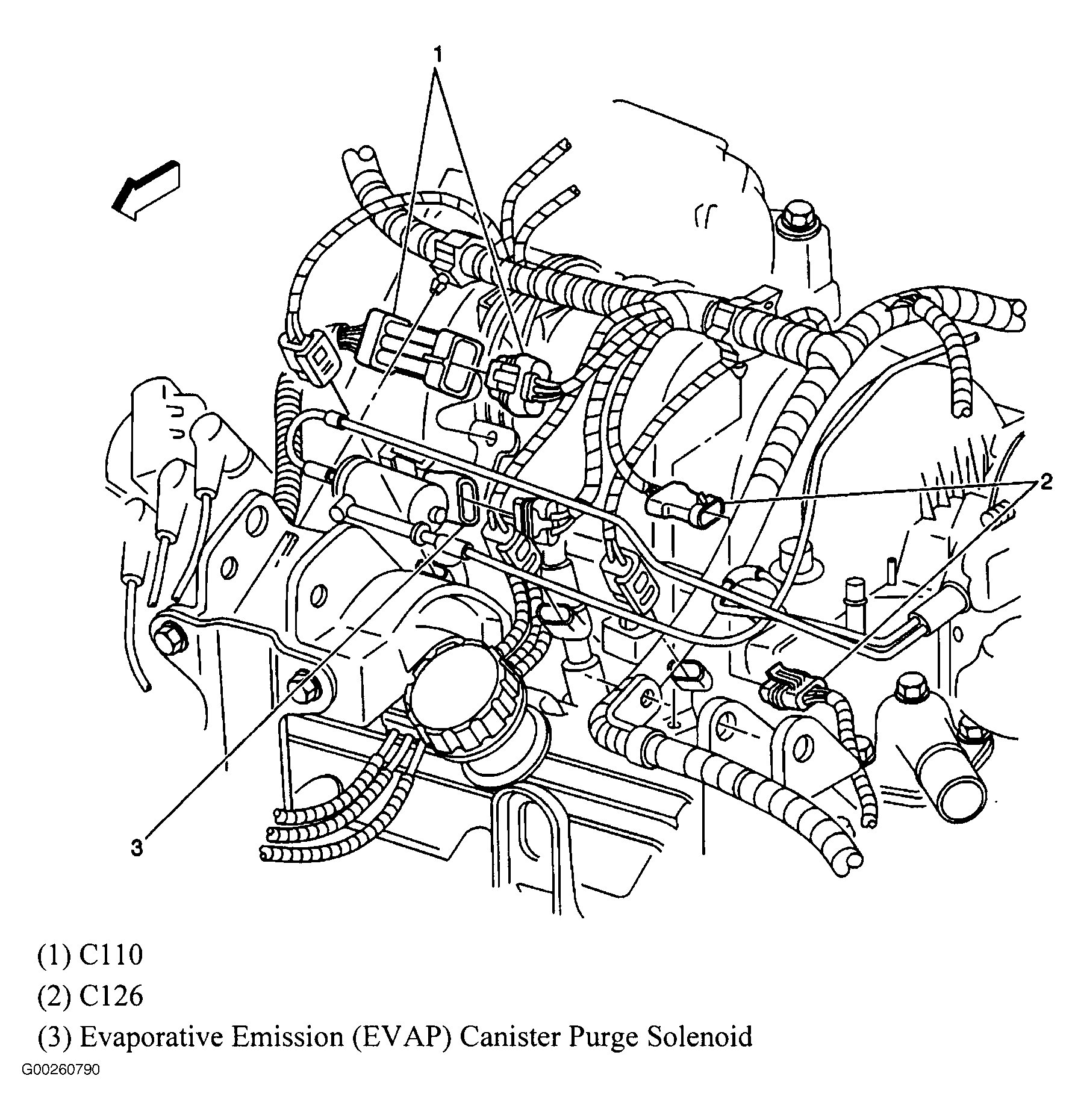

Fig 30: Upper Right Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Upper Rear Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.

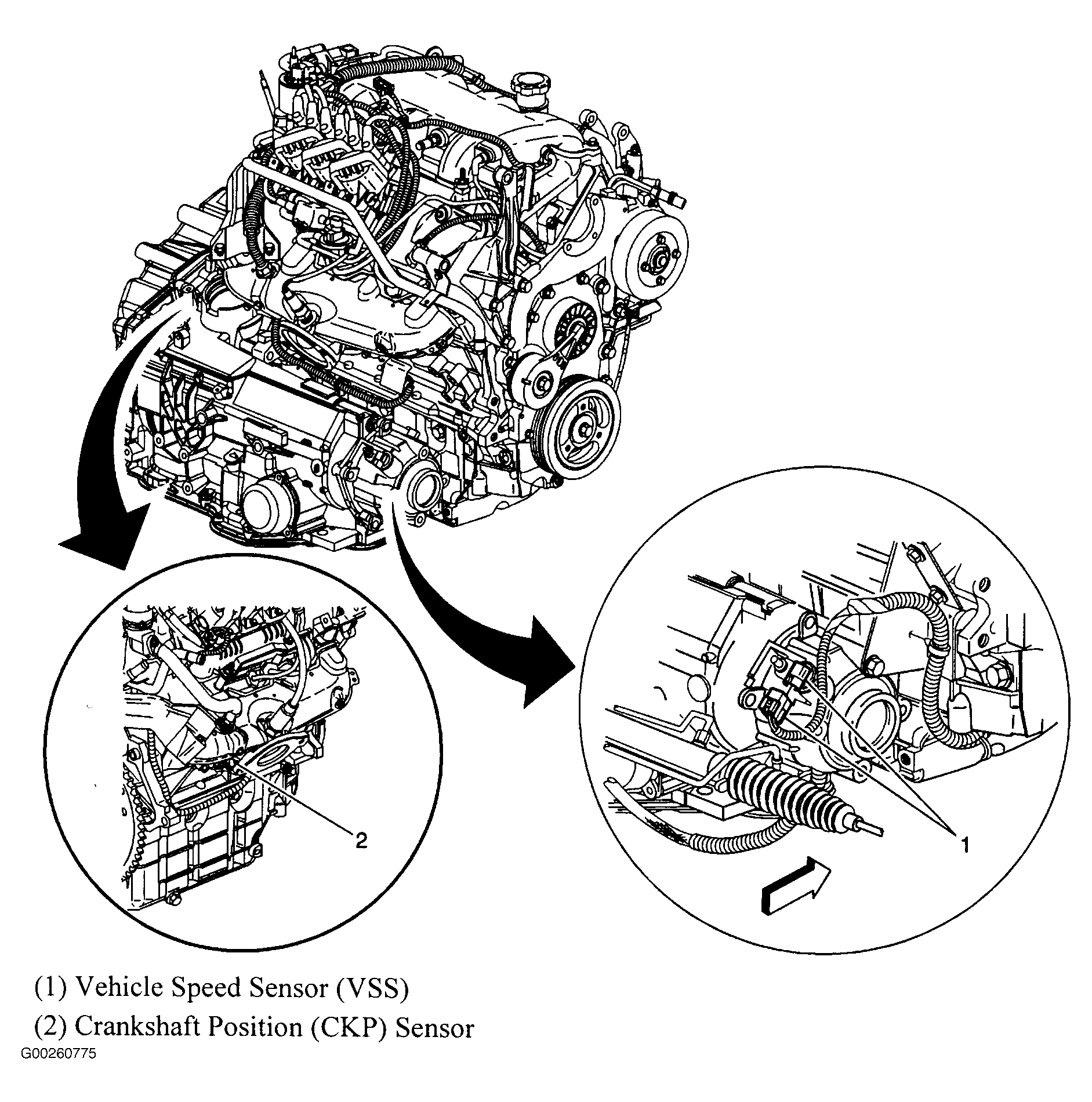

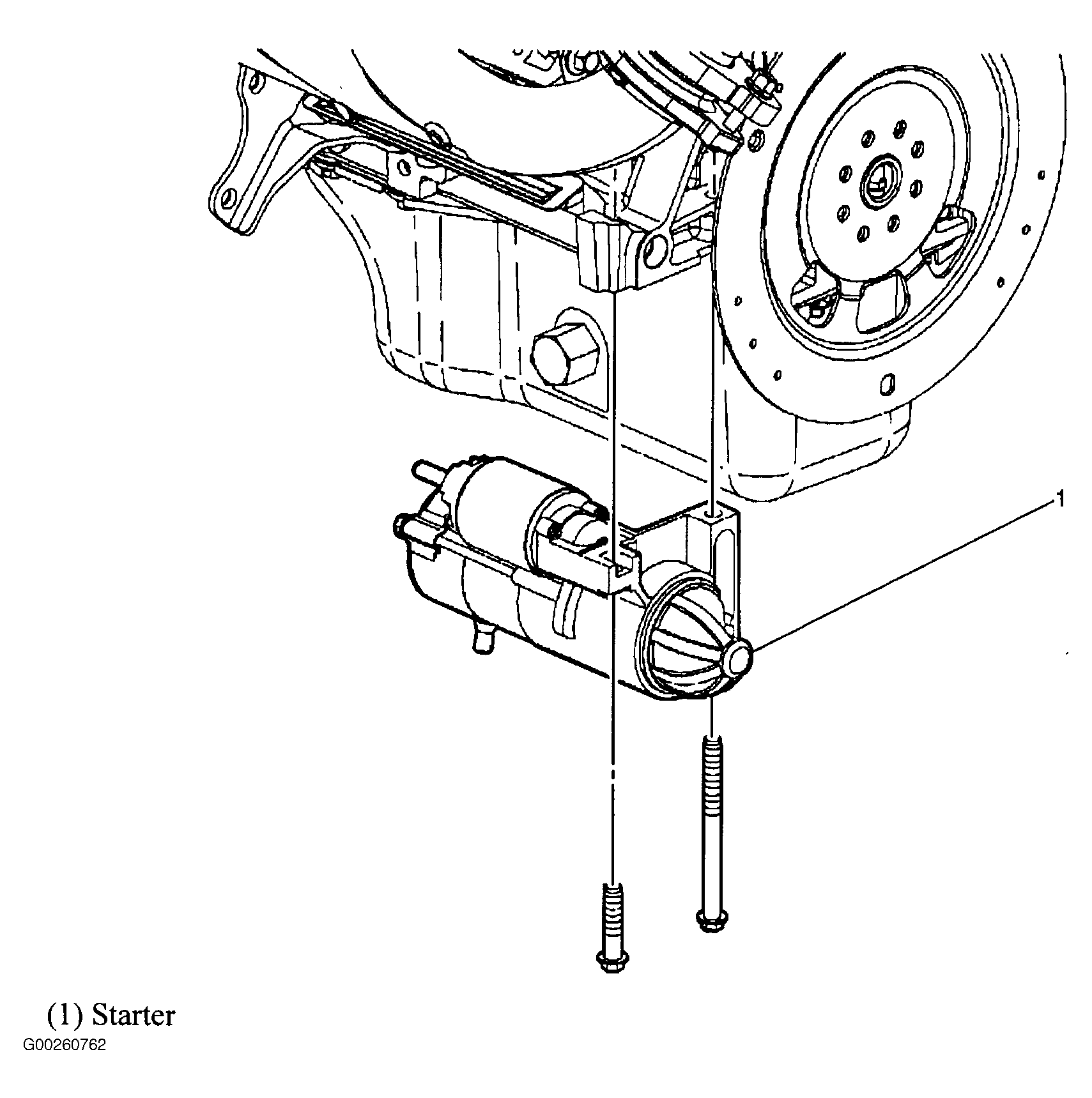

Fig 32: Lower Left Front Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

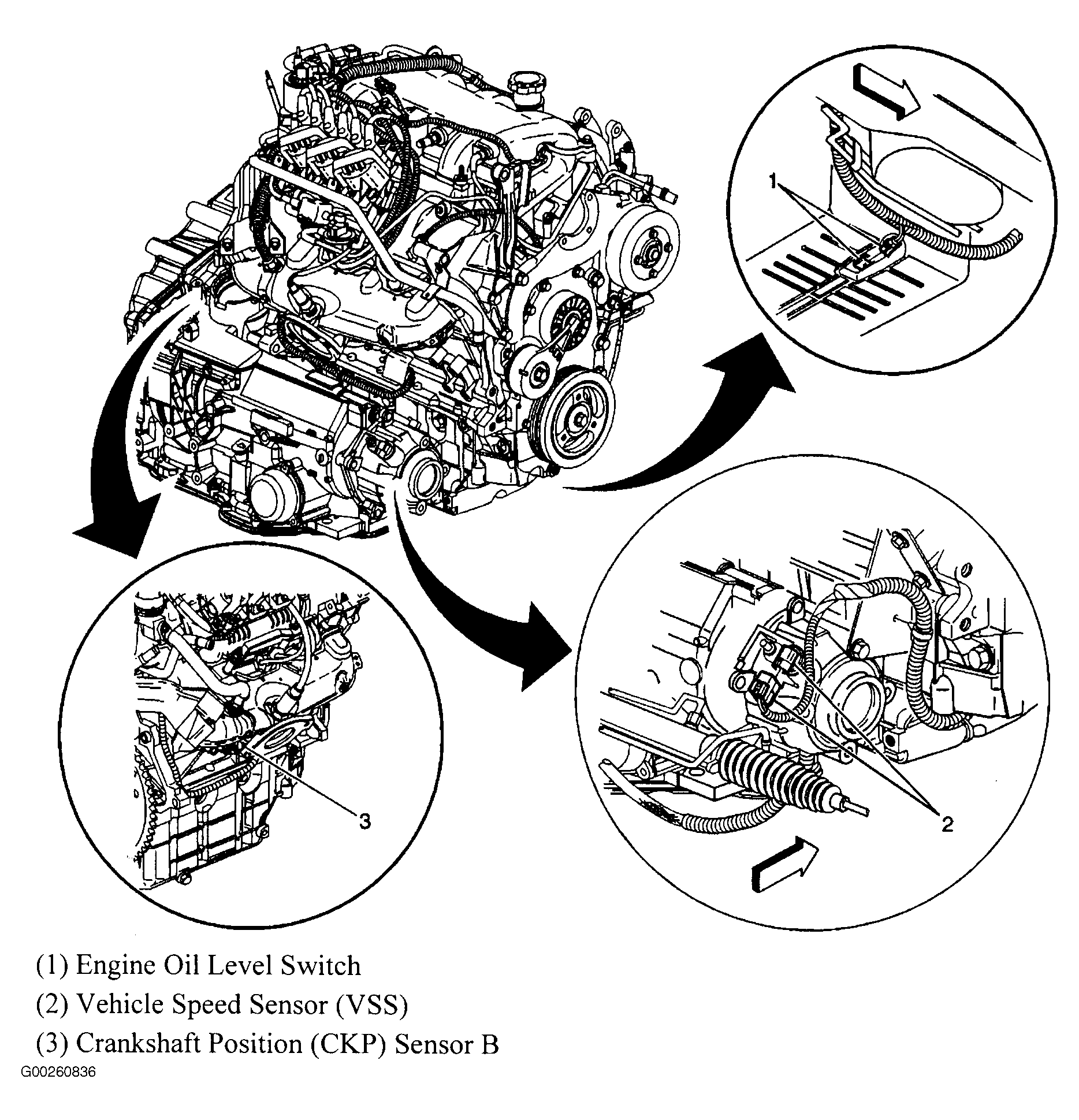

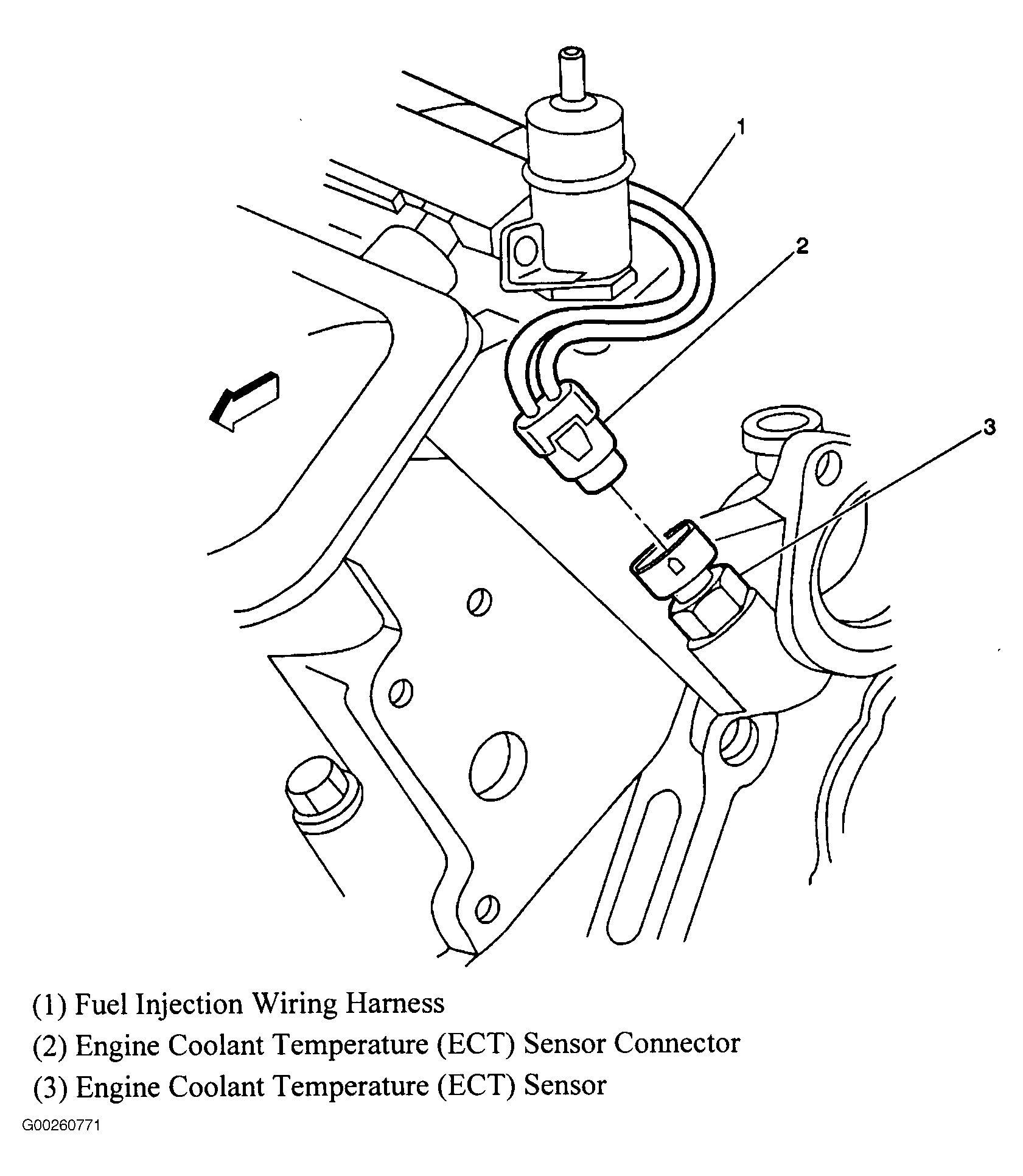

Fig 33: Lower Left Front Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.

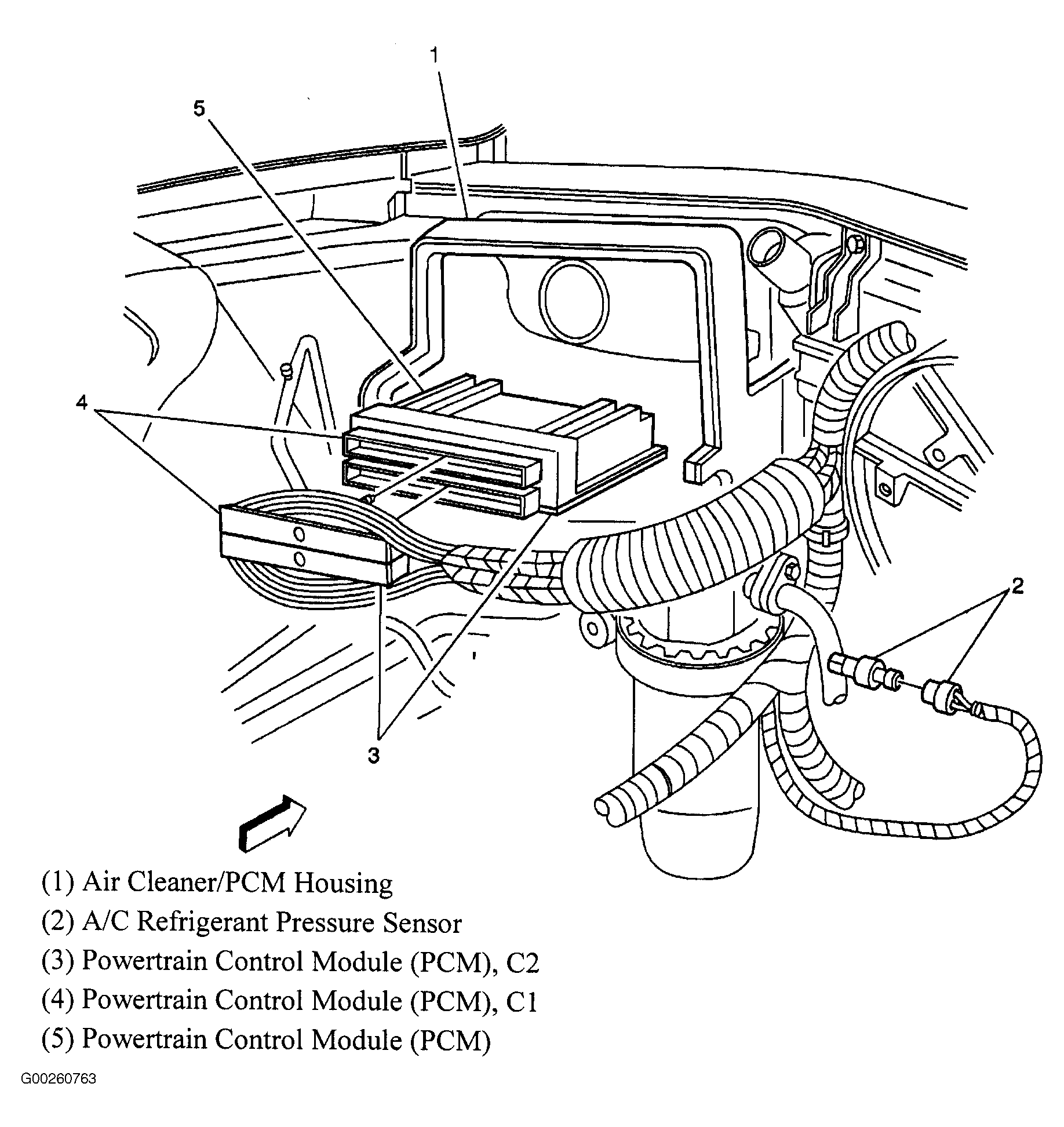

Fig 34: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

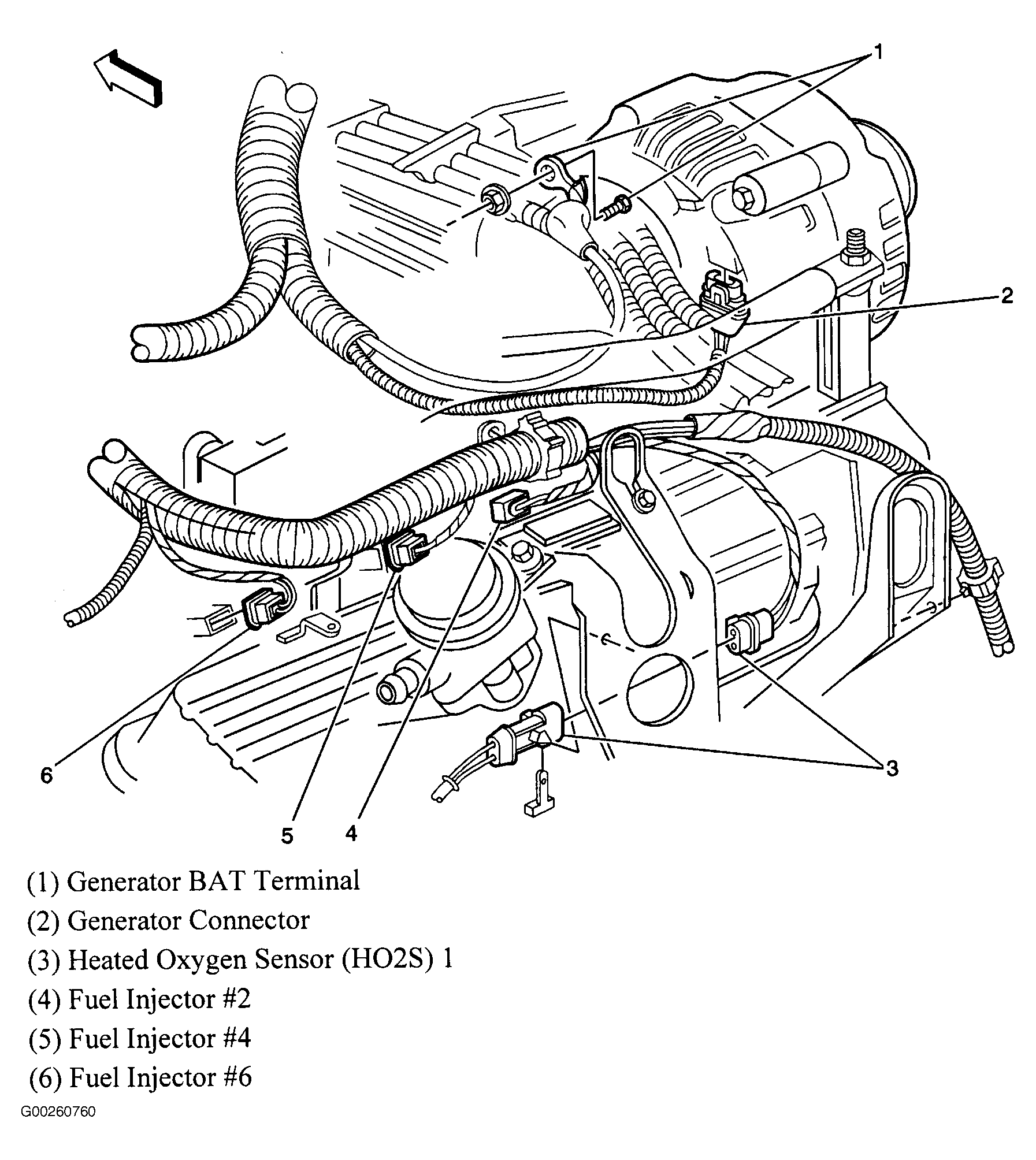

Fig 35: Top Left Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

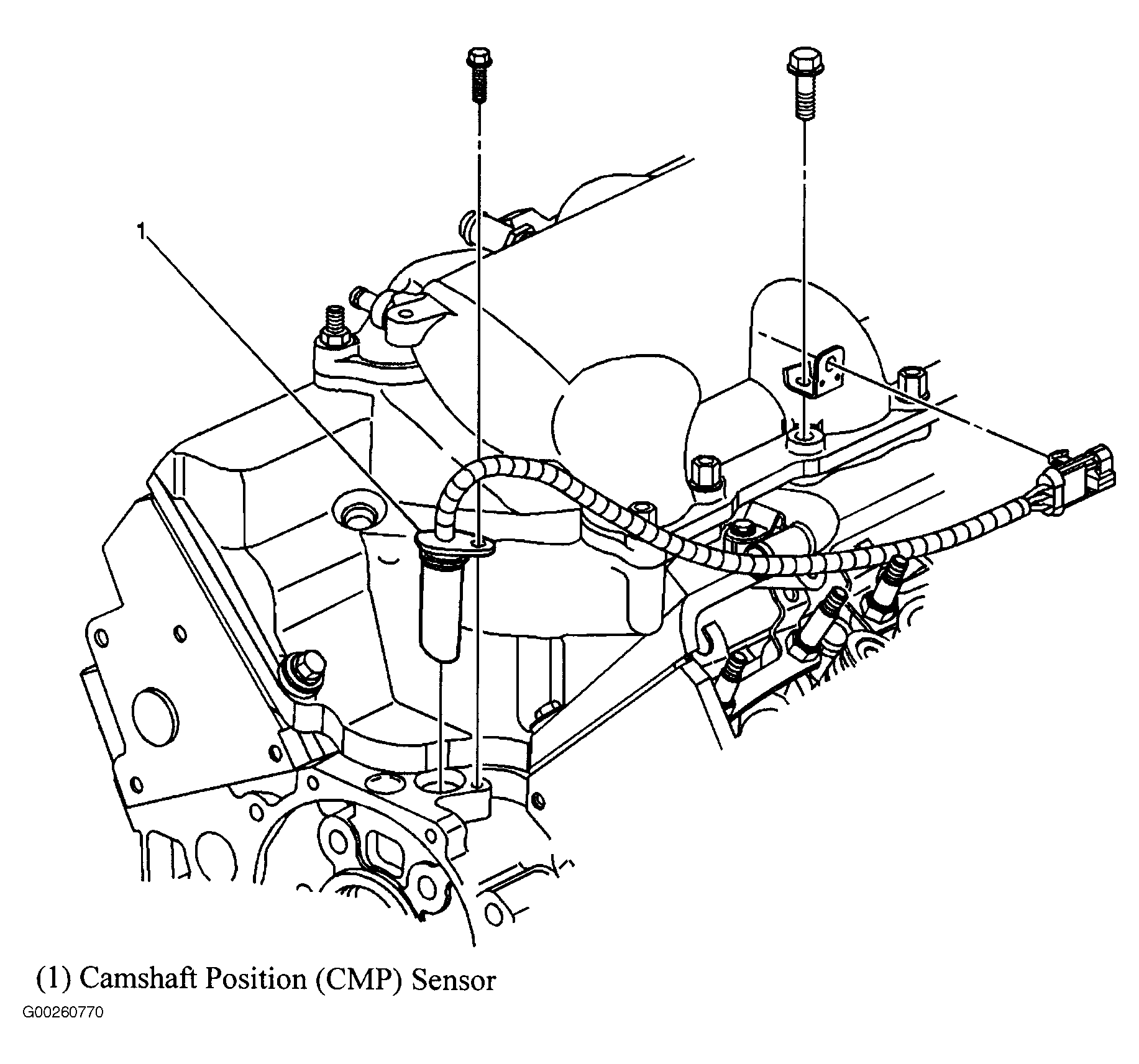

Fig 36: Rear Of Engine (3.4L VIN E) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Rear Of Engine (3.4L VIN E) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Upper Right Rear Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

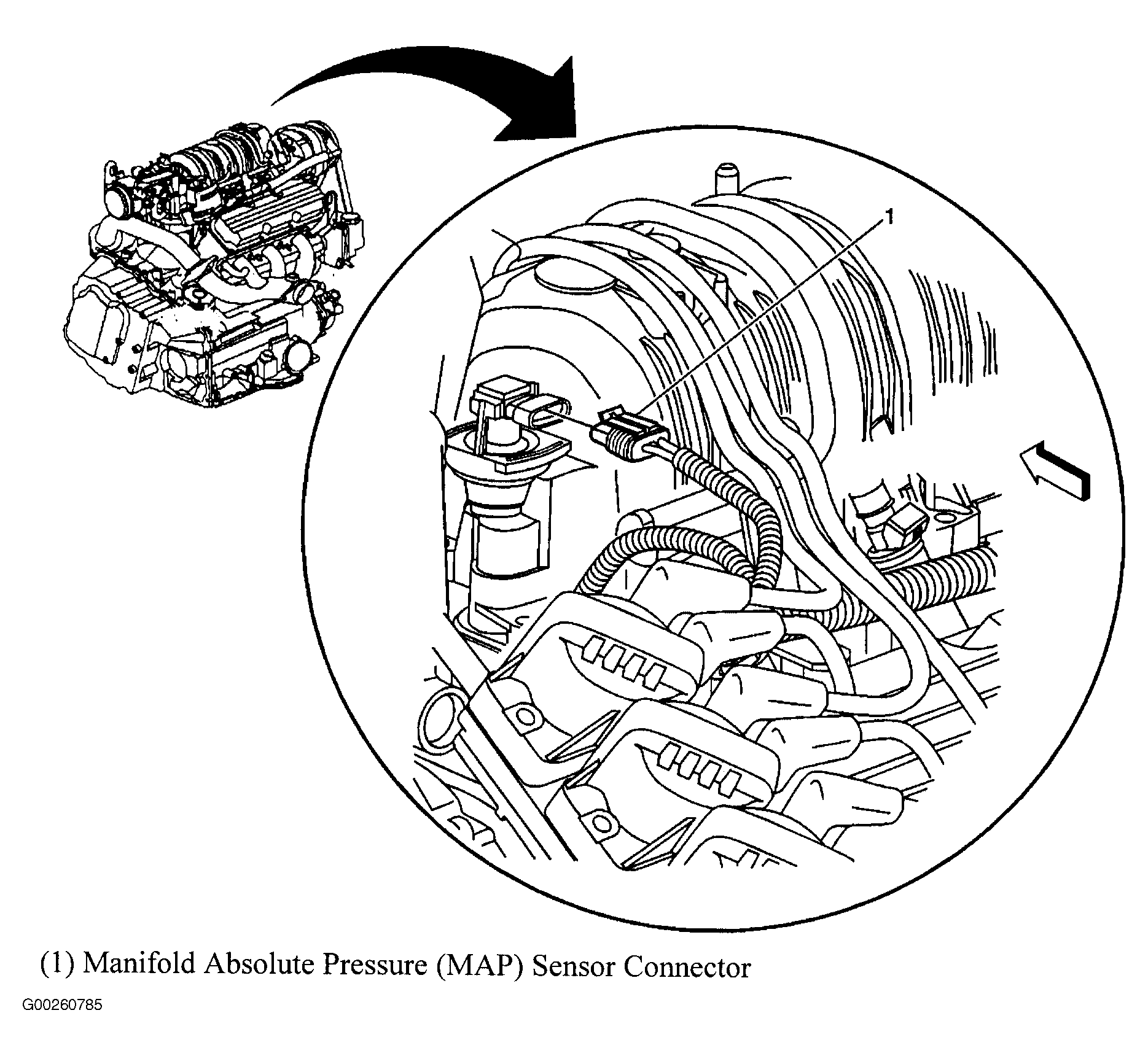

Fig 39: Top Middle Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Front Of Intake Manifold (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

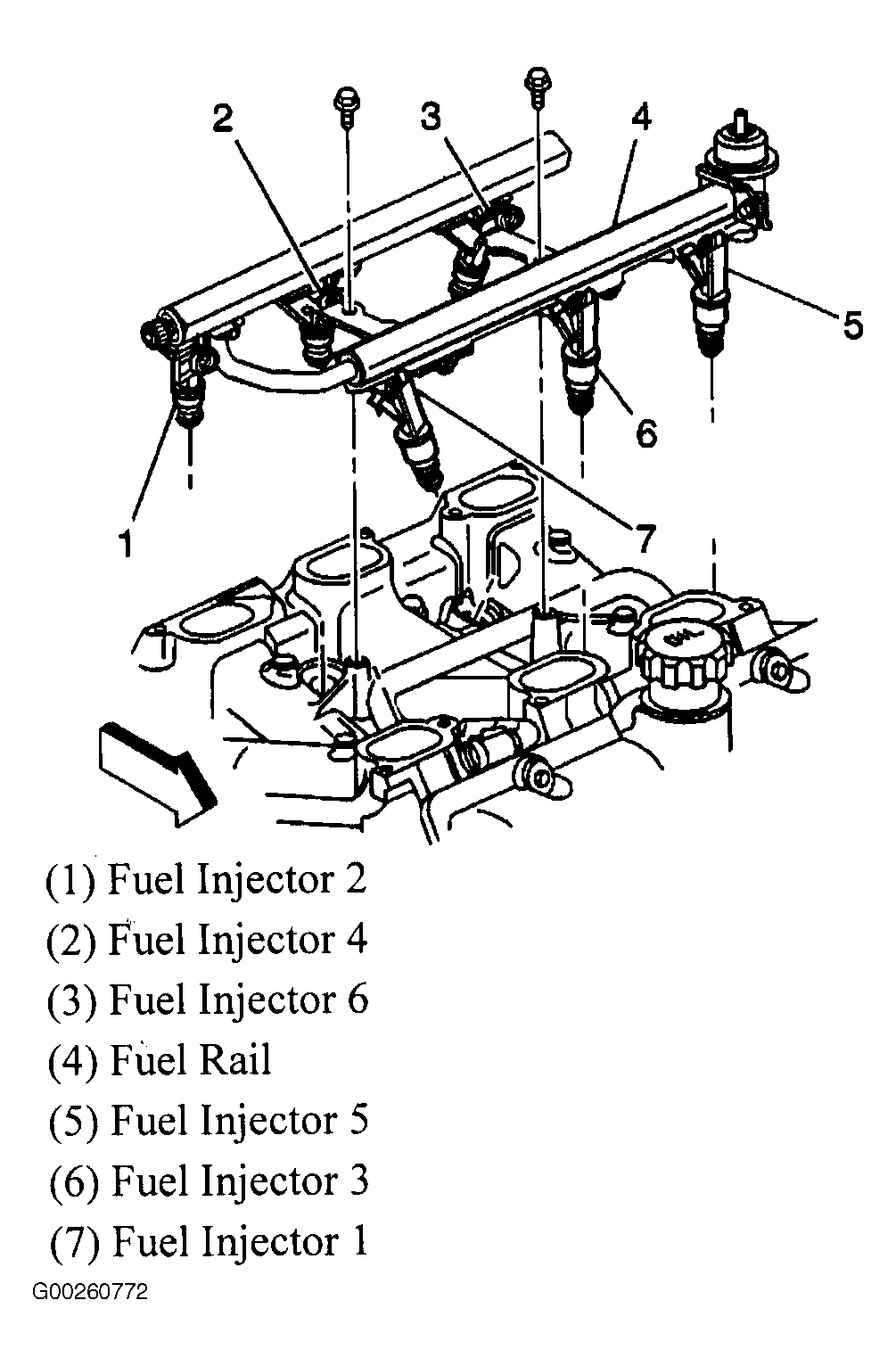

Fig 41: Top Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Lower Left Front Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Lower Front Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Rear Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

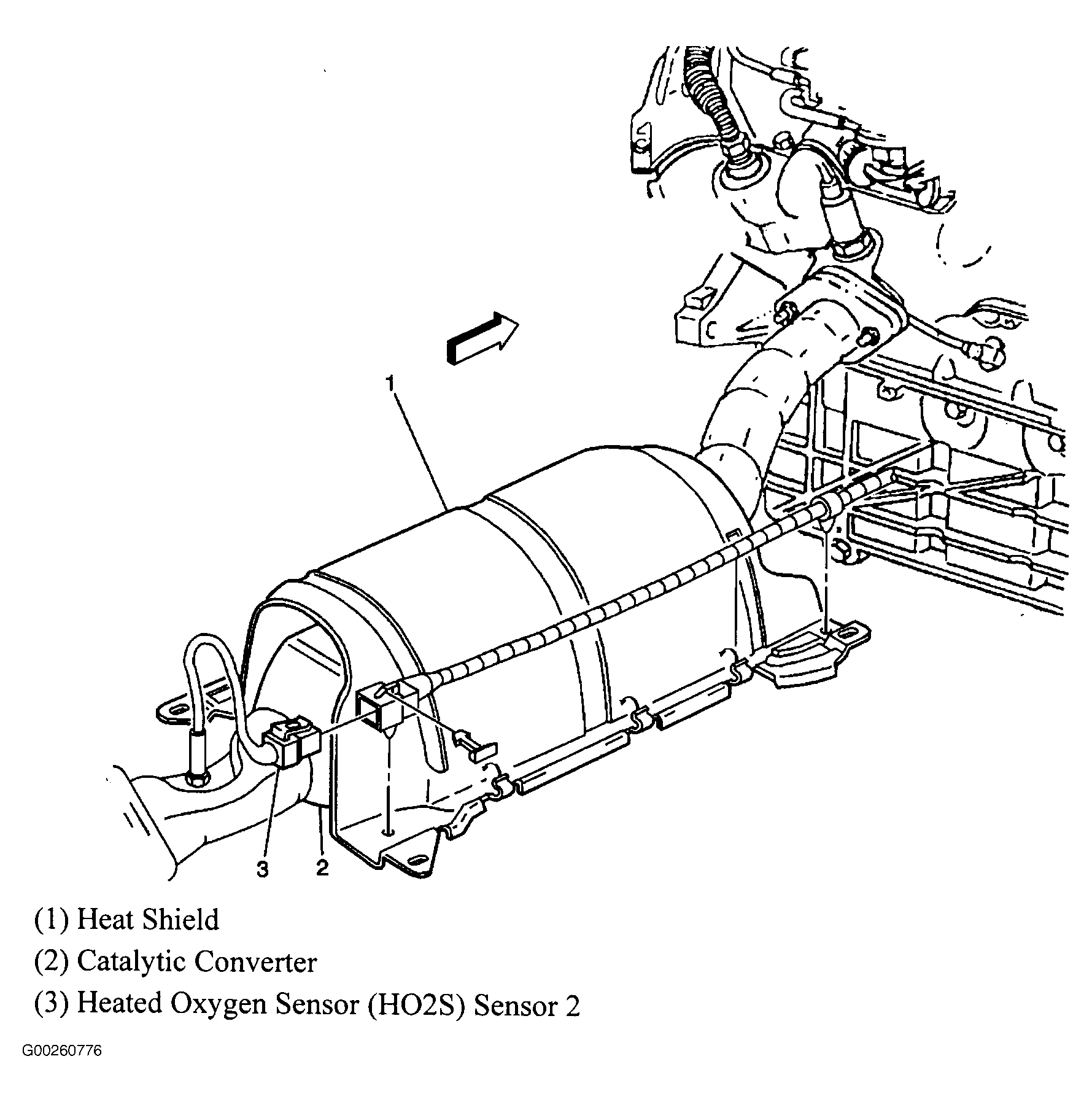

Fig 45: Exhaust (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.

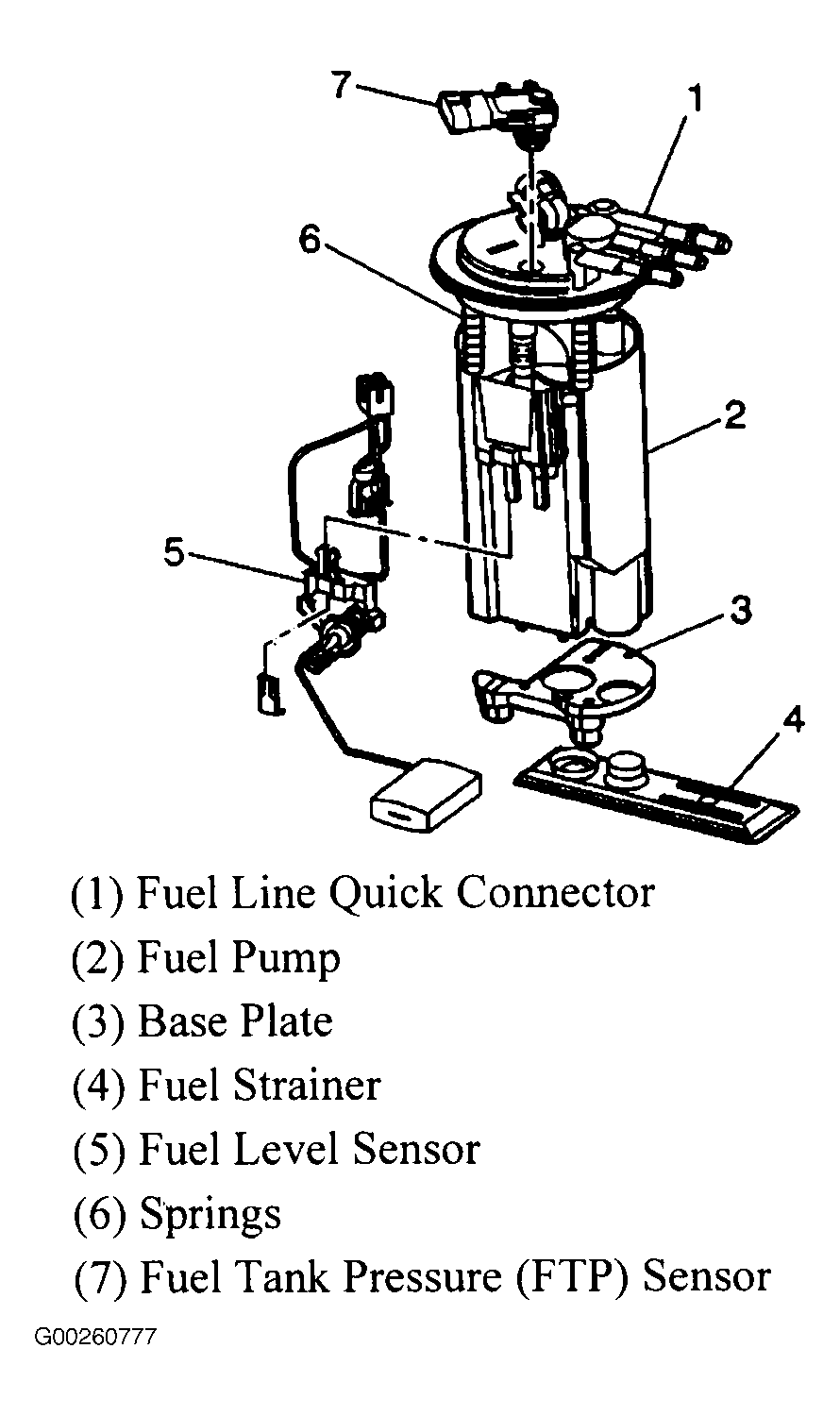

Fig 46: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.

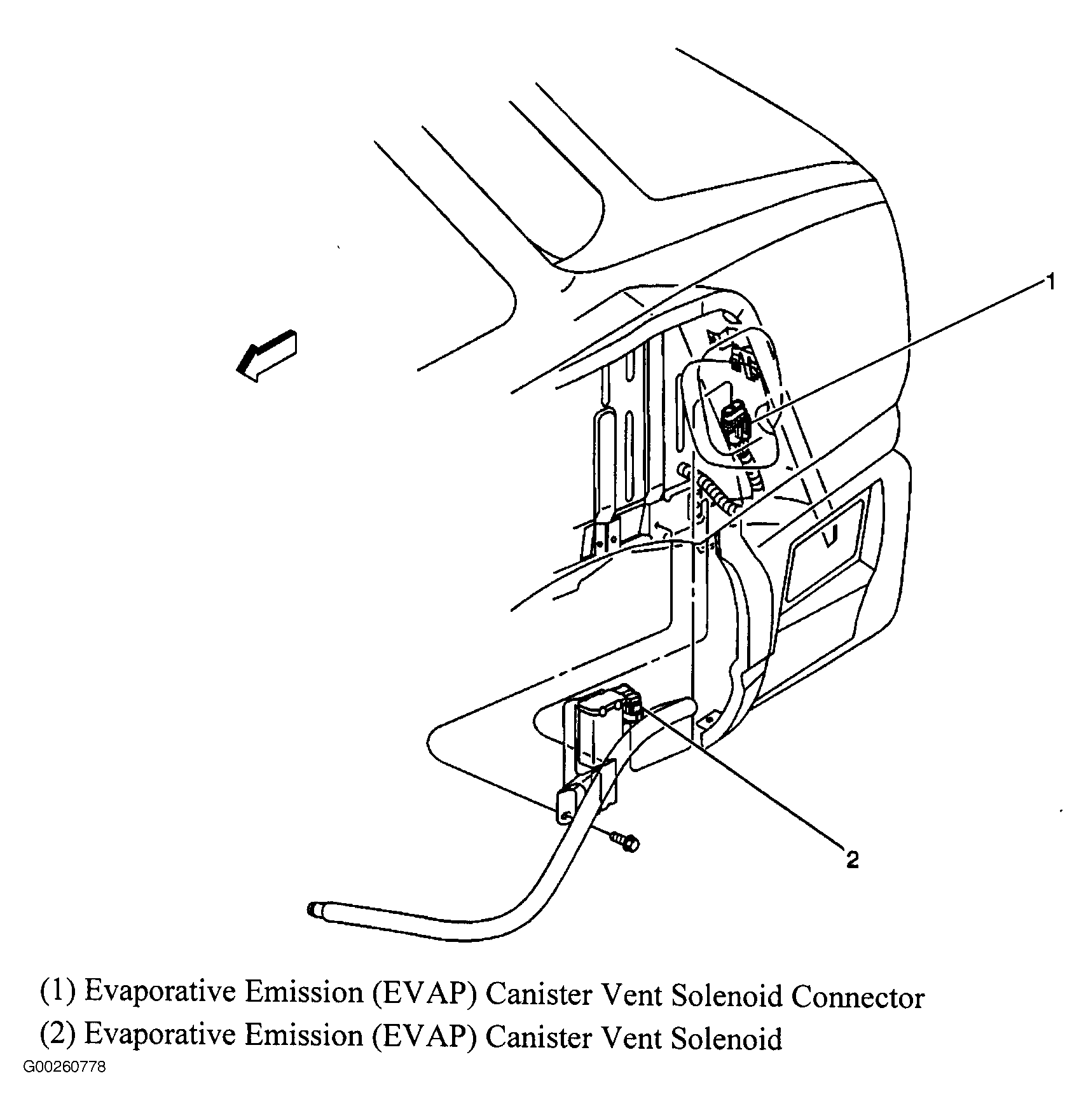

Fig 47: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

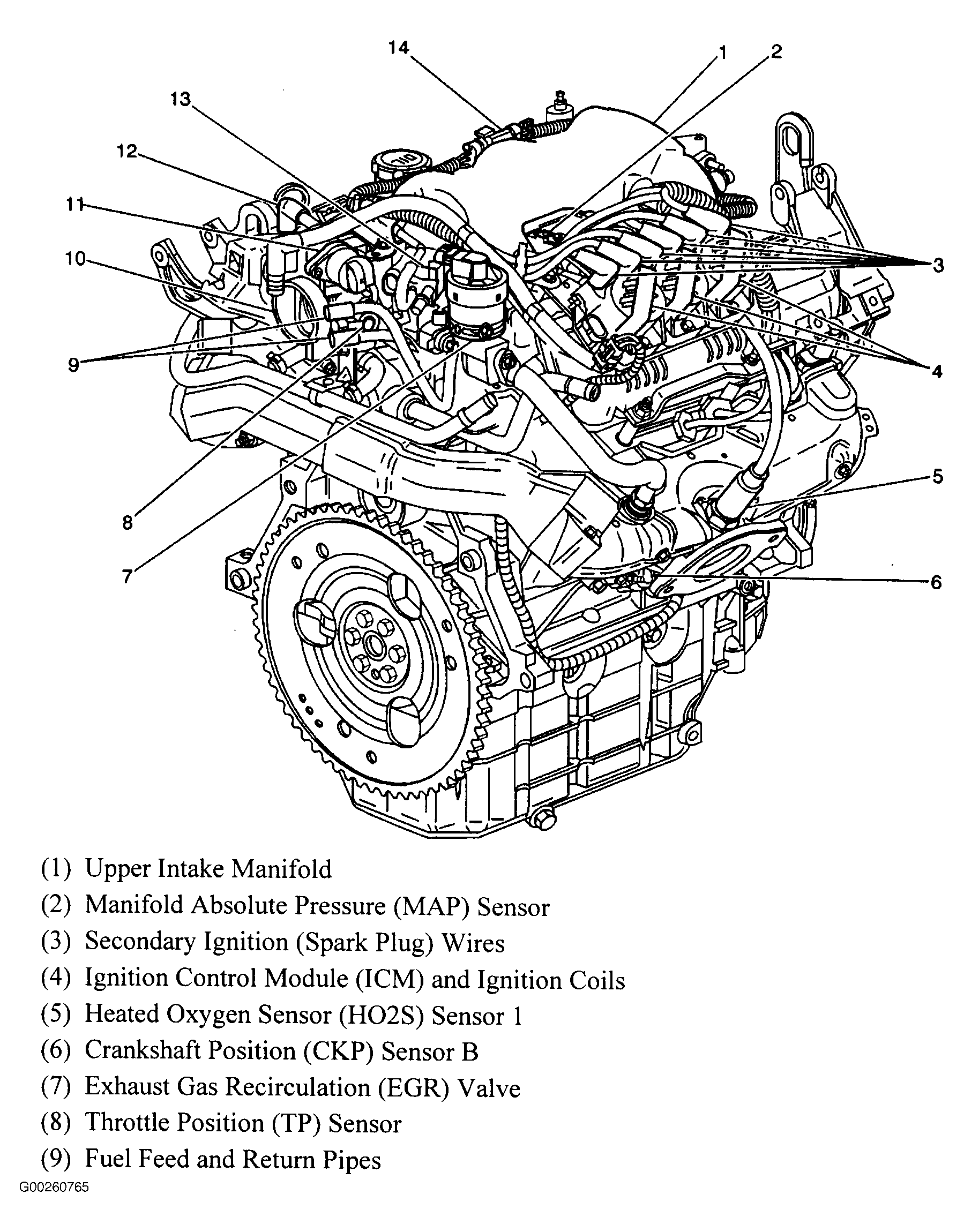

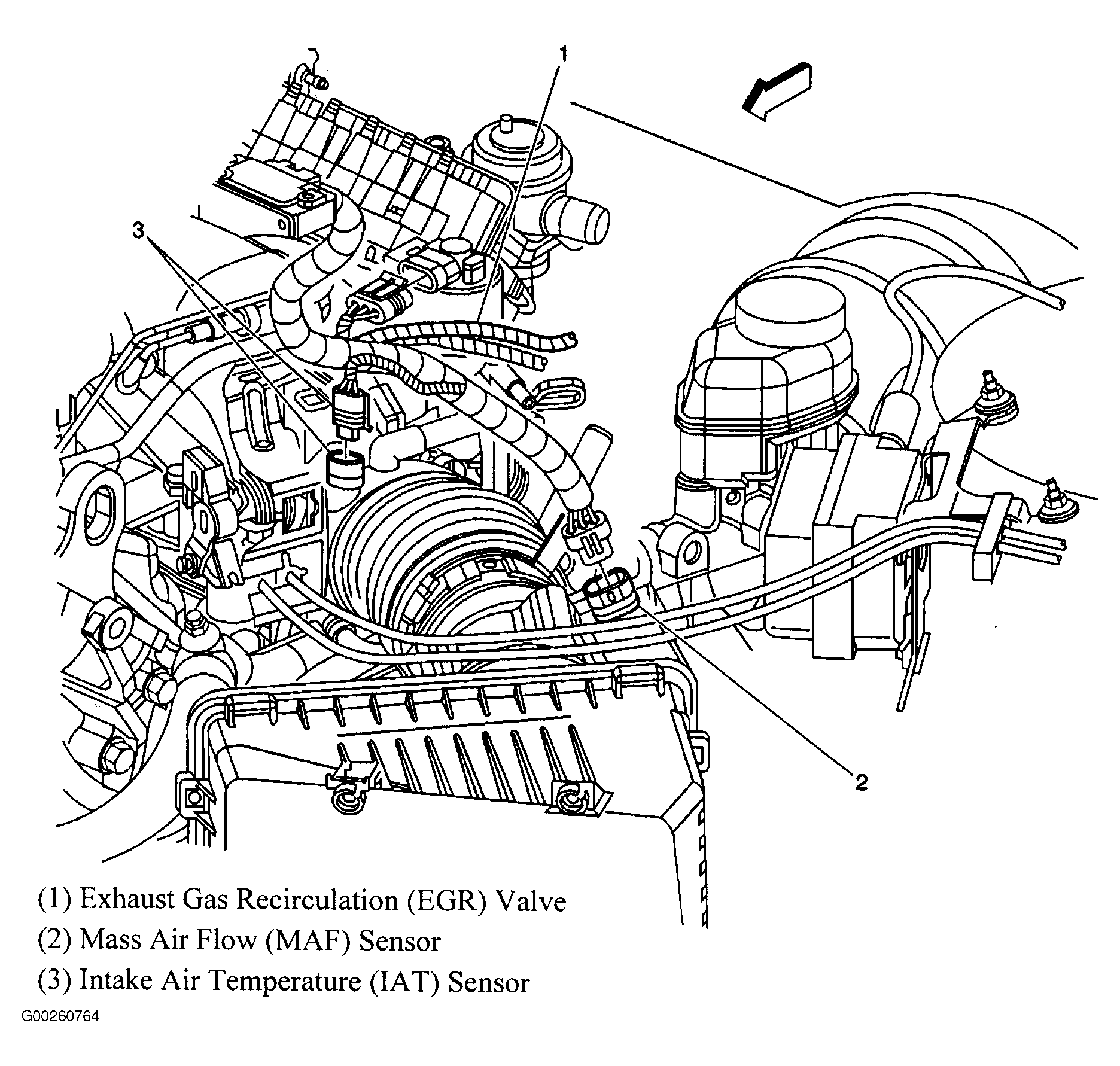

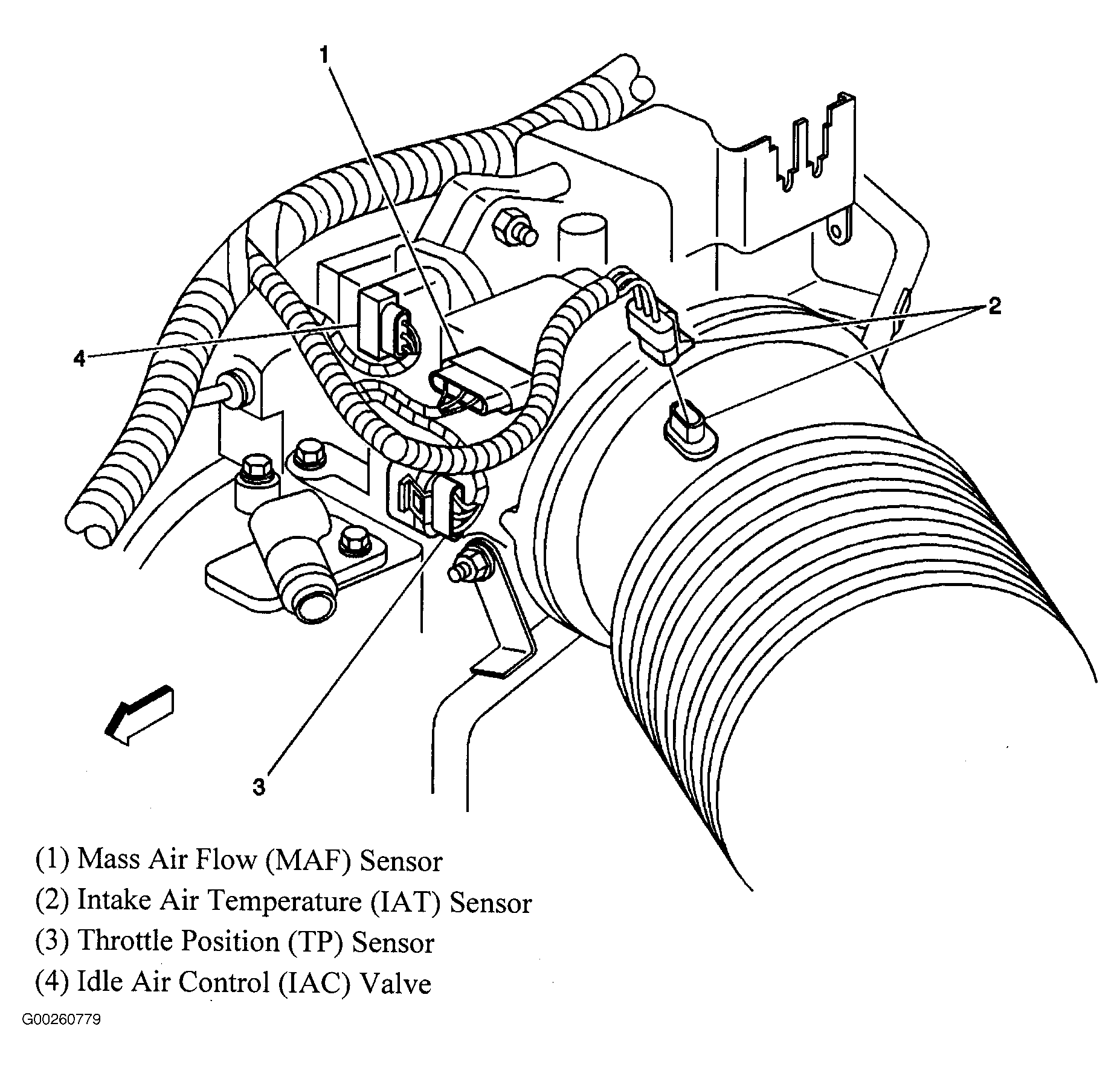

Fig 48: Air Intake & Throttle Body (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.

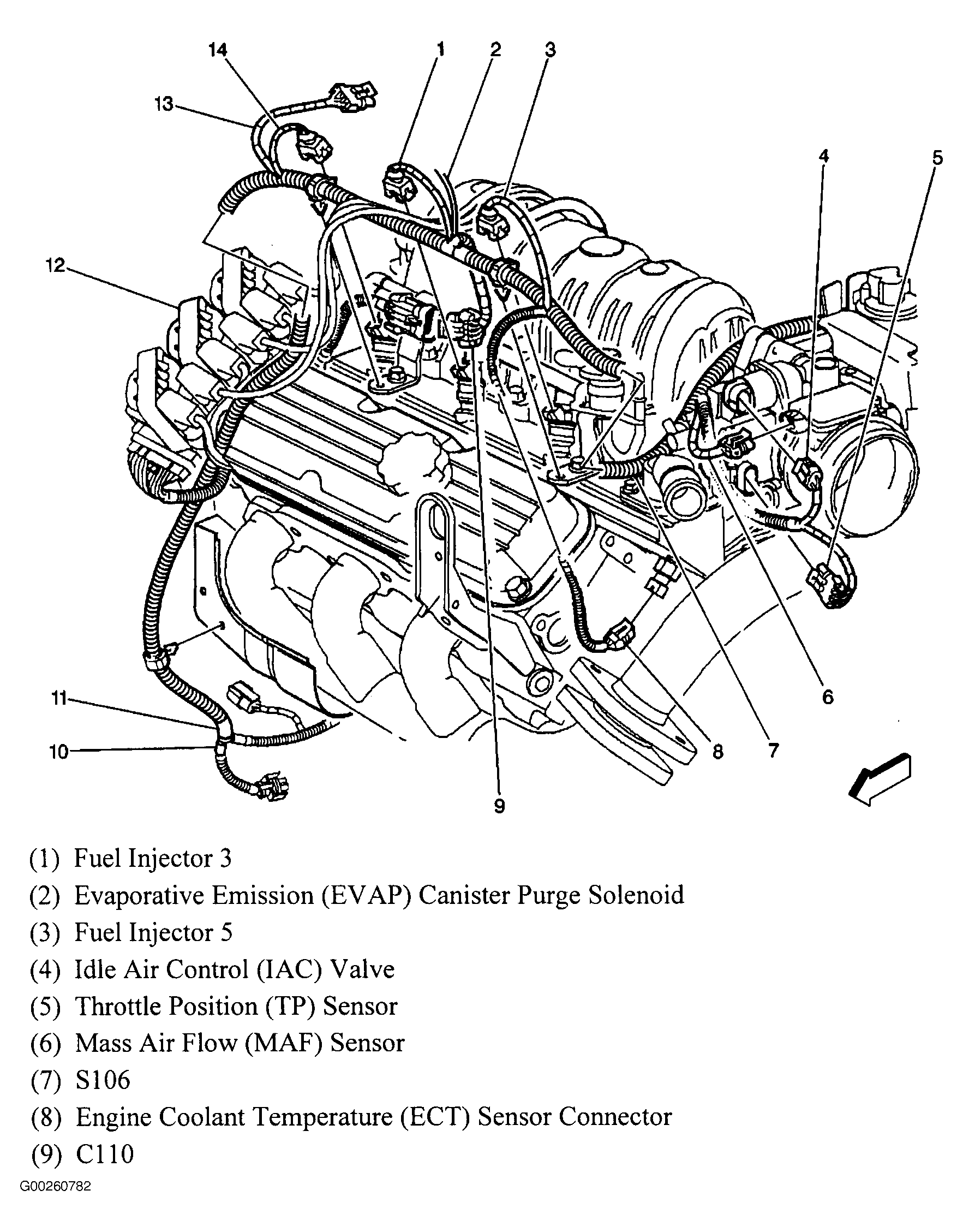

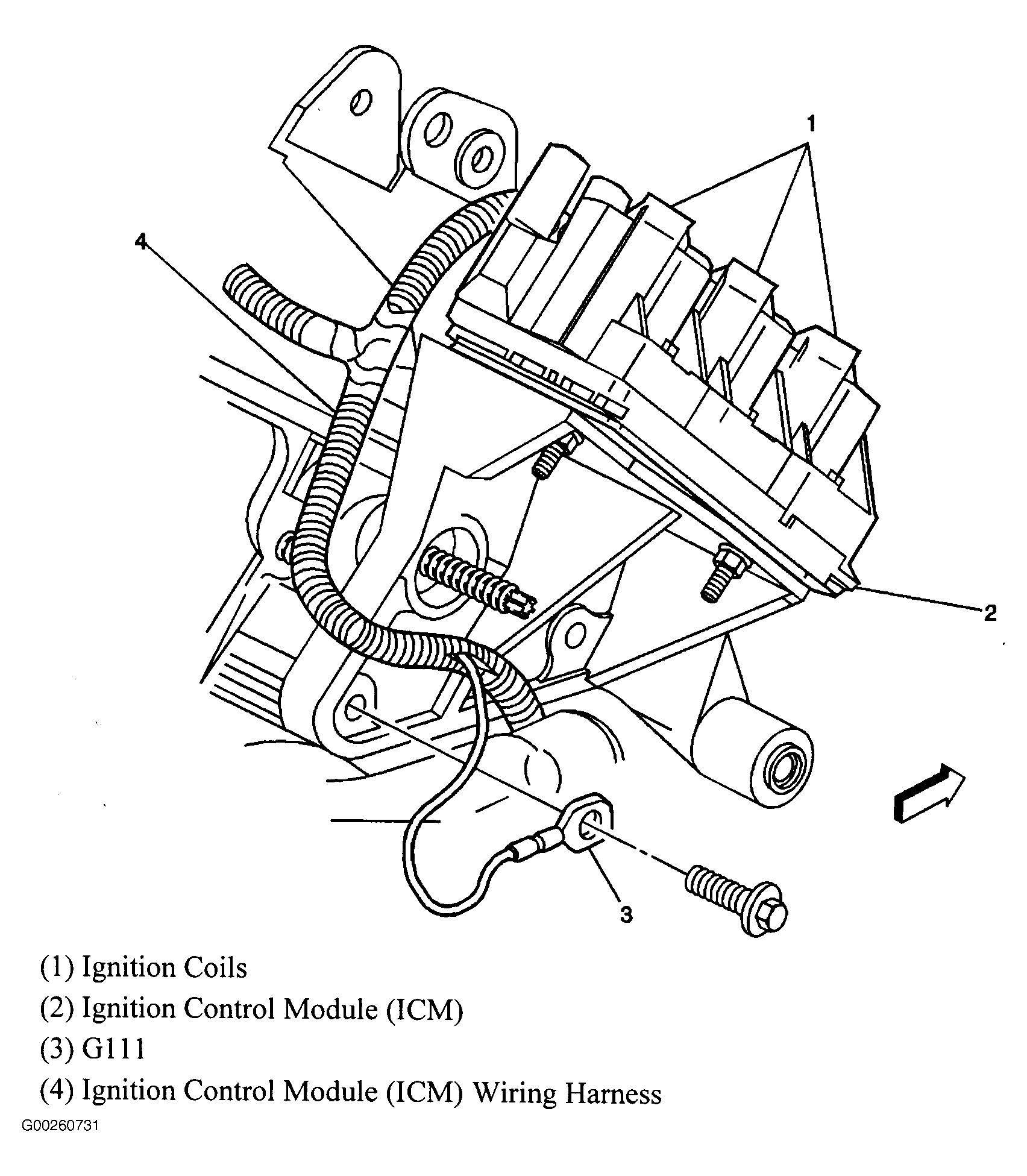

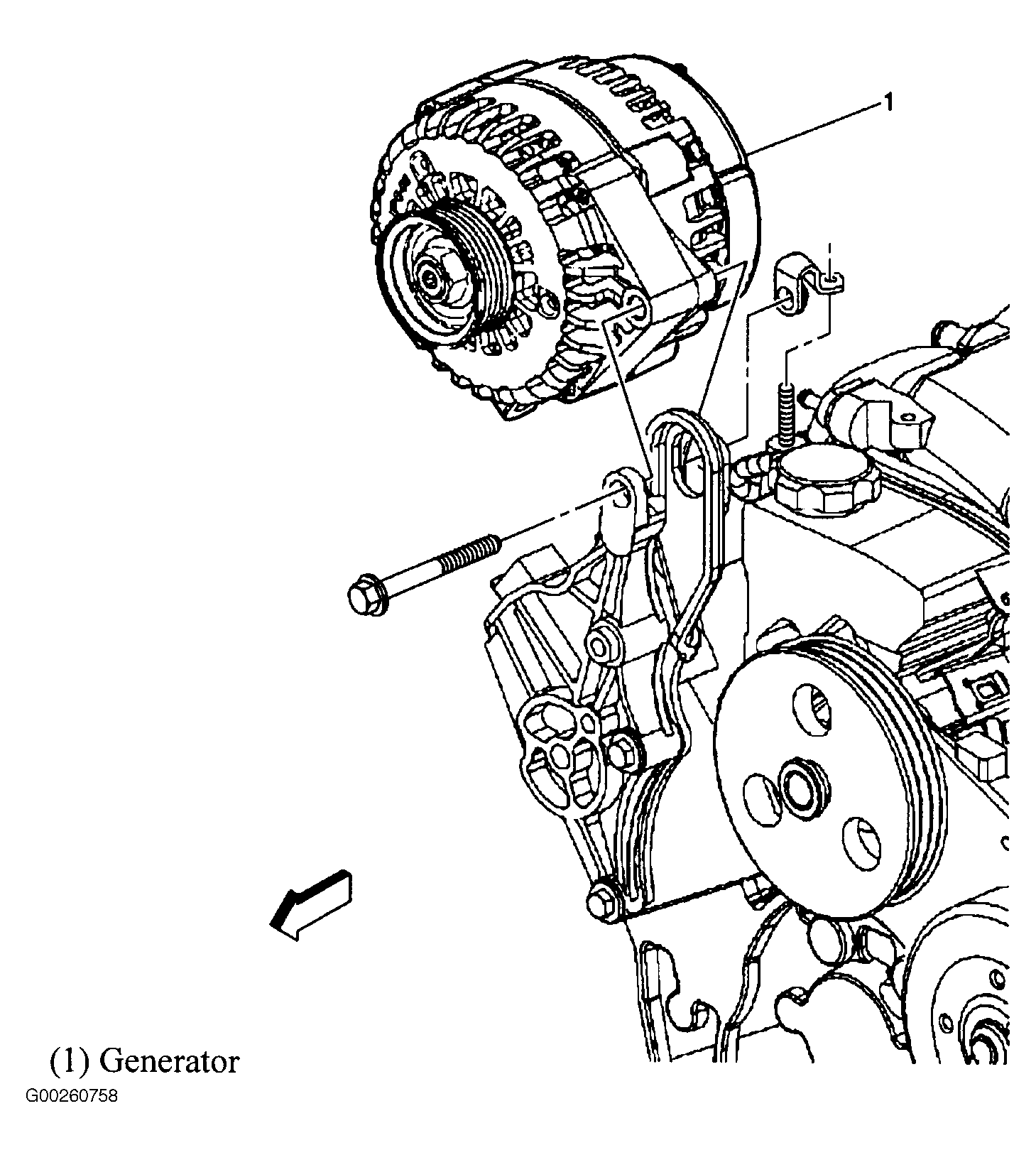

Fig 49: Left Front Of Engine (3.8L VIN K & VIN 1) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Front Of Engine (3.8L VIN K & VIN 1) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left Side Of Engine (3.8L VIN K) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left Side Of Engine (3.8L VIN K) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Side Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

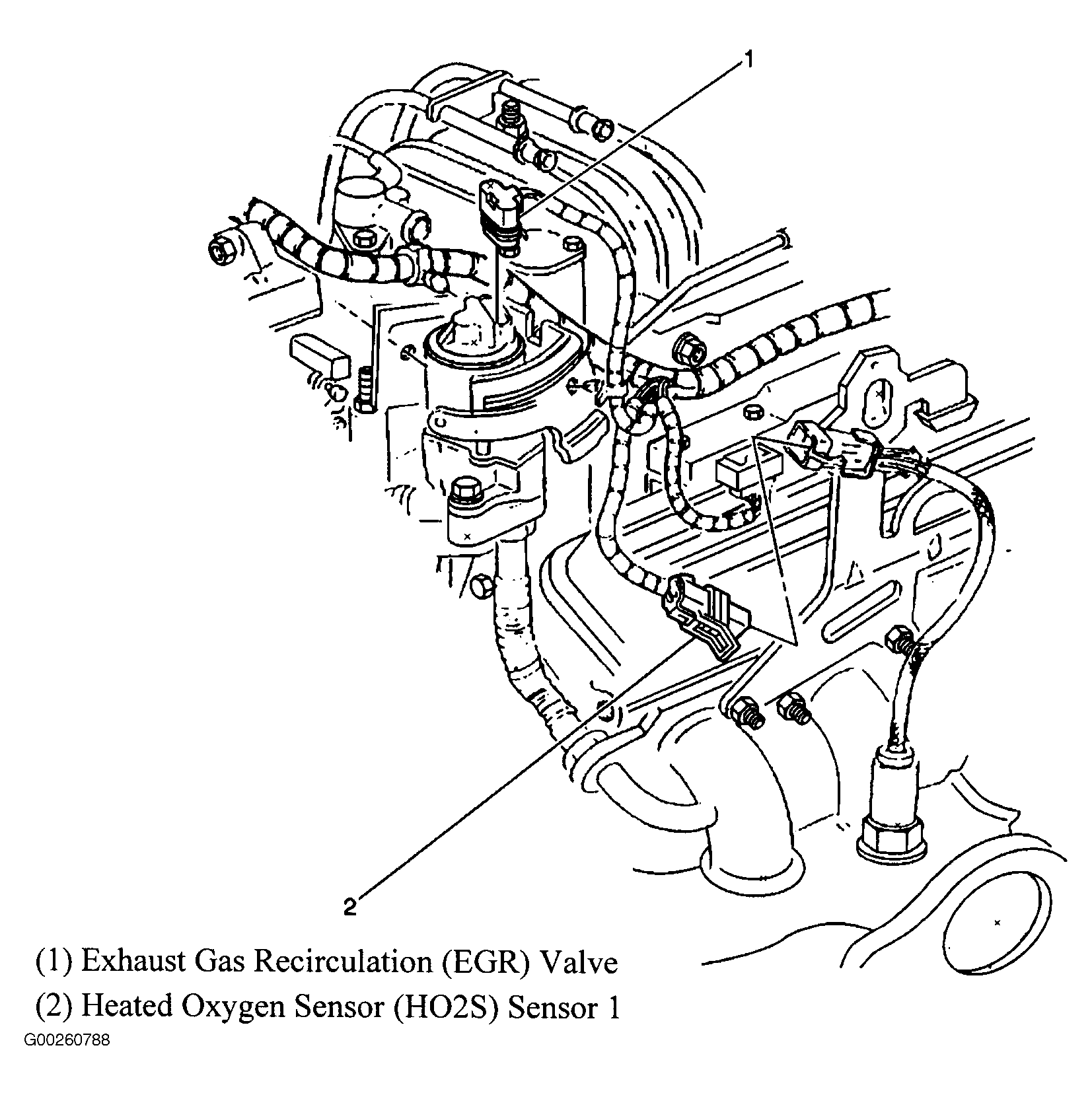

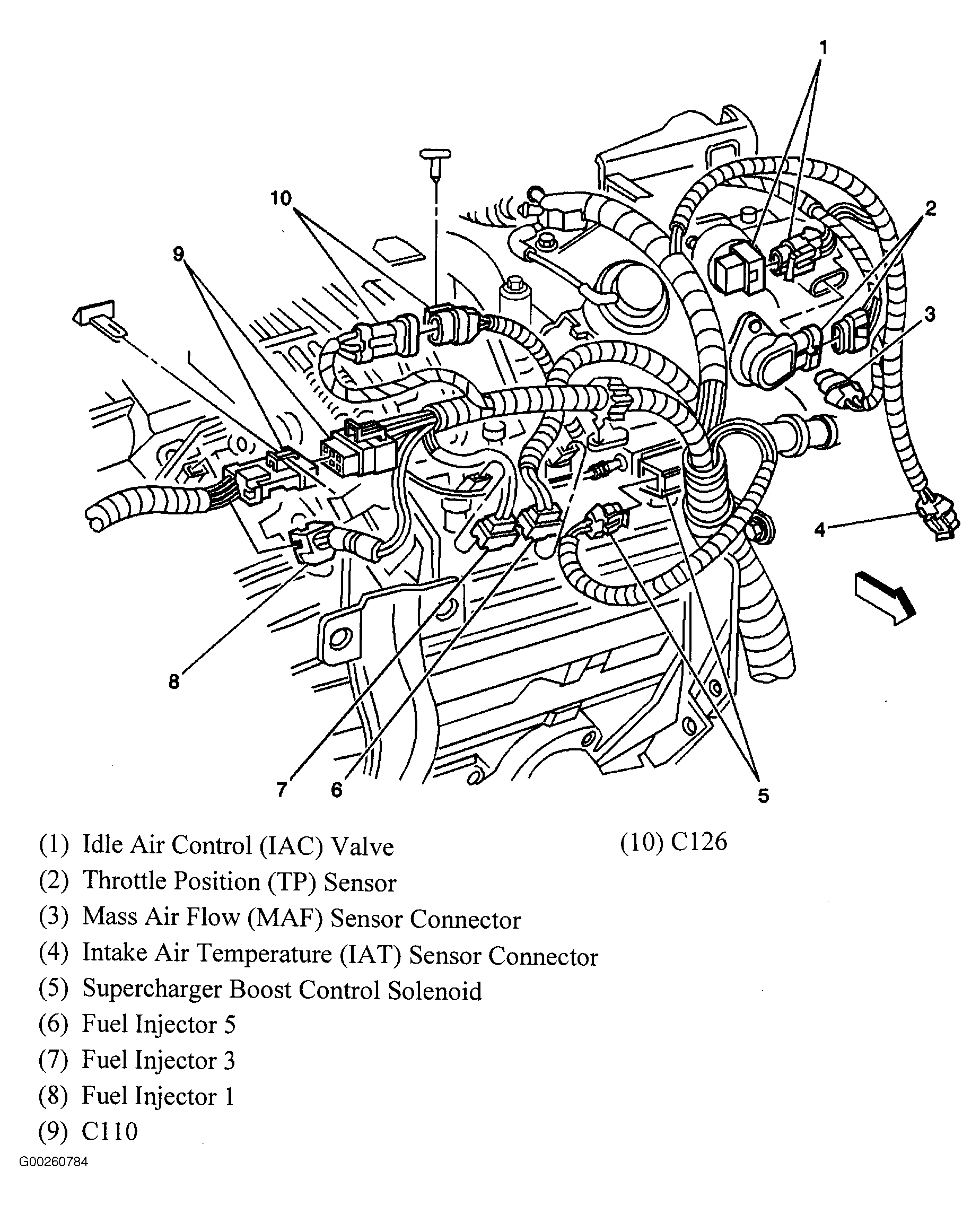

Fig 55: Right Top Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Side Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Side Of Engine (3.4L VIN E)
Courtesy of GENERAL MOTORS CORP.
Fig 59: Front Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Side Of Engine (3.8L VIN K & VIN 1)
Courtesy of GENERAL MOTORS CORP.

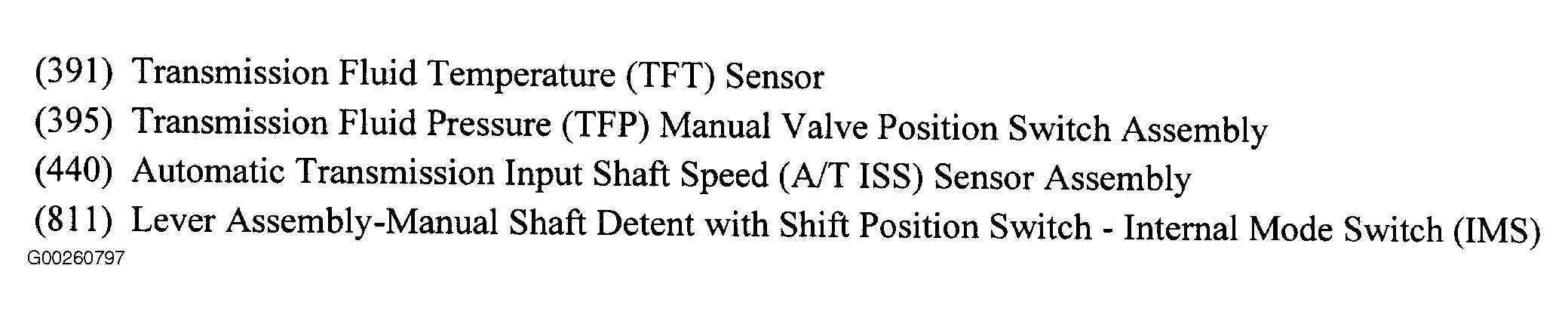

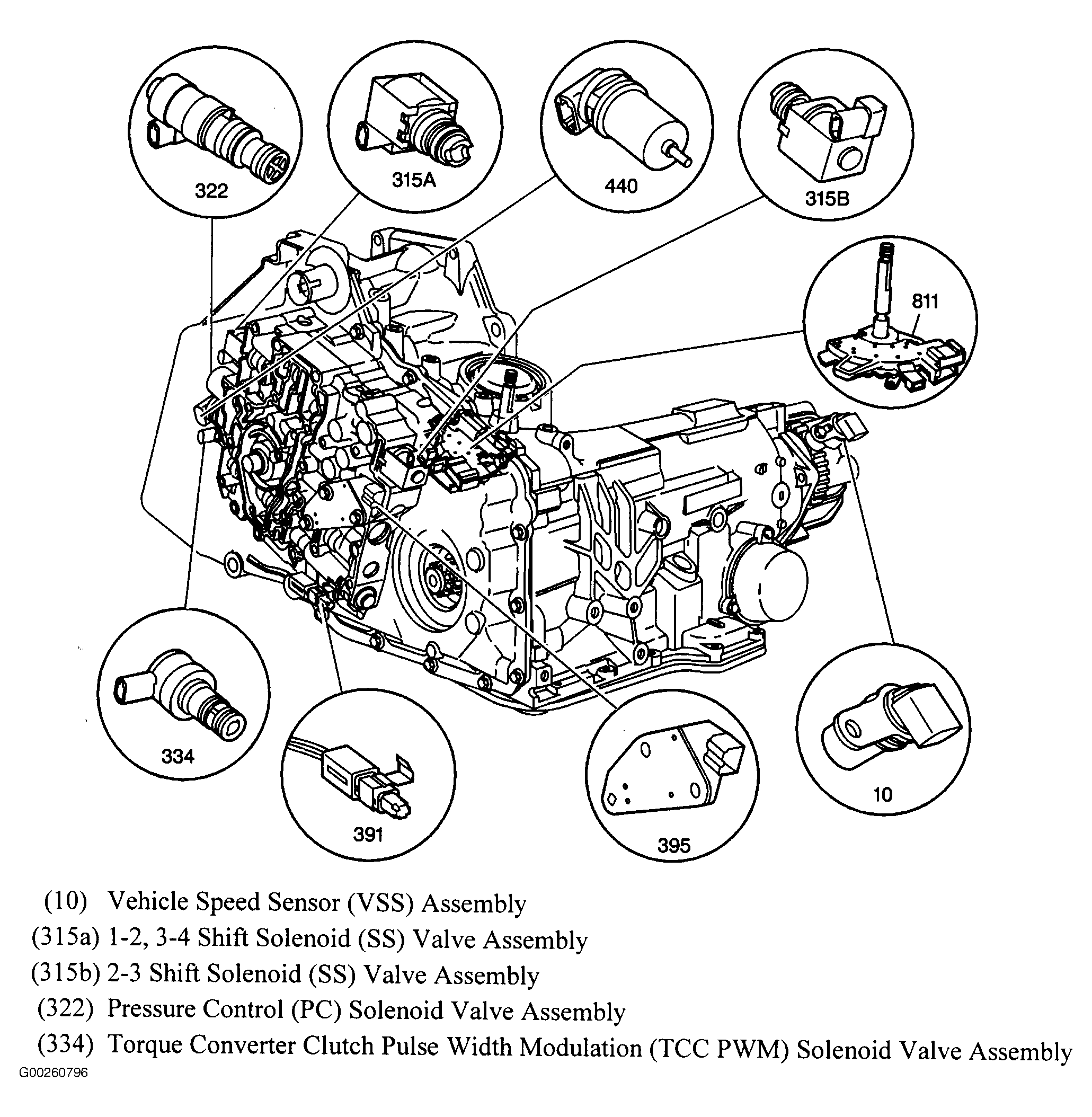

Fig 61: Automatic Transmission Electronic Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Automatic Transmission Electronic Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Seat Belt Component Views
Courtesy of GENERAL MOTORS CORP.

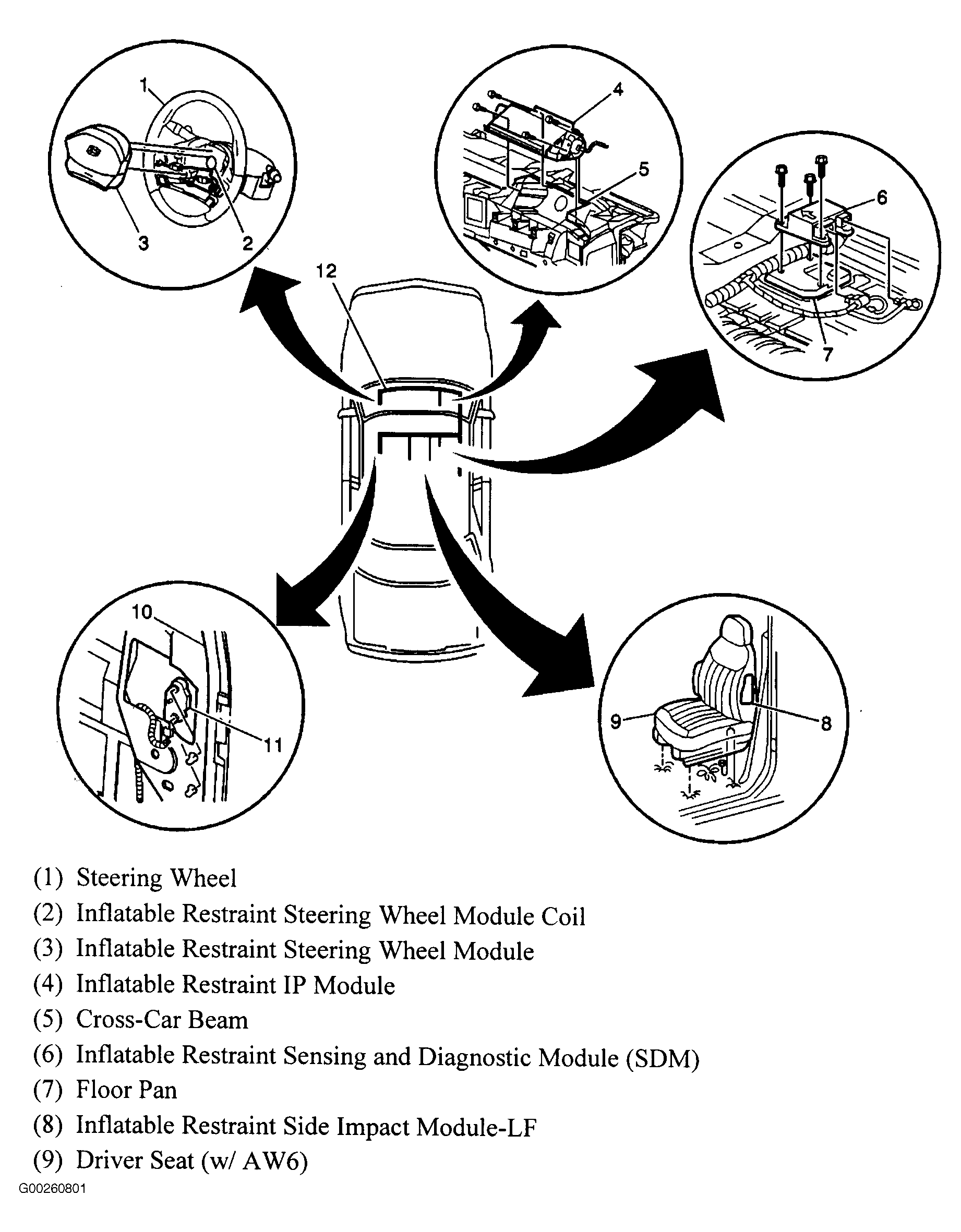

Fig 64: SIR Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 65: SIR Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Center Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

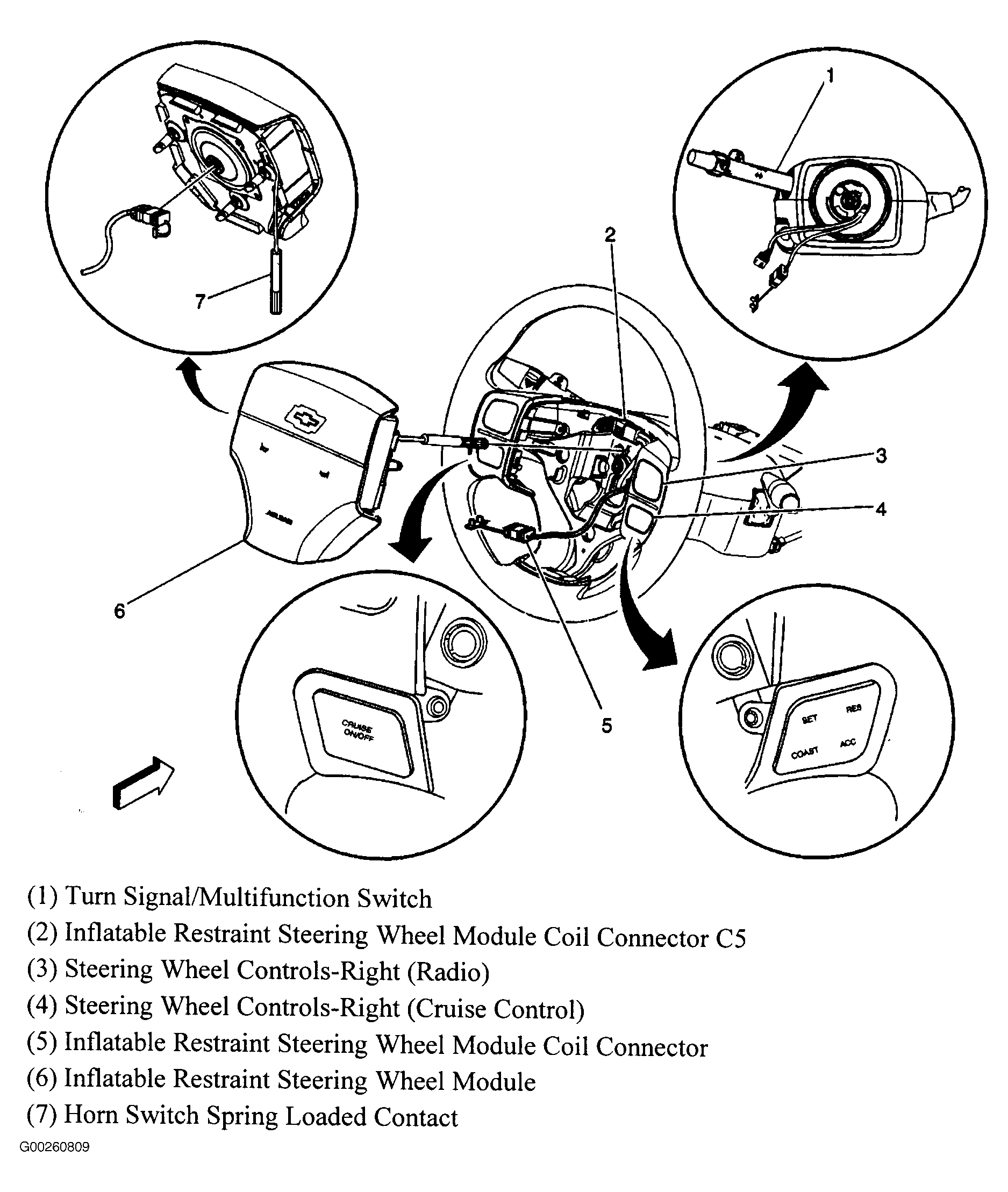

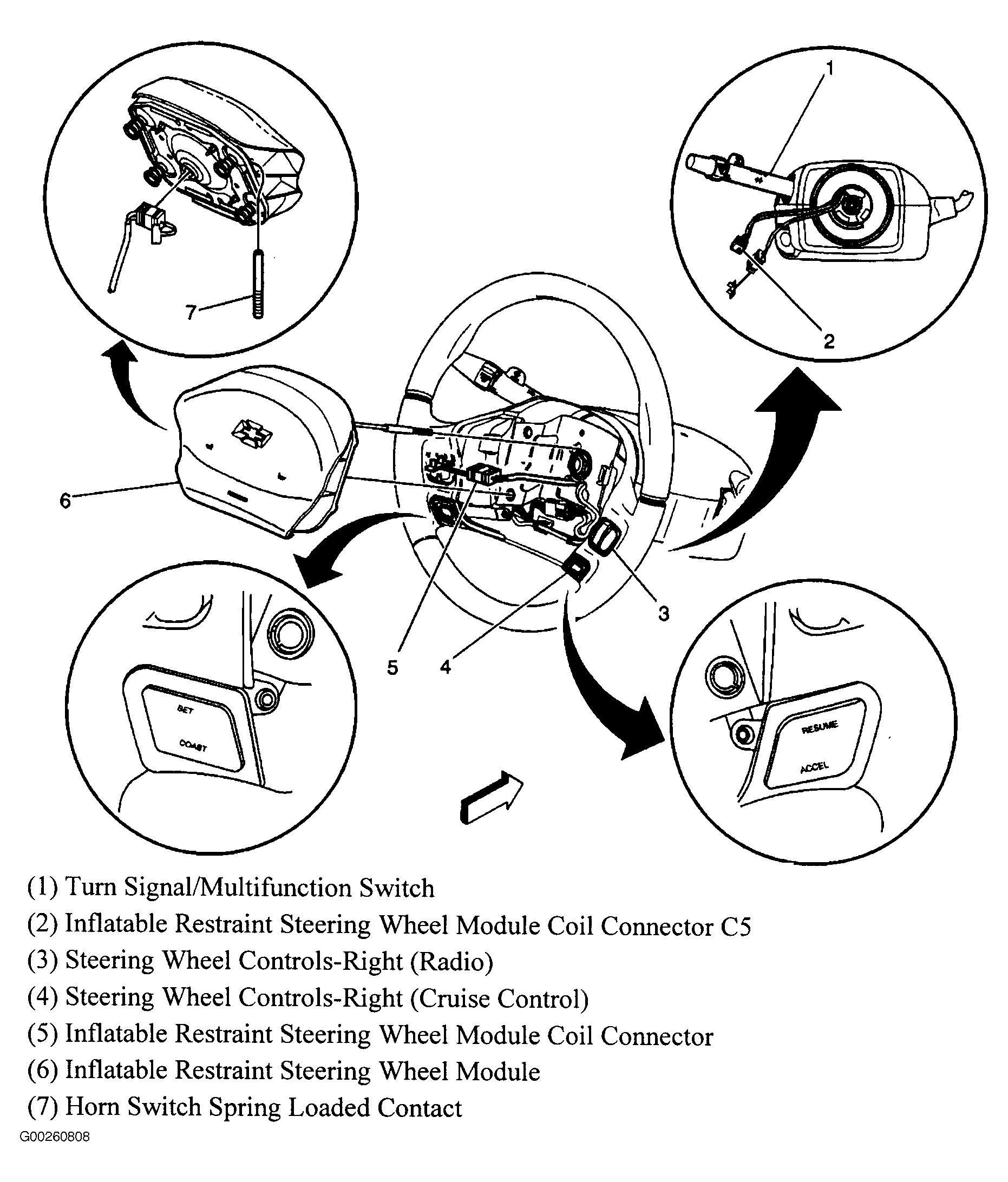

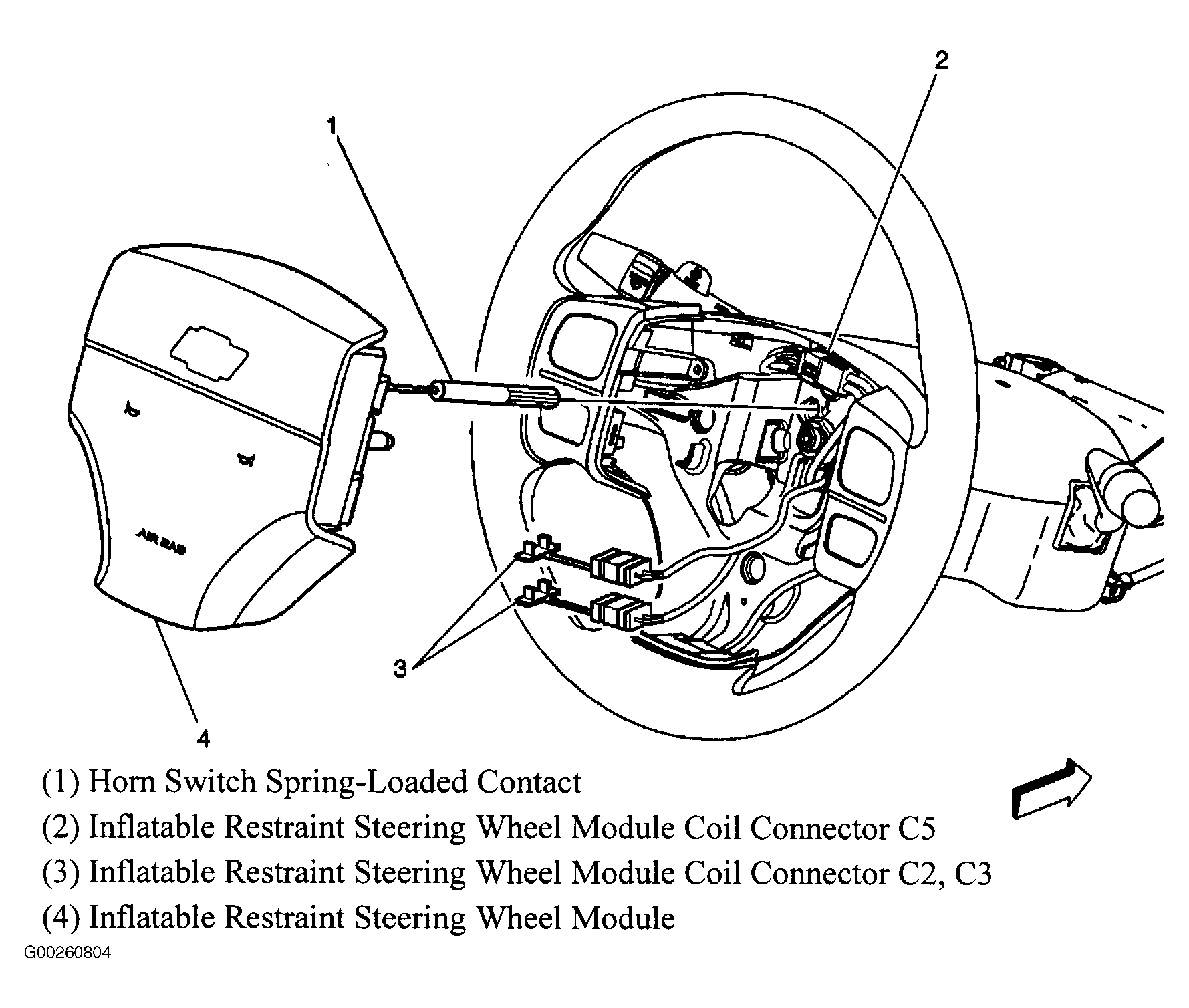

Fig 67: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

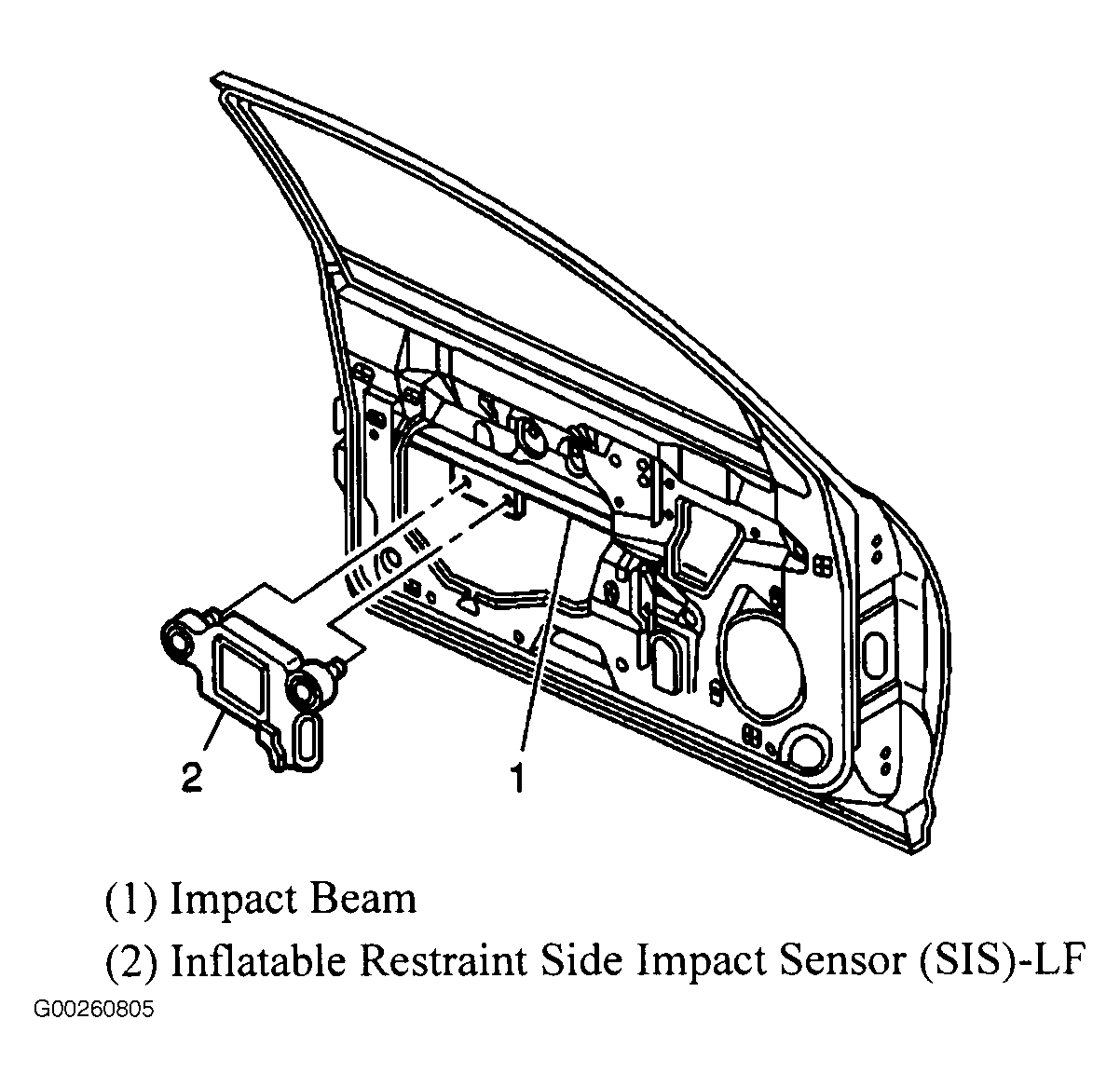

Fig 68: Left Door
Courtesy of GENERAL MOTORS CORP.
Fig 69: Steering Wheel (Impala)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Steering Wheel (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.

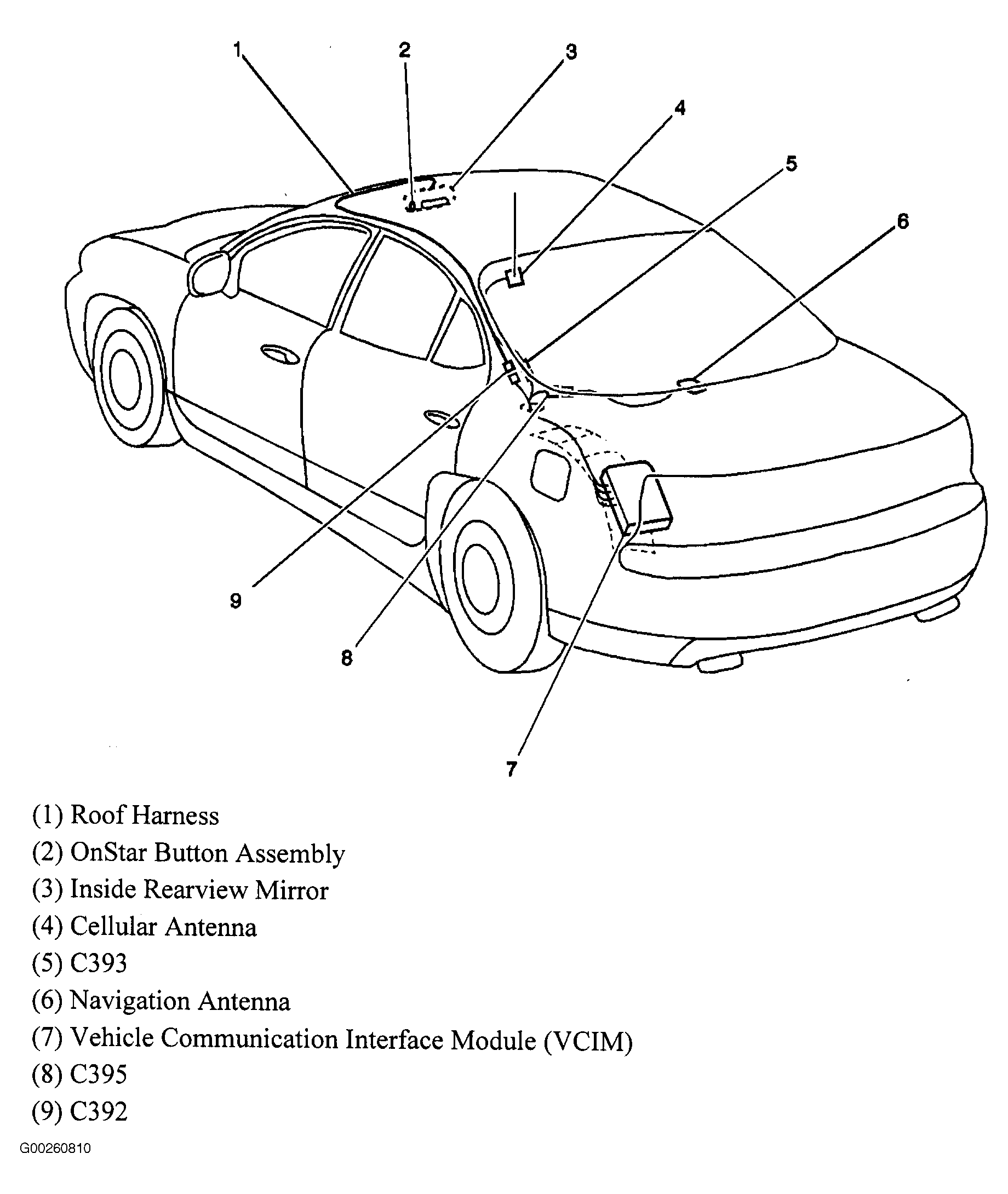

Fig 71: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Side Of Package Shelf
Courtesy of GENERAL MOTORS CORP.

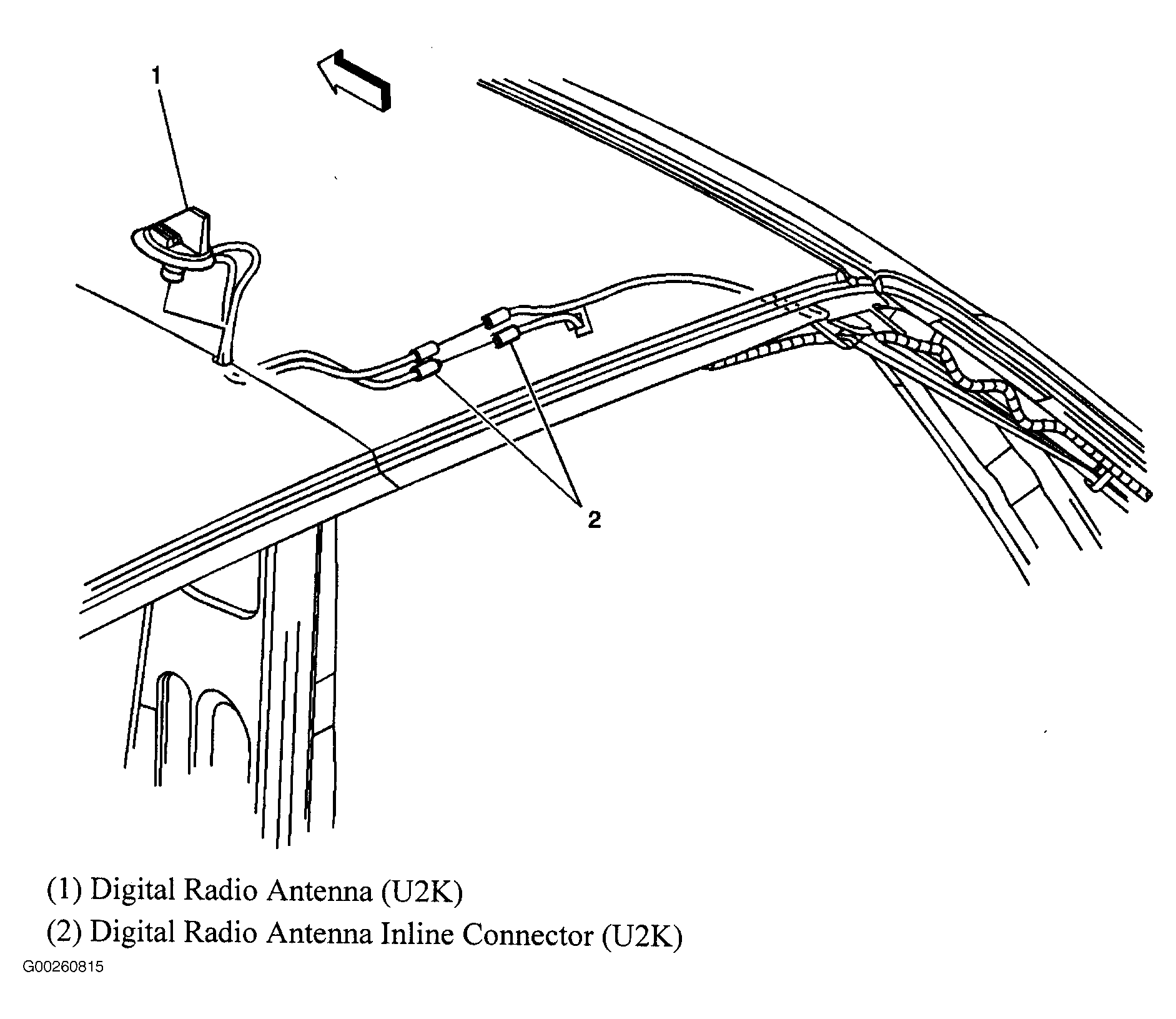

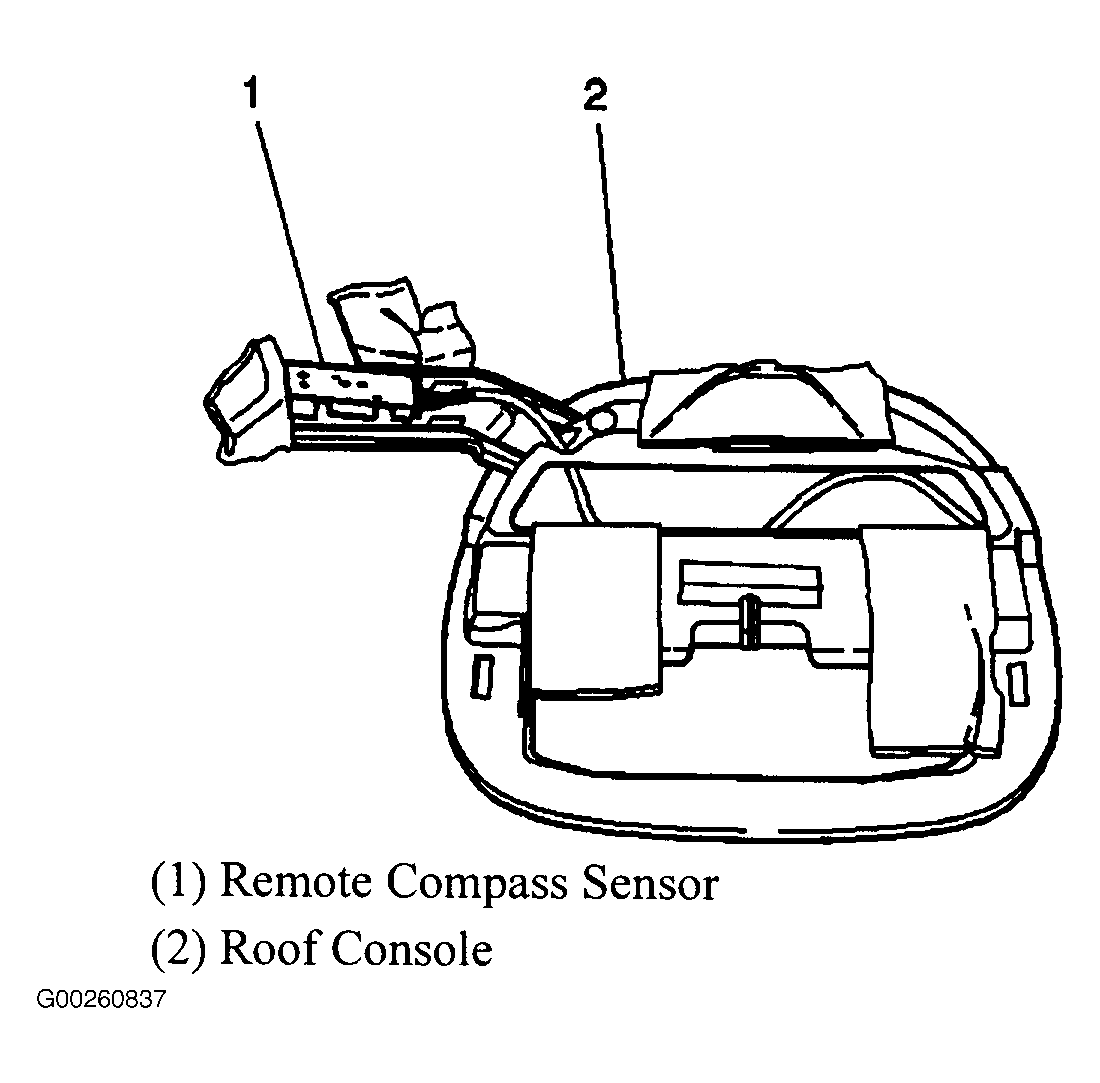

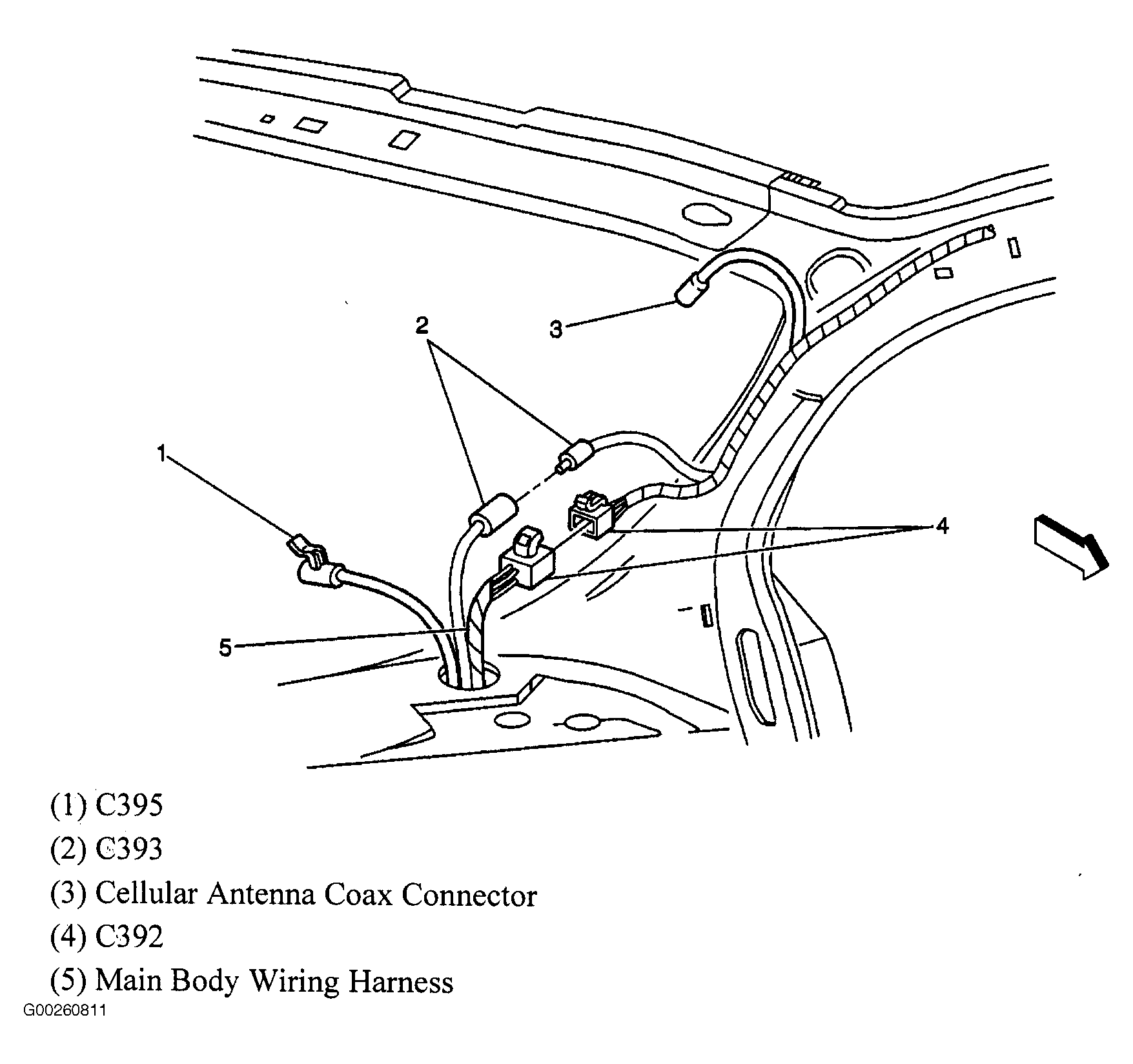

Fig 73: Rear Center Of Roof
Courtesy of GENERAL MOTORS CORP.

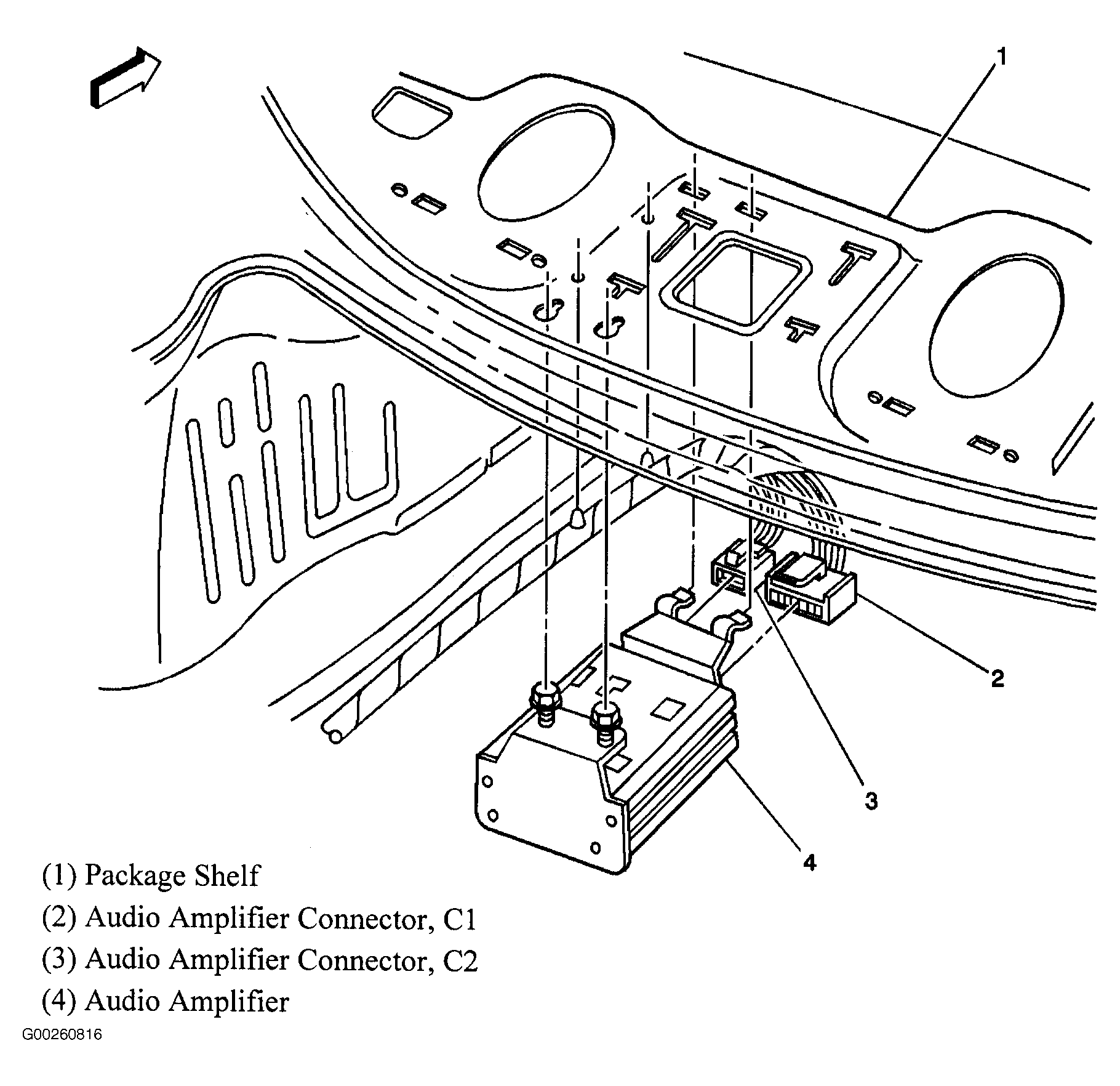

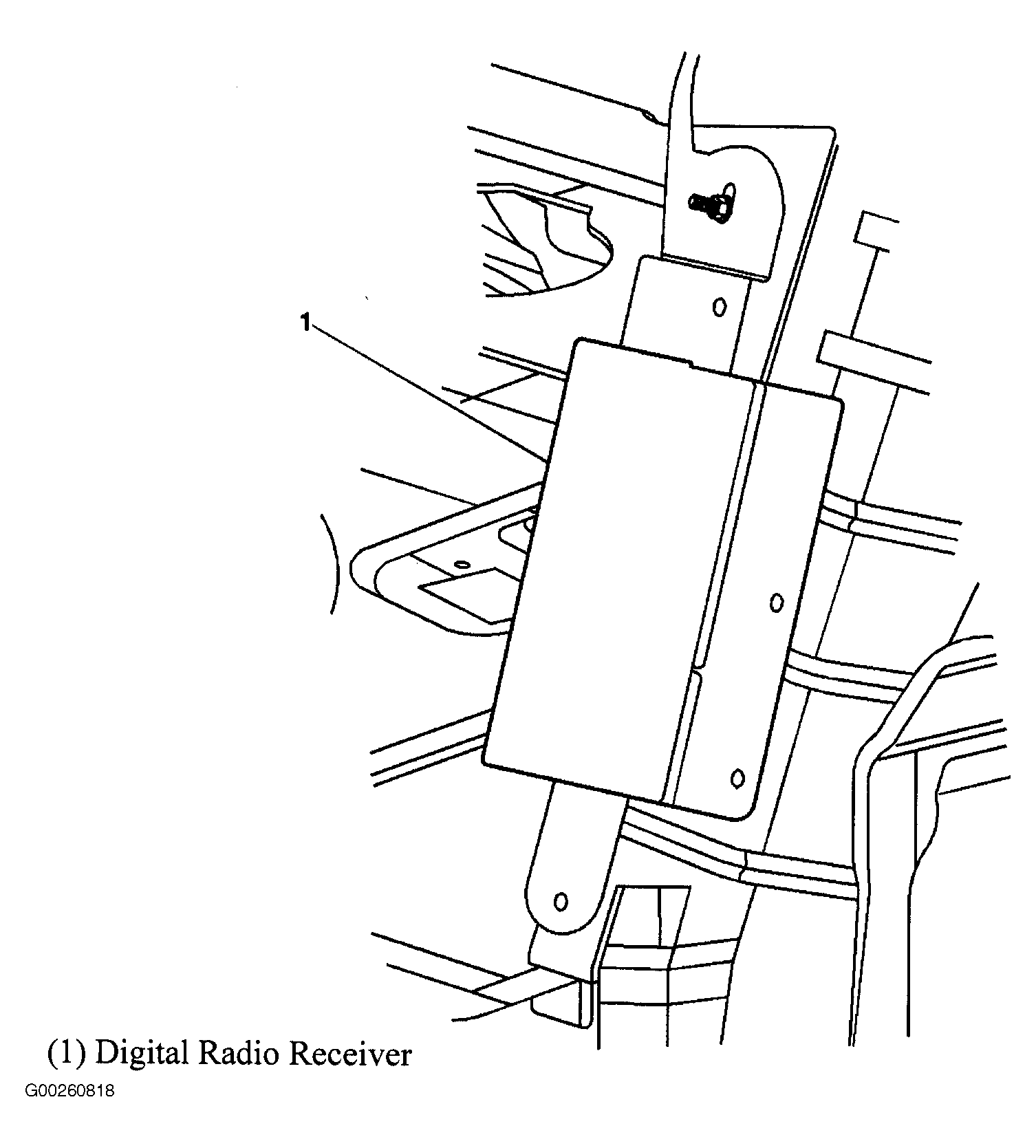

Fig 74: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

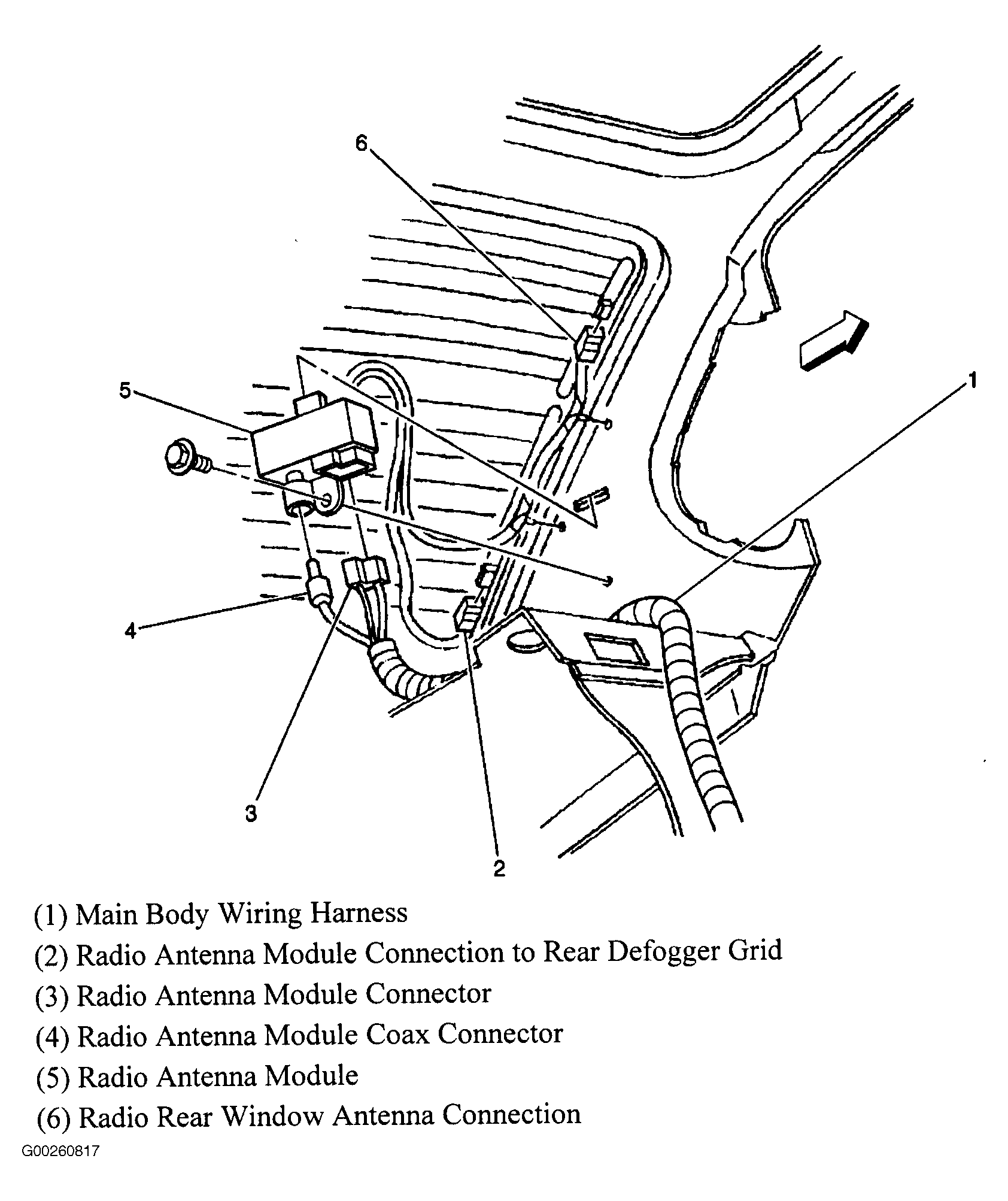

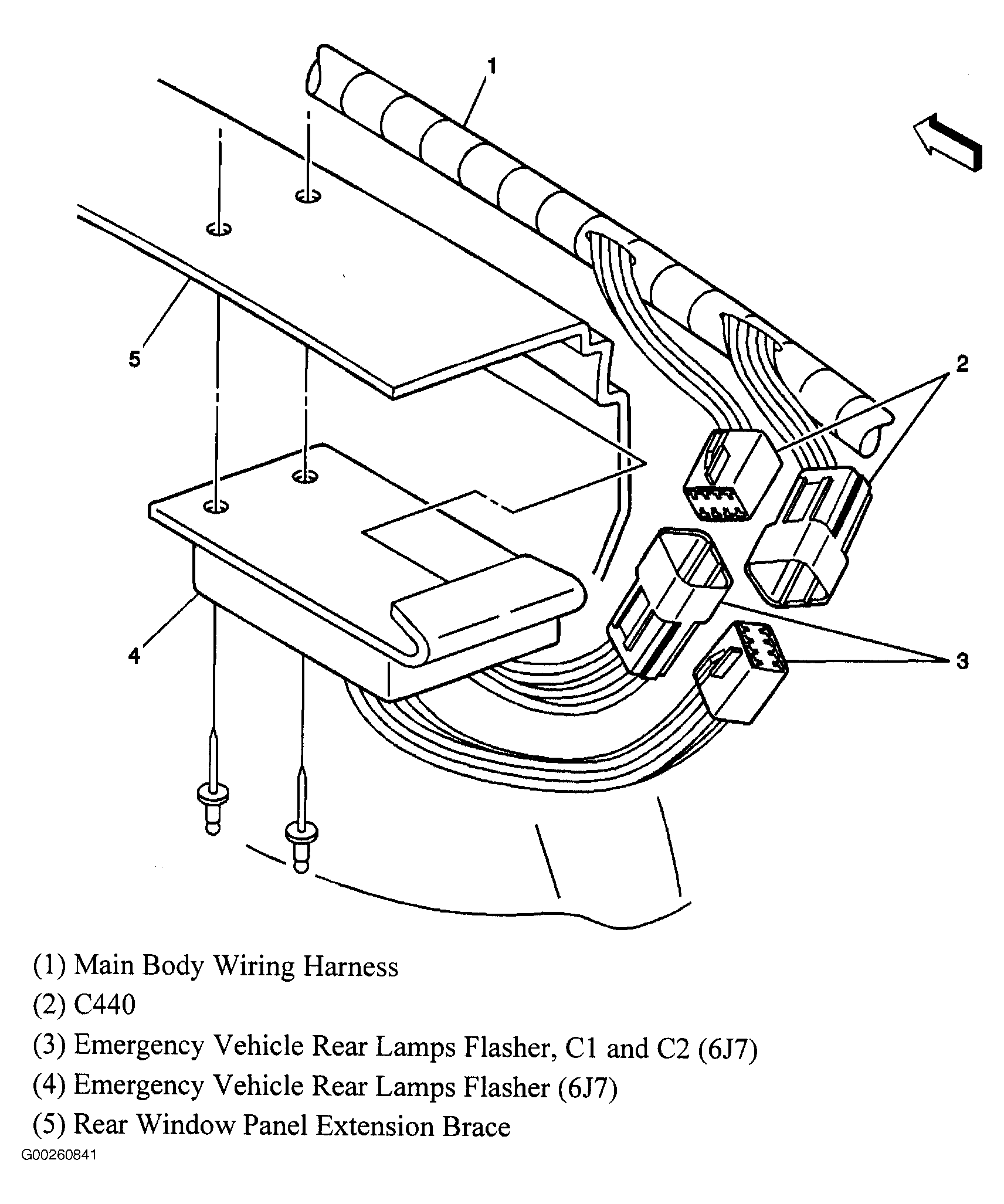

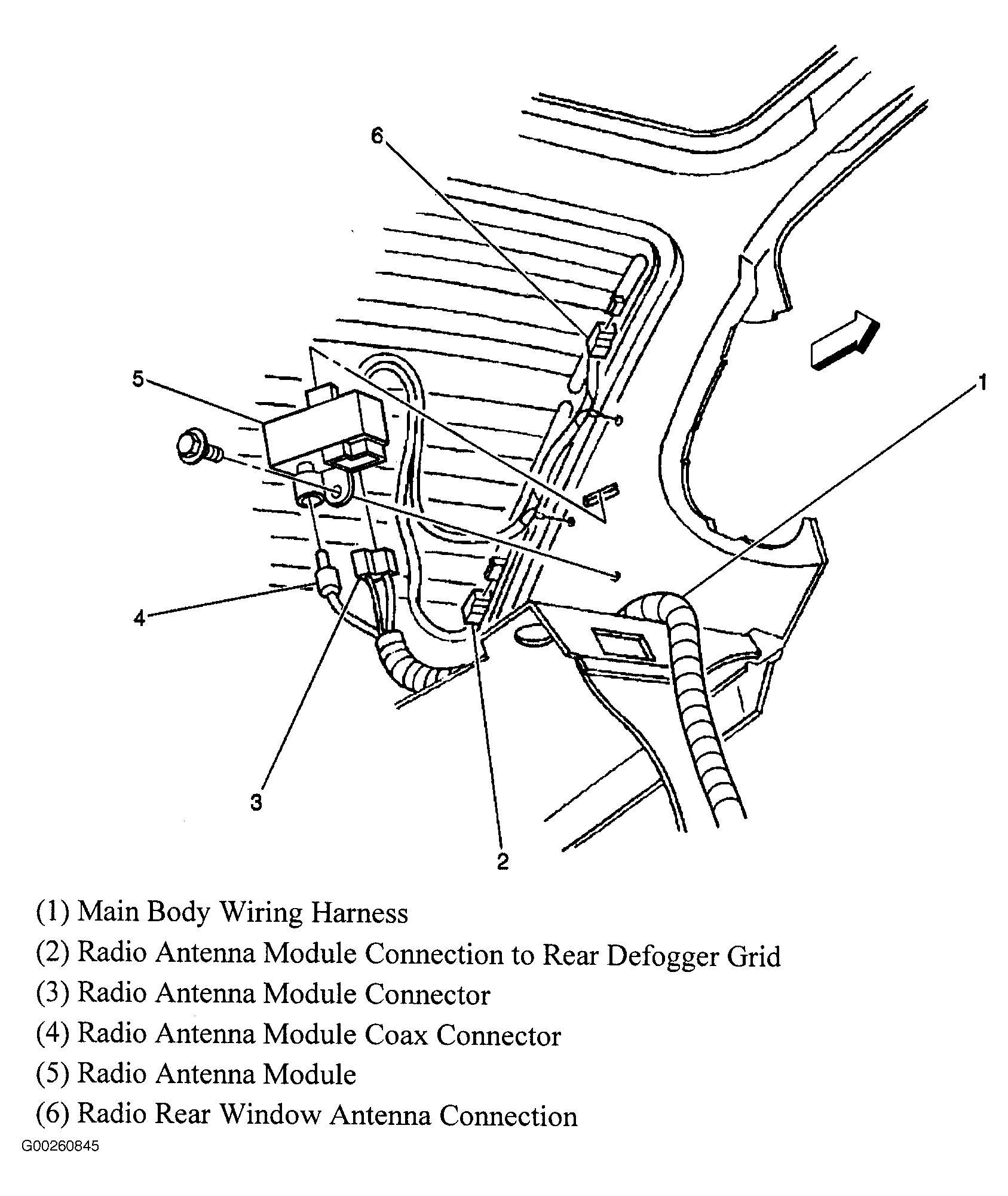

Fig 75: Left Side Of Rear Window
Courtesy of GENERAL MOTORS CORP.
Fig 76: Rear Of Right Rear Wheelwell
Courtesy of GENERAL MOTORS CORP.

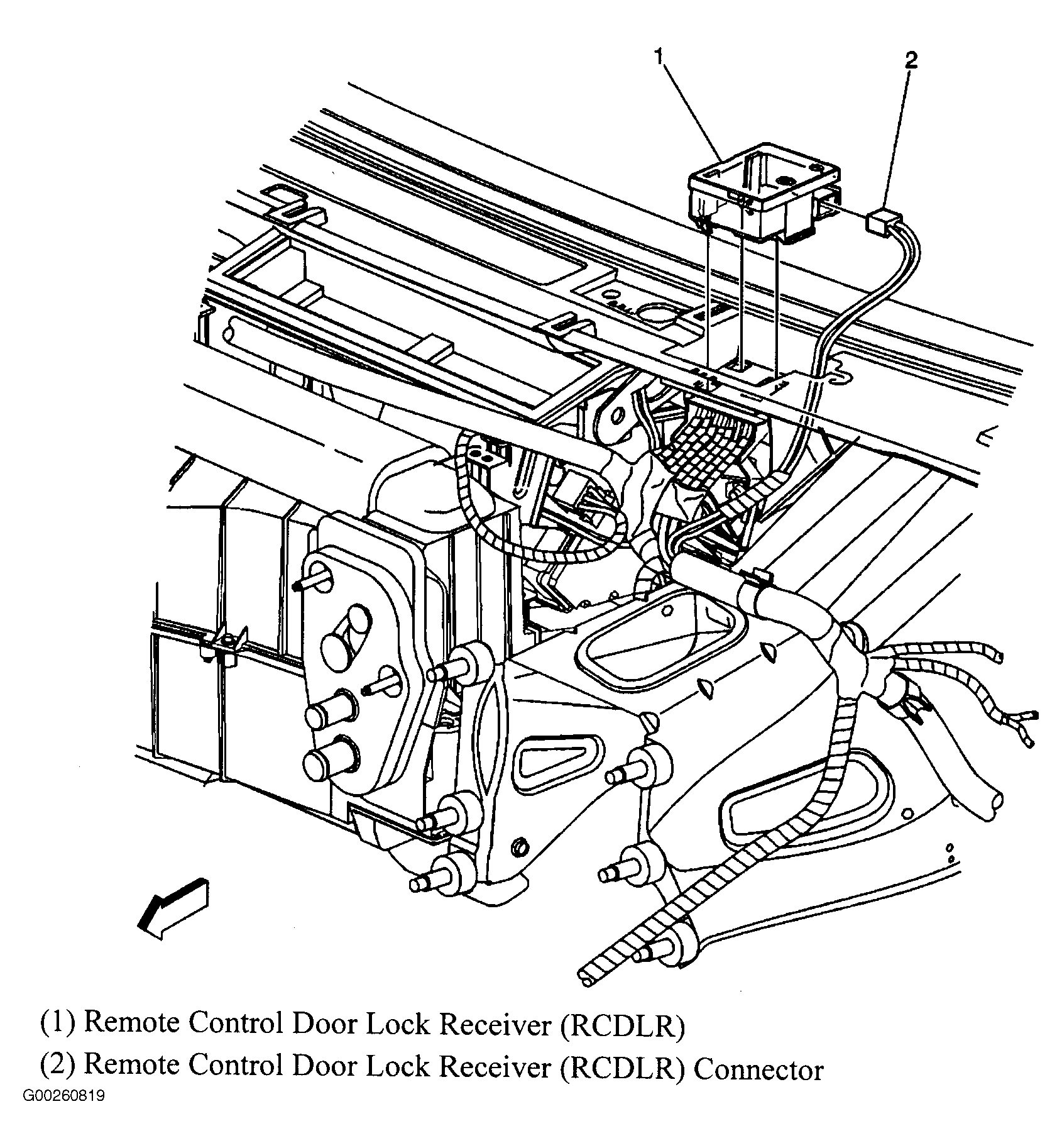

Fig 77: Keyless Entry Components
Courtesy of GENERAL MOTORS CORP.
Fig 78: Left Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

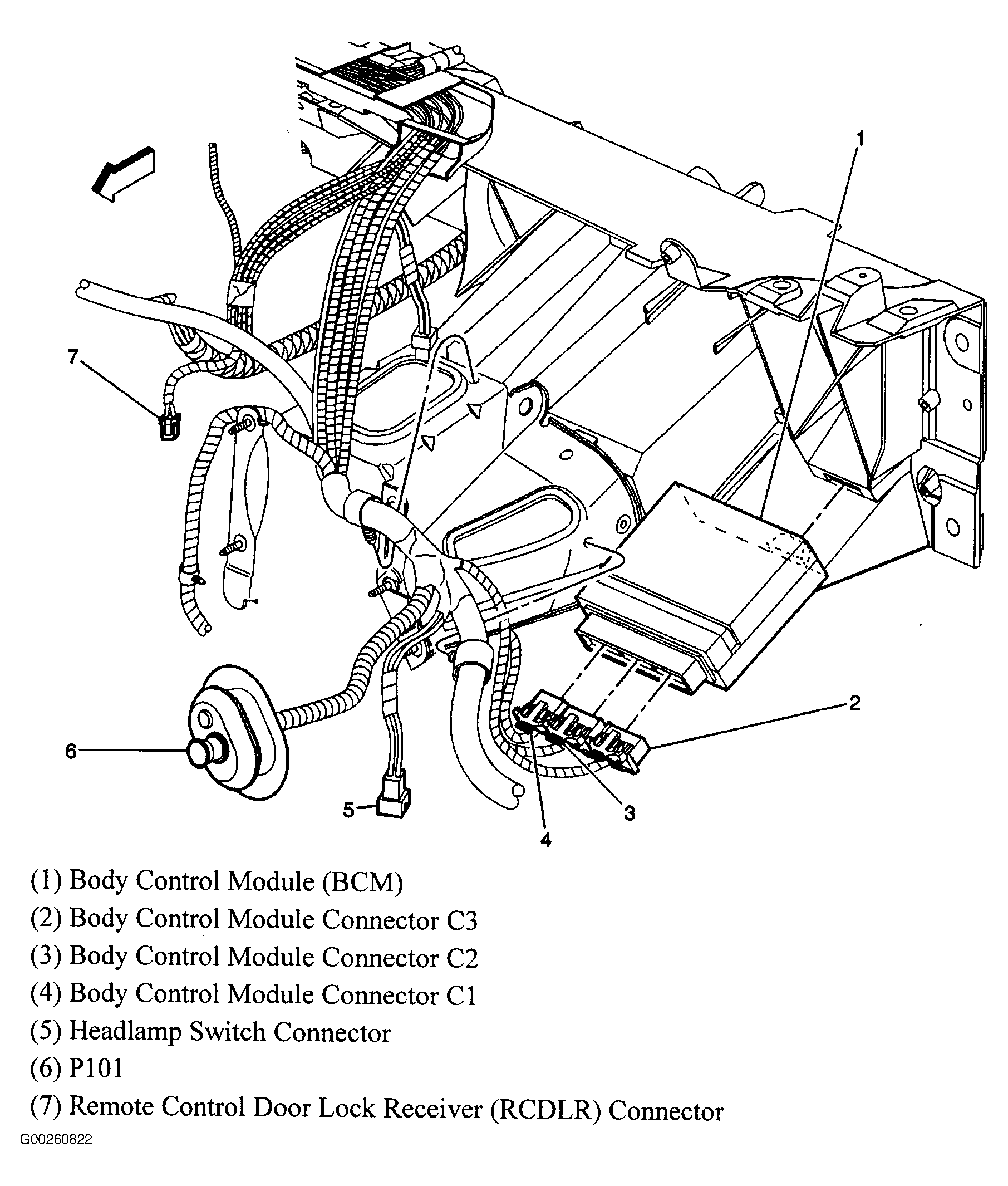

Fig 79: Body Control System Components
Courtesy of GENERAL MOTORS CORP.

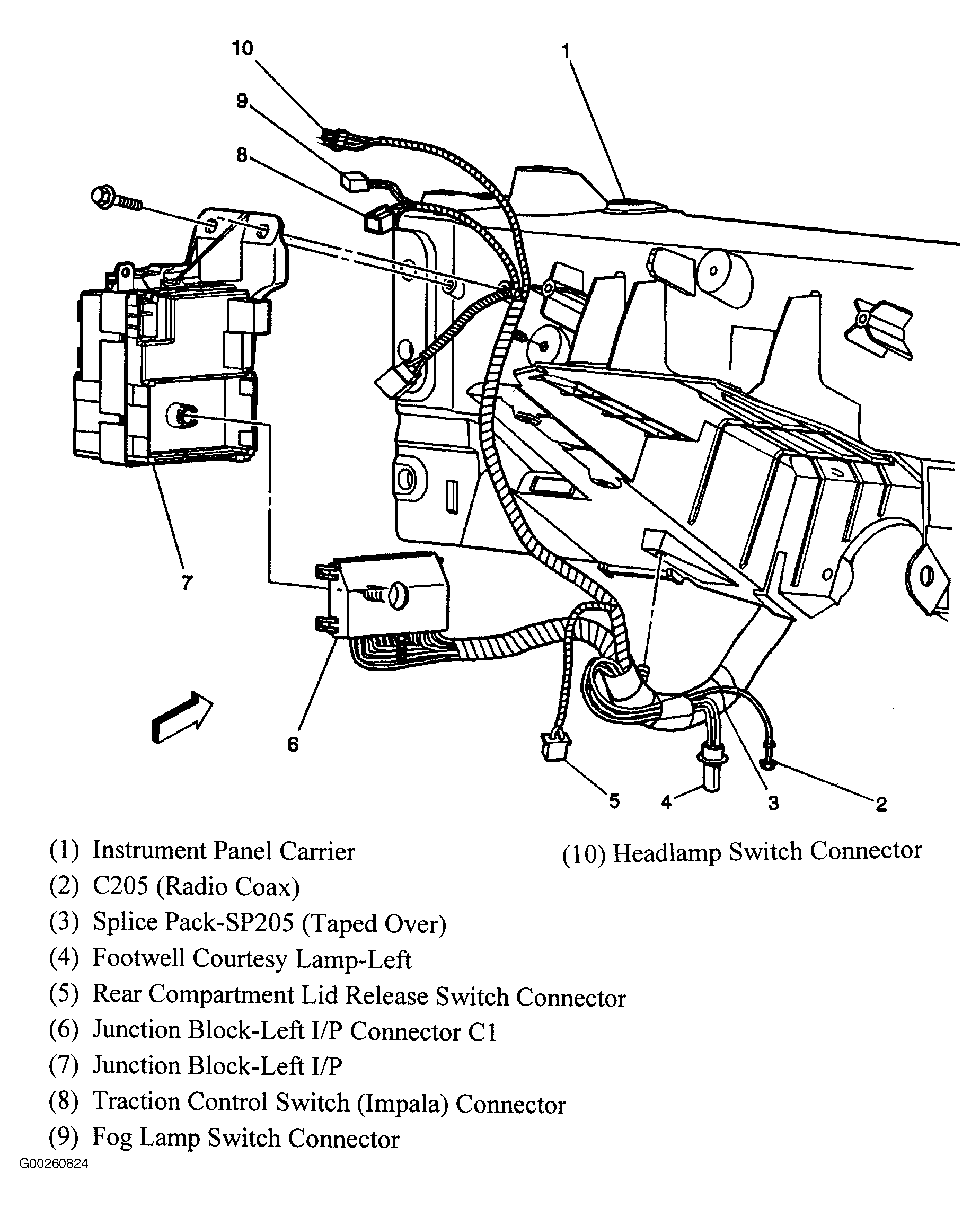

Fig 80: Left Side Of Instrument Panel Support
Courtesy of GENERAL MOTORS CORP.

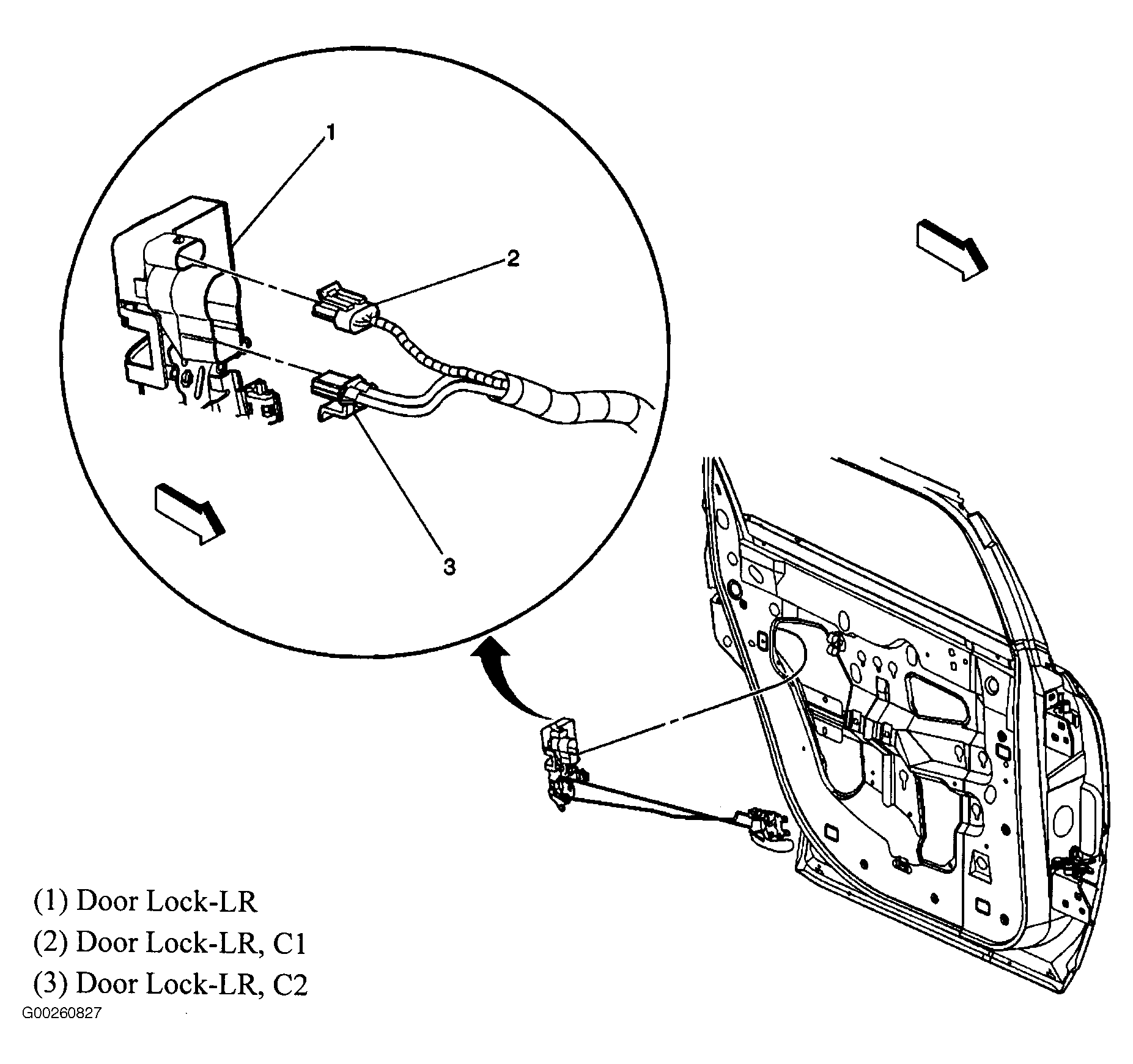

Fig 81: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

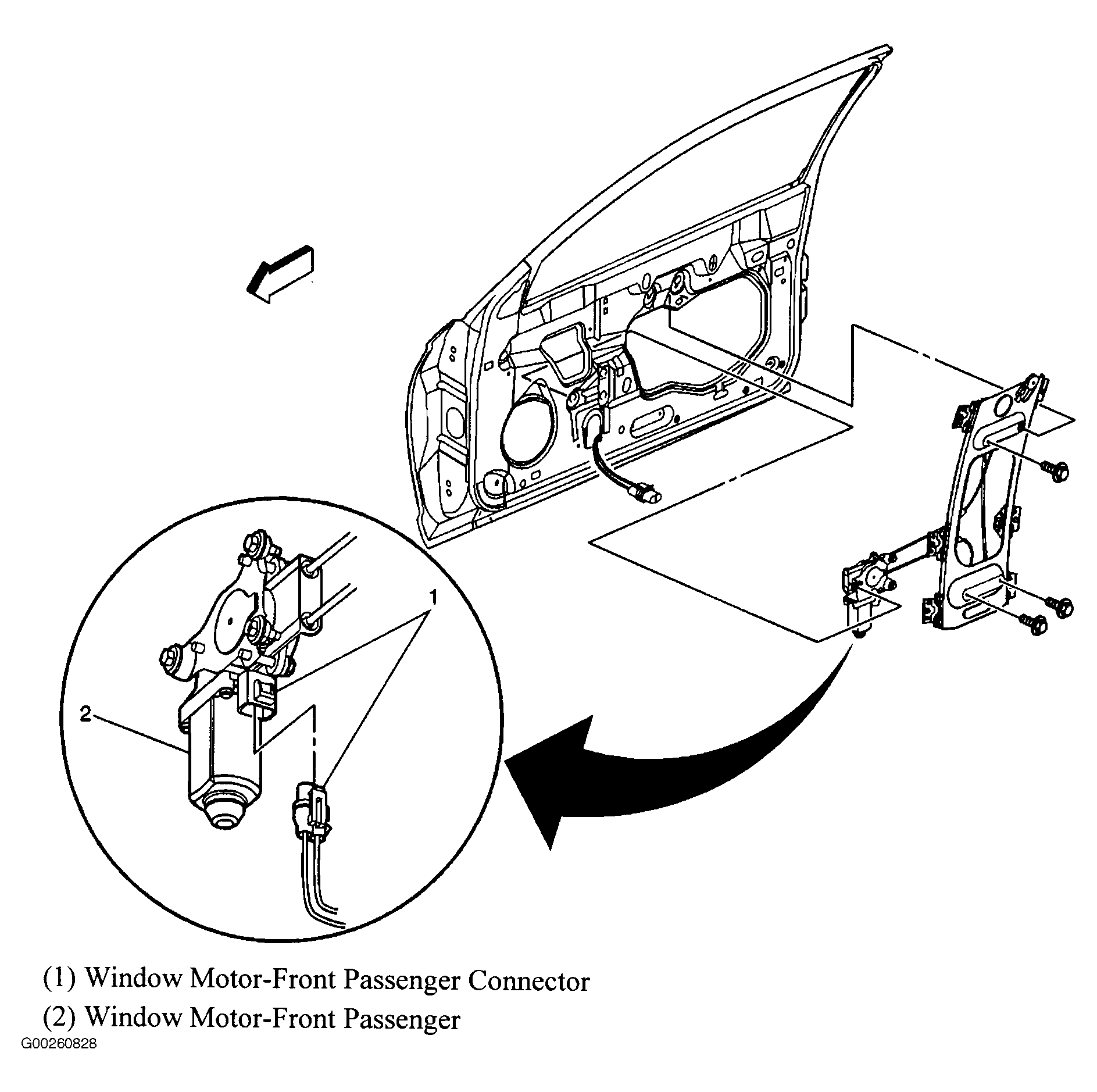

Fig 82: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

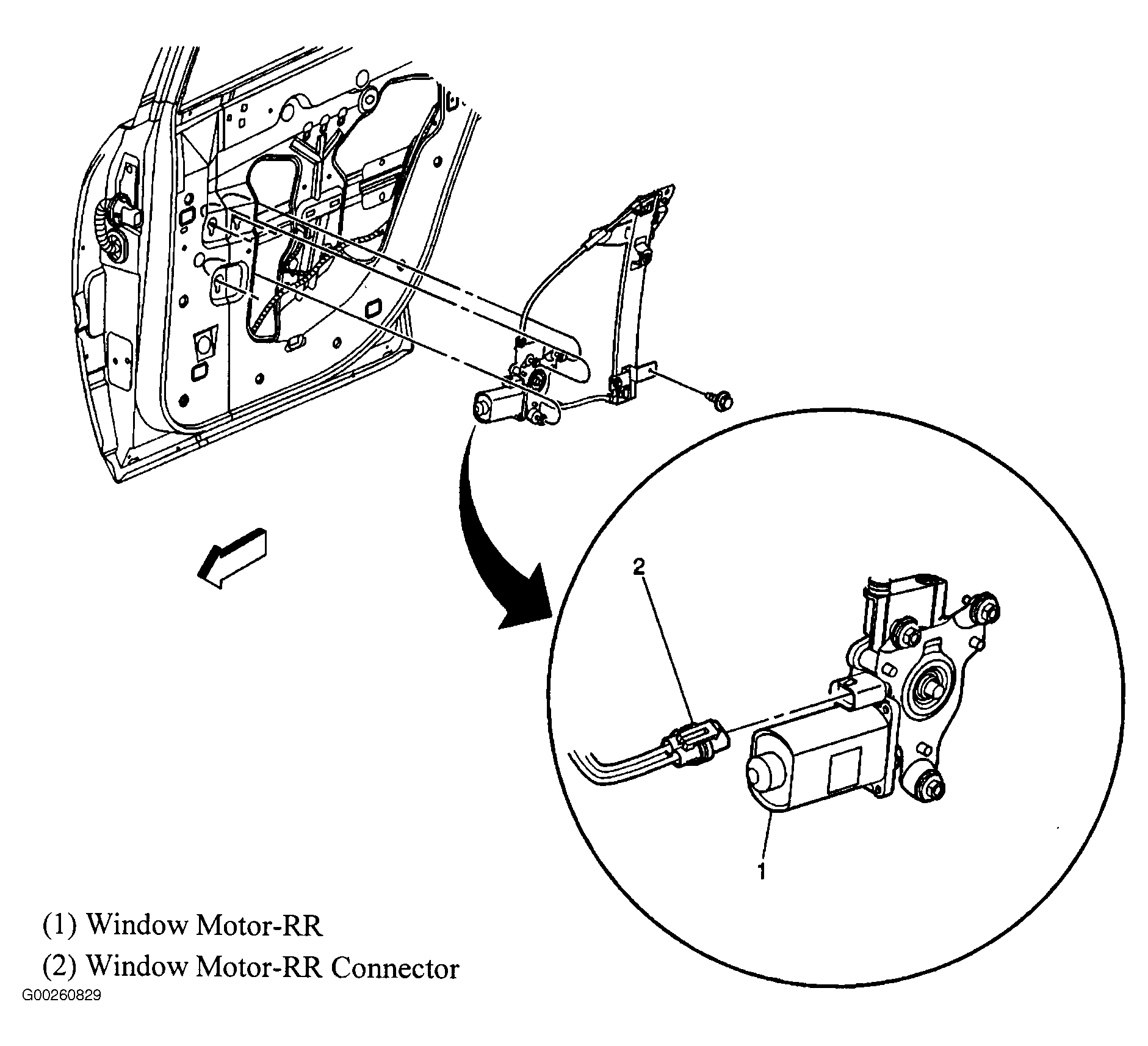

Fig 83: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 84: Lower Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 85: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 86: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 87: Driver Information Center
Courtesy of GENERAL MOTORS CORP.

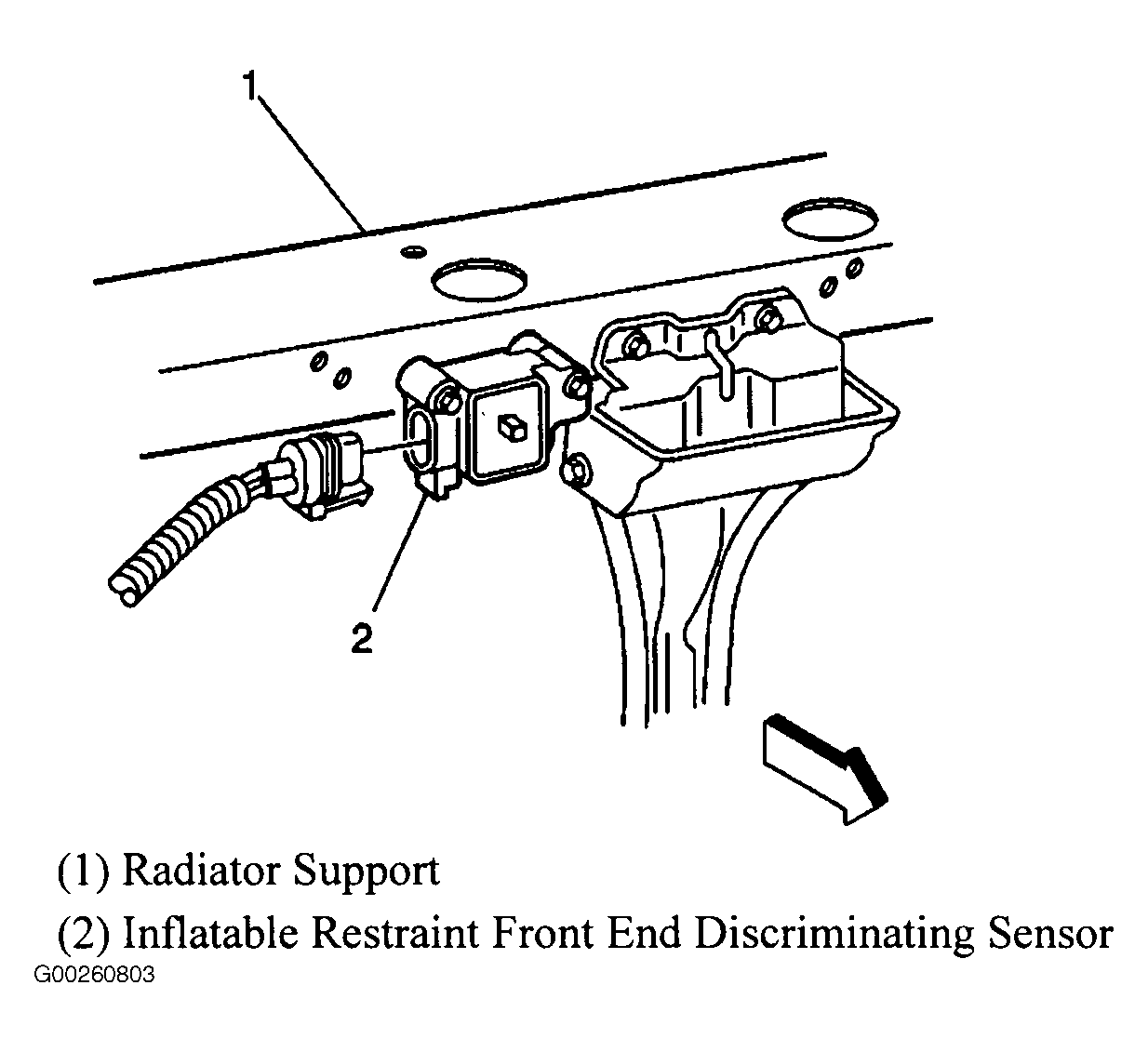

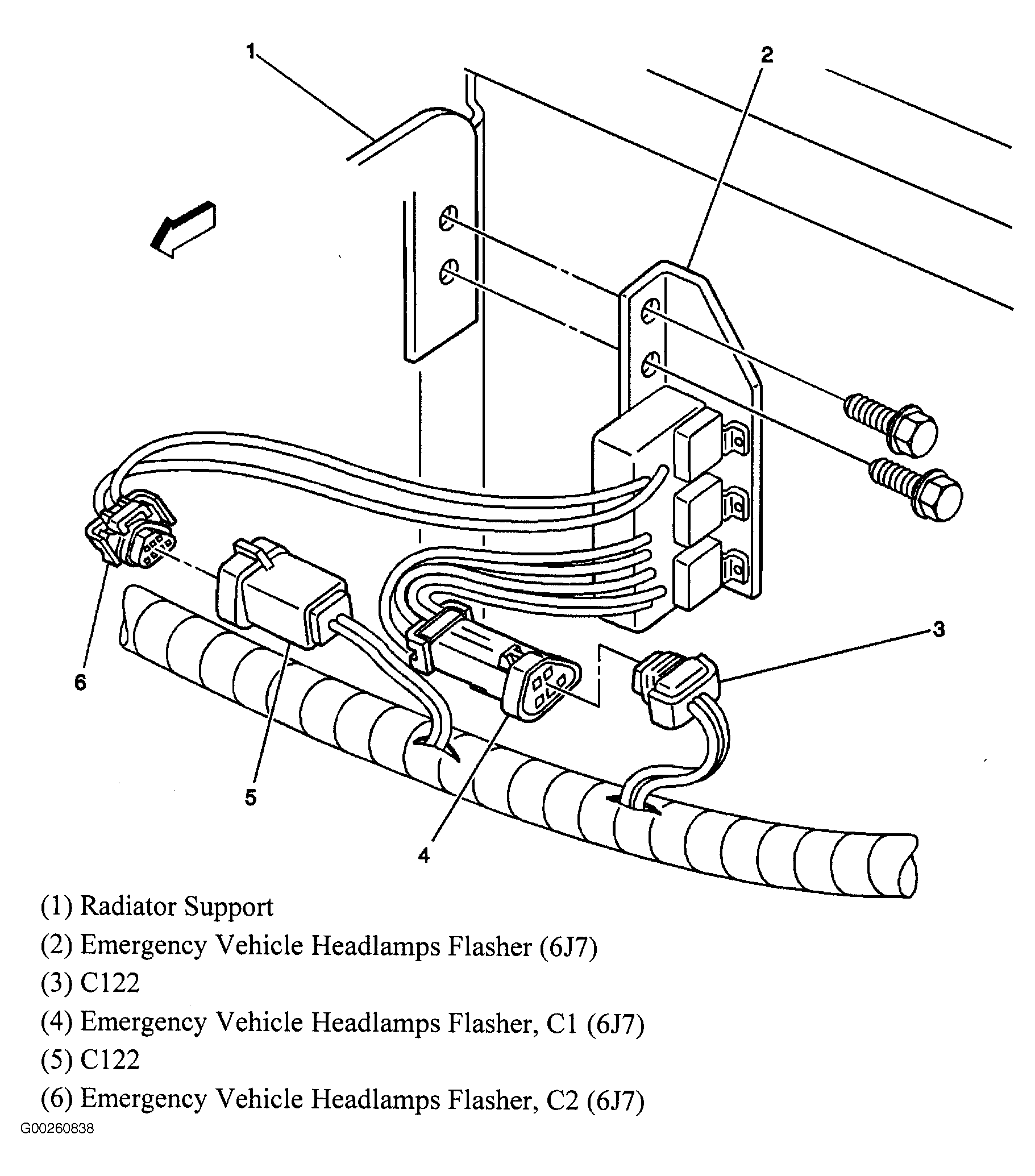

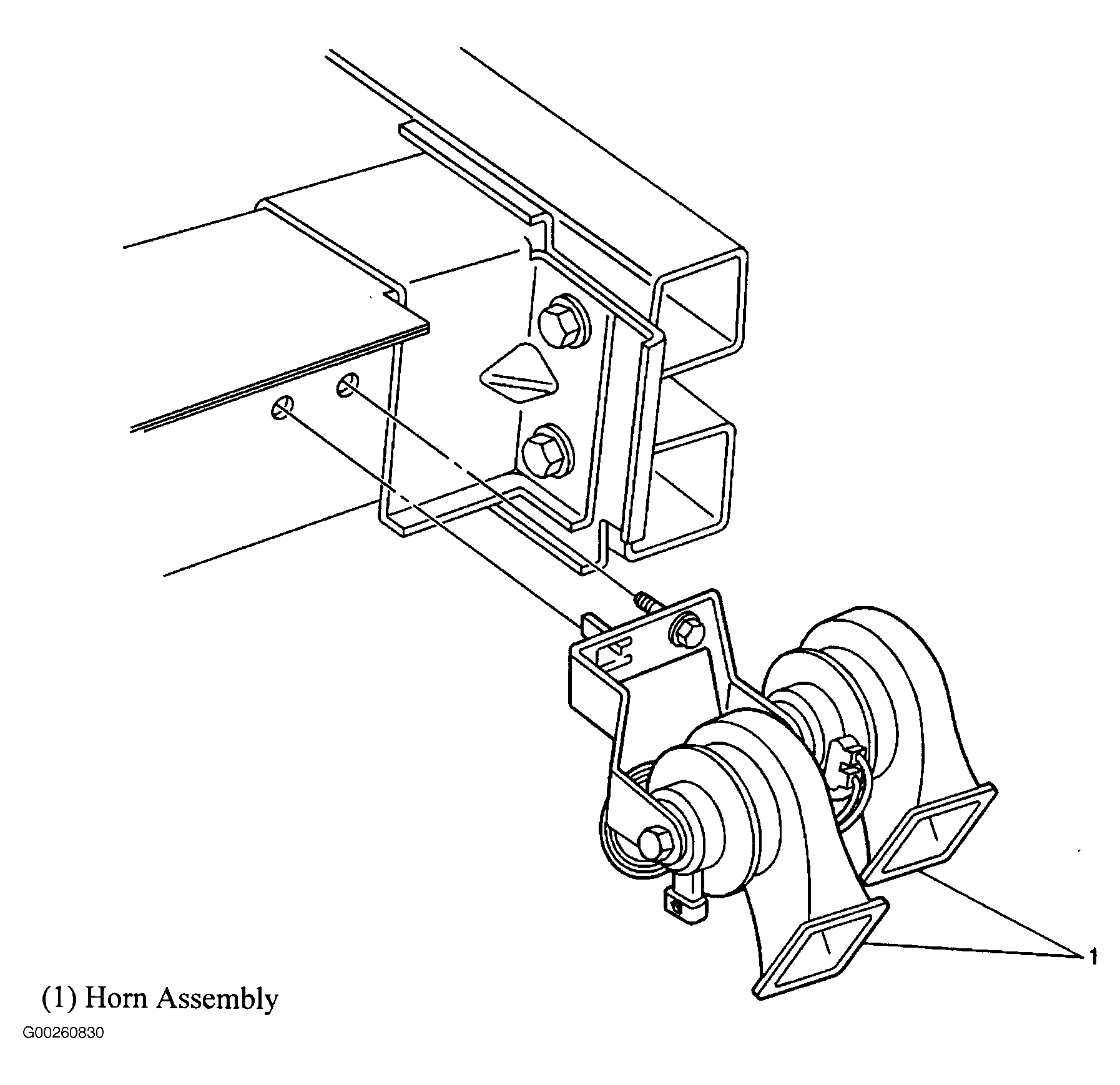

Fig 88: Forward Of Radiator Support
Courtesy of GENERAL MOTORS CORP.

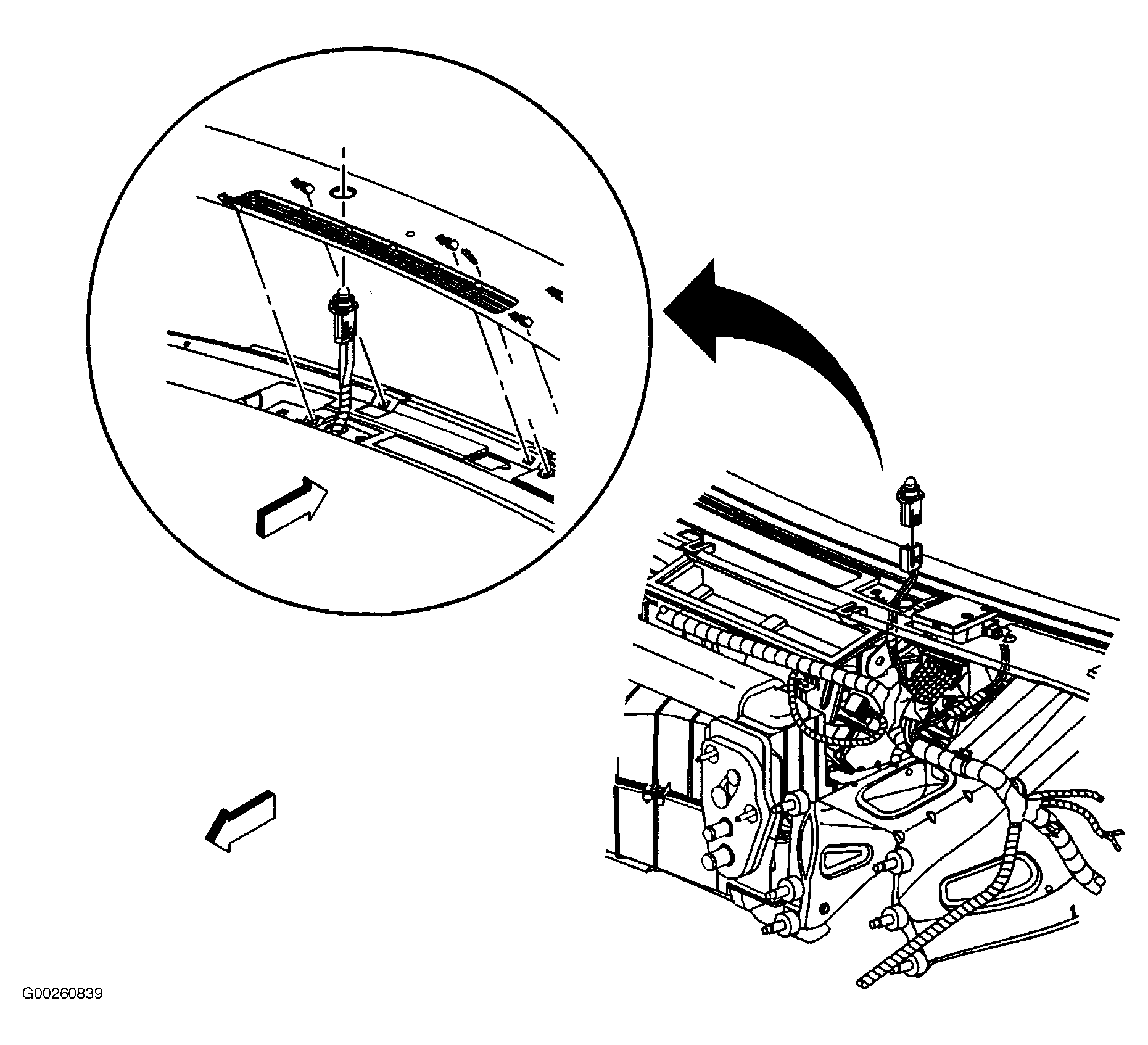

Fig 89: Top Of Dash
Courtesy of GENERAL MOTORS CORP.

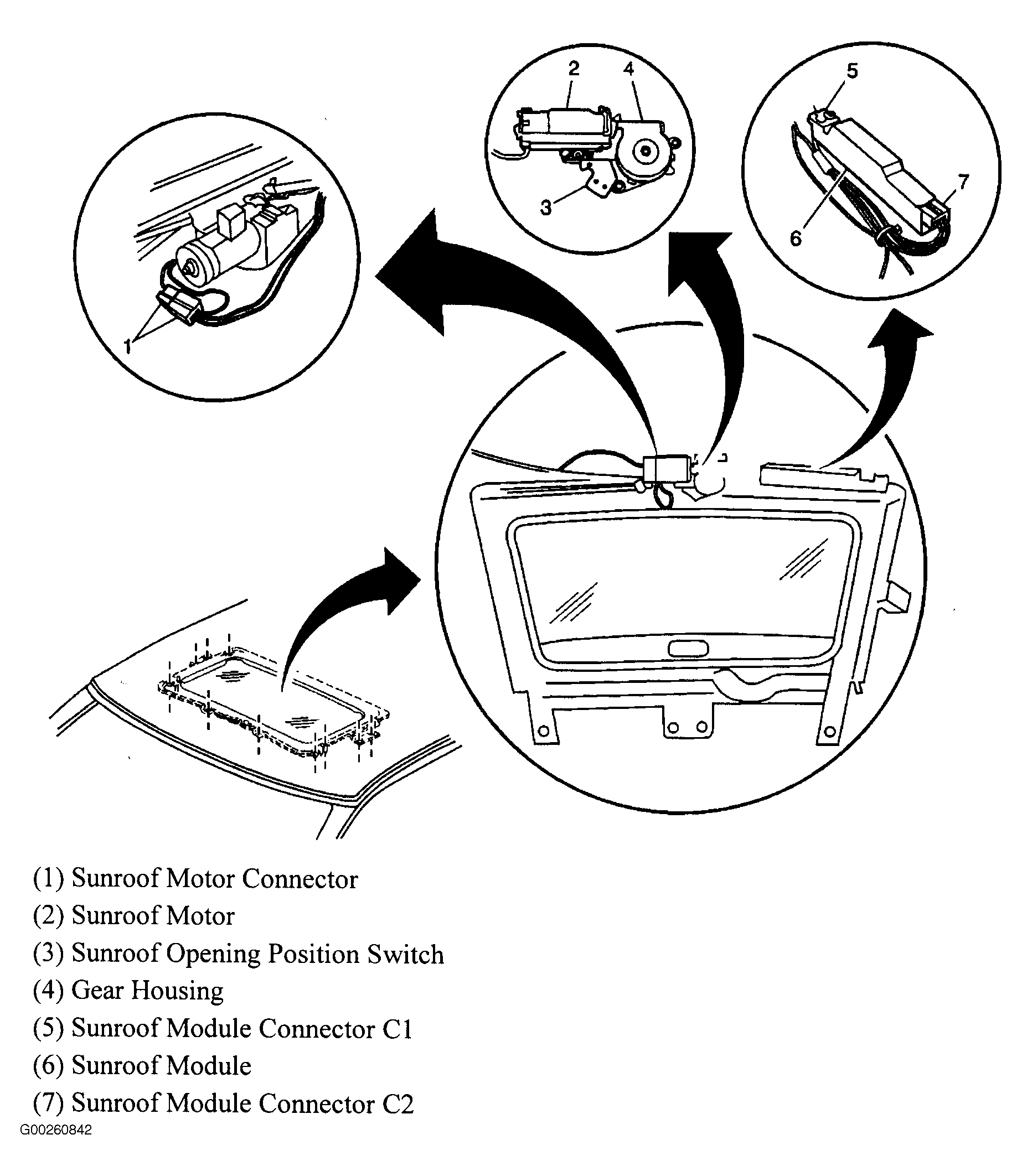

Fig 90: Sunroof System
Courtesy of GENERAL MOTORS CORP.

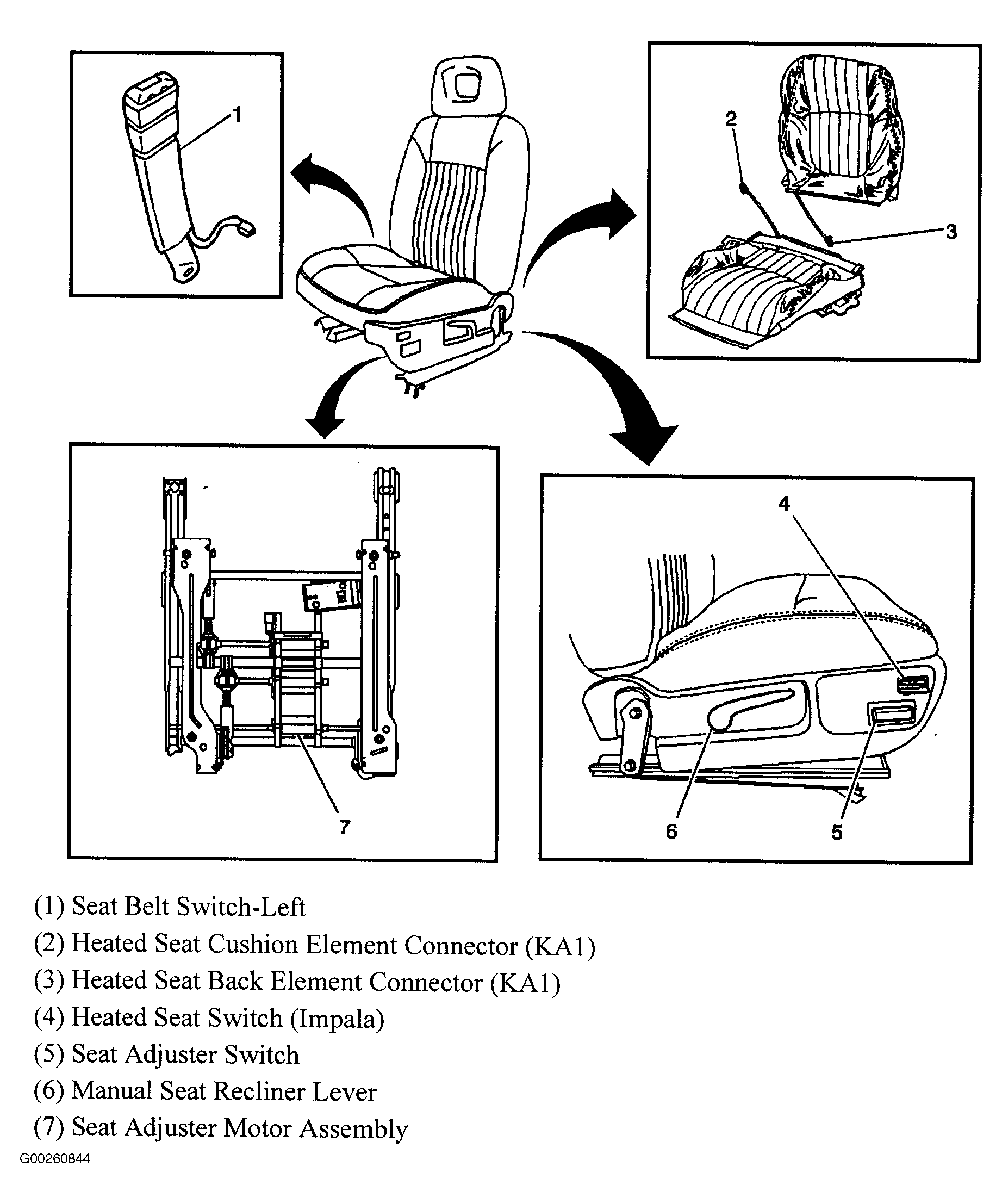

Fig 91: Heated/Power Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 92: Left Side Of Rear Window
Courtesy of GENERAL MOTORS CORP.
Fig 93: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

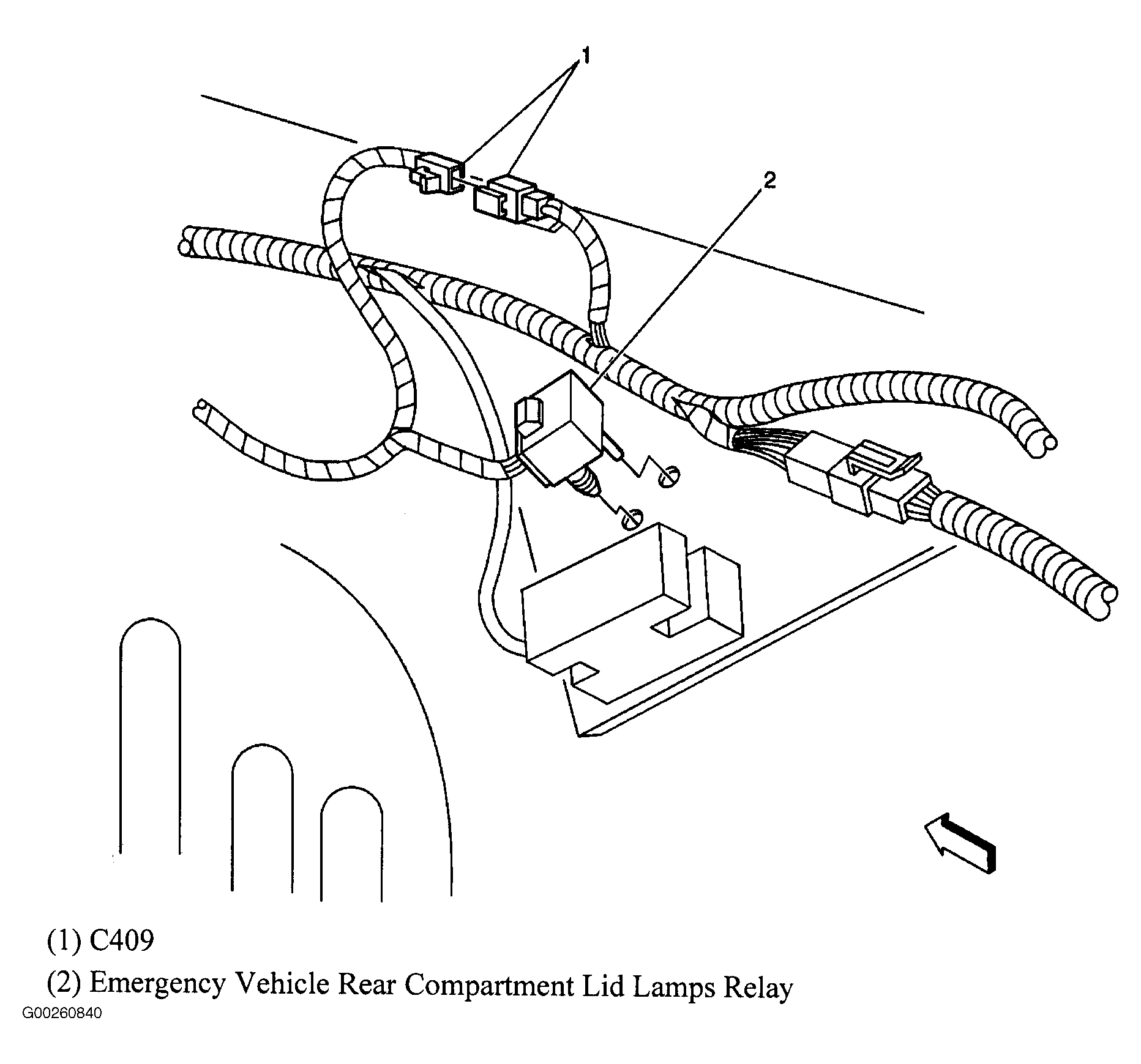

Fig 94: Right Front Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 95: Upper Right Front Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

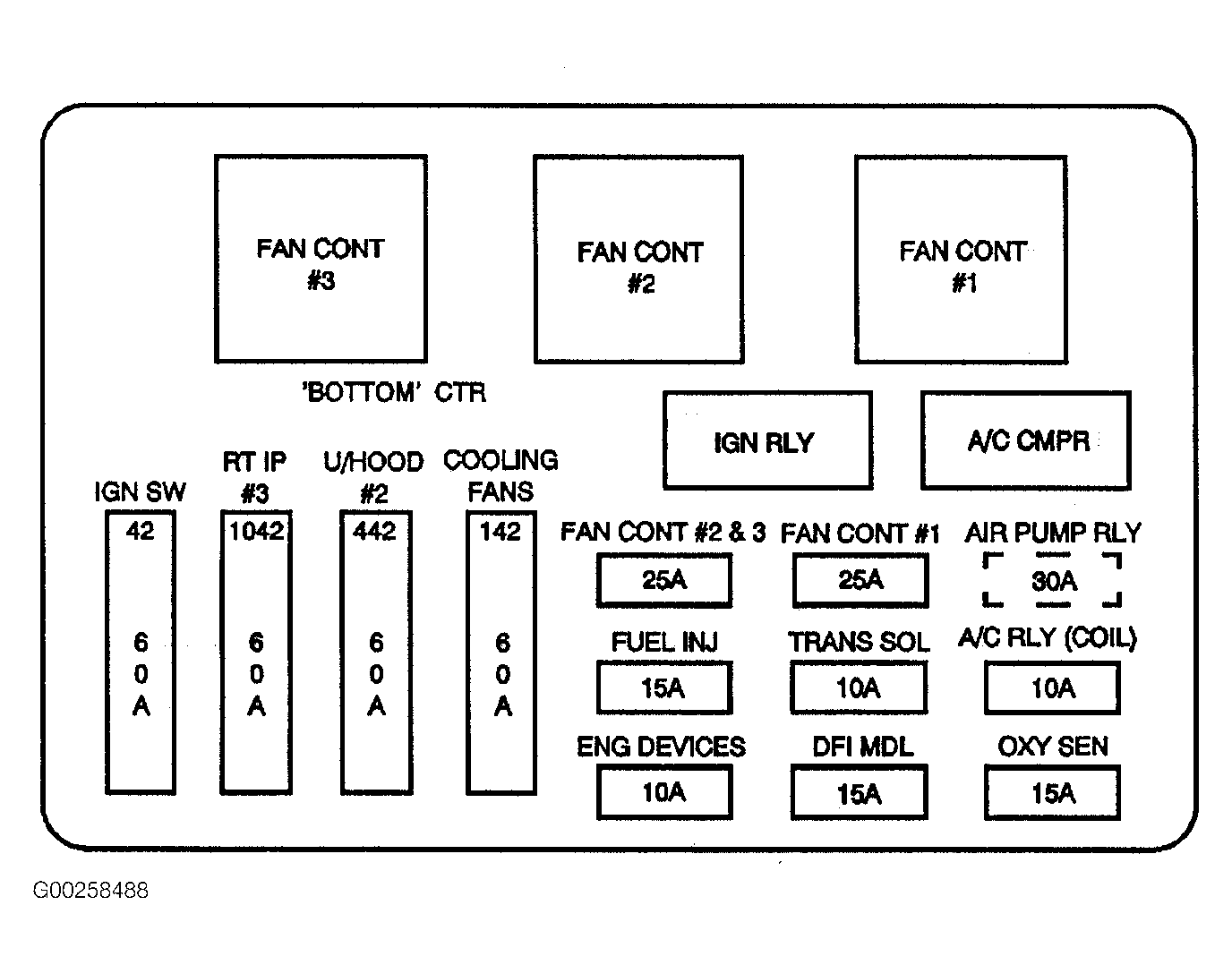

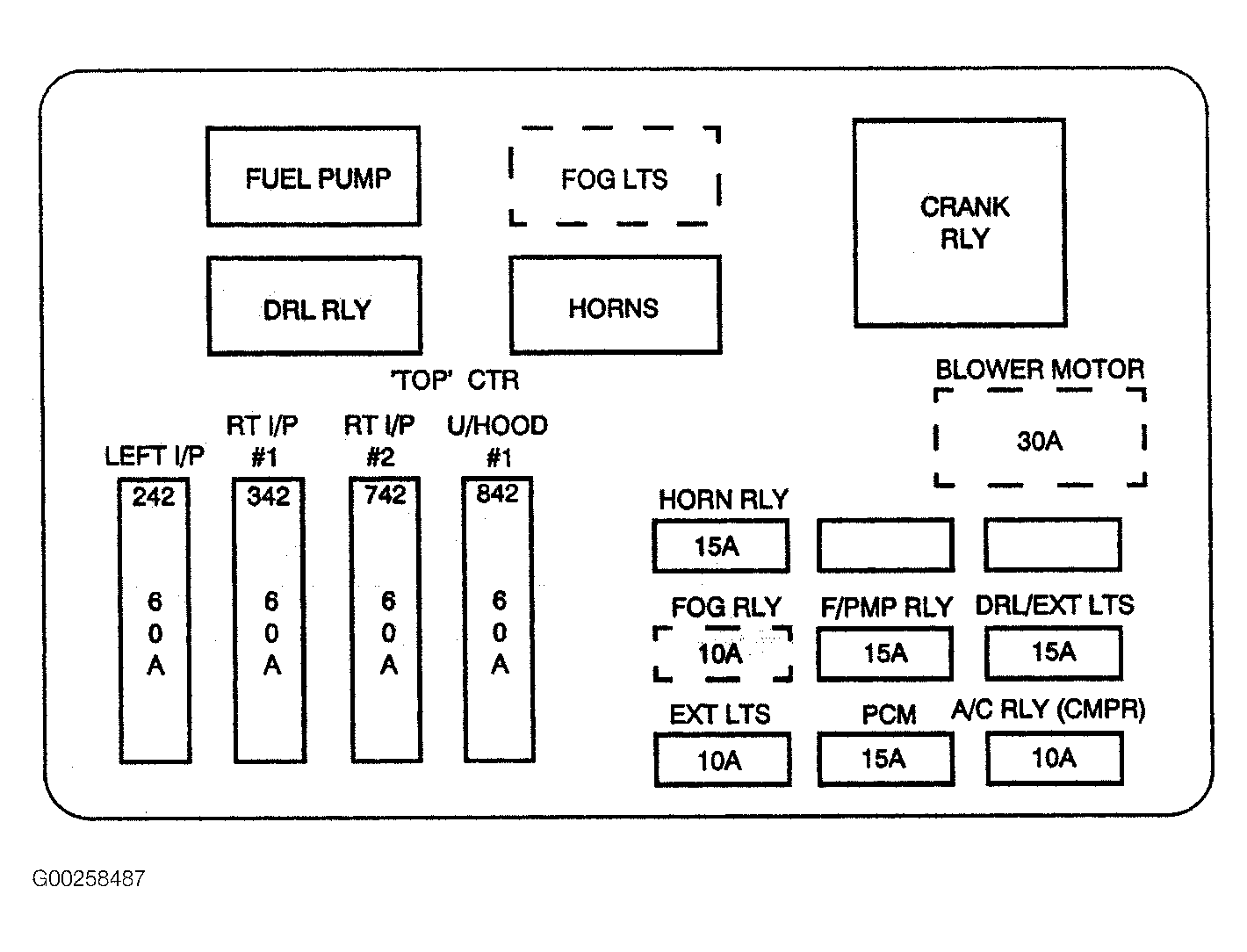

Fig 96: Underhood Junction Block-Top
Courtesy of GENERAL MOTORS CORP.
Fig 97: Underhood Junction Block-Bottom
Courtesy of GENERAL MOTORS CORP.

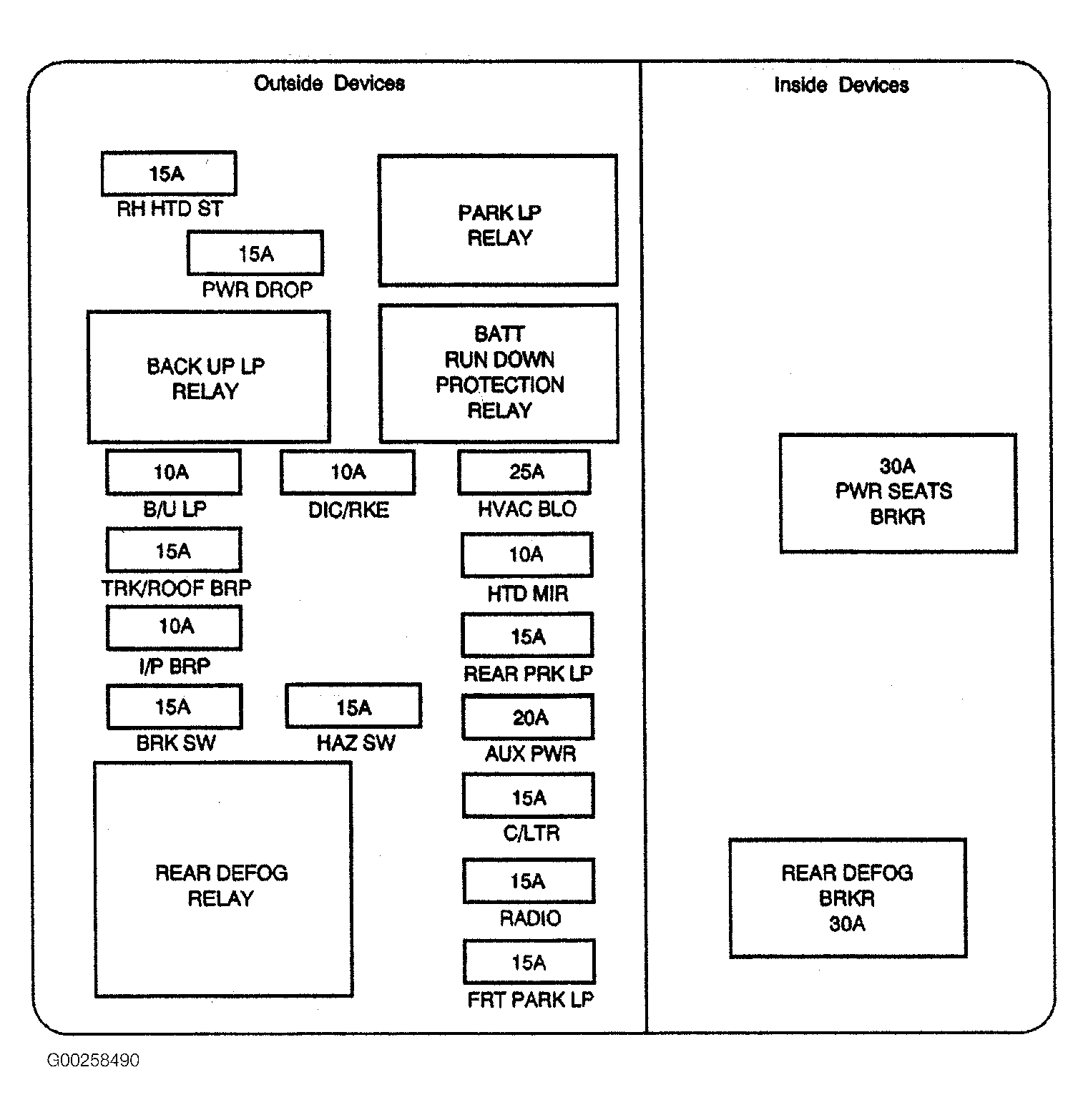

Fig 98: Instrument Panel Junction Block-Left
Courtesy of GENERAL MOTORS CORP.
Fig 99: Instrument Panel Junction Block-Right
Courtesy of GENERAL MOTORS CORP.
Fig 100: Lower Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
