Installation Procedure

  1. Install the air filter element (6).
  2. Install the air cleaner housing cover (5) and clip the housing cover retaining clamps.
  3. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement

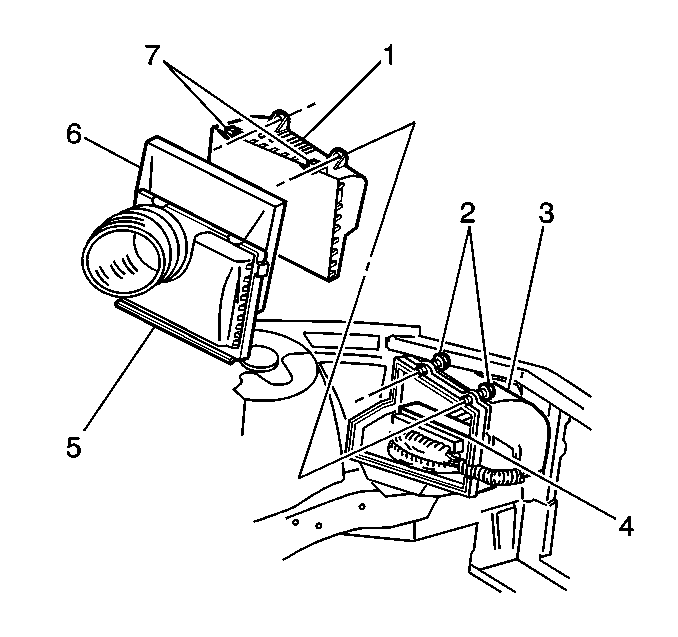

    4. Fig 1: Air Cleaner Components
    GM444460Courtesy of GENERAL MOTORS CORP.
