Installation Procedure

  1. Install the air cleaner intake duct to the throttle body.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air cleaner intake duct to the air cleaner cover.

    Tighten:  Tighten the air cleaner duct clamp to 2 N.m (18 lb in).

  3. Install the IAT sensor.
  4. Connect the IAT sensor electrical connector (3).

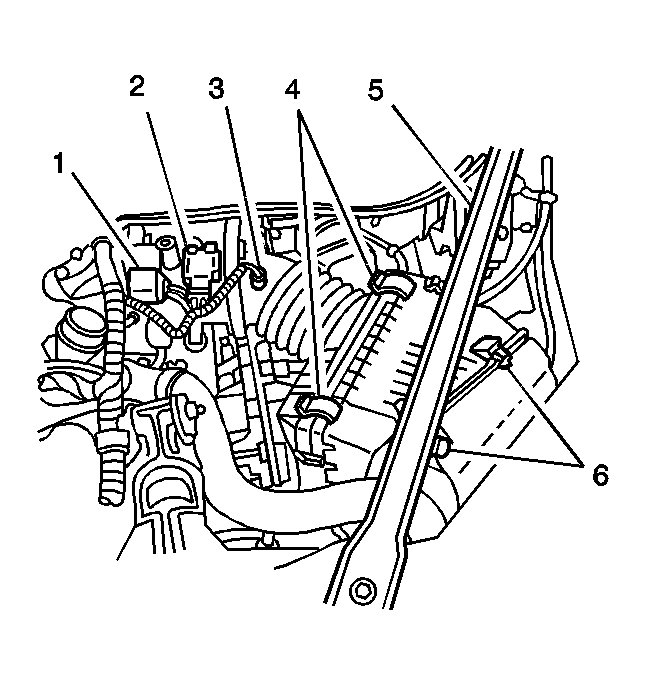

    5. Fig 1: Connecting IAT Sensor Electrical Connector
    GM760425Courtesy of GENERAL MOTORS CORP.
