Installation Procedure

  1. Install the camshaft position sensor to the engine front cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the camshaft position sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the electrical connector (2) to the camshaft position sensor (1).

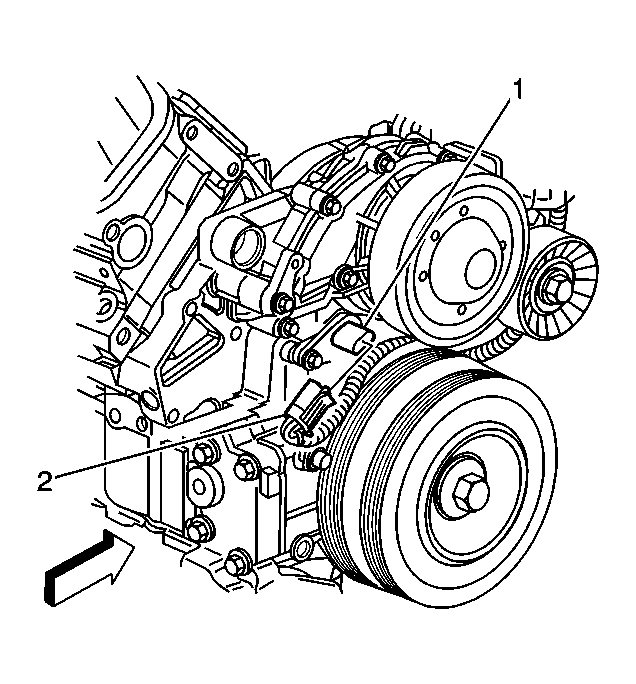

    4. Fig 1: Disconnecting Electrical Connector From CMP Sensor
    GM389047Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt. Refer to Drive Belt Replacement (L32) or Drive Belt Replacement (L67) in Engine Mechanical-3.8L.
  5. Install the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
