Installation Procedure

  1. Ensure that the seal is installed on the MAP sensor and that the seal is not damaged.
  2. Position and install the MAP sensor (1) to the PCV valve cover (2). Ensure that the locking tabs engage to hold the MAP sensor to the PCV valve cover.
  3. Connect the MAP sensor electrical connector.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical 3.8L.

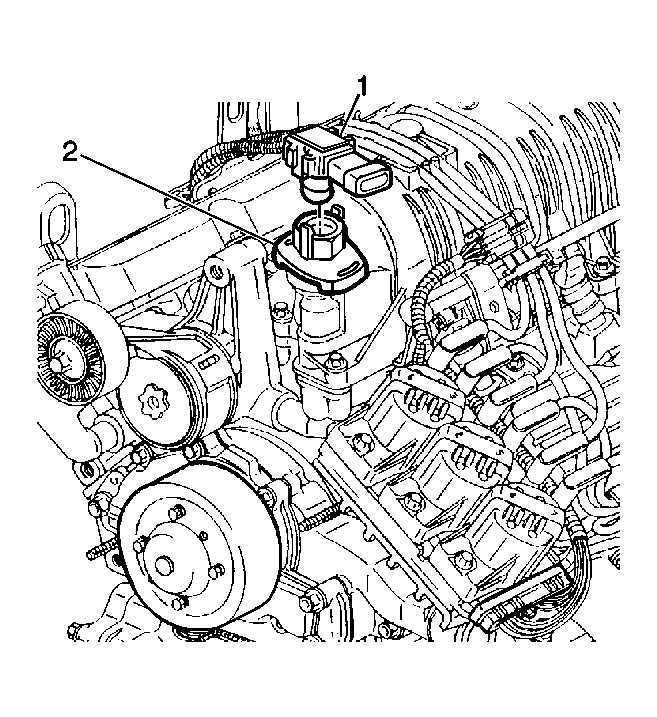

    5. Fig 1: Installing MAP Sensor (L36)
    GM12346Courtesy of GENERAL MOTORS CORP.
