Installation Procedure

CAUTION: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

Apply a few drops of clean oil to the male pipe end.

Fig 1: Lubricating Male Pipe End

Courtesy of GENERAL MOTORS CORP.

Push both sides of the quick-connect fitting together in order to cause the retaining tabs/fingers to snap into place.

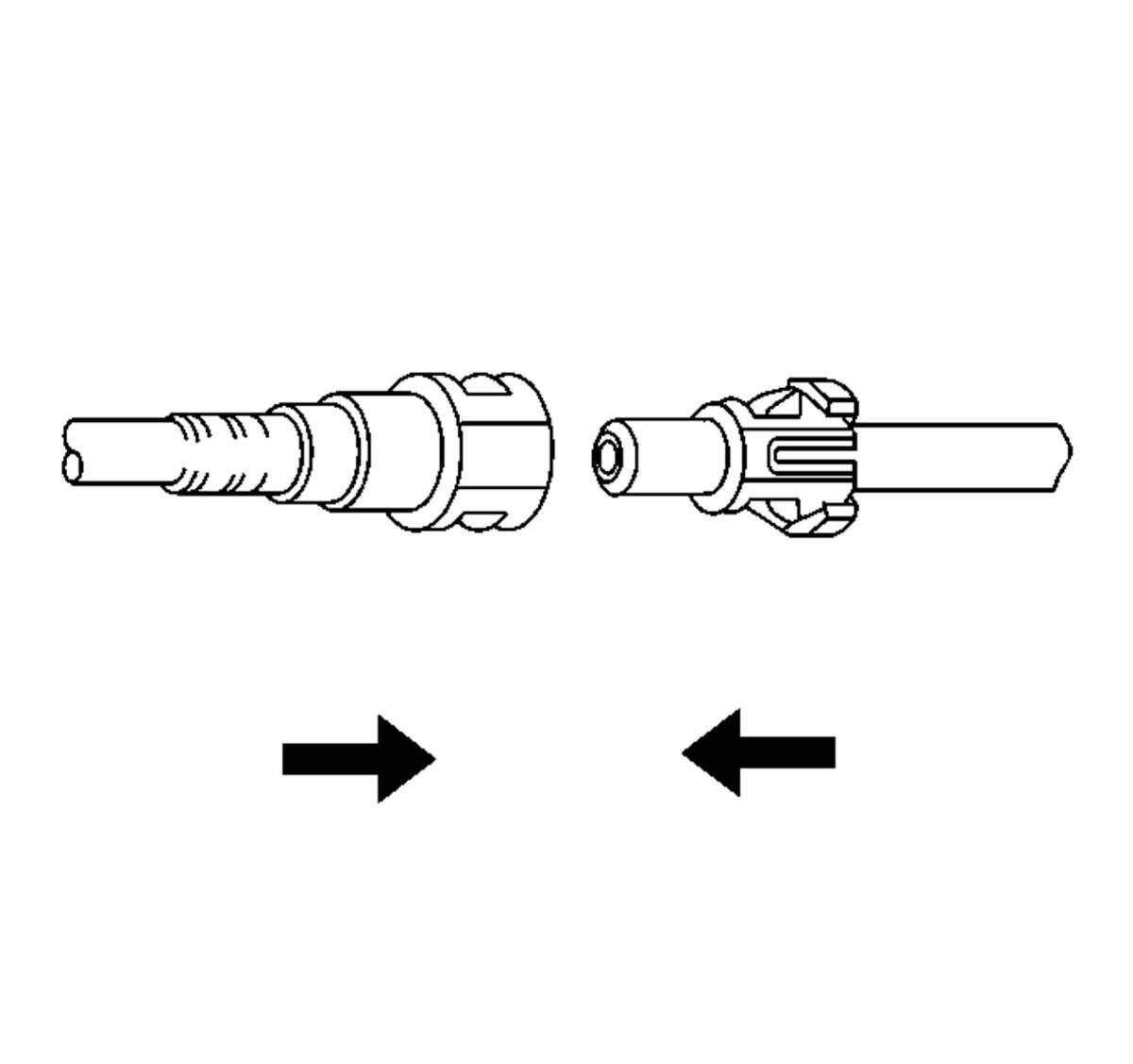

Fig 2: Connecting Fittings (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Pull on both sides of the quick connect fitting in order to ensure that the connection is secure.

Fig 3: Ensuring Secure Connection

Courtesy of GENERAL MOTORS CORP.

Tighten the fuel filler cap.
Connect negative battery cable. Refer toBattery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
Inspect for fuel leaks.
1. Turn ON the ignition for 2 seconds.
2. Turn OFF the ignition for 10 seconds.
3. Turn ON the ignition.
4. Inspect for fuel leaks.
