Installation Procedure

  1. Install the TP sensor to the throttle body assembly.
  2. Apply thread-locking compound GM P/N 12345493 (Canadian P/N 10953488) or equivalent to the TP sensor screws.

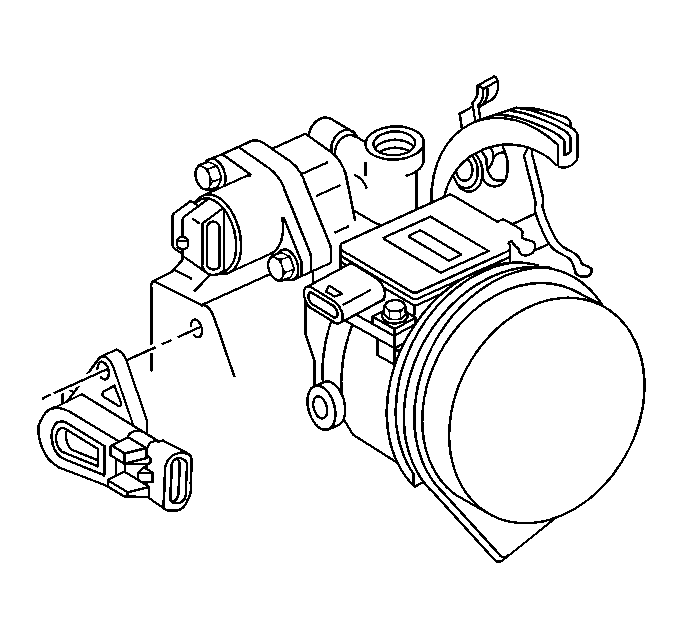

    3. Fig 1: Installig TP Sensor
    GM178694Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 2 TP sensor screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

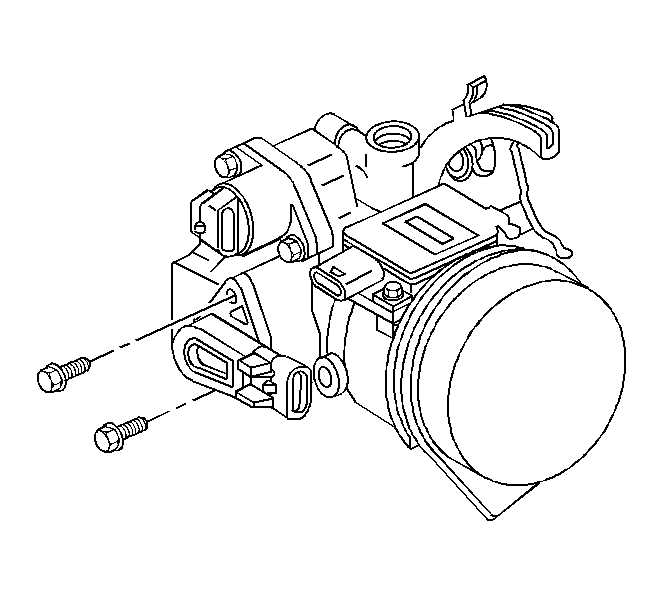

    4. Fig 2: Installing TP Sensor Screws
    GM178693Courtesy of GENERAL MOTORS CORP.
  4. Connect the TP sensor electrical connector.
  5. Install the fuel injector sight shield. Refer toFuel Injector Sight Shield Replacement in Engine Mechanical-3.8L.

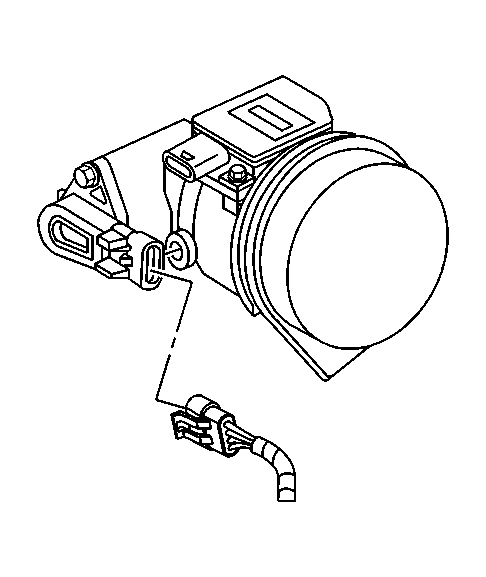

    6. Fig 3: Connecting TP Sensor Electrical Connector
    GM178680Courtesy of GENERAL MOTORS CORP.
