Keyless Entry Antenna Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

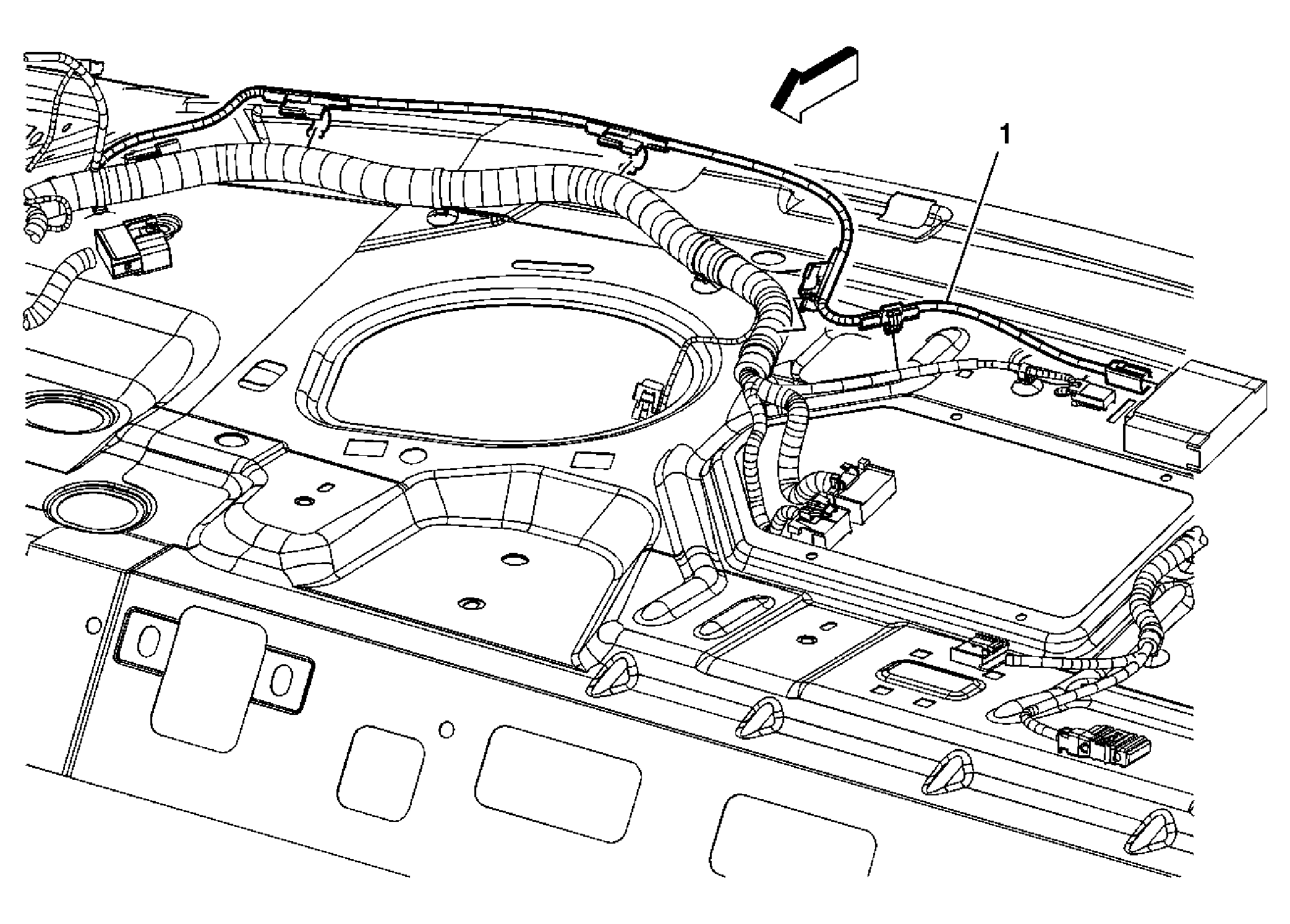

Fig 1: Locating Keyless Entry Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear . Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-folding) or Seat Back Replacement - Rear (Folding) . Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper . Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .
1	Remote Control Door Lock Receiver Antenna Assembly Tip: Disconnect the antenna from the door lock receiver.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-folding) or Seat Back Replacement - Rear (Folding) .
Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper .
Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .

Remote Control Door Lock Receiver Antenna Assembly
Tip: Disconnect the antenna from the door lock receiver.
