Memory Seat Control Module Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

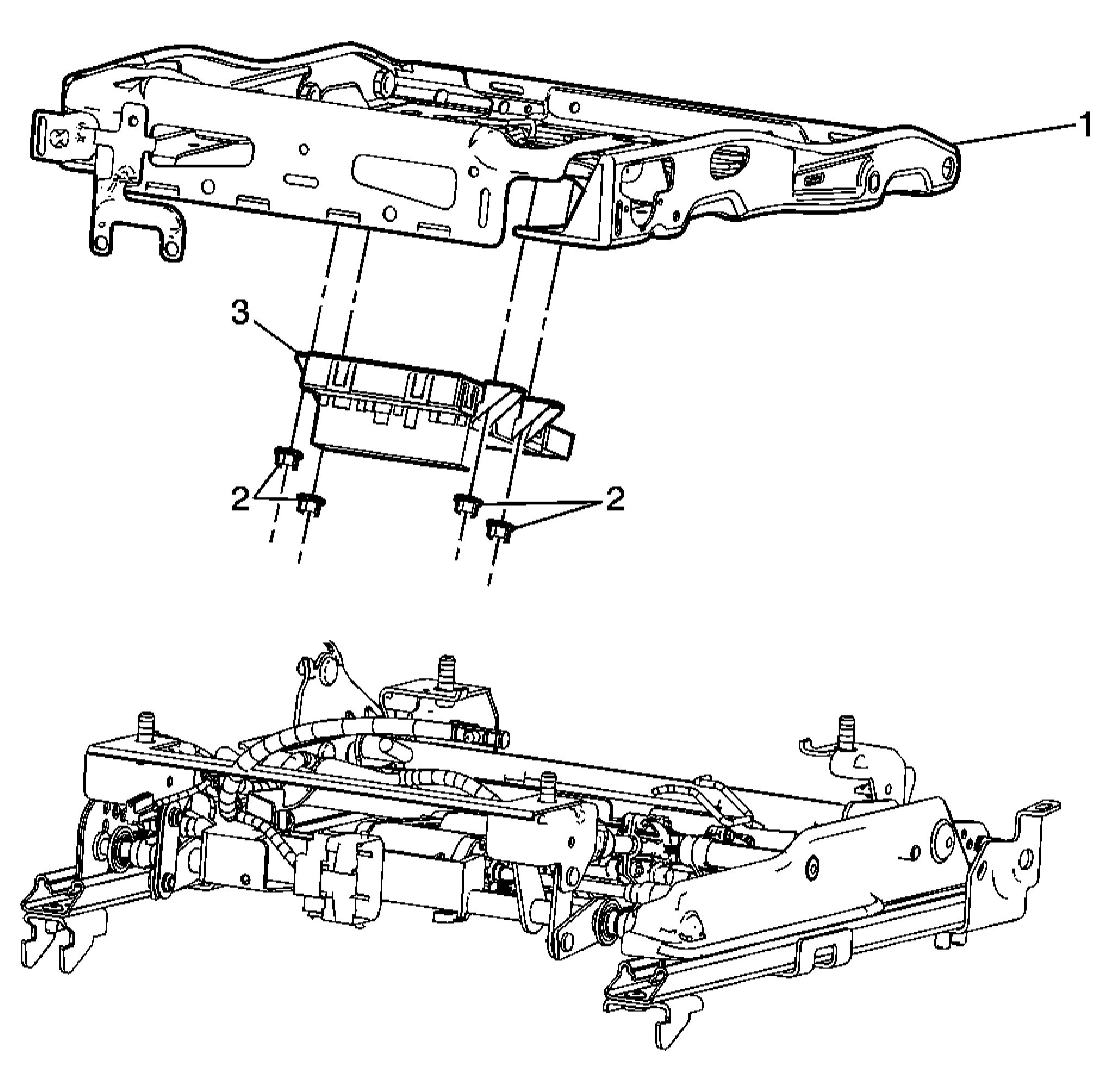

Fig 1: Identifying Memory Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling and SIR Disabling and Enabling . Remove the front driver seat. Refer to Seat Replacement . Remove the front driver seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement . Refer to Control Module References for replacement and setup information.
1	Frame, Seat Cushion Refer to Front Seat Cushion Frame Replacement .
2	Nut, Front Seat Adjustable Memory Module (Qty: 4) Tighten: 3 N.m (25 lb in)
3	Module, Front Seat Adjustable Memory Tip: Disconnect the electrical connector.
