Remote Control Door Lock Receiver (RCDLR)

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

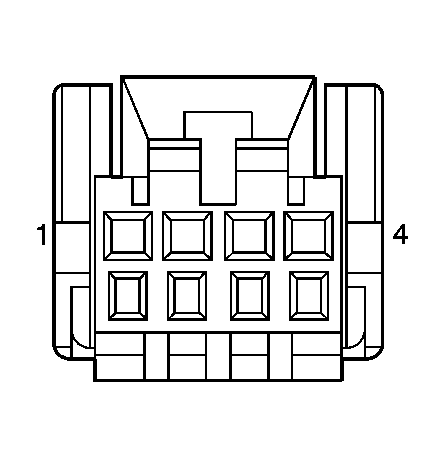

Fig 1: Remote Control Door Lock Receiver (RCDLR) Connector End View

Courtesy of GENERAL MOTORS CORP.

Remote Control Door Lock Receiver (RCDLR) Connector & Terminal Parts Information

Connector Part Information

OEM: ILAG54SS3C1
Service: See Catalog
Description: 4-Way F (BK)

Terminal Part Information

Pins: 1, 2, 4
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Remote Control Door Lock Receiver (RCDLR) Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	RD/D-GN	1040	Battery Positive Voltage
2	D-GN	5060	Low Speed GMLAN Serial Data
3	-	-	Not Used
4	BK	750	Ground
