Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

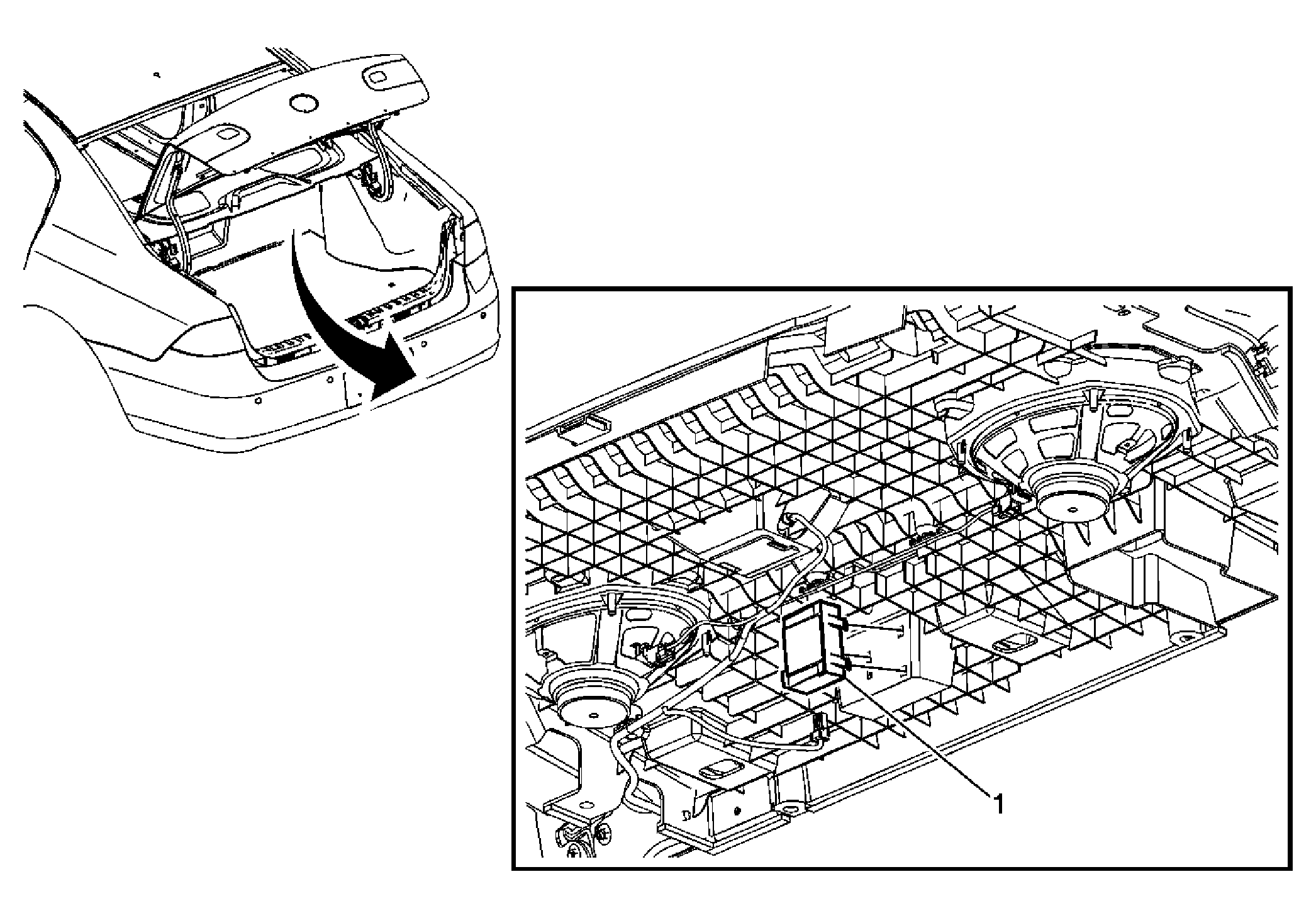

Fig 1: Identifying Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the right rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement .
1	Remote Control Door Lock Module Tip: The module is secured with three integral tabs, pull away from the bracket to remove. Disconnect the electrical connector. Reprogram the remote control door lock module after installation. Refer to Control Module References .
