Automatic Transmission Shift Lock Control Component Views

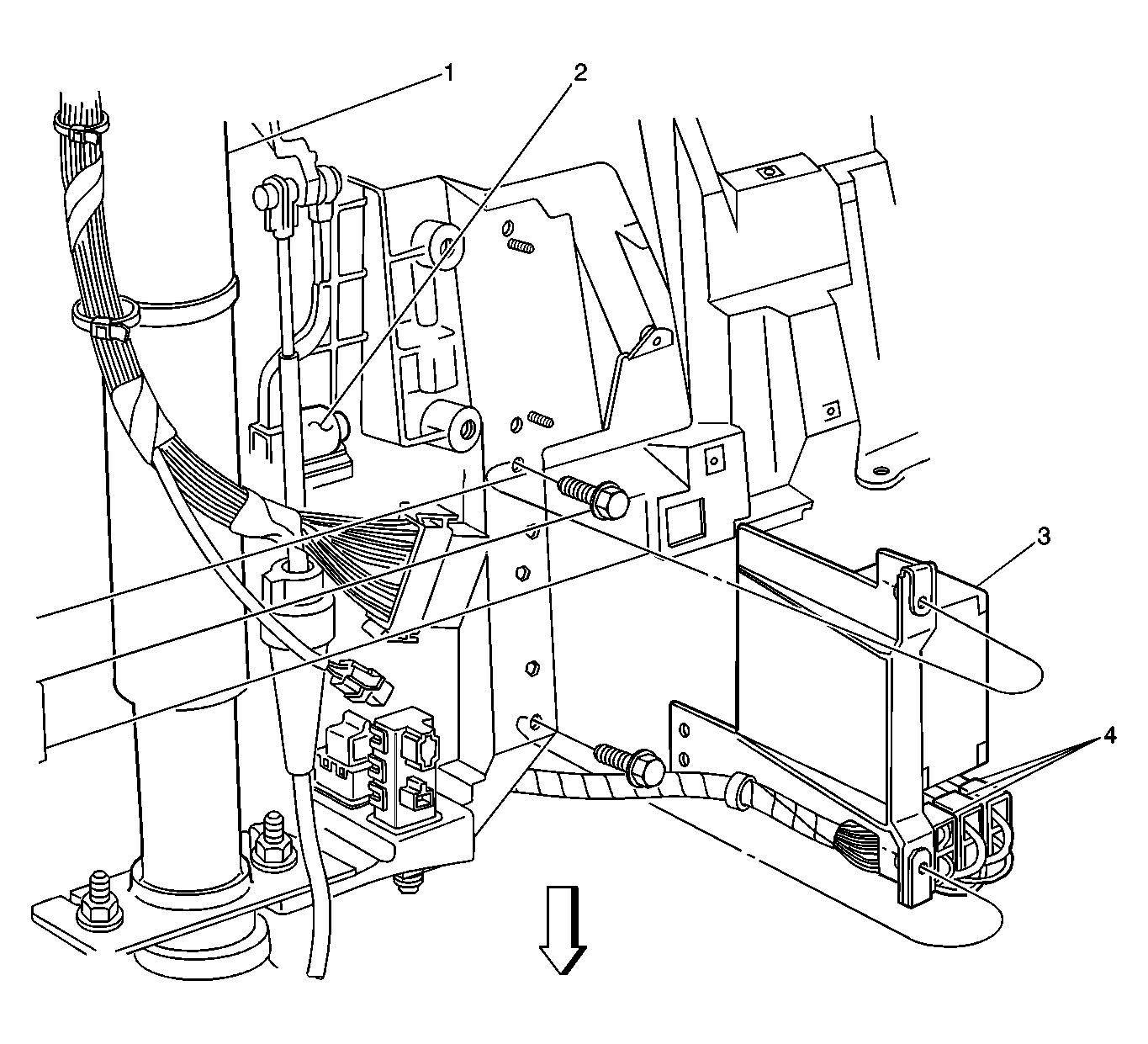

Fig 1: Lower Center Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	A/T Shift Lock Control Solenoid (w/o D55)
3	Fuse Block-SEO (9C1/9C3)
4	Circuit Breaker #1, #2, #3 (9C1/9C3)

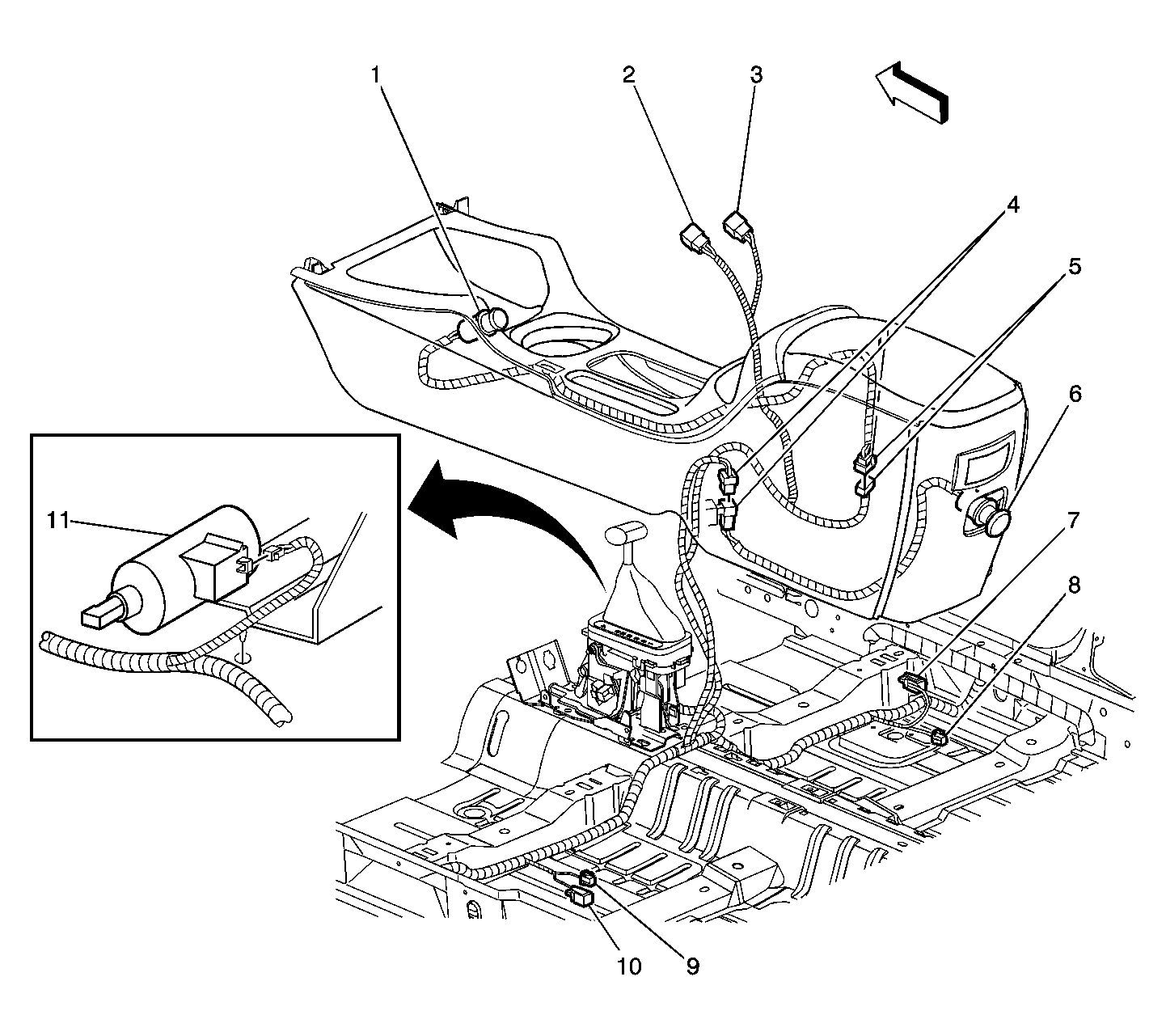

Fig 2: Console & Center Of Floor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Heated Seat Switch-Driver (Monte Carlo) Connector
3	Heated Seat Switch-Front Passenger (Monte Carlo) Connector
4	C317
5	C315
6	Auxiliary Power Outlet
7	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
8	C312
9	Inflatable Restraint Side Impact Module-LF Connector
10	C311
11	A/T Shift Lock Control Solenoid
